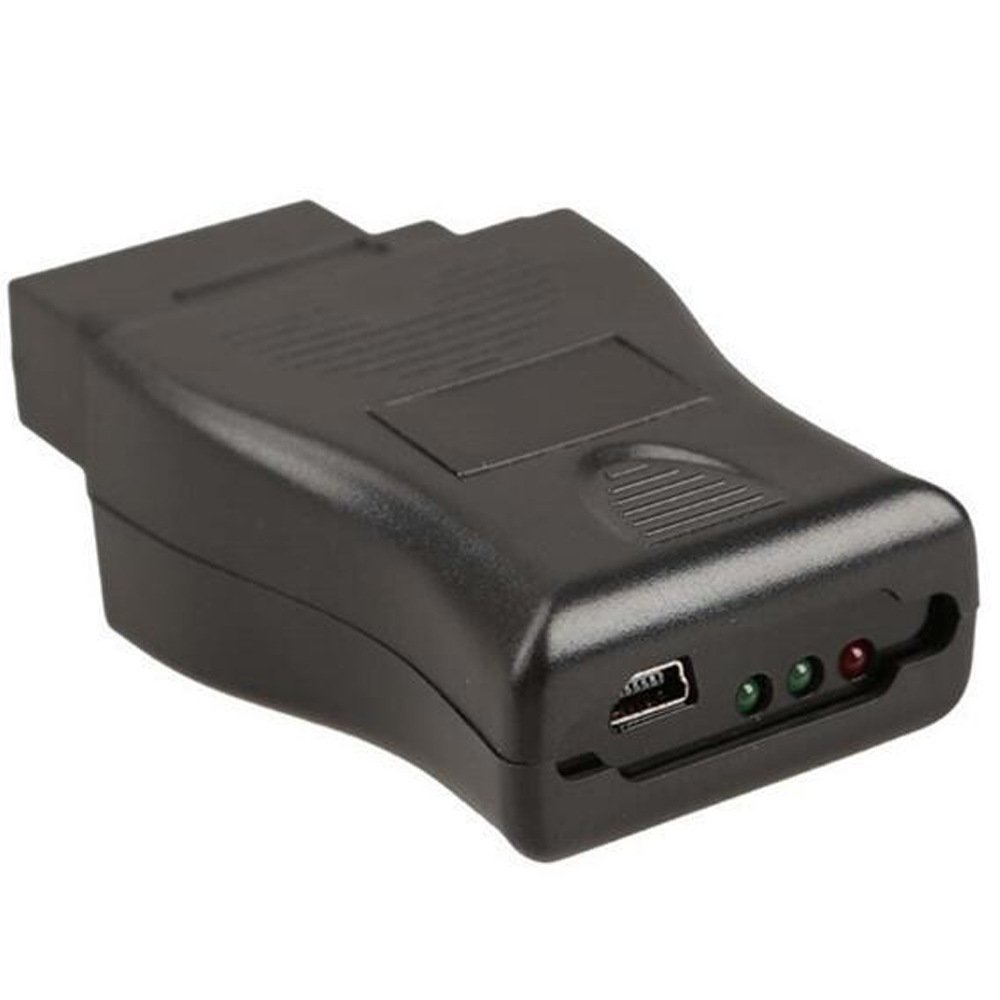

14 Pin for Nissan Consult OBD Interface Nissan Diagnostic Tool Diagnostic Line

This interface works on all Nissan cars that have the grey 14pin Consult connector (you’ll usually find it near the fusebox) (This cars are usually build from year 1989 to 2000)

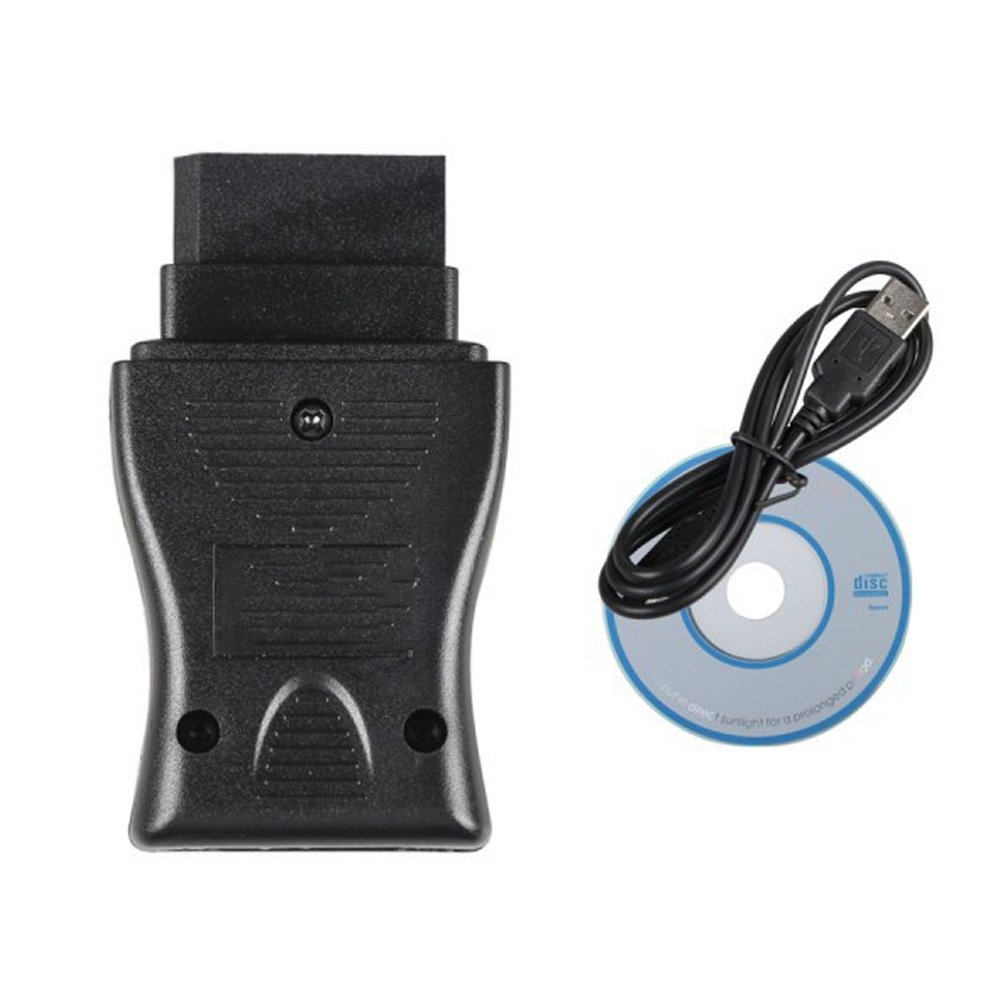

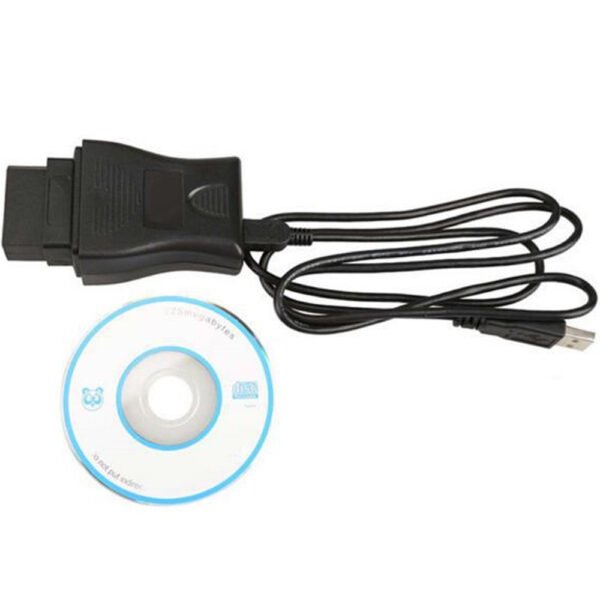

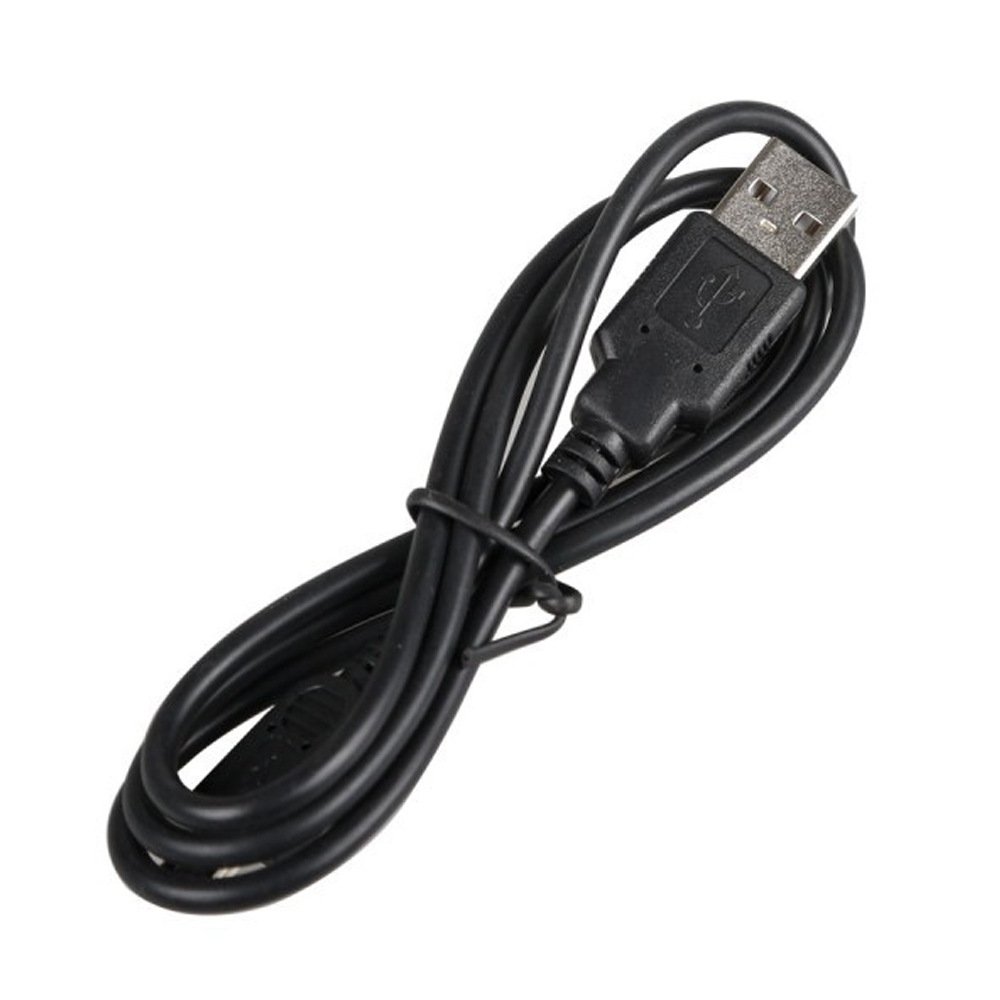

Package Includes:

Introduction

It is PC version of Nissan hand held Pocket PC Consult.

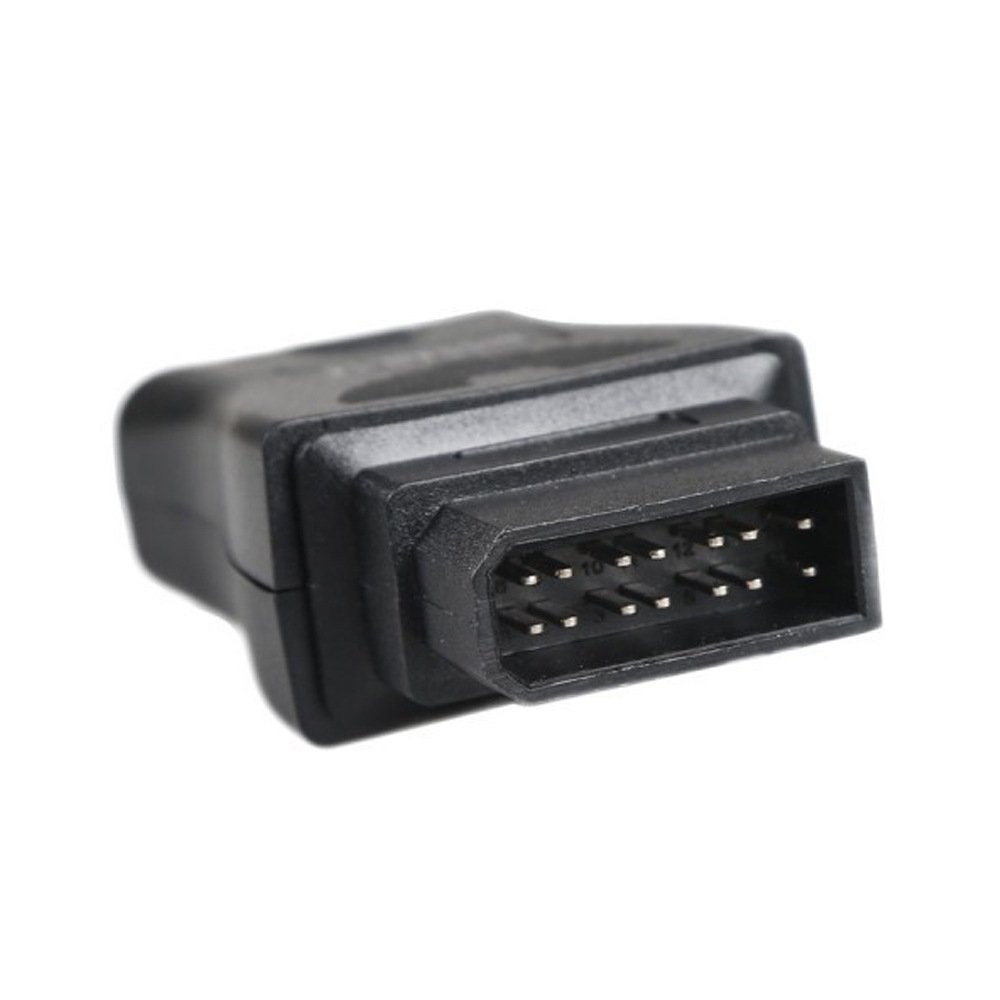

It is used on all NISSAN grey 14pin Digital Data Link (DDL). It is usually located near the fuse box on driver side.
The cars are usually built from year 1989 to 2000. Such as Cefiro, Sentra, Infinity, Maxima,300ZX,Z32, 240SX,S13, S14, Skyline, SR20DE, SR20DET, RB20, Altima, and Fairlady.

• R32 Skyline (9/89+ only, first few months from launch in 6/89 did not support consult)
• R33 Skyline
• R34 Skyline
• S13 Silvia / 180SX / 200SX (SR20 engines only, not CA18)
• S14 Silvia / 180SX / 200SX
• S15 Silvia / 180SX / 200SX (check for consult connector)
• Z32 300ZX (except for 96 model which might not work with all software)
• N14 Pulsar (including GTiR)
• N15 Pulsar
• B13 NX Coupe
• K11 Micra (check for plug, some late model may have an OBDII plug instead)
• U12 Pintara (KA24 only)
• U13 Bluebird
• A32 Maxima
• GQ Patrol (TB42E only)
• GU Patrol (TB45E, RD28ETi, TD42Ti – check plug, some TB45E have an OBDII plug instead, as do all ZD30)

• R50 Pathfinder (VG33E, 95-05, check your port as some later models have an OBDII plug instead)
