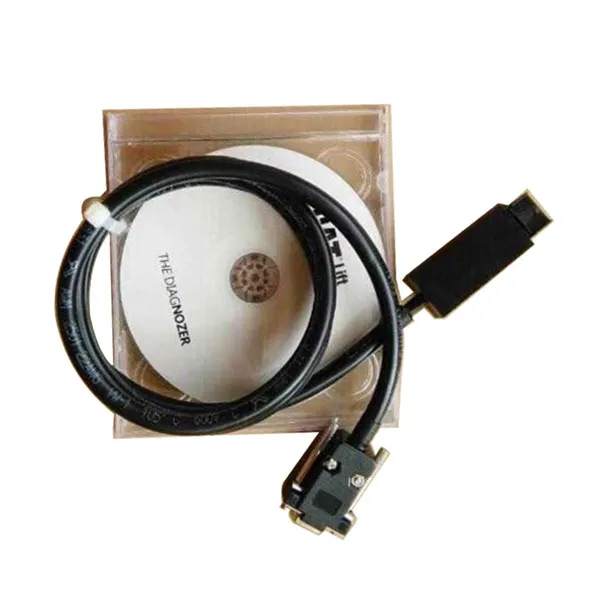

16A68-11320 Diagnostic Cable For Mitsubishi Lift Trucks
Features:
– Protection function,
– Multi-language support,
– The choice of the model
– Monitoring values
– Read fault codes,
– The monitoring of the history of the accident,
– Monitoring of configuration parameters and the ability to change,
– The ability to preview the chart I / O on the display,
– Test function active
– Print the data.
Compatible Model Name and Controller Part Number:
| Diagnosticcable | Modelname | ControllerPartNo. |
| P3000-7000 | ||
| C3000-65000 | 16A36-X001X(VCM-1) | |
| DP/GP15N-35N | ||
| GC15-33N | 16A33-X004X(VCM-2) | |
| GP/DP15ND-35NFT | 16A35-X001X(DCM) | |
| ET3000-4000 | ||
| EP16NT-20NT | 16A70-X201X(Tractioninverter) | |
| EP16N-20CN | 16A70-X202X(Hydraulicinverter) | |
| E3000-6500 | 16A70-X308X(Logic) | |
| EC15N-30N | 16A70-X301X(Tractioninverter) | |
| 16A70-X3022X(Hydraulicinverter) | ||
| ES3000-5000 | 16A70-X108X(Logic) | |
| 16A70-X101X(Tractioninverter) | ||
| 16A70-X102X(Hydraulicinverter) | ||
| P17500-36000 | 16A36-X004X(VCM-3) | |
| P13500LPG-P11500LPG | 16A36-X005X(VCM-3OP) | |
| DP80N-160N | ||
| GP60N-70N | ||
| EP10KRT-15KRTPAC | 16A70-X508X(Logic) | |
| 16A70-X501(Tractioninverter) | ||
| 16A70-X502(Hydraulicinverter) | ||
| NR14N-25NH | 16A70-X403X(Logic) | |
| 16A78-X101X(OUT-UNIT) | ||
| 16A78-X102X(IN-UNIT) | ||
| 16A70-X401X(Tractioninverter) | ||
| 16A70-X402X(Hydraulicinverter) |
Supported languages: English, French, German, Spanish, Italian, Japanese, Russian, Dutch, Swedish, Portuguese, Chinese
Package included :
16A68-11320 Cable
Mitsubishi Up-time DVD
Computer requests:
Operating system : Win7 x32, Windows 8 x32, WinJapan, WinXP
A serial port ( You can also use a USB to Serial converter cable If you don’t have a serial port on your computer )
