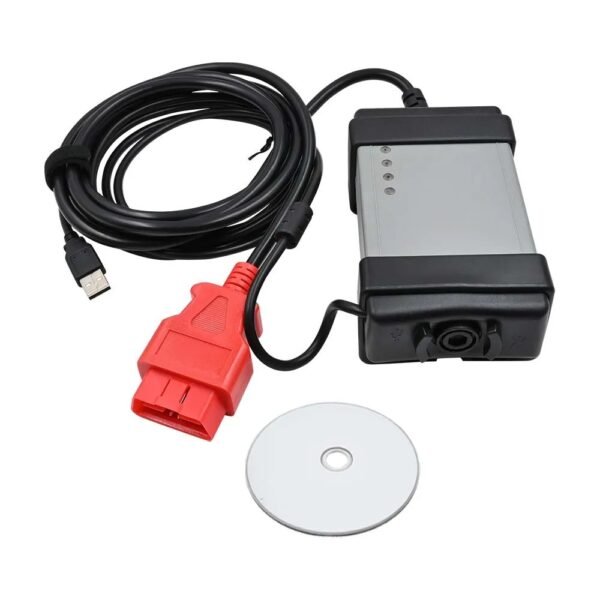

The OBD connector of the new batch of goods has been changed to red!

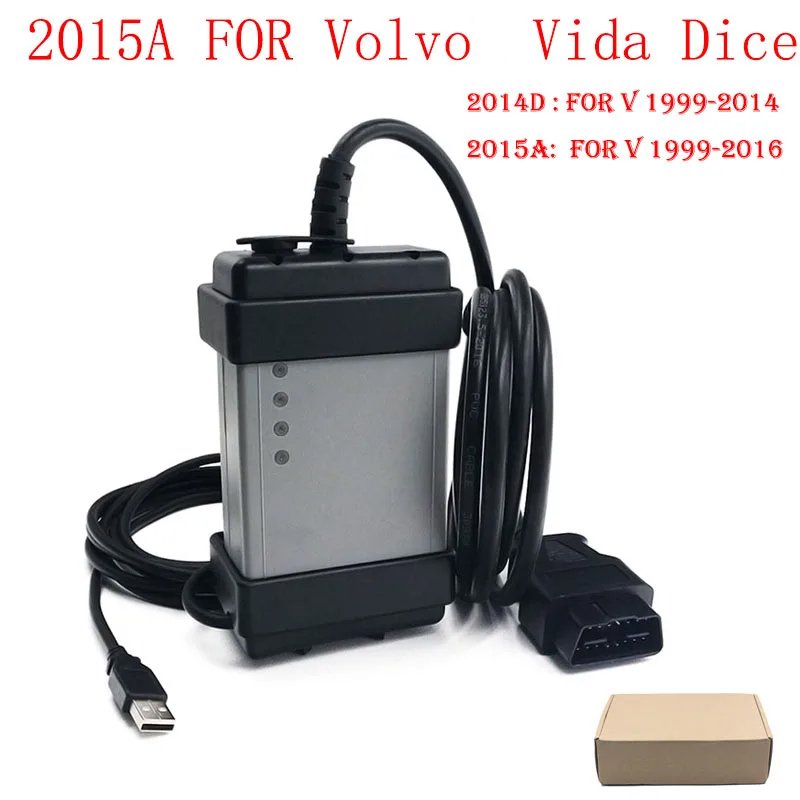

1. DICE – Diagnostic Communication Equipment, is a tool that is used together with all-in-one to communicate with the vehicle. WE DO NOT SELL STUPID DICE which resvised from J2534, because that do NOT supports full functions and update. Communication makes diagnosing and troubleshooting the vehicle possible.
2. DICE has an integrated CARB cable, which is connected to the vehicle’s diagnostic socket. When connecting to the vehicle, DiCE is powered as long as the battery is charged.

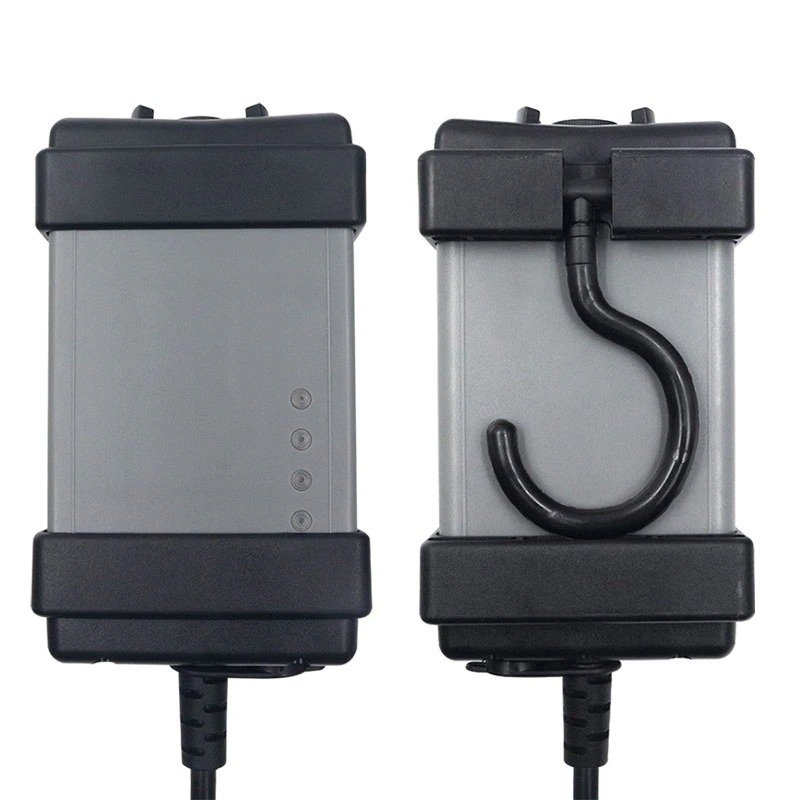

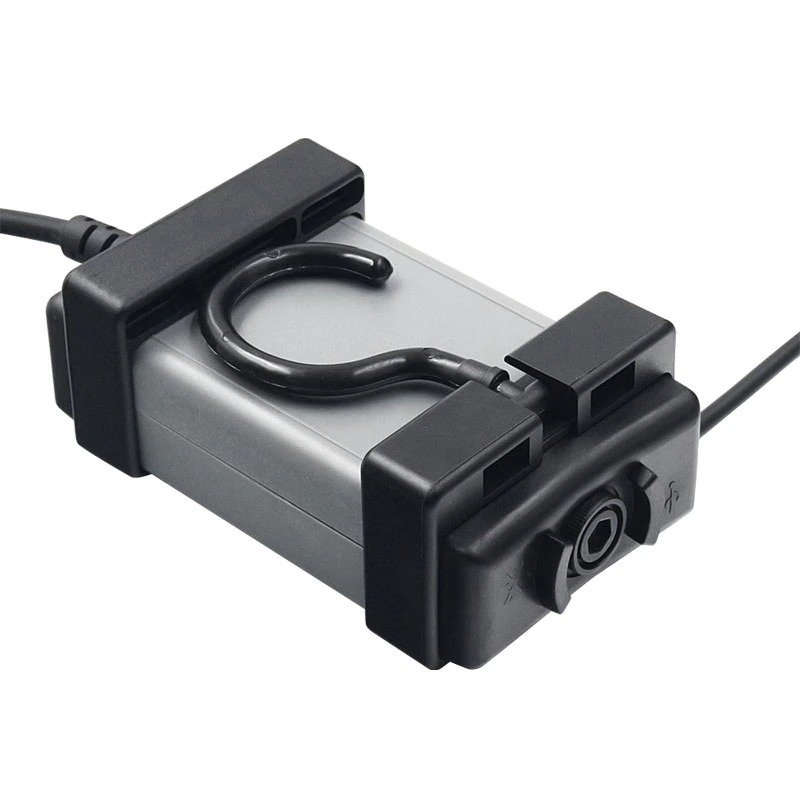

3. DICE has a folding hook that is designed for hanging the unit from one of the grab handles in the vehicle for example.
4. DICE is equipped with four status LEDs that indicate the status , the USB communication and the interface to the car.

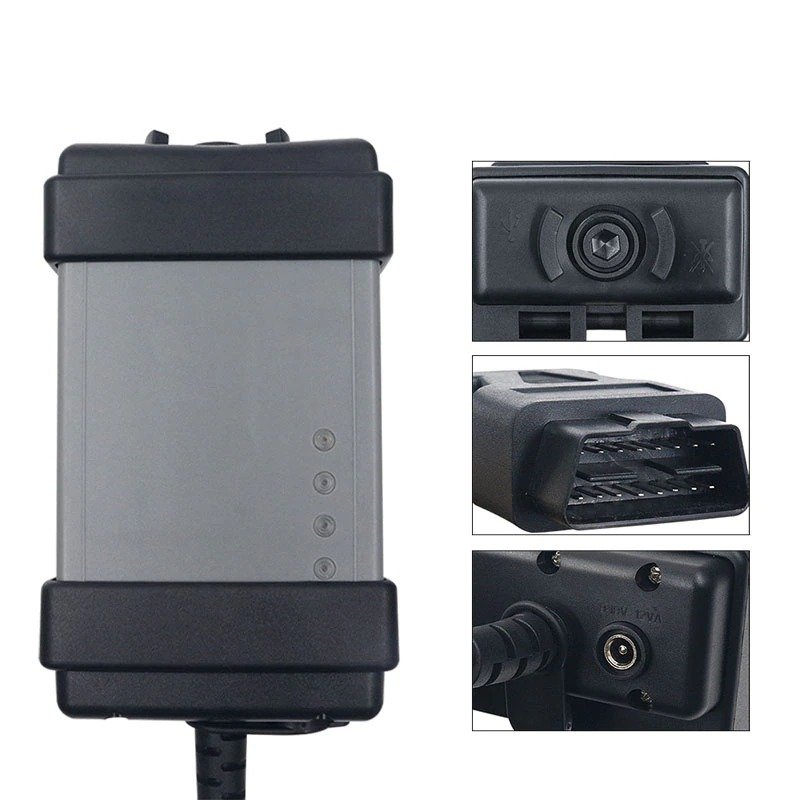

5. At one end of the unit, there is a DC input where a battery cable or adaptor(12V) can be connected. The adaptor is used when upgrading and troubleshooting the DICE.
6. In the other end of the unit, there is a removable cover that could be removed by turning the screw on the cover.
Dice Feature:
1. Please note! This is for Volvo Vida Dice, NOT VXDIAG changed Device !!! ,
NO NEED AND DO NOT install VXDIAG Driver!!!!
2015A SW CD(dvd) Come with package By defaut.
(2015A only support English language )
If you want 2014D Software,or DVD not readable,contact us to give u download link .
SW Support languages:
2015A: English.
2014D: German, Finnish, Italian, Dutch, Turkish, Spainish, French, Swedish, Portuguese, Russian, English
2.Supported Cars:
2014D : For V 1999-2014
2015A: For V 1999-2016
3.Working Parts :
It can do control modules, SRS, general safety, brakes, airbag, engine as well as service and maintenance.

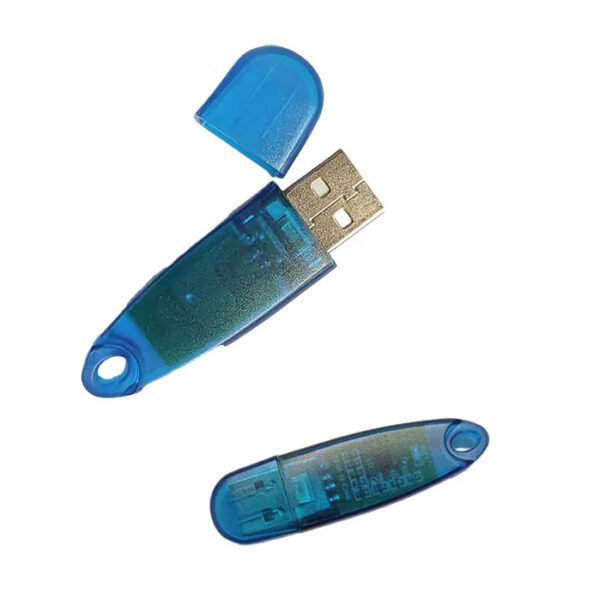

We give free USB dongle, no need activate by seller.
but if software Request active , pls send your ID For Active Unlimited Use.
DICE Requirement on computer
1. It must be windows 7 Professional operating system.(Does not supports XP and WIN 7 Home System.)
2. It need to be Internet Explorer9 Or above
3. Valid Computer memory ( RAM ) need over 3GRAM
4. C:// must have 40GB space
5. must install on C://
6. It must be NTFS format.
Installtion Step:
1. Insert the USB Key
2. Install VIDA 2015A in Install\DVD\Vida_dvdheader\Main\setup.exe
3. After installation finished, DO NOT restart the laptop, run VIDA “pacth_x64.exe”or “pacth_x86.exe” directly in the root folder.install pacth and drivers
4. Restart laptop.
5. run vida All-in-one , input username 1, Login
6. click DEFINE VEHICLE PROFILE,
7. choose Communition tool “D i C E-206751”, click CONFIGURATION, and Hardware ID.
8. give your Hardware ID ,and you will receive a file “vida.lic”, copy this file to “C:\VIDA”
9. restart your vida, connect to DICE, it will work OK
Notice: Please keep the USB inserted during the installation and software running.
Notice: Please keep the USB inserted during the installation and software running.
Please Note:
- It connect by USB, Doesn’t Support Bluetooth.
- No Supports new XC90 Doip
- Please close the anti-virus programmer before install and disconnect internet .
- It can not support for car models before 1999 year(no ECU system).
- Remember to run the file EnableIEHostingx86.reg for 32bit systems or EnableIEHostingx64.reg for 64 bit system. The files can be found in the folder INSTALL->Utils. Just run these file as administrator So ” Communication Tool ” ( CONFIGURATION ) will be OK .
FAQ
Q: If “Cummunication tool ” shows ” X ”
A: Just run the file EnableIEHostingx86.reg for 32bit systems or EnableIEHostingx64.reg for 64 bit system. The files can be found in the folder INSTALL->Utils. Just run these file as administrator and everything works fine now!
Q:When I install ,it has anerror”Security OK but not OK”. How to solve the problem?
A:You need install it on Win7 32bit computer.
Q:Does Dice have the function of coding programming ?Is it possible to change the language in instrument cluster?
A:No, it is a full scanner for old and new car, but it cannot do program or change language.
Q:I’m using 2014 with Dice, and I’m curious about in which module I can change the “Automatic locking by speed” feature?
A:You need to be able to read/write both DIM and ICM flash memories.You have two options. Either make the reload at local dealer or someone who has an autologic interface. You could also buy some interface that is able to read/write DIM but not ICM.
Q: When I use, I have problem to communicate with all modules in car. Some modules like ECU, TCU are not in networks, but I have connection with climate control, CEM and front doors etc. In network screen I have ECU and TCU red and a text no communication.
A: We know that Dice is a J2534-2compatible, whereas Avdi is only a J2534 1 compatible, which causes no communication with all modules. I’m using a Dice clone and my clone is full chip 1:1 as genuine one. I started with 2008 versions and I was upgraded one by one to the 2014d version now.
