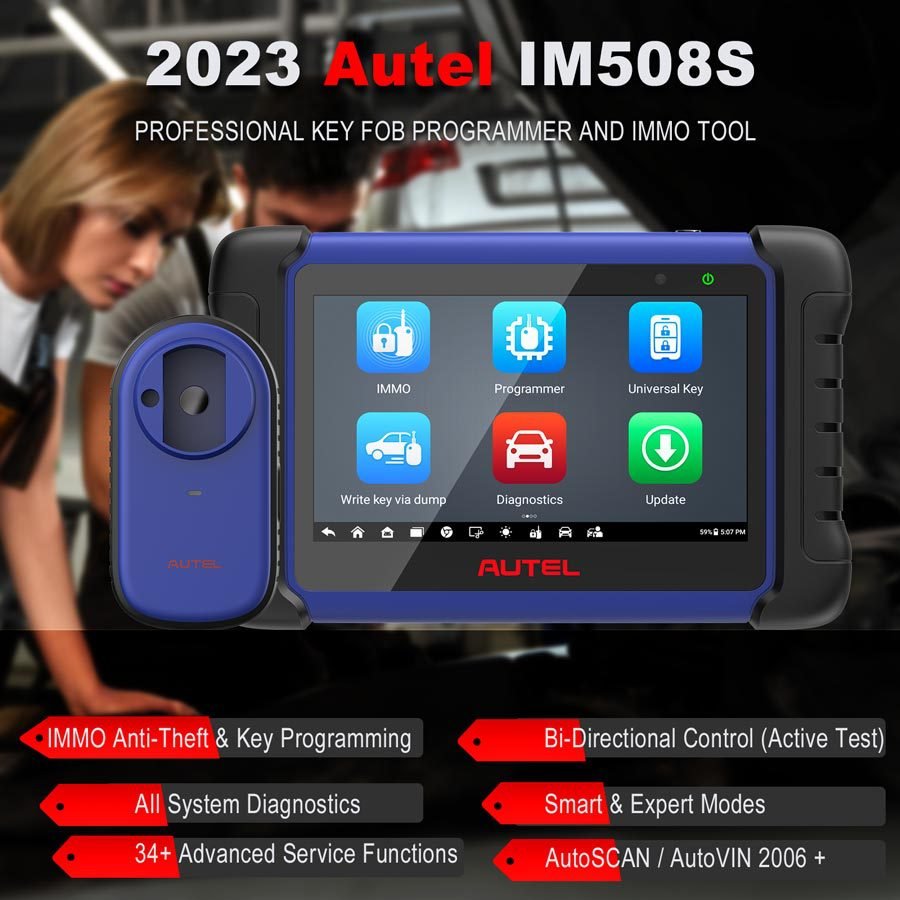

Product Highlights:
Powerful RK3566 processor
7” 1024×600 LCD capacitive touchscreen
Internal reliable 64GB Memory
Android Operating System for fast boot-up and multitasking
Powerful combination of key programming/all system diagnostics/advanced maintenance services
Smart Mode for guided and automated key learning
Expert Mode for advanced key learning
Read PIN/CS (all key lost) , key generation, key learning, remote learning
IMMO ECU reset/adaptation, refresh/coding
Transponder read/write, EEPROM/MCU read/write
Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
1 Year Warranty & 1 Year Free Software Update, you can use current software normally even 1 year free update period expires.
NEW! Support active test and complete special functions
Product Functions:

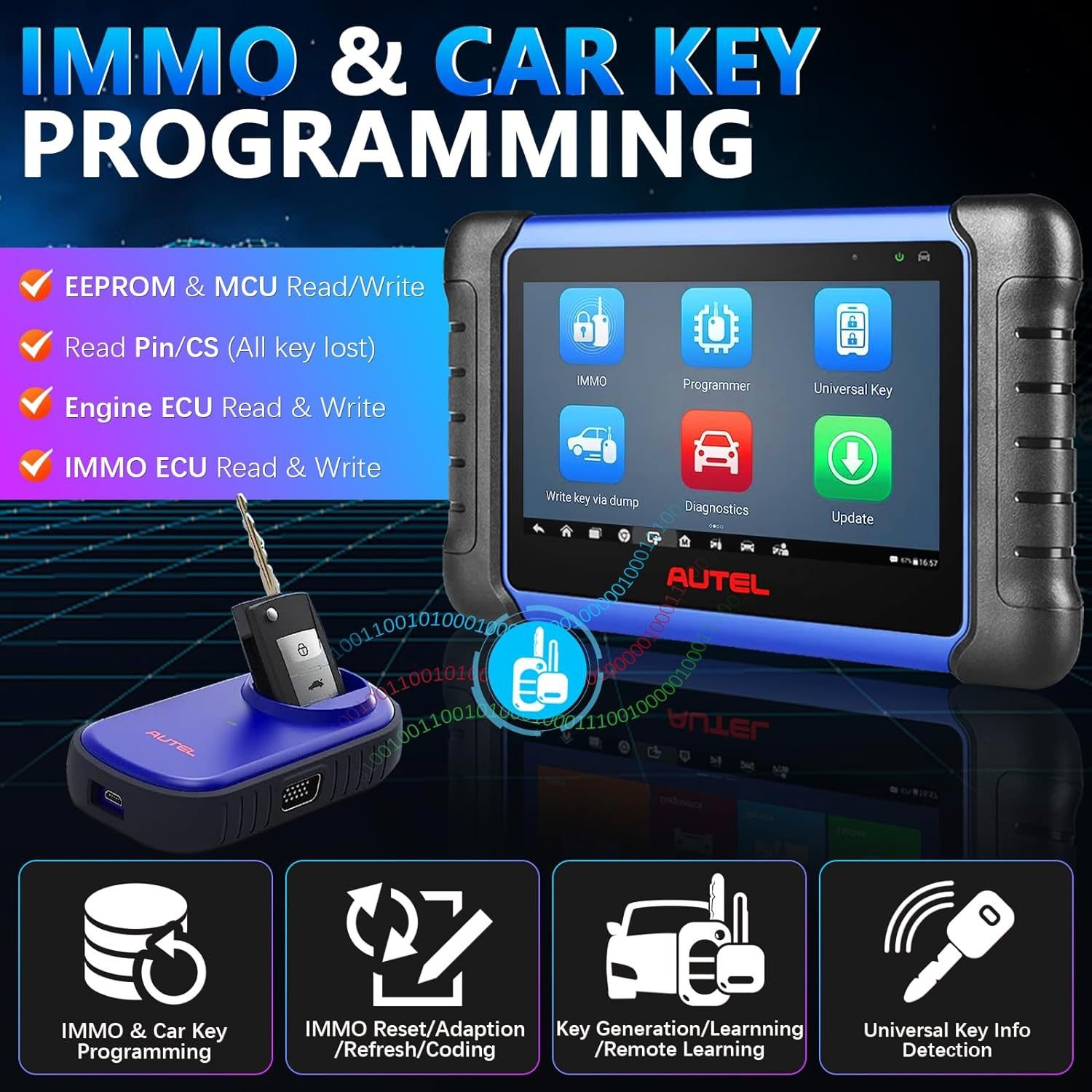

IMMO & Key Fob Programming for DIYers and Locksmiths
If you want to do something for IMMO systems or car keys, Autel IM508S scanner with XP200 key programmer can help you with the following: read & write to Immobilizer/Engine/EEPROM/MCU; reset/code/backup IMMO ECU; read PIN (Add Key/All Key L~st); key generation/key learning/remote learning, etc. Smart Mode will provide you with guided and automated key learning functions, step by step, save you much trouble! Note: Functions above vary by cars.
The XP200 is specially designed to read Volkswagen vehicle key chip data, clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool and PC that are both loaded with programmer software, the XP200 can read/write key chip data quickly and accurately.
Bi-Directional Control/ Active Test
What would you do if the wipers stopped working? Just replace one or spend a lot money to fix it? Don’t be in a hurry to dismantle your cars! Key Programming tool IM508S can perform real active tests that can send commands to the vehicle’s ECU to drive the actuators to work, like ABS, window, door, solenoids, valves, wipers, headlamp, etc, helping you quickly find out bad parts and pinpoint faulty issues. Note: NOT universal. Please check compatibility.
OE-level Diagnostic Capability, Same as MK808
Busy for a long time but can’t find what’s wrong with the car? Take it easy! Autel IM508S scanner, equipped with the same diagnostic capability as MK808, can scan all available car systems on 80+ US, EU and Asian car makes to read & clear DTCs, view live data, freeze frame data, and ECU info, perform active tests and compatible with MV108(not included). With just a few simple clicks, you can quickly locate the issues to win more time and money.
34 Kinds of Maintenance Services, Everything for you.
Oil reset, EPB, TPMS, BMS, brake bleed, aftertreatment, injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Language Change, Headlamp, CHG tire size, TEC learn, ABSSRS, Cylinder, VGT learn, Speed & PTO, Clutch, Trans adaptation, Airbag reset, A/F setting, Automatic Start/Stop, electronic water pump start, EGR, FRM reset, transport mode, HV battery, ACC, A/C, rain/light sensor.
How much did you spend on maintaining your car? In fact, experience tells us that just a small repair service may cost a lot of money. So Autel IM508S scanner are actively reducing the unnecessary expense by integrating 28+ services, meeting many daily service needs, such as Oil/EPB/SAS/DPF/BMS/ABS Bleed/Injector, etc. Note: Functions vary by vehicle, please send VIN to us to check compatibility before order.
Smart Mode–accesses to a function menu where each function is configured as a smart guide system.
Expert Mode–accesses to a function menu where each function is separated from each other.
IMMO:
The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection.
The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.
IMMO & Key Programming:
1.Read PIN/CS (AII key Lost)
2.Key Generation
3.Key Learning/Remote Learning
4.Backup/Restore IMMO Data
5.IMMO ECU Reset/Adaptation,Refresh/Coding
6.BMW FEM/BDC Key Learning and ECU Adaptation
7.VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More
Autel MaxiIM IM508S Function List:
All Systems Diagnostics
AutoVIN / AutoScan
Read / Erase Codes
View, Record, Playback Live Data
View Freeze Frame Data
Shop and Data Manager Applications
Key Read / Write
EEPROM / MCU Read / Write
Read PIN / CS (All Key Lost)
Key Generation
Key Learning
Remote Learning
Backup / Restore IMMO Data
IMMO ECU Reset / Adaptation
IMMO ECU Refresh / Coding
BMW FEM / BDC Key Learning and ECU Adaptation
VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Keys Lost, and More
Product Specifications:
|
Operating System |
Android 11 |
| Processor | Rockchip RK3566 Quad core Processor：4x 1.8GHz(A55) |
| Memory | 64GB |
| Display | 7-inch LCD capacitive touchscreen with 1024×600 resolution |
| Connectivity | Mini USB 2.0 USB2.0 Wi-Fi Micro SD card slot(supports up to 64GB) |
| Sensors | Ambient light sensor for brightness auto changing |
| Power and Battery | 3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply |
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5V/1.5A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on)@3.7 V |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5%-95% non-condensing |
| Net Weight | 885g(2.31|b.) |
| Supported Automotive Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

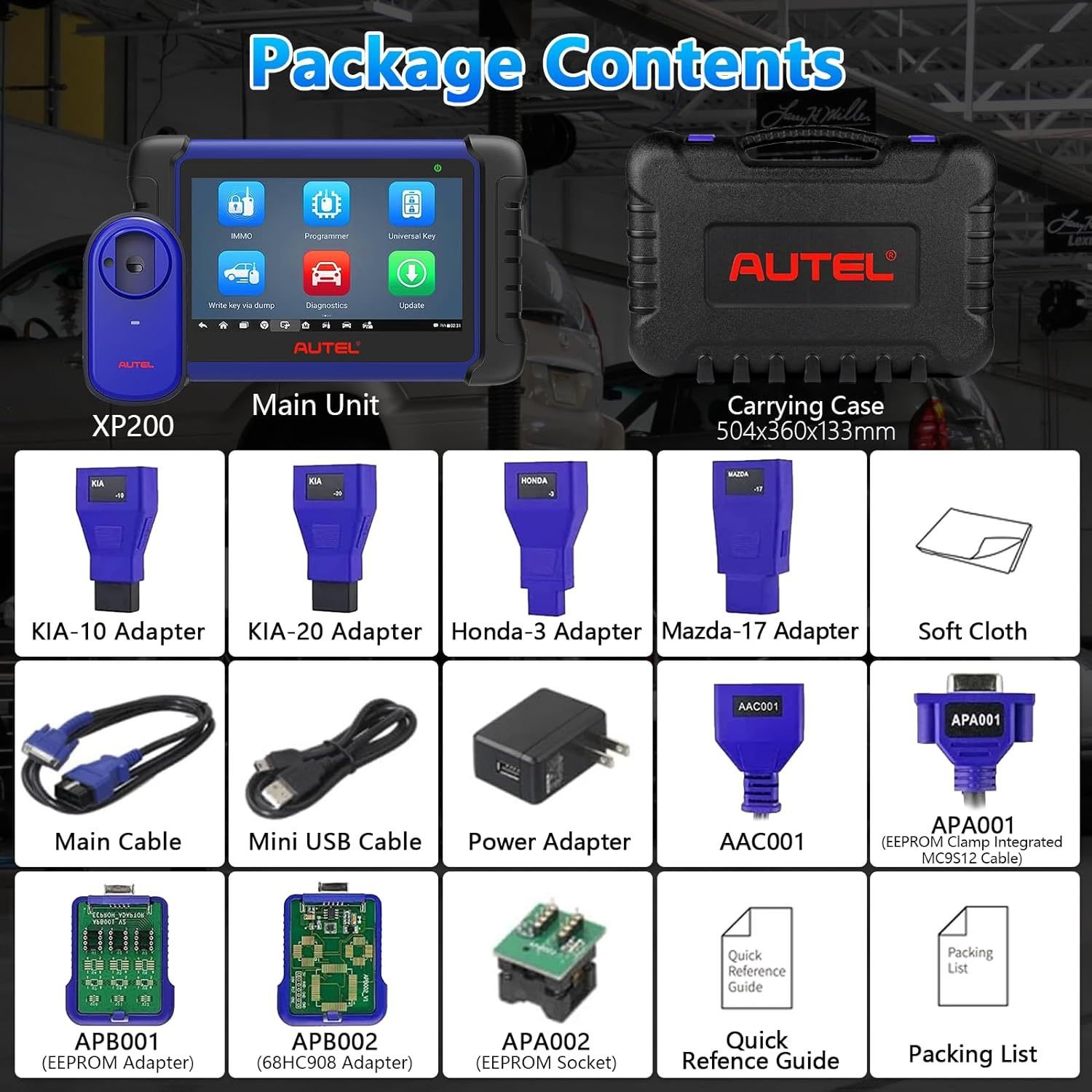

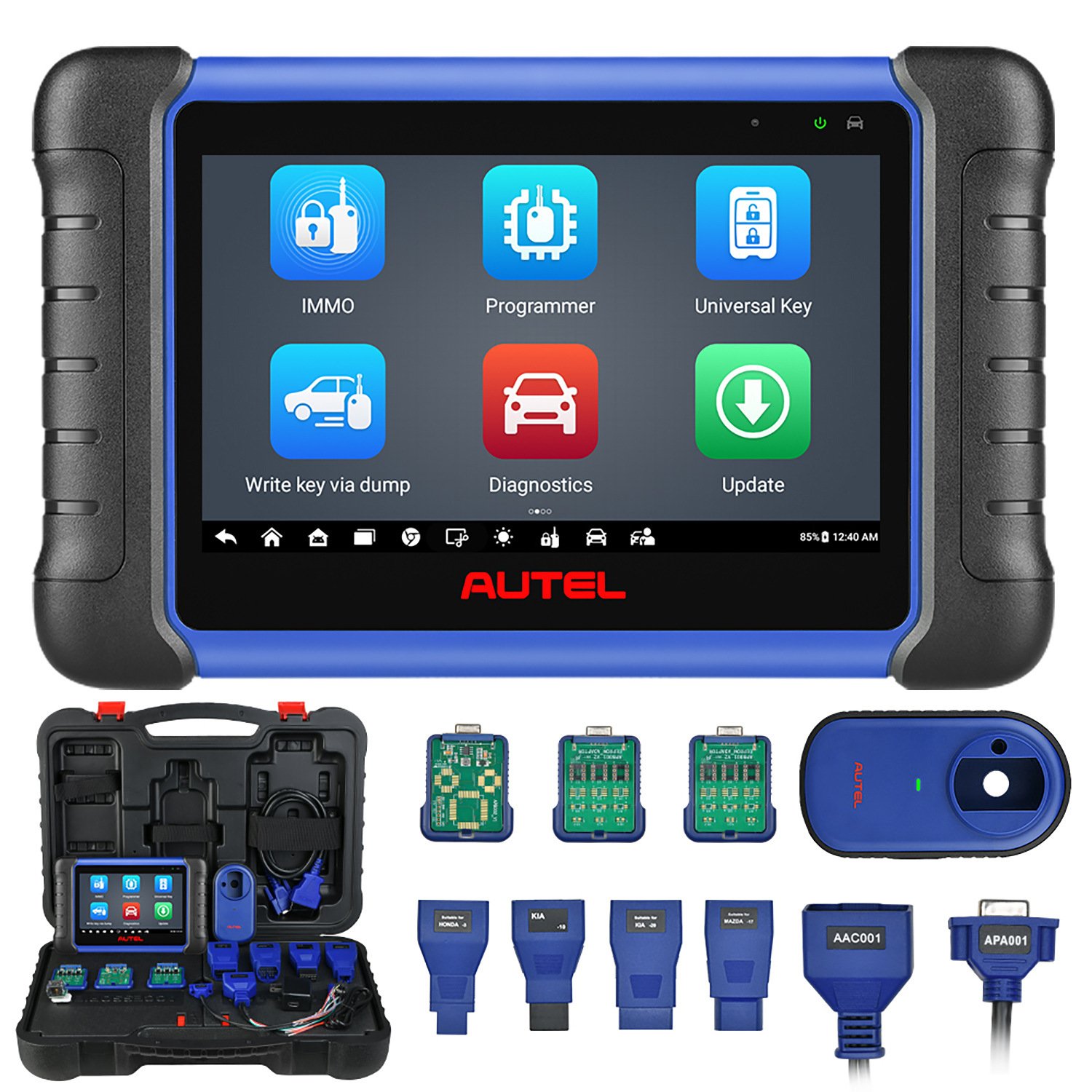

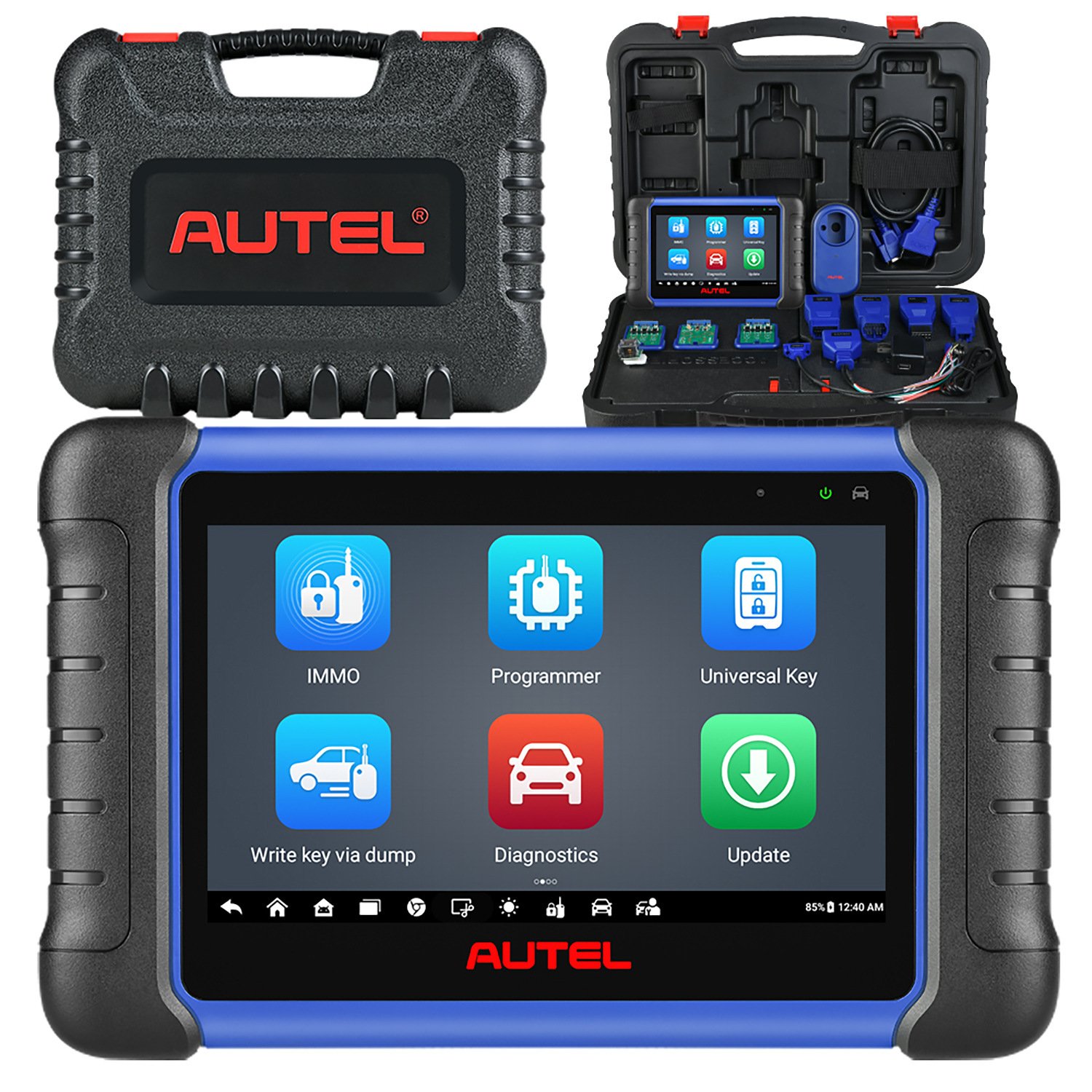

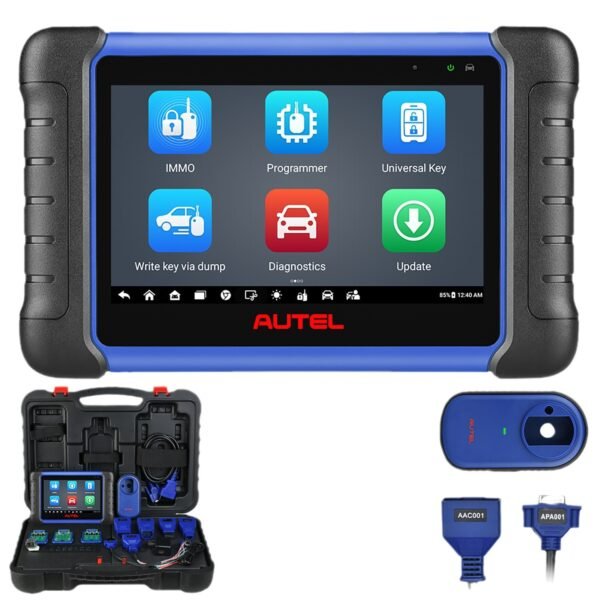

Package Includes:
1PC x MaxiIM IM508S Tablet
1PC x XP200 Key Programmer
1PC x Main Cable
1PC x Mini USB Cable
1PC x USB External Power Adapter
1PC x APB001 (EEPROM Adapter)
1PC x APB002 (68HC908 Adapter)
1PC x APA002 (EEPROM Socket)
1PC x APA001 (EEPROM Clamp Intergrated MC9S12 Cable)
1PC x AAC001 – MED17 Cable
1PC x KIA-10 Adaptor
1PC x KIA-20 Adaptor
1PC x Mazda-17 Adaptor
1PC x Honda-3 Adaptor
1PC x Carrying Case
1PC x Quick reference guide
