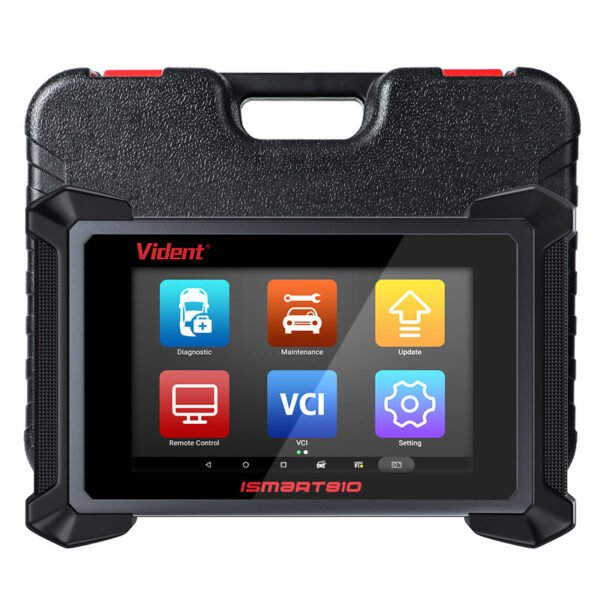

2023 VIDENT ISMART810 Car Diagnostic Tool Bluetooth Scanner Active Test ECU Coding Key Programming 40 Resets With DoIP&CAN FD

iSmart810is Vident new Android based scan tool featured with intuitive user interface, sophisticated diagnosis, wide vehicle coverage, advanced graphing, bi-directional component tests, component calibration, module coding and programing. It utilizes a 8 high resolution IPS LCD touch screen (1280 x 800), a secure, solid-state 64GB hard drive and a Cortex Quad-core processor that delivers boot-up in less than 30 seconds, the multitask-capable Android 7.1.2 Operating System to offer you the best intuitive user interface and user-customizable configuration. With an unusual combination of sophistication and simple operation, iSmart810 is suited to any tech—from rookies to seasoned diagnostic specialists.

ISMART810 has better functions than FOXWELL NT1009, NT909, Autel MK906PRO

🏆Advanced ECU Coding:ISMART810 Provide best solutions for BMW/Benz/VW/Audi/SKODA for ECU Coding, to replace the existing software/firmware in the electronic control unit, program new ECUs, and fix software-controlled driving performance and emission issues.

🏆ALL Systems Diagnostic:ISMART810 With Topplogy Map for faster full system diagnostic to view the communication structure between modules clearly with all the situation of each system tRefresh Hidden Functions and ECU Coding currently only support For BENZ, For BMW, For VW read/clear codes for all vehicle systems including Engine, Transmission, Chassis and Safety control system, Body control system, Communication and Entertainment system, etc.

🏆Intelligent Topology Map to Faster Diagnosis:ISMART810 auto diagnostic scan tool new-added intuitive topology module mapping, having everything in a view on the communication structure between modulesjust one click to display all fault codes, executive functions and view live data in graphing directly. Help technicians to save time and effort! Note: Do not available for All Vehicles

🏆Bi-Directional Controls:ISMART810 Full control of various vehicle components to perform active tests such as EVAP test, idle re-learn, injector test, cycle ABS motor pump, A/C clutch switch on/off, windows open/close, fuel trim reset, fuel composition reset etc.

🏆Professional IMMO/Key Programming:ISMART810 one or more replacement key fobs can be programmed. like programming new key fobs, Read PIN code/pin code calculation,Check number of keys, Generate key, Add key, All key lost.

🏆Hot 40+ Special Functions:ISMART810 is Designed for Mechanics and Workshop, Garages. Functions like Oil Reset, EPB, SAS Adjustment, DPF Regeneration,Reset control unit, Rain/Light Sensor, A/C Relearn, HV Battery, VGT Relearn, VIN write etc.

🏆With CAN FD & DOIP Protocol:Access new communication protocols of CANFD (cover for GM MY2020+ models) and DOIP (for BMW E/F/G Chassis, Jaguar, Land Rover vehicle makes).

🏆Intelligent Topology Map:Visualize any abnormal modules/systems in the vehicle and their working status. This is the most thorough and easiest way to diagnose your vehicle.Not all cars support it.

🏆Auto Vin & Auto Scan:Simplify the vehicle diagnostic process with just one click. The ISMART810 scanner tool uses the latest automotive VIN technology, allowing maintenance personnel to easily identify vehicle information such as manufacturer, model, year and manufacturing location.

🏆3 Years Free Updates:ISMART810 comes with one-click online updates and 3 years of free updates to get the latest software for more features and new model coverage. Even after the free update has expired, the device will still work normally.

🏆Powerful Hardware Configuration:🚩Android 7.1.2 🚩2GB+64GB storage 🚩1.8Ghz quad-core processor 🚩CAN FD Protocol 🚩DOIP Protocol 🚩8500mAh Battery 🚩8 inches (1280*800) Touch Display 🚩Built-in Speaker & Microphone 🚩Bluetooth/WIFI: 4.0/2.4G, 5G

With the ISMART810 it can perform OE level diagnostics on all available 1996-2022 vehicle systems and easily pinpoint issues with the engine, transmission, AT, ABS, SRS, EPB, IMMO, IC, airbags and more. Find all the vehicle issues hiding under the hood and clear the code to restore optimized performance. The topology map displays the diagnosis status in different colors, which greatly improves the maintenance efficiency of the workshop.

🏆Intelligent Topology Map Currently Only Supports:For GM, For NISSAN, For BENZ, For OPEL, For TOYOTA, For BMW, For SPRINTER, For CHRSLER, For FIAT, For VW, For RENUALT, For PSA, For FERRARI, For ASTONMATIN, For PORSCHE, For HYUNDAI, For SUZUKI, For SSANGYONG, For SUBARU, For VOLVO and more.

🏆ECU Information

🏆Read Codes

🏆Erase Codes

🏆Live Data

🏆Active Test

Note:The Topology Map Function is not supported by all cars. Please consult the seller before purchasing.

VIDENT ISMART810 can send commands to the vehicle to perform active tests to control various vehicle parts and subsystems, like fuel pump, fuel injector, A/C Clutch, window, door, sunroof, etc, allowing you to detect if the specific system is working accurately or malfunctioning, Such:

🏆EVAP Tests

🏆Compression Test

🏆Turn On/Off Radiator Fan

🏆A/C Clutch On/Off

🏆Window/Mirror/Door Lock Test

🏆Pump and Value Tests

🏆Interior & Exterior Lights Test

🏆Sound Horn Test

Note:Actuation tests menus displayed vary across vehicles.

ISMART810 allows for the coding of a replacement control module or changing previously stored incorrect coding. Coding also known as Teach-in Program or Component Adaptation. Can reprogram adaptive data of certain components after replacement to enhance vehicle performance, and refresh hidden functions to customize car settings and disable annoying functions.

🏆Recode Changed Modules

🏆Auto Side Mirrors Folding

🏆Refresh Hidden Features

🏆Auto Engine Start-stop

🏆Renew ECUs Coordination

🏆Reinforce Performance

Note:Refresh Hidden Functions and ECU Coding Currently Only Support For BENZ/BMW/VW. Not all cars are supported, please consult before purchasing.

ISMART810 advanced key programmer scan tool can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like programming new key fobs, Read PIN/CS(All Key Lost), Key Generation, Key Learning, Remote Learning, For Benz FEM/BDC Key Learning/ECU Adaptation, For BMW CAS3/2 Key Learning, For VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU Reset/Adaptation/Refresh/Coding.

🏆Check Number of Keys

🏆Read PIN Code

🏆Add Keys

🏆Generate Dealer Key

🏆Program New Key Fobs

🏆Remote Learning

🏆All Keys Lost

🏆Read & Write Car Keys & Key Chip

🏆Read & Write MCU/EEPROM Chip

Note:Not All Cars Support the Key Programming Function. Please Consult the Seller Before Purchasing.

🏆A/C Learn:Perform reset self-learning on the operating data of the air-conditioning compressor, and reset self-learning on the position of servo motor to detect and verify faulty part of the air-conditioning system.

🏆ABS Bleed:ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

🏆AJUSTE:Reset the fuel trims provides for a chance that your adaptive fuel map could become stable.

🏆AT Adaption:When the transmission is disassembled or repaired, it can cause shift delays or jerk problems. Use this feature to let the transmission automatically compensate for driving conditions, resulting in more comfortable and better shifting.

🏆Adblue:After the diesel exhaust treatment fluid (car urea) is replaced or filled up,urea reset operation is required.

🏆Airbag:The airbag has a fault code corresponding to the collision data, this function resets the airbag data to clear the airbag collision fault indicator light.

🏆Change Tire:The modified tire data needs to be written into the vehicle module through the device, so as not to cause inaccurate vehicle information (vehicle speed, fuel consumption, battery life, etc.) prompted by the vehicle instrument

🏆Clutch Adaptation:After replacing the clutch or shifting motor, it is necessary to learn and match the transmission system (gear position, motor position, etc.)

🏆DPF:Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

🏆Immobilizer:The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

Other Functions Include:A/C Learn, ABS Bleed, AJUSTE, AT Adaption, Adblue, Airbag, BRT, Change Language, Change Tire, Clutch Adaptation, Coolant, Cruise , DPF, RGR Reset, EPB, EVAP Test, GPF, Gear Box, Gear Learn, Head Light, High Voltage Battery, Immobilizer, Injector Coding, Motor Angle, NOx Reset, Odo–meter, 0ilReset, Power Balance, Prime Fuel Pump, Seat Match, Steering Angle, Stopstart, Sun Roof, Suspension, TCM 0il Reset, TPMS, Throttle Reset, Transport, Turbo, Windows Door

Note:Not All Cars Support Special Functions, Please Consult the Seller Before Purchasing

🏆Support CAN FD Protocol:Work on More CAN FD Protocol Vehicles (Gor GM Vehicles After 2020), Adapter Needs Buy Separately(No need to purchase additional CAN FD adapter)

🏆Support DOIP Protocol:Compatible With More BMW E/F/G Chassis/Jaguar/Land Rover Vehicle Brands(No need to buy additional adapters).

🏆4 In 1 LVE DATA DISPALY:ISMART810 Diagnostic Scanner Supports 4 in 1 real-time data graphic viewing function, real-time data can be compared with known good measurement results to quickly identify car problems. Designed for car mechanics, home mechanics and weekend mechanics.

🏆FAST AUTO VIN SCAN:ISMART810 Scanner Tool uses the Latest Automotive VIN Technology, Allowing Technicians or Repairers to easily identify vehicle information such: make, model, year and place of manufacture, etc.

🏆3 Years Free Update (Value of $900):ISMART810 supports one-click online update, 3-year free update to get the latest software, more functions and new model coverage. Even after the free update has expired, the device will still work normally.

ISMART810 Professional Key Programming Tool and Car Diagnostic Scanner is developed for Car Mechanics, Workshops, Car Dealers.

Supported Cars:For Abarth, For Acura, For Alfa, For AstonMartin, For Audi, For BRILLIANCE, For BYD, For Bentley, For Benz, For Bmw, For Bugatti, For CHANGAN, For CHANGHEAUTO, For CHERY, For CHERY_NE, For Chrysler, For Citroen, For Dacia, For Daewoo, For Daihatsu, For EMGRAND, For ENGLON, For FOTON, For Ferrari, For Fiat, For Ford, For FordAU, For FordEU, For GEELY, For GLEAGLE, For GM, For GMBrazil, For GREATWALL, For Holden, For Honda, For Hyundai, For HyundaiCV, For Infiniti, For Isuzu, For Jaguar, For KARRY, For KIA, For LIFAN, For Lamborghini, For Lancia, For LandRover, For Lexus, For MAPLE, For Mahindra, For Maserati, For Maybach, For Mazda, For Mini, For Mitsubishi, For Nissan, For Opel, For Perodua, For Peugeot, For Porsche, For Proton, For RELY, For RIICH, For Renault, For Rollsroyce, For Saab, For Scion, For Seat, For Skoda, For Smart, For Sprinter, For SsangYong, For Subaru, For Suzuki, For TATA, For Toyota, For VW, For VW_CV, For Vauxhall, For Volvo…

Note:Features Vary by Car Model, Please Consult the Seller Before Buying.Not Support FORDAU, HOLDEN Models in Australia

English, Spanish, German, French, Portuguese, Swedish, Italian, Simplified Chinese, Traditional Chinese, Russian, Japanese, Korean, Slovak, Hungarian, Thai

1. Activate the device with email address and serial number

2. Send the serial number to the seller to authorize the language

3. Switch language in settings

4. Click Update Device

Product name: iSmart810

Operating system: Android 7.1.2

Processor: Quad Core 1.8

Memory: 2+64 (Support TF memory, maximum 128)

Screen: 8 inches (1280*800)

Mode of operation: touch screen

Connection method: Bluetooth/wired

Battery capacity: 8500mAh

Upgrade method: Device WIFI upgrade

Upgrade period: 3 years

Camera: 8MP

Bluetooth/WIFI: 4.0/2.4G, 5G

Supported Protocols: CAN FD/DoIP

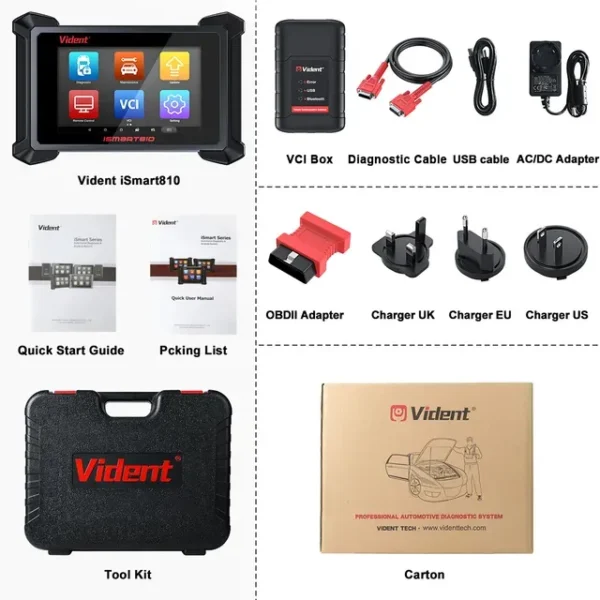

1PC X For Mercedes Benz 38pin Adapter
1PC X For BMW 20pin Adapter
1PC X For PSA 2pin Adapter
1PC X For Fiat 3pin Adapter
1PC X For GM/Daewoo 12pin Adapter
1PC X For Kia 20pin Adapter
1PC X For Mitsubishi/Hyundai 12+16pin Adapter
1PC X For Honda 3pin Adapter
1PC X For Toyota 17pin Adapter
1PC X For Toyota 22pin Adapter
1PC X For Mazda 17pin Adapter
1PC X For Audi 4pin Adapter
1PC X OBDII Adapter
1PC X Cigarette Lighter
1PC X AC/DC Adapter(12V)
1PC X Diagnostic Cable
1PC X AC/DC Adapter(14V)
1PC X Clip Cable
1PC X User Manual
1PC X Carrying Case
