XTOOL AD20 PRO Full System Diagnostic Scanner Obd2 On-Board Monitor Tool Oil Reset Battery Test Work Witht IOS&Android

XTOOL AD20 PRO Full System Diagnostic Scanner Obd2 On-Board Monitor Tool Oil Reset Battery Test Work Witht IOS&Android

AD20 PRO supports maintenance light reset, throttle carbon deposition test and battery test,

The ELM327 PK AD10 PK AD20 And AD20pro Different:

AD20pro is the best!

AD20pro Features

1. Full System Diagnosis:AD20pro supports the Full system diagnosis of the car and supports reading error codes and clearing codes in the system,like Engines/Auto Transmission/Airbags… and other systems

2. Bettery Test:AD20Pro supports Bettery Test (continuously caring about the health of the car battery) and maintenance light reset function

3.OBD2 Functions:AD20Pro supports OBD2 function code reading/clearing/data stream/and Smog Check/throttle valve carbon deposition test and other functions

4.Driving Records& Analysis:AD20 supports driving records and driving analysis, each driving

data will record and analyze the fuel consumption, distance, and some driving behaviors during driving.

5. HUD and Smart Meter:AD20Pro supports HUD and smart meter function(Smart meter keep update )

6. Hihg Quality&Free Update:AD20Pro supports free software and continuous software updates, and high-quality hardware supports Bluetooth 5.0

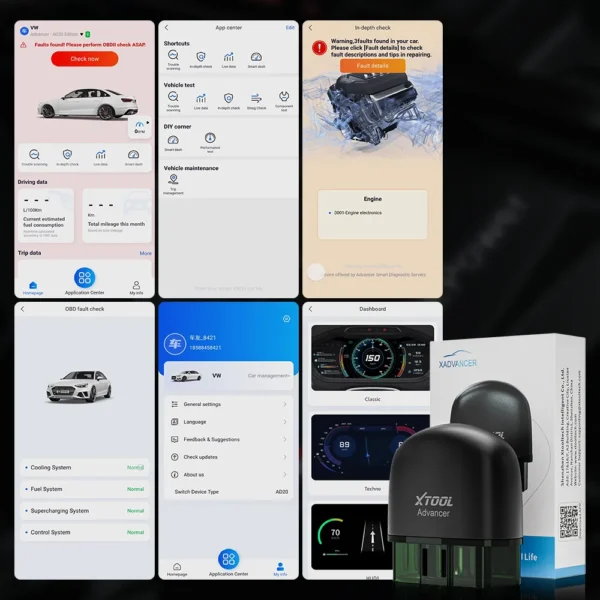

Full Systems Diagnostic

XTOOL AD20pro can access most car ECUs to read, clear codes,

system Include : ABS System, Engine System, SAS System, TPMS System, IMMO System, Battery System, Oil Service System, SRS System, DPF System, Air Conditioning System, Transmission System, etc.

Note:Only for Read and Clean Error Codes for all systems (Please contact us for checking the compatibility between our AD20 PRO with your car models before purchasing )

AD20Pro Support Battery Test

AD20pro supports battery test, check the battery voltage of the battery, generator power generation and starting voltage data, and timely feedback the real-time data of your car battery

AD20PRO supports maintenance light reset function

Every time your car is maintained, you can use AD20pro to reset the maintenance light of your car, so as to be more prepared to record the time of the next maintenance

What caues and How to deal it now?

Three Levels:
1. The first level:can drive normally

2. The second level:need to go to repair shop to repair your vehicle as soon as possible

3. The third level:need to stop as soon as possible to avoid accidents

In response to these error codes, Advaner AD20 provides a detailed introduction to the generation of error codes and how to solve them.

Note:

Now only can analyze the OBD2 error codes,but not support analyze engine error codes

Language Support

AD20Pro currently only supports three languages: English,Korean,Spanish,

other languages: Arabic, French, German, Japanese, Korean, Polish, Portuguese, will be added in the settings in the next update (if there is no language you can choose, pls wait for the next update)

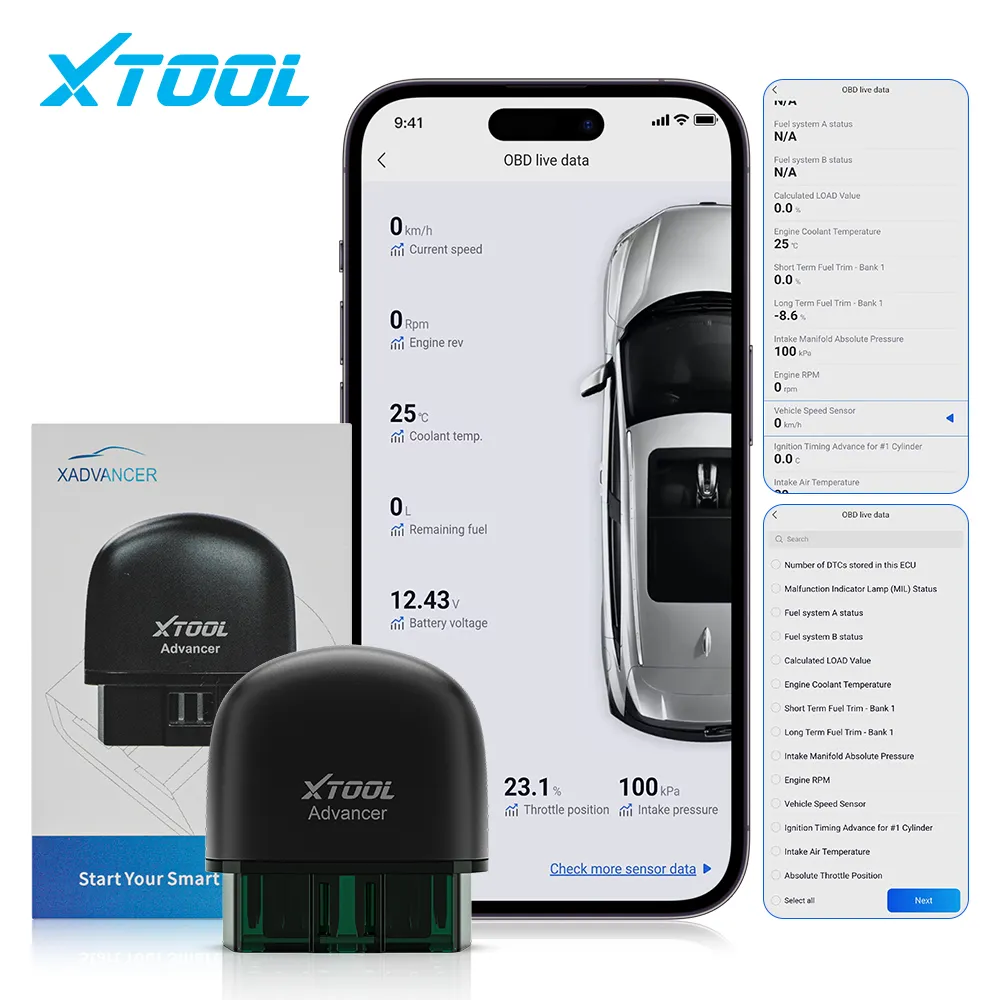

AD20Pro OBD LIVE DATA

AD20pro supports OBD2 data flow analysis, specifically see a series of OBD2 engine data such as water tank temperature, throttle speed, etc.

Supports simultaneous binding of multiple car models

AD20pro supports simultaneous binding of multiple car models If you have multiple cars, you only need one AD20pro to bind multiple cars at the same time

Note:need to scan the product code on AD20pro to bind AD20pro for each binding

Trip Recording

AD20pro can record each time you drive after the record, the specific distance traveled and the average driving speed.

Trip Details

AD20pro will have specific data analysis for each driving data, driving time, driving distance, average fuel consumption (for reference only), average speed and maximum speed,and will record a series of data analysis such as sudden acceleration, sudden turning, emergency braking, and fatigue driving.

With this data, you can clearly know the driving habits of yourself or your family, so that you can have better driving habits and let life is safer

Supported car models and supported Protocls

1.SAEJ1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.SO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit D,250 Kbaud)9.ISO15765-4 CAN(29bitID,250 Kbaud)

SUPPORT CAR MODEL

The implementation time of OBDll agreement is not the same on all continents

Performance Testing

Professionally test the performance of your car, the specific time for 100-meter acceleration includes the maximum driving speed, engine load and coolant temperature. These values can largely read the performance indicators of the vehicle

Activation And Use

1. Download and install the AD20pro application software (Advancer AD20pro) in the APP store or the Android market (or scan and download)

2. Register and log in to your account in the Advcaner program (requires email verification)

3. Connect the car and bind the car (need to scan the product code of AD20pro)

4. Keep AD20pro connected with Bluetooth (Bluetooth is connected inside the software) and enter the software

5. Start diagnosis with your car

AD20pro with HUD function

AD20pro can real-time engine data, when connected to the car, the mobile phone can be adjusted to HUD mode, and placed under the car glass, the engine value can be displayed.

AD20pro engine showing coloful

The engine display interface is continuously updated, and more colorful HUD displays will be displayed
