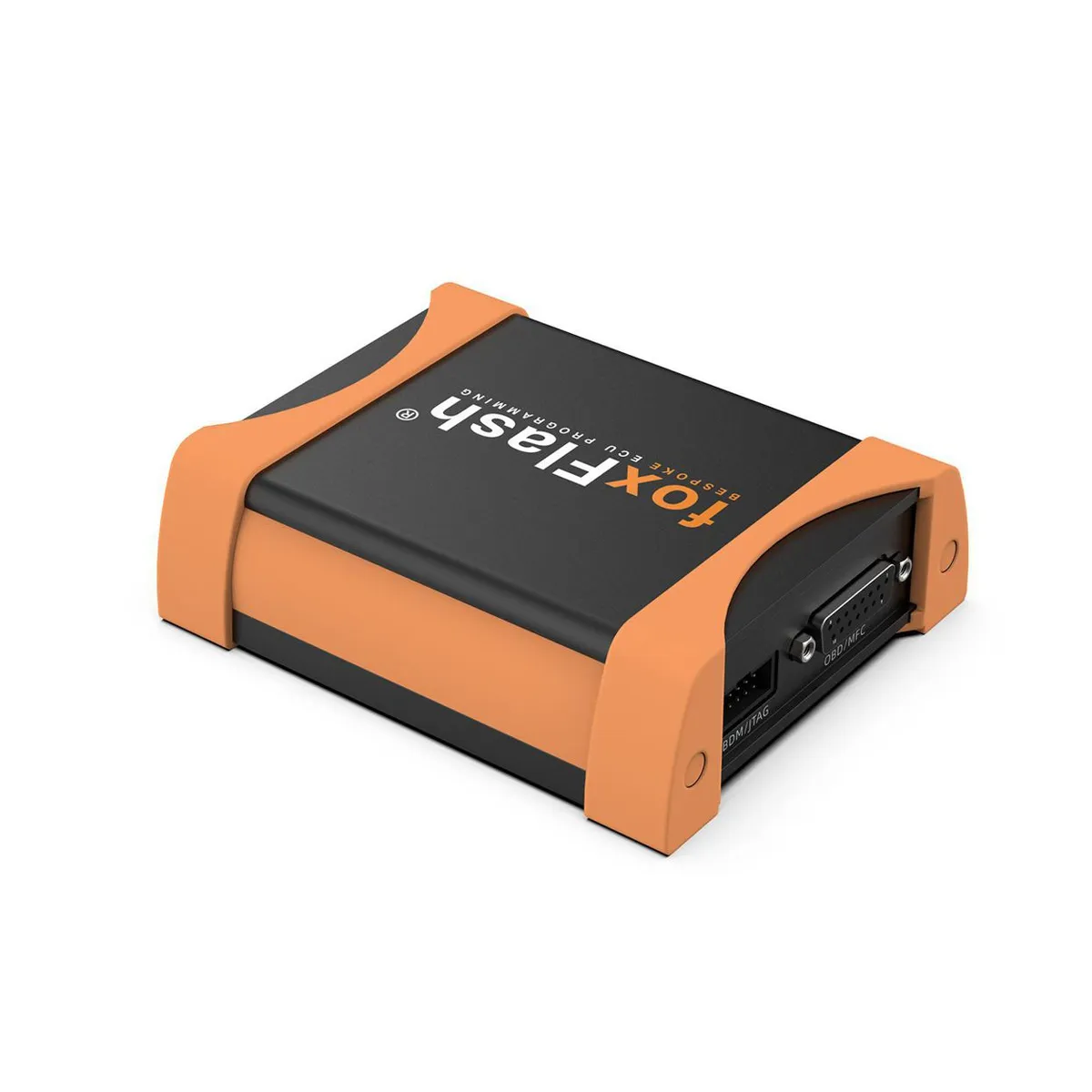

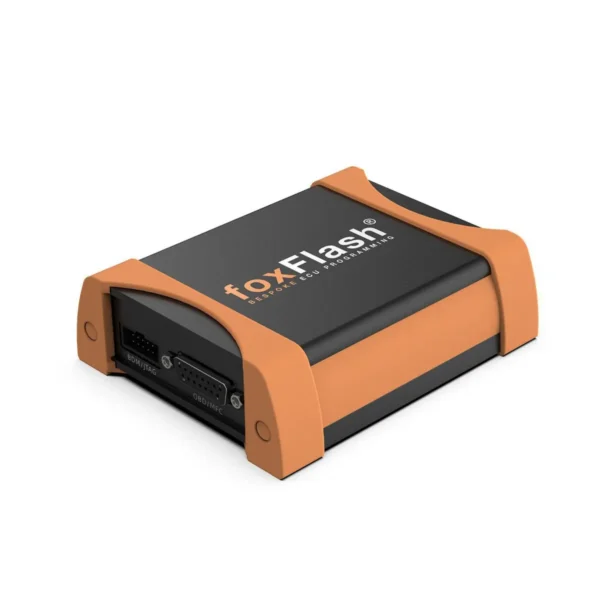

FoxFlash is apowerful solutiondeveloped for professional chiptuners, calibration engineers and control unit (ECU and TCU) repair shops. foxFlash includes multi-method control unit programming for tuning ability,this tool from tuner design ,so you can get many of them support.Since the FoxFlash is so much more than just an ECU programming tool, it simply can’t be compared to any traditional flash tool. Despite other tools how good, this is being good tools for read/write operations, we supply many important features, both on the developer side as in daily use. That is why we recommend FoxFlash.
10. Support MEDC17 free clone service(most of others tool need patch the files after read out ,but ours is free)
11. Software can be download onofficial website:https://www.dfb-technology.com/
12. With the Latest firmware and updates. Usebetter quality BOM and PCB. More stable,full proof, and reliable.
13. FoxFlash ECU TCU Car List , or check driver list ondfb-technology, it is much easier to search than pdf
14. Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Romanian, Czech, Turkish
15. Please Check the FoxFlash Installation Instruction
16. Promotion: Buy FoxFlash Get Free Toyota Lexus BDM/JTAG Solder-Free Adapter , 4pcsECU Cover Extractor,Customized FoxFlash T-Shirt, Limited Stock!!!
CAR
TRUCK
MOTORBIKE
TRACTOR
BOAT
Additional TCU package available for Automatic Transmissions.
Windows7
Windows8/8.1
Windows10
Windows11
Recommendedminimumrequirements:
CPU>2.5GHz(Inteli5,i7)
RAM>4GB
64bits
As we all know, winols damaos and A2L is very expensive ,we supply these to ours customer for free, so you can get it for chitpuning, dtc off, and so on.
We believe a control units list can be considered as a more safe approach to correctly target the overall tuning procedure due to the fact that a lot of brands offer identical car models & versions that share different Control Unit types.
Please note that foxFlash can help you select the right protocol with its auto-detection feature when identifying on most control units.
AUTO
CAMION
TRATTORI
MOTO
MARINE
BIKE
CAMBI AUTOMATICI
EXAMPLES OF CONNECTION IN FULL SYSTEMBOSCH / DELCO / DELPHI / DENSO / MARELLI / SIEMENS / CONTINENTAL / TEMIC

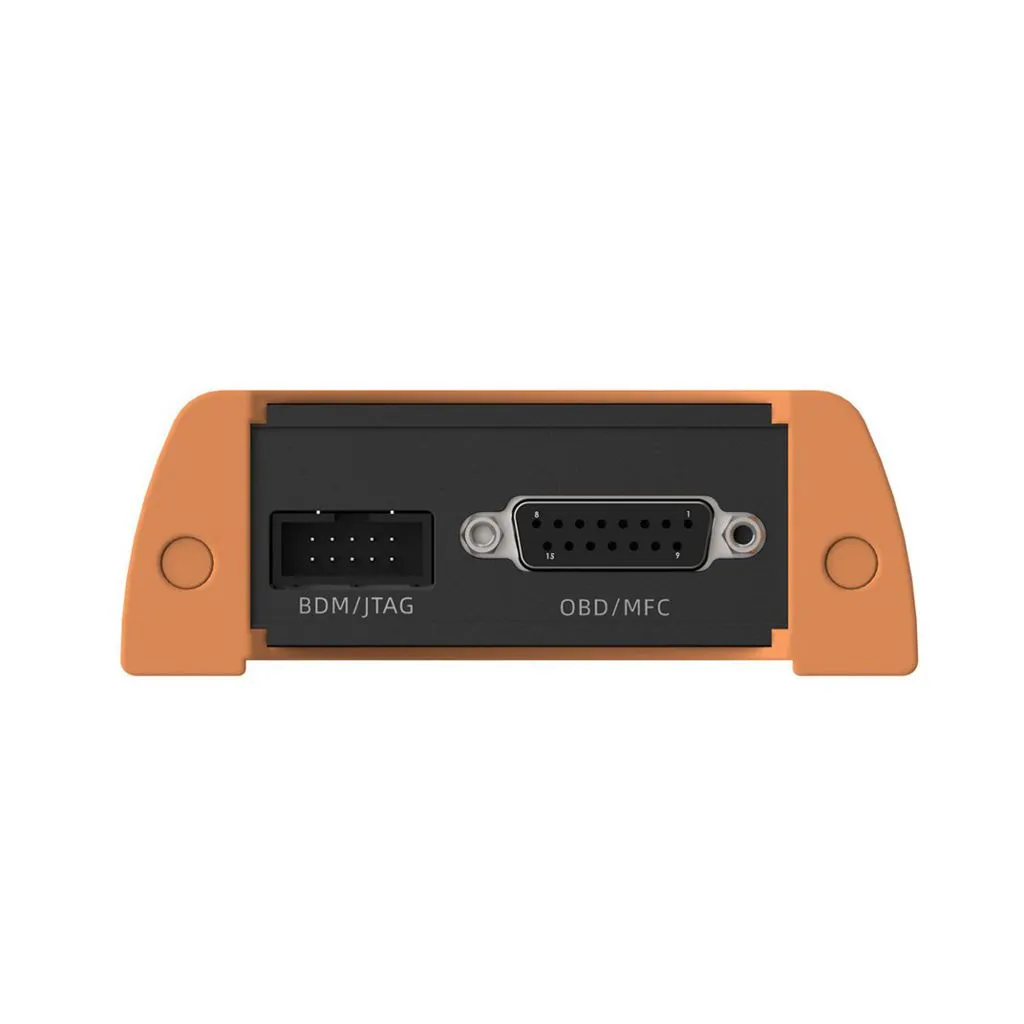

JTAGCONNECTION
BOOT MODECONNECTION
FoxFlash Update Information:
May 23, 2023 update
Bench/Boot protocol for Isuzu EDC17C83.
May can’t get any better as we release a new exclusive protocol today! In this update, you’ll find the BENCH protocol for Isuzu EDC17C83.
Supported Control Units & Vehicles
ECU:
Bosch EDC17C83 TC1793
Supported Vehicles:
Isuzu Dmax 2017-2022 1.9D 164cv
Isuzu Dmax Rodeo 2017-2022 1.9D 164cv
Isuzu M21 2017-2022 1.9D 123cv
BENCH read is real.
R/W time: ~6 minutes at first programming, then ~ 30s.
ATTENTION:Some of the latest vehicles might have a secure gateway.
Update method:Run the foxFlash Manager software, and click the download button till all is done.
Mar.14, 2023
FoxFlash is now able to perform the following operations:
Boot Read
Boot Write
On the following ECU reference:
Continental GPEC2 GPEC3 GPEC4LM GPEC2A
Chrysler 200 Continental GPEC3 BOOT
Chrysler 300 mk2 Continental GPEC2A BOOT
Chrysler Aspen Continental GPEC2A BOOT
Chrysler Grand VojagerContinental GPEC2A BOOT
Chrysler Town & CountryContinental GPEC2A BOOT
Dodge Avenger Continental GPEC2A BOOT
Dodge ChallengerContinental GPEC2A BOOT
Dodge Charger Continental GPEC2A BOOT
Dodge Dart Continental GPEC3 BOOT
Dodge Durango Continental GPEC2A BOOT
Fiat Tipo Continental GPEC4LM BOOT
Fiat Toro Continental GPEC3 BOOT
Fiat Toro Continental GPEC4LM BOOT
Fiat 500X Continental GPEC3 BOOT
Fiat 500X Continental GPEC4LM BOOT
JeepCherokee Continental GPEC3 BOOT
JeepCherokee Continental GPEC4 BOOT
JeepCompass Continental GPEC3 BOOT
JeepCherokee Continental GPEC4LM BOOT
JeepGladiator Continental GPEC2A BOOT
JeepGran Commander Continental GPEC4 BOOT
JeepRenegadeContinental GPEC3 BOOT
JeepWrangler Continental GPEC4 BOOT
Update method:Run the foxFlash Manager software, and click the download button till all is done
Mar.3, 2023
FoxFlash ECU Tool Ducati Update: install Bosch ME17.9.21 can easy Read and Write now.
FoxFlash is now able to perform the following operations:
-
Bench Read
-
Bench Write
-
Boot Read
-
Boot Write
On the following ECU:
-
Bosch ME17.9.21
Vehicles concerned:
-
Ducati 1.198 150hp
Support BENCH and BOOT option
Update method: Run the foxFlash Manager software, and click the download button till all is done.
Feb.25, 2023
FoxFlash ECU Tool Update Protocols for Porsche PDK, Easy to read and write Porsche PDK gearbox now.
BOOT
Porsche 911.2 Siemens PDK4000
Porsche 918 Siemens PDK3000
Porsche 918 Siemens PDK4000
Porsche Boxster 718 Siemens PDK3000
Porsche Boxster 981 Siemens PDK4000
Porsche Carrera 991 Siemens PDK3000
Porsche Carrera 991 Siemens PDK4000
Porsche Cayman Siemens PDK4000
Porsche Macan Siemens PDK3000
Porsche Macan Siemens PDK4000
Porsche Panamera Siemens PDK3000
Porsche Panamera Siemens PDK4000
Reading & Writing Time
Read:12 minutes and 36 seconds
Write: 6 minutes and 18 seconds
How to update FoxFlash ECU Tool with latest version?:
Run the foxFlash manager, click the donwload button till everything done. a
January 27, 2023
FoxFlash is now able to perform the Toyota Denso Gen1 (76F00xx) OBD read/write
FoxFlash is now able to perform the following operations:
-
OBD Read
-
OBD Write
On the following ECU reference:
Denso Gen1 (76F00xx)
-
Hino 4.0 VVT-i 147ch
-
Lexus/Toyota 2.5 205ch
-
Lexus 200H (1.8 E-CVT) 99ch
-
Lexus 220d 177ch
-
Lexus 250 (GSE20) 200ch
-
Lexus 300 (3.0 V6) 204ch
-
Lexus 330 (3.3 V6) 230ch
-
Lexus 350 (3.5i V6) 275/300ch
-
Lexus 400h (3.3i V6) 272ch
-
Lexus 430 290ch
-
Lexus 450h (3.5i V6) 292/299ch
-
Lexus 460h (4.6 V8) 247ch
-
Lexus 600h (5.0 V8) 394ch
-
Toyota 1.0 (1KR-DE) 64ch
-
Toyota 1.3 VVT-i 87/100ch
-
Toyota 1.6 VVT-i 132ch
-
Toyota 1.8 VVT-i HSD/TS 99/129/133ch
-
Toyota 2.0 (1AZFE) 145ch
-
Toyota 2.0 D4-D 116/126ch
-
Toyota 2.0 DOHC 16v 156ch
-
Toyota 2.0i 150ch
-
Toyota 2.2 D4-D 136/150/177ch
-
Toyota 2.4 (2AZFE) 160ch
-
Toyota 2.5 205ch
-
Toyota 2.5 D4-D 101/125/144/150ch
-
Toyota 2.7i 161/188ch
-
Toyota 3.0 D4-D 172ch
-
Toyota 3.5 (2GRFE) 270ch
-
Toyota 3.5i V6 266ch
-
Toyota 4.0 V6 239/249/260/273ch
-
Toyota 4.3 VVT-i 300ch
-
Toyota 4.5 D4-D 272ch
-
Toyota 4.5 V8 D4-D 198ch
-
Toyota 4.6i VVT-i D-45 314ch
-
Toyota 4.7 V8 280/288ch
-
Toyota 5.0 VVT-i 295ch
-
Toyota 5.7i VVT-i D-45 286ch
-
Lexus GS 300
-
Lexus GS 350
-
Lexus IS-F
-
Toyota Prius
-
Toyota RAV 4
-
Toyota Sequoia
-
Toyota Tacoma
-
Toyota Tundra
-
Toyota Verso
-
Toyota Auris
-
Toyota Auris
-
Toyota Avensis
-
Toyota Camry
-
Toyota Corolla (Verso)
-
Toyota Crown
-
Toyota Dyna
-
Toyota Estima
-
Toyota FJ Cruiser
-
Toyota Fortuner
-
Toyota Hilux
-
Toyota Land Cruiser
-
Toyota Mark X
-
Toyota Optimo
ECU UPDATE New Protocols for Bentley Skoda (BOSCH )
Today we added multiple protocols for Bentley, Skoda, Honda, Volvo, etc. More info on supported ECUs and cars can be found below.
SUPPORTED CONTROL UNITS & VEHICLES
BENCH /BOOT/OBD
BOSCH
BAIC Bosch ME17.8.8 TC1728: Senova x25 1.5 VTI (2016), Senova X35 1.5 VTI (2016) , BJ20 1.5 VTI (2016)(BOOT)
Honda Bosch ME17.9.55 TC1724: City/Jazz/BRIO/FIT 1.2L i-VTEC (2014)(BOOT)
Mahindra Bosch EDC17C53 TC1767: XUV500 2.2 CRD (2014)(BENCH BOOT)
Bentley Bosch MG1CS163 TC298: Continental GT W12 6.0 (2018)(BENCH)
Volvo Bosch EDC16C34 MPC562: V70/S80 1.6D (2010)(OBD BENCH JTAG)
Skoda Bosch MED17.1.27: Fabia 1.0 TSI (2017)(OBD BENCH BOOT)
Bentley Bosch MED17.1.62: Bentayga W12 6.0 (2016)(BENCH BOOT)
BMW MSV90 Protocols BOOT Mode
This time it is for BMW cars with Siemens MSV90 TC1796 ECU. More info on supported cars can be found below.
SUPPORTED CONTROL UNITS & VEHICLES
BOOT
SIEMENS
MSV90 TC1796
CARS:
BMW 5 Series F10 – 530i N53B30A/N52B30B
BMW 5 Series F11 – 530i N53B30A/N52B30B
BMW 7 Series F01 – 730Li N52B30A/N52B30B
BMW 7 Series F02 – 730Li N52B30A/N52B30B
BMW X3 Series F25 – 28i xDrive N52B30A/N52B30B
Delphi DCM6.2AP DCM6.2A DCM6.2C DCM6.2V
FoxFlash is now able to perform the following operations:
DCM6.2A/C/V
OBD Read
OBD Write
JTAG_BOOT
DCM6.2APJTAG_BOOTOn the following ECU reference:
Hyundai
Audi
Citroen
Fiat
Kia
MAN
Peugeot
VW
Toyota
Ssangyong
January 26, 2023
FoxFlash Can Support AUDI VW Group TCU DQ250C/E/F OBD virtual read/write-BENCH Read&Write
FoxFlash is now able to perform the following operations:
OBD Virtual Read
OBD Write
BENCH Read
BENCH Write
On the following TCUs:
Temic DQ250C
Temic DQ250E
Temic DQ250F
Vehicles concerned:
AUDI/SKODA/VAG 2.0 TSI/TFSI
AUDI/SKODA/VAG 2.0 TDI CR
January 20, 2023
– BENCH MODE BY PROCESSOR INFINEON TRICORE TC1782
With this update you will be able to fully read and write the following ECUs directly
From pinout without having to open them:
– VAG GROUP VW-AUDI-SEAT-SKODA: MED17.5.21, MED17.5.25
– FORD: MED17.0.7
– NISSAN: EDC17 C84
– RENAULT: ME17.9.20, EDC17 C84
– TOYOTA: MED17.9.52, EDC17 C47
January 16, 2023
EXTRACT PASSWORD FROM FILE
– NEW DRIVERS TO EXTRACT PASSWORDS FROM FILES
New utilities useful for extracting the password by loading a Tricore processor file.
As of now, the software will also save the tricore password locally for each Tricore processor reading.
FULL SYSTEM FOR TCU TEMIC 6T50 OPEL, CHEVROLET
– Complete reading and writing of Micro,
– Complete reading and writing of EEPROM,
– Cloning
– RIVERGIN function

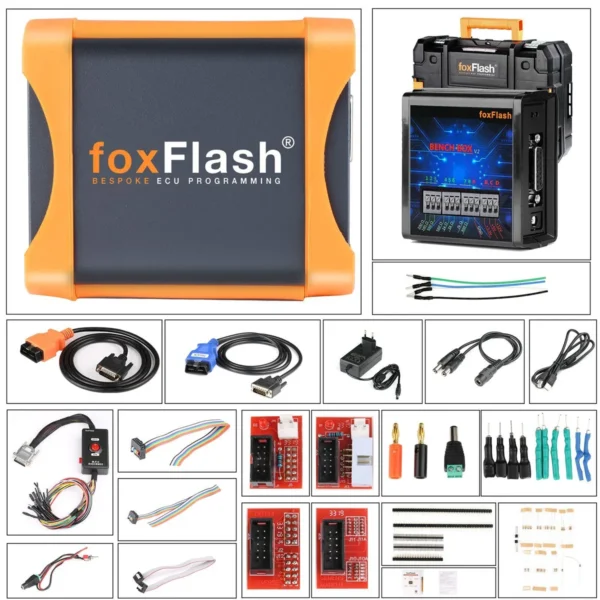

Hardware:
1pc x Master machine
1pcx Foxbench box
1pcx USBcable
1pcx Power adapter
1pcx Fox box store over 10 adpaters
1pc x Jtag and bdm cables
1pc x Pen
1pc x Notebook

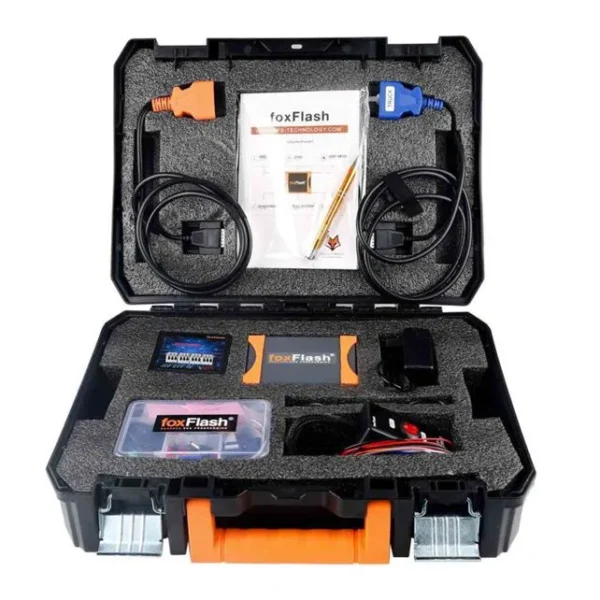

1pc x Suitcase
1pc x Function cable for boot, bench, kline links .
1pc x Truck OBD cable
1pc x Car OBD cable
1pc x Paper box
1pc x Install guide
Software:
1pc x Main software
1pc x Technical Support
1pc x Login account for software and tools
1pc x PDF pacakges for connecting ecu and tcu
1pc x Join facebook group for support
1pc x Online chat support for use
Extra pacakge according to users request after the user get the tool.
1pc x Tuner account
1pc x Helpdesk
1pc x WinOLS damaos, A2L
