2024 Launch X431 PRO ELITE Auto Full System Car Diagnostic Tools CAN FD ECU Programming Coding Active Tester OBD2 Scanner

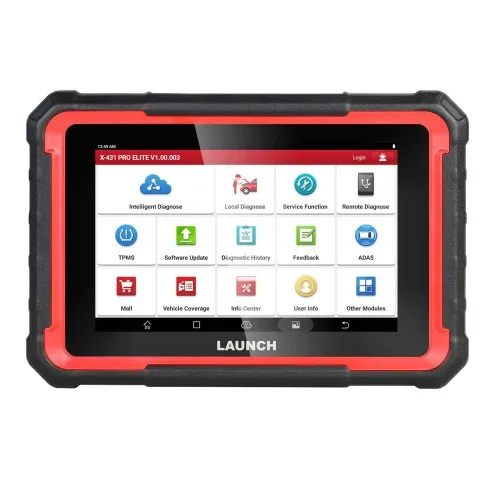

LAaunch X431 PRO ELITE is an 8-inch smart car diagnostic device developed based on Android 10.0 system. It adopts 2.0Ghz 4-core high-efficiency processor, 4GB RAM+64GB ROM large storage, and is equipped with a high-endurance battery, which runs faster, more stably and lasts longer.

1. Support CAN FD and DoIP New Protocols

2. 8’inch LED touchscreen , Android 10.0, 2.0Ghz 4-core processor, 4GB RAM+64GB ROM large storage

3. 6000mAh Battery, High endurance, faster, more stable, and long-lasting operation

4. OE-Level Professional Car Full System Diagnosis

5. Full Bi-Directional Control (Active Test) +

6. Support Guide Function for VW Audi ,

7. Support 31 More Reset Service, keep increasing

8. 2 Years Free Update. After that, you can still use it, it will not be locked.

9. 24 Languages to freely Choose, No language barrier.

10. Support Auto VIN Scan + Intelligent diagnostics + Remote Diagnostics + Diagnostic Feedback

11. Compatible with X-PROG 3 to perform IMMO programming

12. Compatible with TSGUN and RF-Sensor to To activate, program, learn, and detect tire pressure

13. Compatible with BST360 , VSP100 , ADAS, WIFI Printer etc.Support common special functions of most models, such as maintenance light reset, throttle valve matching, steering angle reset, brake pad reset, tire pressure reset, ABS exhaust, battery matching, gear information learning, fuel injector coding, DPF regeneration, IMMO 31 special functions such as matching and IMMO programming.
Launch X-431 PRO ELITE Can’t support online programming
Launch X-431 PRO ELITE supports USB connection Only. If need a wireless scanner with similar function Please buy CRP919 BT (USB/Bluetooth).

2023 Added Functions, More Extended Functions Make Work Easier
ADAS Calibration:Compatible with LAUNCH X431 ADAS Mobile to calibrate advanced driver-assistance systems, such as ACC, AEB, and more. ADAS Calibrate a wide range of camera-based & radar-based driver assistance systems, Operate ADAS calibration to vehicle cameras, LKA system, ACC system, LDW system, and AVM system. ADAS is designed to improve driver, passenger and pedestrian safety by reducing both the severity and overall number of motor vehicle accidents. ADAS can warn drivers of potential dangers, intervene to help the driver remain in control in order to prevent an accident and, if necessary, reduce the severity of an accident if it can’t be avoided.

For 2017 and later FCA Vehicles with Secure Gateway Module (SGW):Register with AutoAuth to enable your LAUNCH X431 PRO ELITE tablet to communicate with the FCA SGW Authentication System and bypass the SGM, so as to perform diagnostics and bi-directionals without using a bypass cable.

VAG Guided Functions for Audi, Volkswagen Skoda and Seat, etc:On-Screen Instruction step by step, LAUNCH X431 PRO ELITE Automotive obd2 scanner guide you to be an expert in Car Diagnostics even you are a newbie. Thanks to this function, you don’t need to rely on a mechanic’s suggestion all the time.**NO extra costs to use the VAG Guided Functions on LAUNCH X431 PRO ELITE.

Open the Hidden Features:Make full use of hidden features or disable the car’s annoying functions. 3-Time Flasher Setting, Auto L ock/Unl ock Function, one-touch signal flickers, deactivate some buzzing sounds, needle sweep,rear-view mirror folding, disable daytime running light, disable seat belt alarm beep, remove maximum speed limiter,etc.

(PMI) Programmable Module Installation:LAUNCH X431 PRO ELITE Support PMI function, Compatible with Ford /Lincoln/ Mazda etc. This function is used when you need to replace a module (replace E~CU) or initialize a module.No need to use the J2534 or buy a subscription

Power balance Test:Cylinder power balance testing can help uncover hidden engine issues related to engine misfires, lack of power, or just a poor running engine, which is commonly missed with other tests. So, cylinder power balance testing is one of the best and easiest ways to find the source of an engine misfire. Furthermore, cylinder power balance testing is often used along with cylinder compression and cylinder leakage tests to further pinpoint the problem.

Key Programming:Add, Delete & Reprogram Keys, Rewrite smart k eys, Replace smart key E~CU, Replace KNOB IGNITION; Reset Key: Relearn a key.

Tons of Actuator Test (Functional Test):Turn ON/OFF Front and Rear side ACM Solenoid, turning the fuel pump on and off, cycle the a/c, clutch on and off, Left clutch electromagnetic co il test, Acceleration
Device Test, Oil Pressure Control Test, DYNAMIC camera aiming, Vehicle level position calibration, Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Botors, Wheel Speed Sensor Supply, PARKING BRAKE tests (Vary by car, Hundreds of actuation test functions)
Bi-directional Control (Active Test)

Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls.

OE- Level Full System Diagnosis
As an OE level automotive diagnostic tool, LAUNCH CRP919E can access most car ECUs to read, clear codes, retrieve live data, freeze frame, ECU information and perform active tests, matching, adaptation, turn off warning lights, reset monitors. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.
ABS System, Engine System, SAS System , TPMS System, IMMO System, Battery System, Oil Service System, SRS System, DPF System,Air Conditioning System,Transmission System, etc…

1. For Engine System: help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

2. For Transmission: It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

3. For ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.

4. For SRS System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.

5. To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;

6. To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;

7. To diagnose Fuel system if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;

8. To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;

9. To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;

10: To diagnose Light System if you see rapid signal blinking or dimming lights. And many more …

1.Oil Lamp Reset Service – Reset the oil life systems every time the oil and oil filter are changed;
2.Injector Coding – Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
3.EPB Reset – Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
4.SAS Steering Angel Sensor Reset – Perform steering angle sensor calibration and clear records;
5.BAT battery service – Evaluate the battery charge state, monitor the closed-circuit current, register the battery replacement, etc.;
6.ABS Bleeding – When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
7.Throttle Adaptation – Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state;
8.TPMS service – Tire pressure resetting is required to be performed after maintenance is performed;
9.Gear Learning – Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced;
10.IMMO (Key Programming) – Disable any lost keys and add new keys. **Please note: This function only work for some cars with easy system.You can send the year, model to us to check compatibility.

WARM NOTICE:LAUNCH X431 V+ 4.0 2023 scan tool may not work IMMO program function for some cars. Therefore, if you buy this diagnostic scan tool for IMMO/key programming function, please c ontact us before to check the compatibility.
11.AFS Headlamp Reset: Initialize the adaptive headlamp system.
12.Sunroof Initialization: The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
13.Suspension Reset:Adjust the vehicle body height sensor for level calibration.
14. RESET ACINI
15. RESET ADBLUE
16. RESET AIRFUEL
17. RESET BOX
18. RESET COOLANT
19. RESET DPF
20. RESET EGR
21. RESET ENGPBM
22. RESET GPF
23. RESET HVOLBAT
24. RESET ICCS
25. RESET LANGUAGE
26. RESET NOXSENSOR
27. RESET PROG
28. RESET SEAT
29. RESET STOPSTART
30. RESET TRANSPORT
31. RESET TYRE
32. RESET WINDOW

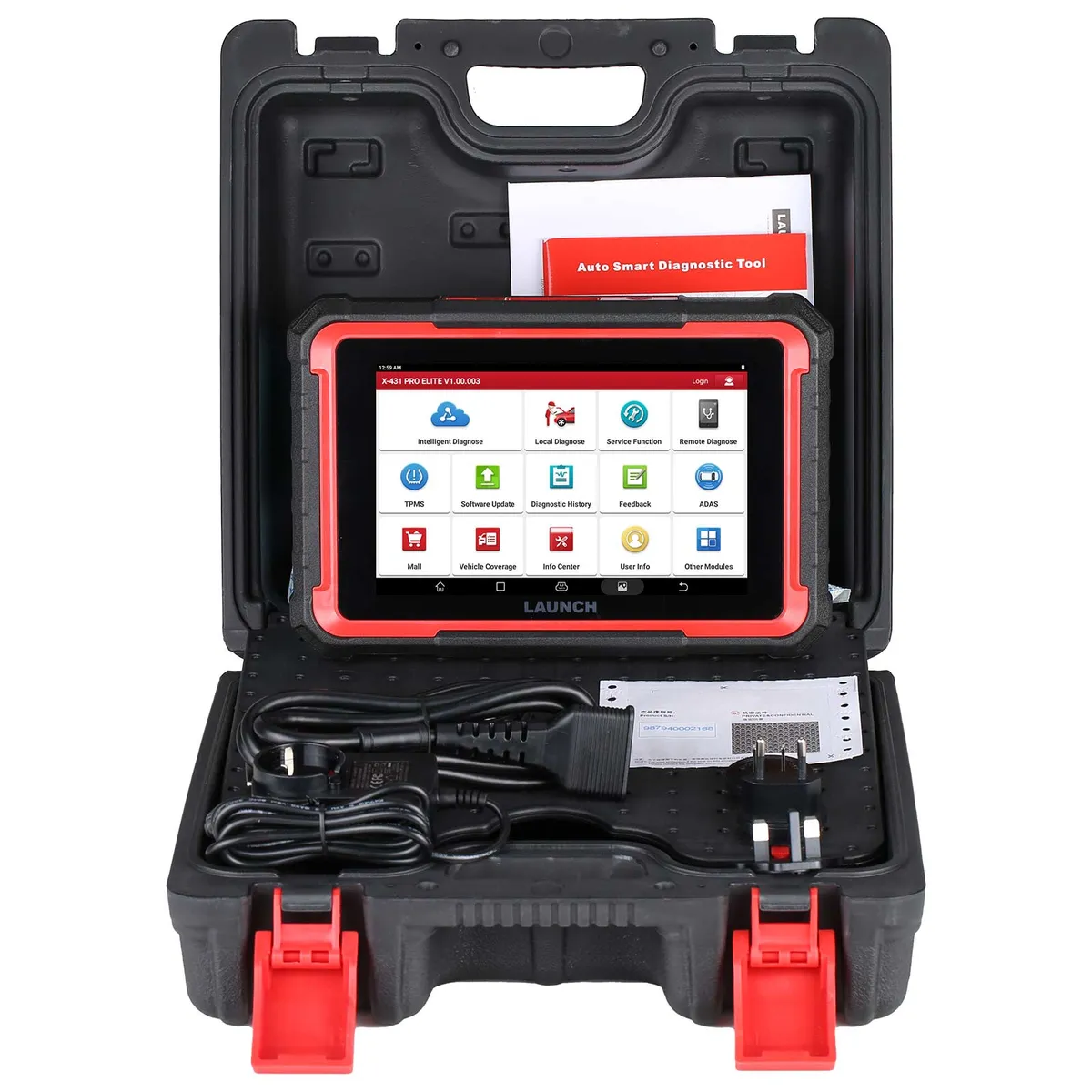

Launch X431 Pro Elite Package List:
1pc x tablet
