2024 XTOOL D9S PRO WIFI Connection Auto Diagnostic Scanner Support ECU Coding Topology Mapping Key Programming 42 Service Functions CAN FD DoIP

XTOOL D9S PRO Auto Diagnostic Scanner Support ECU Coding Topology Mapping Key Programming 42 Service Functions CAN FD DoIP

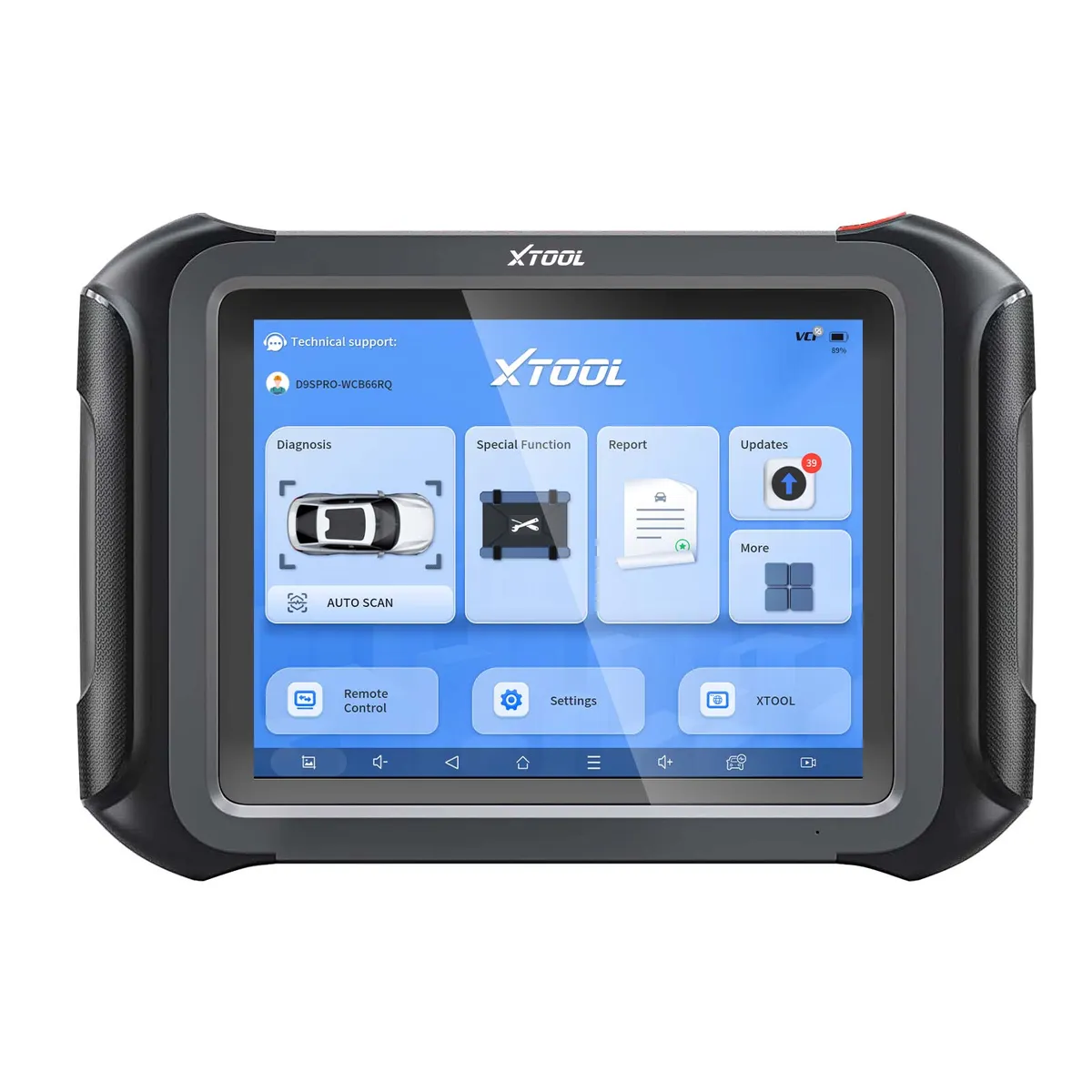

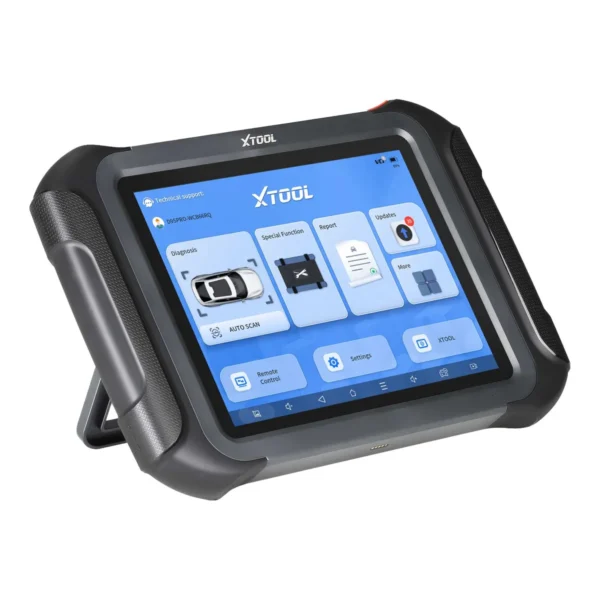

XTOOL D9SPRO is an advanced automotive diagnostic system featuring a large 9.7-inch screen and dual WIFI modules for stable data transfer between the tablet and VCI. It is designed for mechanics, electricians, and automotive repair stores, it provides full-system automotive diagnostics, live data, Bi-directional control tests, ECU coding and programming. D9SPRO also supports 42 standard special functions such as throttle adaptation, ABS bleeding, service light reset, EPB test, SAS calibration, BMS reset, injector coding, DPF regeneration, and TPMS reset. With 98% vehicle coverage and compatibility with over 100 brands and 10,000 car models, the D9SPRO is a versatile and reliable tool for any automotive professional.

XTOOL D9S PRO Highlights:
1. Upgrade version of Xtool D9 Pro
2. Support wifi & Wired Connection
3. Global version. No IP limitation
4. OE-Level Full System Diagnostic with Topplogy Module Mapping
5. 42+ Maintenance Services & Full Special Functions
6. Advanced ECU Coding & Refresh Hidden Functions
7. Key Programming/IMMO Reprogram new keys+ Add new fobs+ keyless remote+ Disable lost keys
8. Support CAN FD & DoIP Protocols
9. V A G Guide Functions
10. 10000+ Vehicle Coverage: includes American, European, Asian, Japanese brands.
11. 3 Years Software Udpate & Support 14+ Languages
12. Top Hardward Configuration: Android 10.0 systems, 9.7” Touch Screen, 10000mAh Battery, 1024*768 Resolution, Quad-Core 1.5GHz CPU Processor, 4G RAM & 128G
13.Advanced Function: Support Extension Modules(need to buy additionally)
Videoscope (Mainly applied to check unseen parts of engine, fuel tank, braking system, etc.)
KC501 (For Benz infrared key programming, for VW 4th, 5th IMMO, for eeprom, for chips programmer)
KC100 (For VW 4th and 5th immo )
KS01 (For Toyota all keys lost programmer )
M822 ( For Toyota 8a/4a all keys lost programmer)
M821 (For Mercedes-Benz All Keys Lost)

XTOOL D9S PRO Upgrade version of Xtool D9 Pro:

OE-Level Full System Diagnostics:
XTOOL D9S Pro is an OE-level full diagnostic scanner as it can scan ECUs in different types of vehicle systems and subsystems such as engine, TCM(Transmission), SRS(Airbag), ABS, TPMS, BCM, BODY, AC and much more, read /clear codes, view the live data from each available system, perform active tests to check the work status of modules, providing you with a dealership- level only diagnosis, getting the accurate and in-depth results across all automotive systems.

42+ Commonly-Used Maintenance/Reset/Relearn Functions
XTOOL D9S Pro has included 42+ Maintenance Services that any repair shop would ever need for daily auto maintenance service jobs including:
✔ Oil Reset:Reset service intervals after oil change and turn off the oil light.
✔ EPB Reset:Reset brake pads after replacement of brake system.
✔ SAS Adjustment:Perform calibration of the steering angle sensor
✔ DPF Reset:Perform DPF regeneration
✔ BMS Reset:Register the new battery to the ECU after replacement.
✔ Throttle Relearn:Enables you to make initial settings to throttle to adjust the amount of air intake.
✔ ABS Bleeding:Perform ABS Brake Bleed function to cycle the ABS pump to bleed the air out of the ABS.
✔ Injector Coding:Coding injectors after replacement.
✔ Transmission Match:Reset the adaptive shifting points in your automatic Transmission Control Unit.
✔ Gear Learning:Crankshaft position sensor learns crankshaft tooth machining tolerance and saves to the tablet to diagnose engine misfires more accurately.
✔ Key Programming/IMMO:Disable the lost vehicle keys and program a new replacement key fob.
✔Enhanced Special functions:Steering Position Sensor Calibration, Hybrid Control Compression Test, HVAC Control Module Calibrate, Zero Point Calibration, Injector balance test, ECU Configuration, VGT Turbo Calibration, Idle Learn Reset, Alcohol Content Reset, ABS Initialization, Seat Weight Sensor Calibration, Fuel Trim Reset, Cylinder Power Balance, Crankshaft Sensors Relearn, Language change, A/F Settings, Stop/Start Reset, etc.

Intelligent Topology Mapping Change Everything
Equipped with color coded module status for faster full system diagnostic results.
View the communication structure between modules clearly with all the situation of each system.
One click to display the fault co*de and enter the system executive function directly.
Note:Topology Map compatibility with GM, CHRYSLER, JEEP, DODGE, FORD, TOYOTA, NISSAN, HONDA, BMW, BENZ, HYUNDAI, MAZDA(MORE COMING SOON). DO NOT available for All Vehicle Makes. Please come to us for compatibility check.

Advanced ECU Coding & ECU Configuration
ECU coding capability for VW/AUDI/SKODA ONLY which performs online Coding, Component Matching, Adaptive Data Reset, Flash Hidden Functions, etc to optimize vehicle performance and customize car settings.
Flash Hidden Functions(ECU Configuration) for BMW/VW/AUDI/SKODA/TOYOTA/LEXUS/SCION/MAZDA/FORD/LINCOLN, help refresh hidden functions to reprogram adaptive data for certain components after making repairs or replacements. You can activate the higher-level car functions and disable any annoying features. Customize some extra options such as disabled the seat belt buzzer, wind the windows down with the remote fob.
ECU Programming for Benz/BMW/VW/AUDI/SKODA/FORD(off line)/MAZDA(off line)
“Dealership” Level ECU Programming Services to replace the existing software/firmware in the Electronic Control Units (ECU), reprogram New ECUs, Reflash Blank ECU, Replace Old Modules, etc.

Programmable Module Installation(PMI) function:When you replace or initialize a new/used module for Ford/Lincoin/Mazda, XTOOL D9S Pro allows you to copy the data from original module and install it to the new unit to finish the module replacement.

Bi-Directional Control/Active Tests+ECU Coding + ECU Programmer:
XTOOL D9S Pro is a bi-directional scan tool with ECU codding ,allows you to receive information to and from the vehicle’s onboard computer and can send commands to the vehicle ECU to perform active tests without using the vehicle’s controls, like A/C Clutch on/off, Fuel Injectors, (Cycling) ABS Pump Motor, window, door, sunroof, etc. That’s helpful for DIY mechanics, speeding up the troubleshooting process when it’s time to make repairs.
D9S Pro supports the Online ECU Programmer for B-enz/B-MW and VW and Offline ECU Programmer for Ford /Mazda,Program new ECUs(PCM, ECM).

Powerful Key Programming Function:

Fast Key Programming also is an important part of any mechanic’s working, D9S Pro comes with powerful key programming functions include:
1.Work with EEPROM Adapter (Package NOT Included) to read/write/backup the IMMO data.
2.Read PIN code
3.Add New Keys (Fob/Smart)
4.Remote Learning
5.Key Matching
6.Remote Learn
7.ALL-KEYS-LOST Functions, etc.

NOTE: Key programming does not work on all cars, please check the compatibility before purchase.

Online Repair Resources:

Provide more than 200000+ vehicle models’ service & repair information, handbook, repair case and operation skill

One-Click identify VIN:
Smart AutoVIN technology for fast and precise identifying vehicles in one touch to scan ECUs, acquire vehicle info and run diagnostic on selected systems.Quickly get your car’s information,save your time.

One-Click Generate Health Report:
Health Report will scan all vehicle modules and give you a status list for each modules condition. Also known as “Global Test” or “Full Scan” .This diagnostic tool can automatically generate a diagnostic report when diagnostic work is successfully finished.The reports are saved to the internal memory for later review. The reports are able to be saved in PDF format, and as the tablet is equipped with WIFI, these can be emailed to the office or directly to the customer.

Maintenance Help:
Including How-to Videos, operation skills, and user manual, Q&A, Quick start guide, etc.

Supported languages:
Arabic, German, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Traditional Chinese, Vietnamese, Turkish

Wide Vehicle Coverage:

Xtool D9S Pro Specifications:

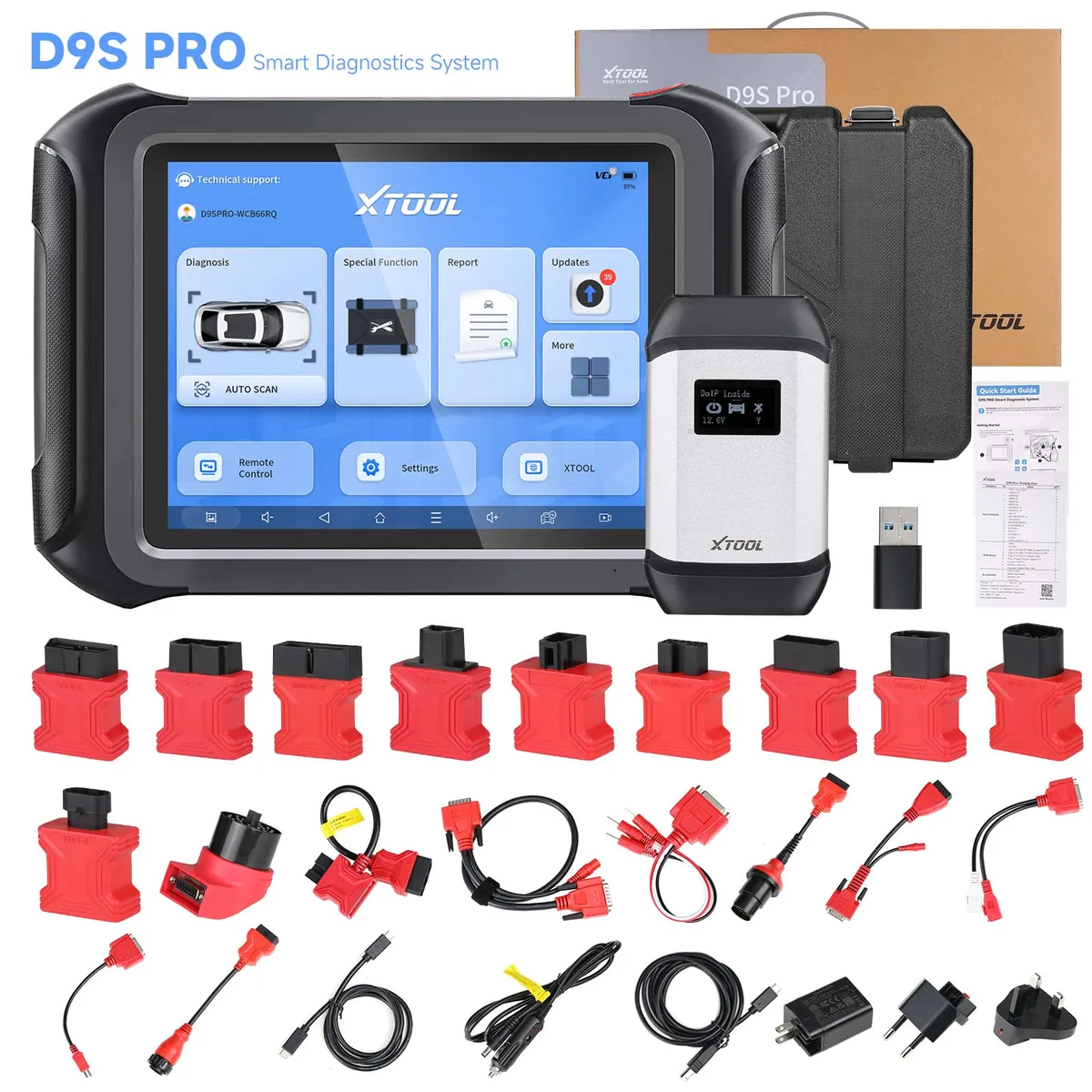

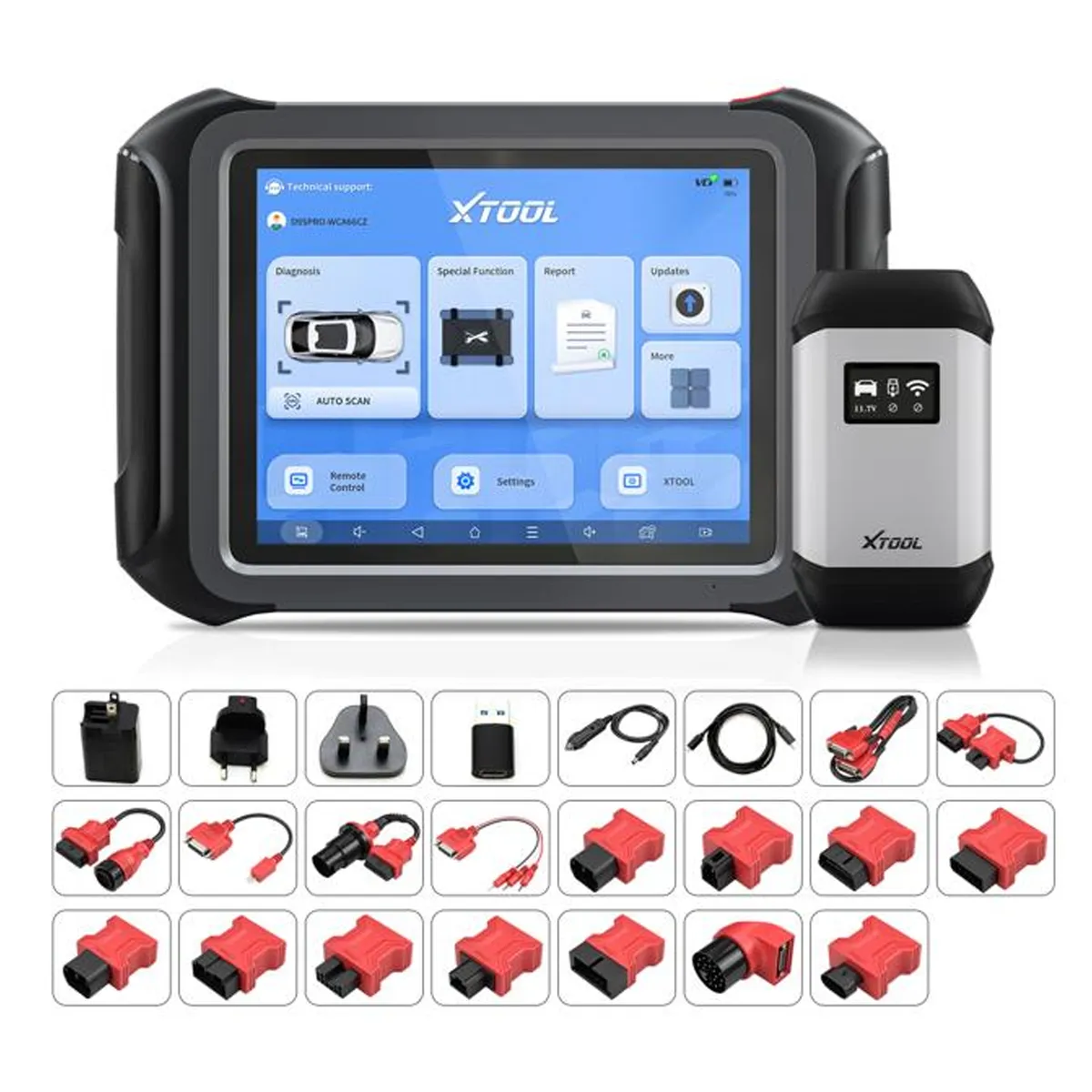

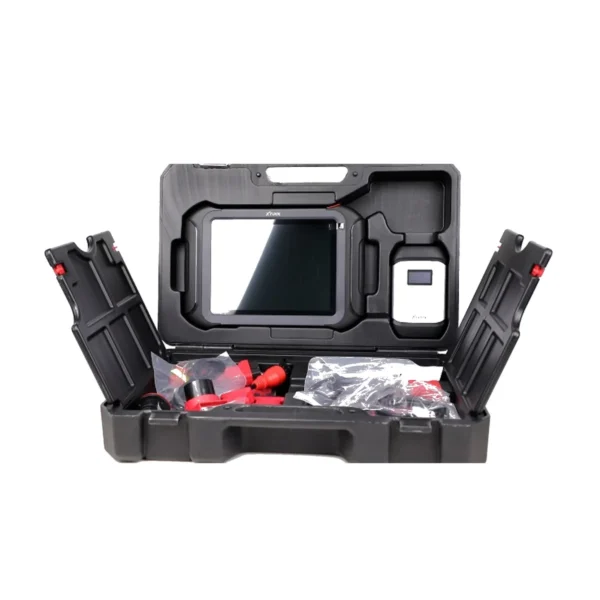

Package Includes:
1set x XTOOL D9S Pro
