Ancel BA101 12v car battery analyzer battery tester CCA (100 ~ 2000)

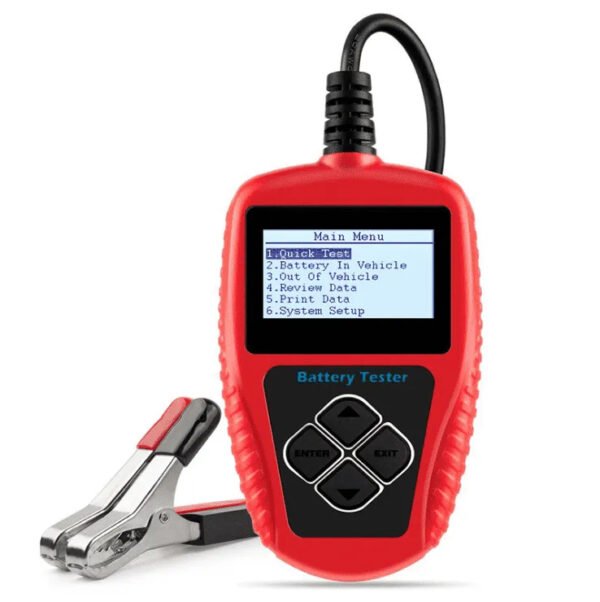

Ancel BA101 Automotive 12V Car Battery Tester

1. Simple and easy to use
2. Test batteries on and off the vehicle
3. Accurate results in milliseconds
4. Battery Life Analysis
5. Analysis Result : Good or Replace
6. Large easy to read LCD display.
7. Test results based on JIS, EN, DIN, SAE and IEC Standards.
8. Languages: English, French, Spainsh, German, Italian, Polish, Japanese and Korean
9. Quick test—input battery volume (AH), then it can show the battery status.
10. vehicle cranking system test— cranking time, voltage and status.
11. vehicle charging system test—load voltage, unloaded voltage, ripple status and charging system status.
12. Store the testing result, print function
BA101 Functions:
Test Result: Good or Replace
Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal resistance value (m )
Life in percentage (%)
Cranking Test
Charging Test

Operating Parameters:
System voltage: 12 Volts

Input voltage range: 9V~15V

Power requirements: No internal batteries required. Power on when hooked up during testing.

AH range: 30-220AH

BA101 Automotive 12V Vehicle Battery Test

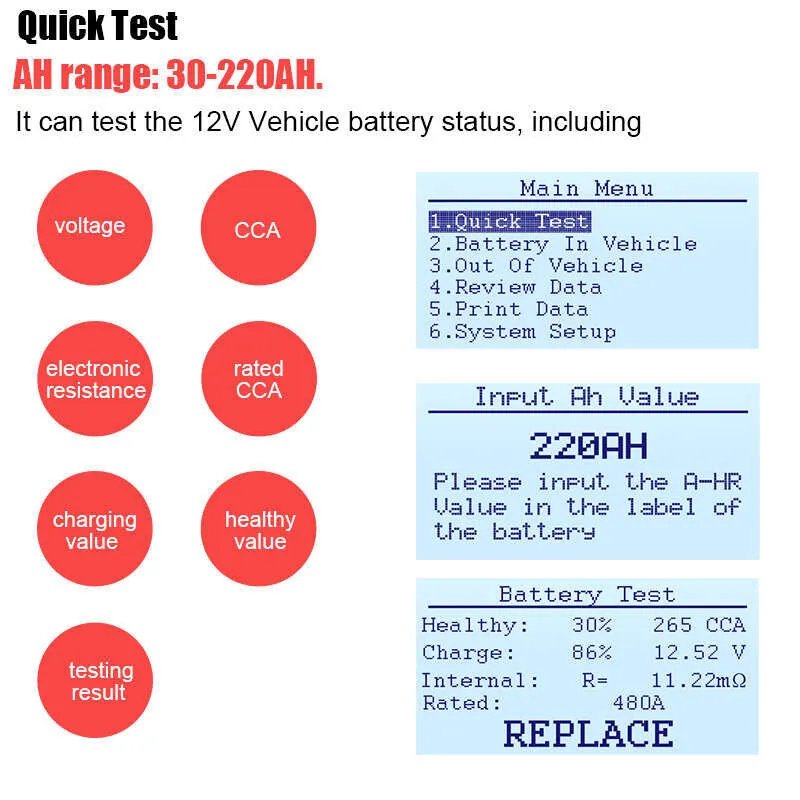

1. Quick test

It can make sure the battery status, including voltage, CCA, electronic resistance, rated CCA, charging value, healthy value and testing result in one second. Once input the AH value—battery rated capacity, which is marked in the label of the battery.

1). Press UP/DOWN key to select the Quick test, then press ENTER key to confirm.

Application:
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.

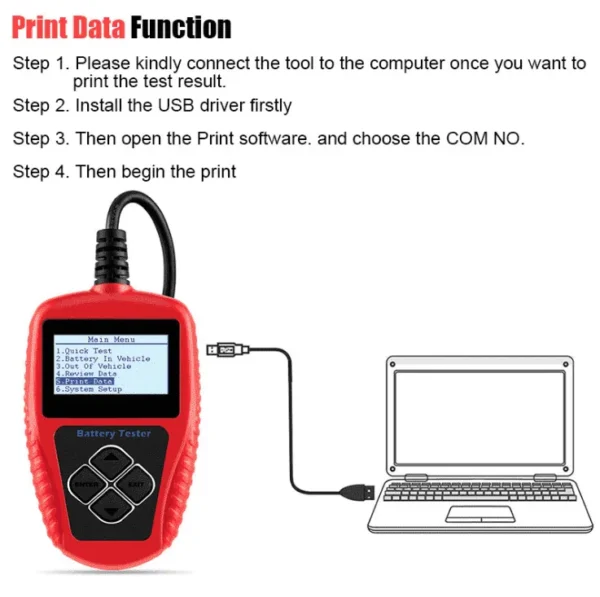

Print Data Function:

FAQ:

Q1: How to choose a better car battery tester?

A1: It is accuracy. Compared to other tester, the test results of Ancel Battery tester are the same(tolerance ±15) when testing at the same time. More Accurate!!

Q2: How to know my car’s battery type

A2: You can open your car and to check on the battery. There is Battery Type and value.

Q3: What is Ancel BA101 CCA value and AH?

A3: CCA100-2000, 30-220Ah, which is the highest CCA in the market.

Q4: What language it has?

A4: Ancel BA101 has two version, European Version including English, Spanish, French, German, Italian and Polish, Asian Version including English Japanese, Korean and Chinese

Package including:
1pc x Ancel BA101 Automotive 12V Vehicle Battery Tester
