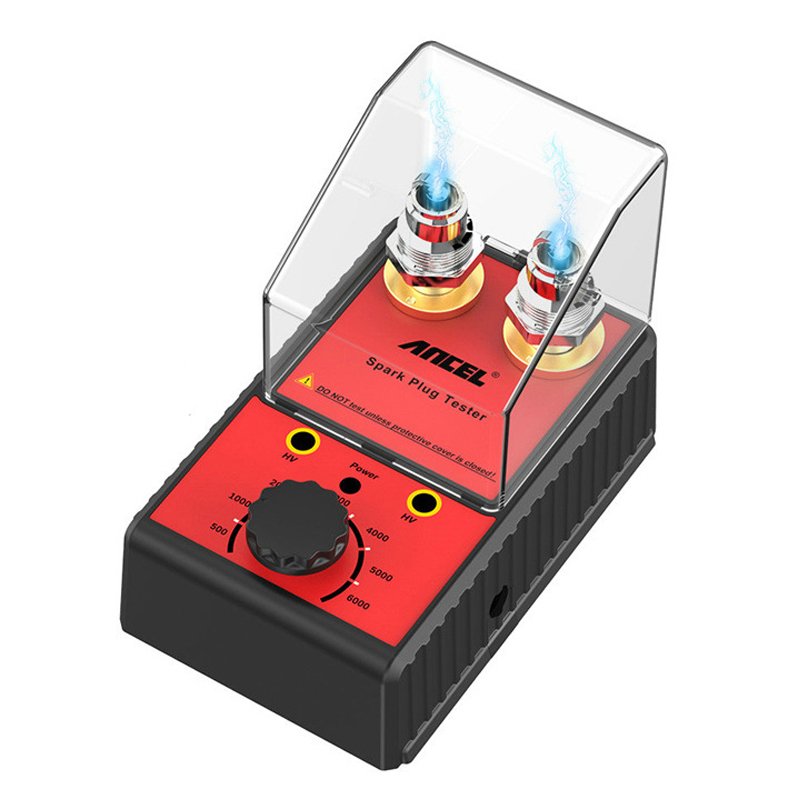

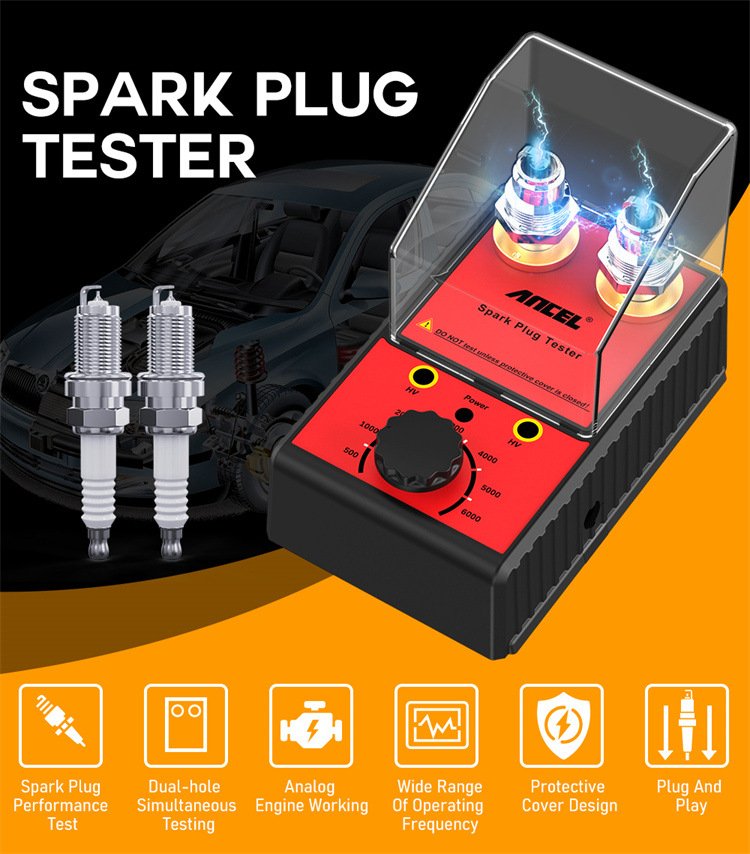

ANCEL Car Spark Plug Tester is for testing the performance and strength of spark plugs. The product simulates actual engine conditions and works up to 6000rpm. It is compatible with all spark plug tests for crankshaft engines and motorcycles on the market. It can also test two holes at the same time and is designed with a protective cover to ensure the safe operation of maintenance personnel during the test.
Why choose it?

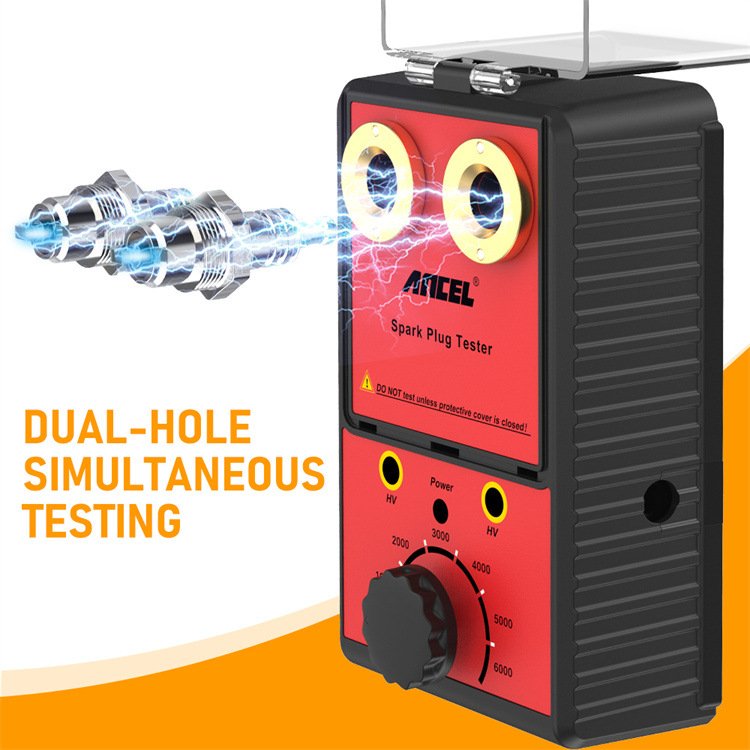

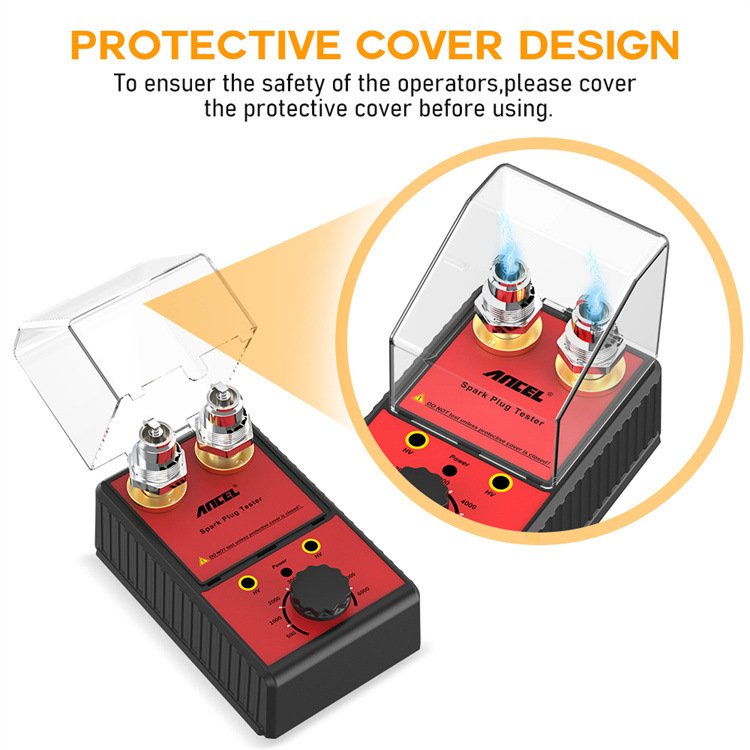

【Dual Hole Testing & Protective Cover Protection】Spark plug tester has two spark plug socket,it can test two spark plugs (good spark plug & bad spark plug) at the same time.By comparing the spark intensities of the two spark plugs,judge the performance and ignition intensity of the spark plugs,and replace the broken spark plugs in time.The design of the protective cover can prevent you from the risk of electric shock during the test,which effectively guarantees your safety during the operation.
【0~6000rpm Working Frequency Adjustable & More Accurate Data】The automotive tools has a wide adjustment range of working frequency.By operating the rotary switch,you can adjust the working frequency in the range of 0~6000rpm,the higher the set frequency,the stronger the spark intensity.Spark plug tester can also simulate the work of the engine,restore the authenticity of the car rotate speed,save time and high efficiency,and the data is more accurate,which can better test the spark plug.
【High-Quality ABS Material With Impact Resistance & Heat Resistance】Ignition tester is made of high-quality ABS material,which has the characteristics of impact resistance and heat resistance.It can provide you with long-term service and reduce the cost caused by frequent tool replacement.
【Plug And Play & Intuitively Display Spark Plug Status】Spark tester automotive is easy to operate, and you can start using it after connecting the adapter. The spark plug tester comes with a power supply/high voltage indicator light, which can help you observe the state of the spark plug more intuitively.
【Widely Used In 12V Gasoline Vehicles Car Spark Plugs】Spark tester is widely used, and can be used to test 12V gasoline vehicles car spark plugs (a diameter of 12mm).It is compatible with all spark plug tests for crankshaft engines and motorcycles on the market.
【Note】Spark plugs tester is a high voltage detector.Please do not touch the spark plug during the test to prevent the risk of electric shock.
Notice:
Spark plug diameter: 12.5mm
Spark plugs need to meet these two conditions before they can be tested:
1. The test height of the tester is equal to 36mm; most spark plug specifications are 36mm
2. The power is less than 6000RPM; the maximum power of the tester is 6000RPM;
(Note: The test height of the tester is 36mm, which refers to the height at which the spark plug is inserted)

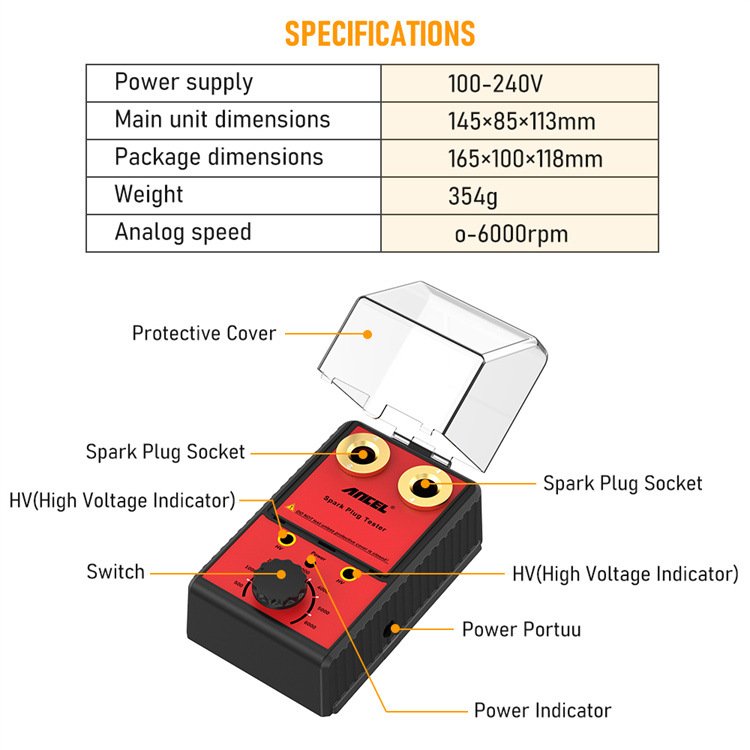

Specifications:
Power supply:100- 240V

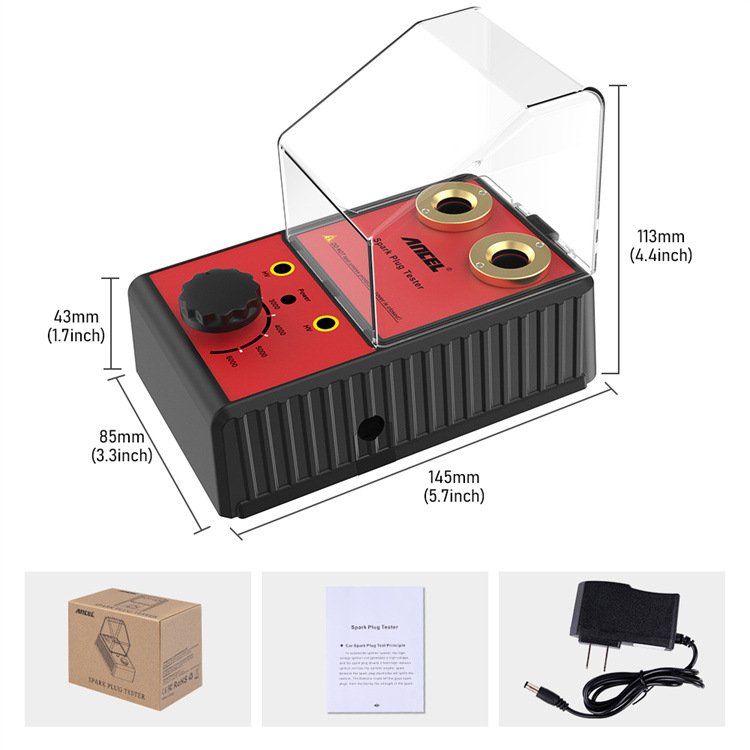

Main unit dimensions:145x85x113mm
Package dimensions:165x100x118mm
Weight:354g
Analog speed:0-6000rpm
Easy to use, operation steps
1.Place the spark plug in the test hole.
2.Cover the protective cover.
3.Connect the power supply,asjust the working frequency.
4.Observe the spark plug test status through the protective cover.
