ANCEL PB500 Automotive Circuit Tester 12V 24V Voltage Power Scanner Power Circuit Probe Kit Electrical System Diagnostic Tool

ANCEL PB500 Electrical Circuit Diagnostic Tester Automotive Power Analyser

Ancel PB500 Power Scan Kit is the most revolutionary circuit tester to date, working with 12-24 volt sources and providing DC voltage, AC voltage, Frequency, Duty Cycle, Injector Circuit, Resistor and Diode detection functions. Specifically in AC voltage, Frequency, Duty Cycle and Inject mode, the user can switch between waveform display mode and digital display mode by long pressing the mode button. The PowerScan is indeed the ultimate in performance and affordability, allowing the user to check circuits in a single step. An absolute must for any technician looking for a fast and accurate

solution for diagnosing electrical systems.

📌TIPS:

1. KM50 is ONLY for 12-24V vehicle battery electrical systems, and should NOT be used to test 110/220V household appliances or it will be damaged.
2. The LED and LCD draw no more than 100 milliamps of current. So if you use this device as a test light or multimeter, it is safe for computers and airbags.
3. When turning on components, you can extend the life of rocker switch in the tool if you first press the switch, and then apply the tip to the component. The arc will then occur at the tip and not at the metal contacts of the rocker switch.

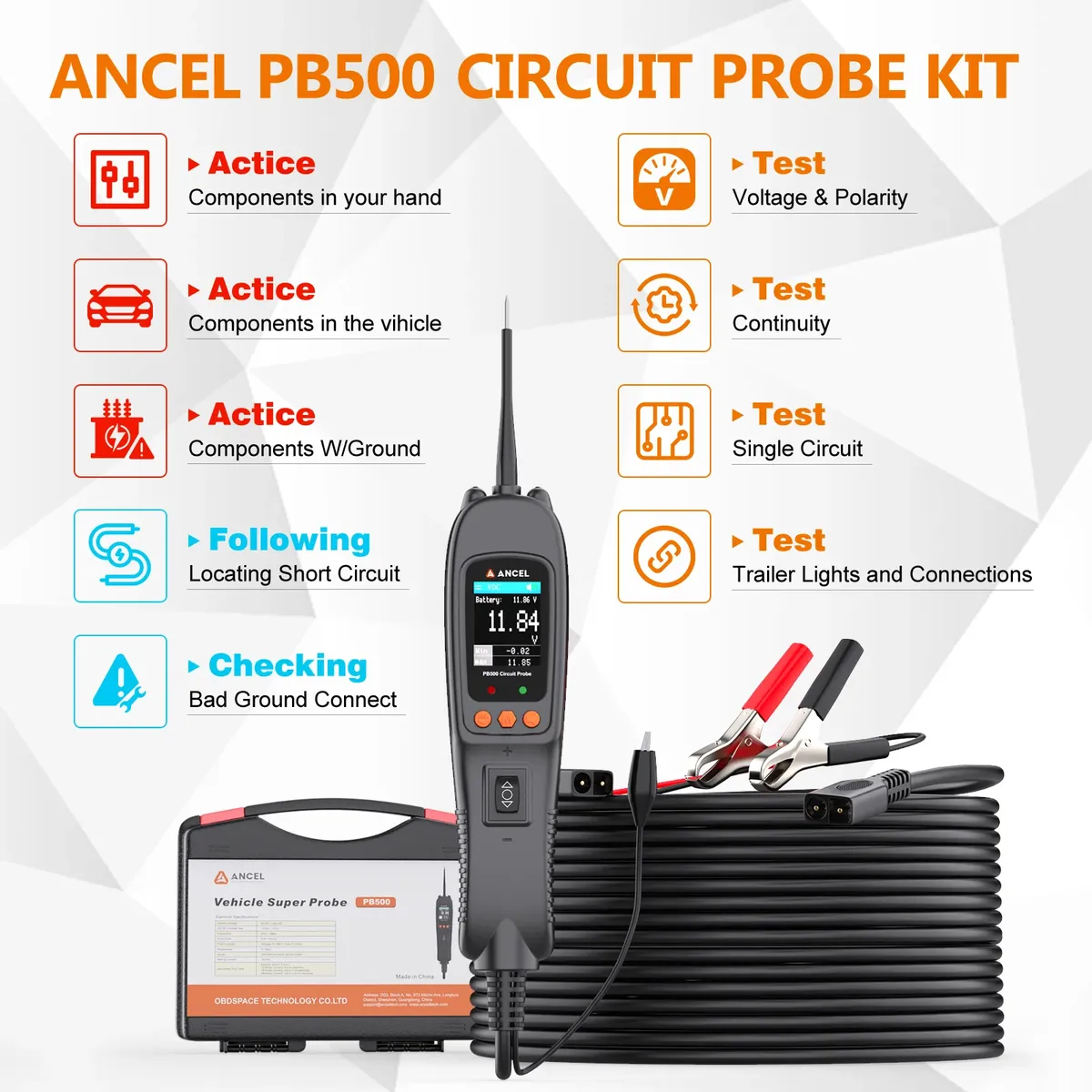

ANCEL PB500 Electrical System Circuit Tester Functions:

✔️ Diagnose 12 ~24V automotive electrical systems swiftly and accurately.
✔️ Show battery voltage reading and help user determine circuit polarity immediately after connecting the KM50 clips to the vehicle battery.
✔️ Test DC Voltage, AC Voltage, Frequency, Duty Cycle, Fuel Injection Circuit, Resistance, and Diode. Especially, in AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes, user can long press the mode button for 3 seconds to switch between Waveform Display Mode and Digital Display Mode.
✔️ Activate electrical components and test their functions without jumper leads – by depressing the rocker switch to conduct a positive or negative battery current to the tip so as to power up electrical components.
✔️ Test bad ground contacts instantly without performing voltage drop tests.
✔️ Help user to follow and locate short circuits without using external fuses.
✔️ Test continuity with the assistance of its auxiliary ground lead.
✔️ The tool is short-circuit protected. If it becomes overloaded, Its internal circuit breaker will trip to protect the instrument from overload.
✔️ When the circuit breaker is tripped, the tool will NOT be able to conduct battery current to the tip even when the rocker switch is pressed; however, all other functions of the tool are still active, which means you can still probe a circuit and observe the voltage reading.

PB500 – Upgrade of PB100

PB500 has Fuel Injector Testing, Frequency Testing, Duty Cycle Testing, and Display Forms: Waveform. These are the features that PB100 does not have.

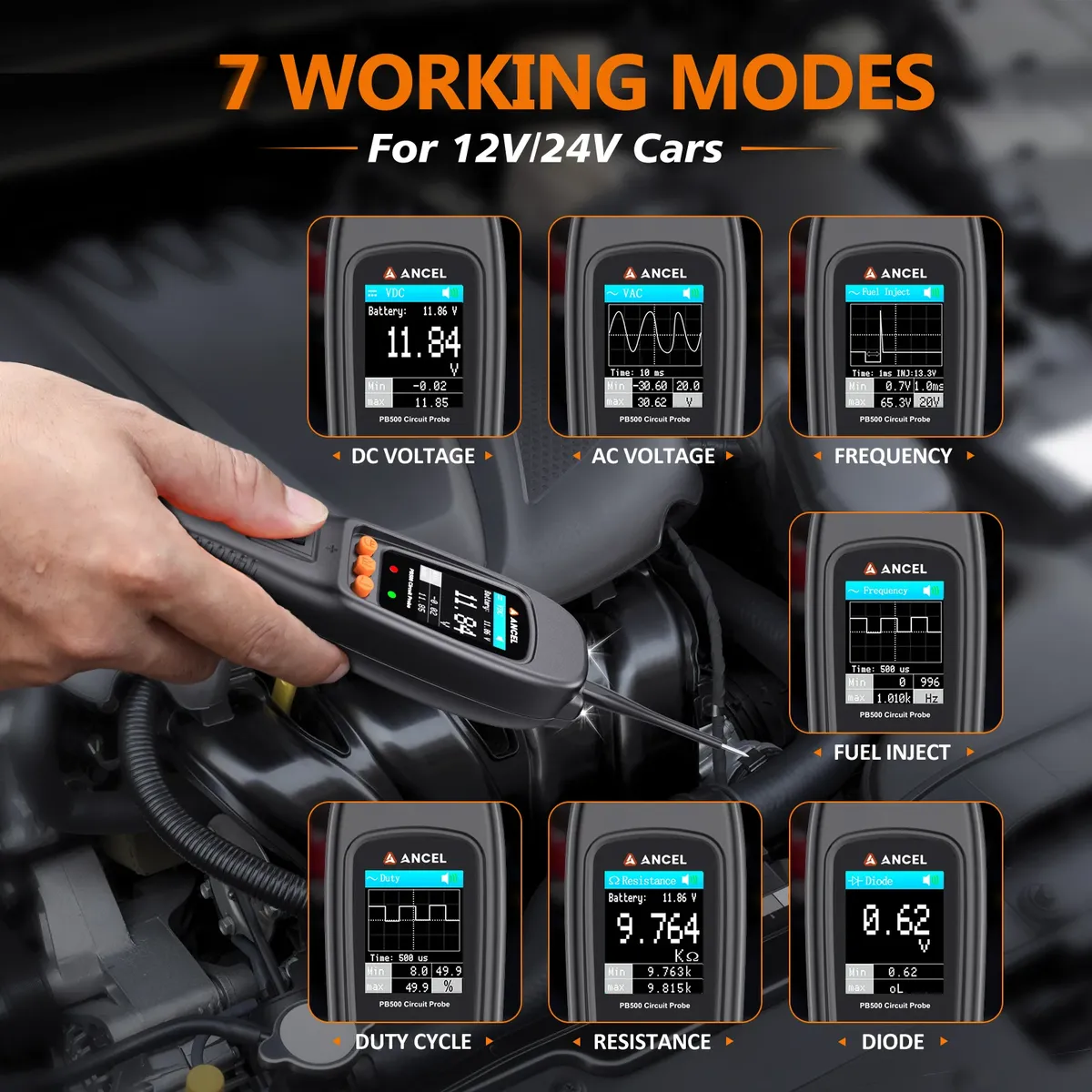

ANCEL PB500 has 7 test modes:

DC Voltage,
AC Voltage,
Frequency,
Duty Cycle,
Fuel Injection Circuit Detection,
Resistance,
Diode.
Especially, in AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes, user can long press the mode button to switch between Waveform Display Mode and Digital Display Mode.

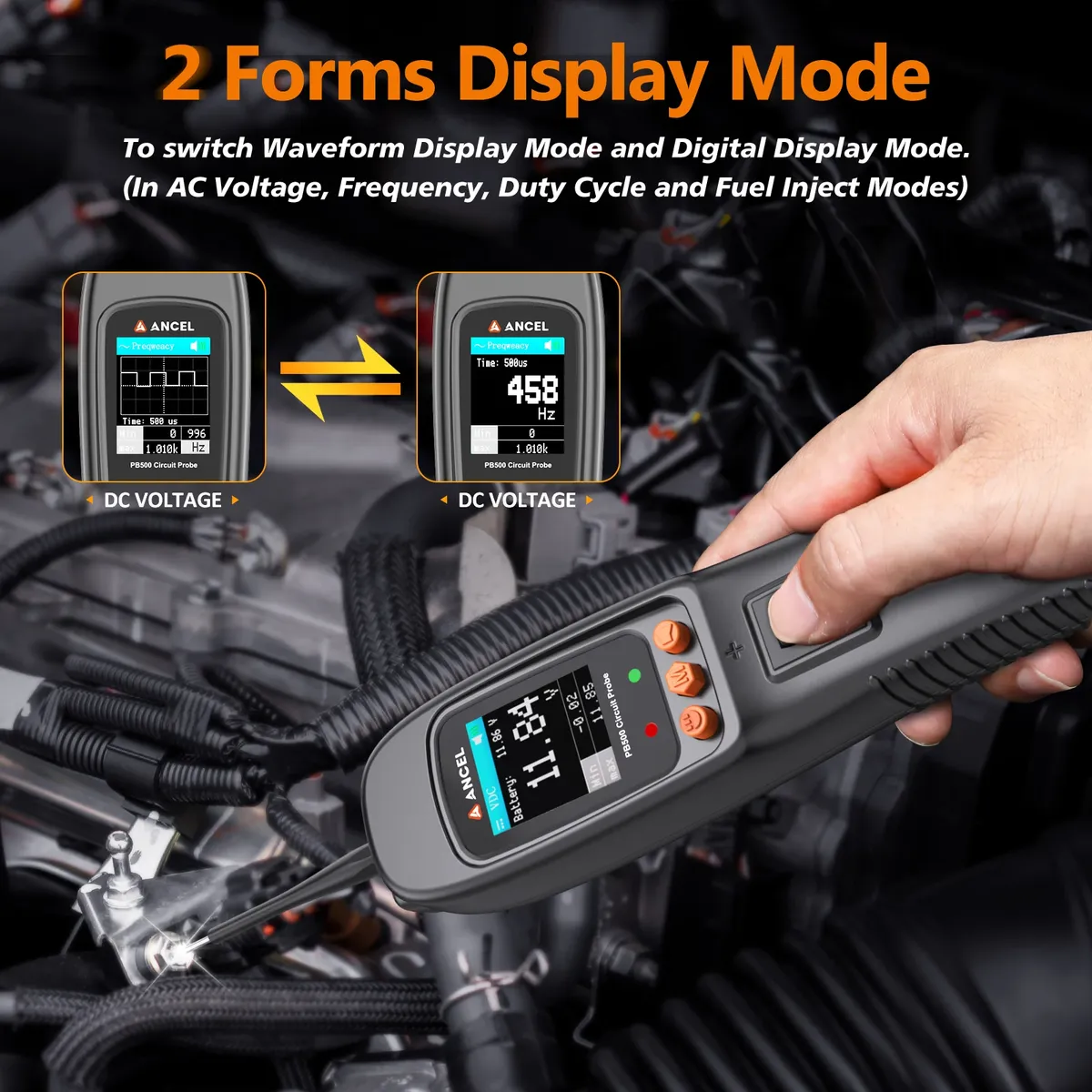

2 Forms Display Mode

To switch Waveform Display Mode and Digital Display Mode. (In AC Voltage, Frequency, Duty Cycle and Fuel Inject Modes)

Product Specifications

➤ Electrical Specifications

● Supply Voltage 8V DC ~ 30V DC
● DC/ AC Voltage Test -110V ~ 110V
● Frequency 0Hz ~ 1Mhz
● Duty Cycle 0.0~100.0%
● Fuel Injection Voltage: 0~180V, Time: 0~25ms
● Resistance 0~1MΩ
● Diode Germanium diode, silicon diode
● Rating Current 1A~8 A

➤ Instrument Trip Time:

● 8 Amps: Hold > 1 hour.
● 12 Amps: current: trip in one hour.
● 16 Amps: current: trip in 3-30 seconds.
● 24 Amps: current: trip in 0.5-4.0 seconds

➤ Tool Specifications

● Display TFT color display (160×128 dpi )
● Operating Temperature -10 ~ +60°C ( 14 ~ 140℉)
● Storage Temperature -20 ~ +70°C (-4 ~ 158℉ )
● Dimensions (L*W*H) 200mm*52mm*39mm
● Net Weight 1.2Kg

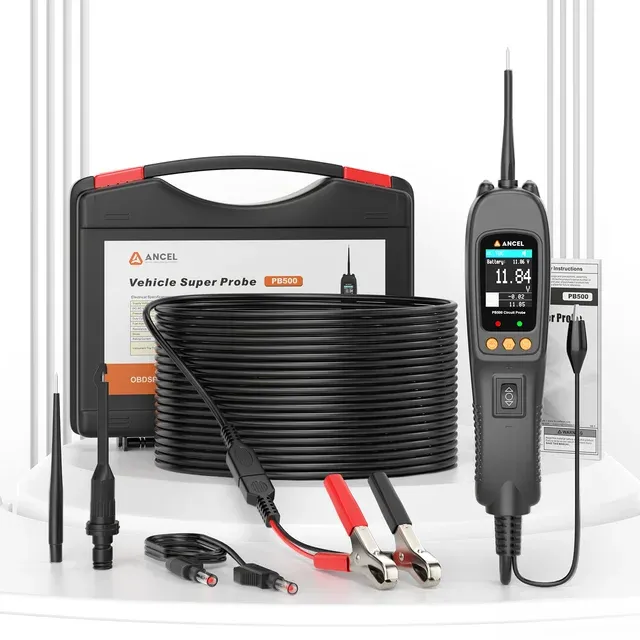

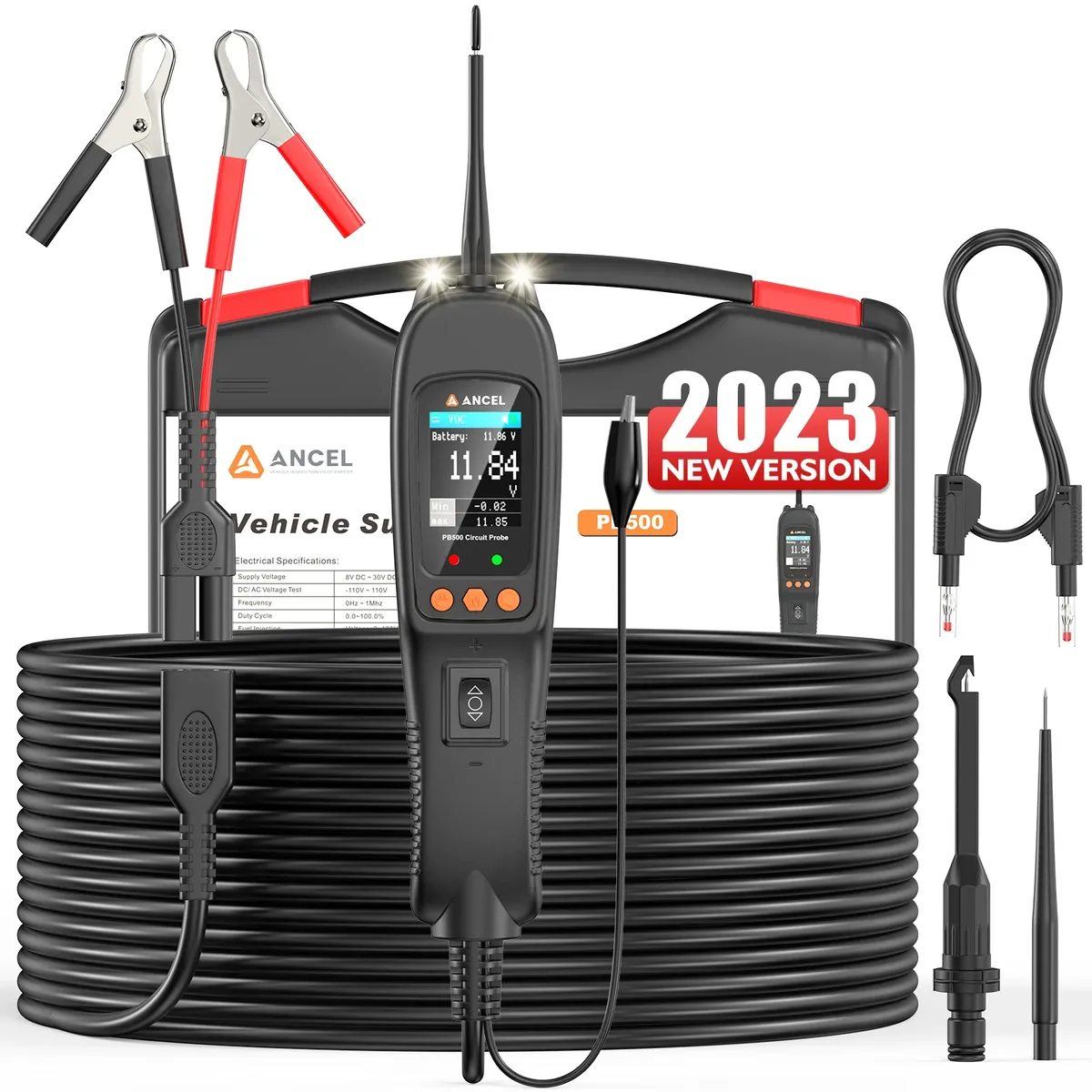

Packing List:

1pc Vehicle Super Probe
1pc Probe Tip
1pc Crochet Hook
1pc Crochet Hook Extension Cable
1pc Battery Clamp Cable
1pc User’s Manual
1pc Rugged Blow Molded Case
