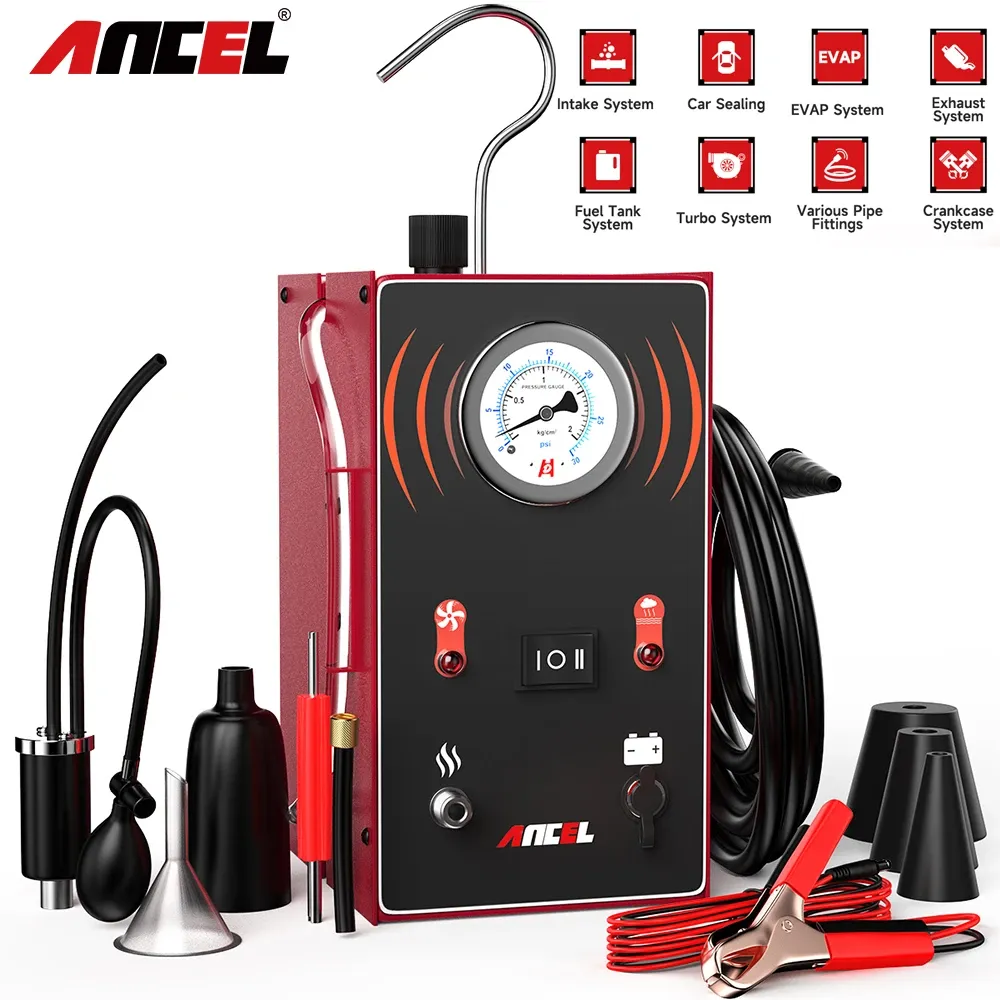

ANCEL S200 Car Smoke Leak Detector EVAP Pipe Smoking Generator Pipe Leakage Analyzer Tester EVAP System Diagnostic Tools

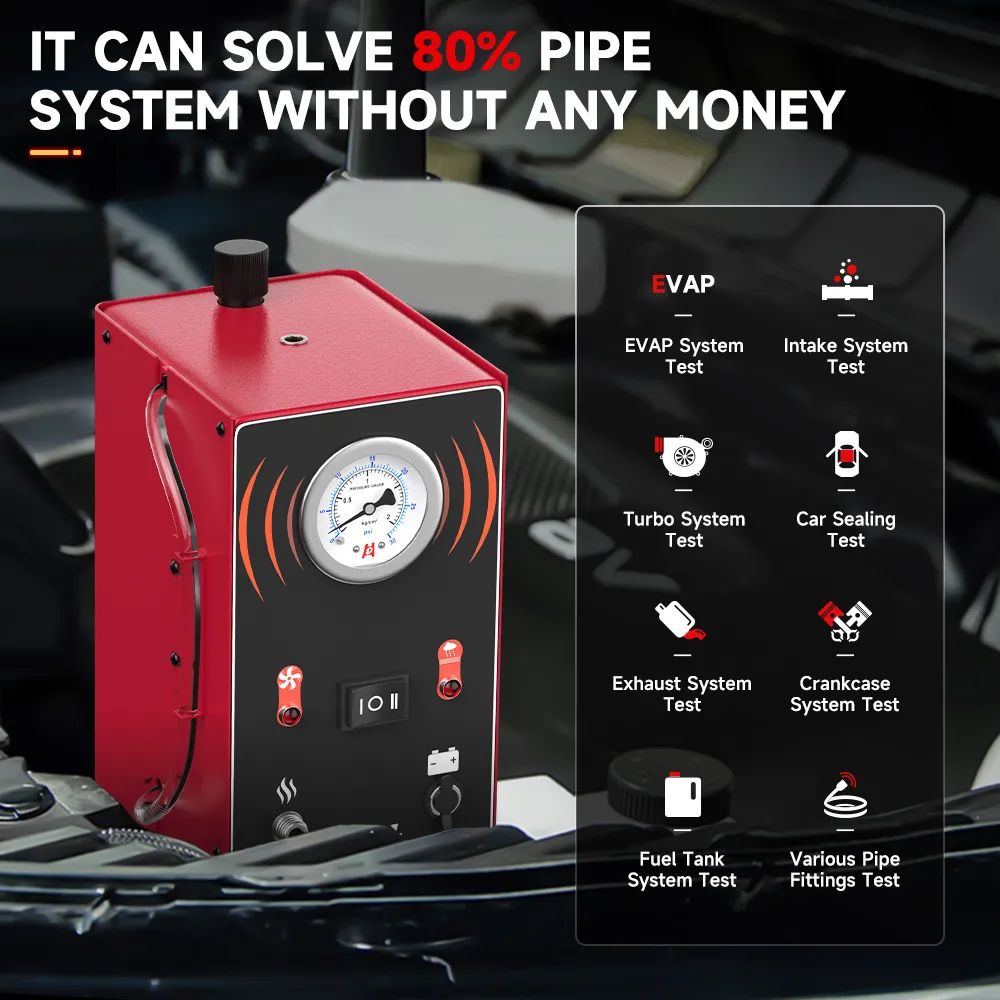

ANCEL S200 smoke leak detector supports multi-system testing, especially EVAP system
EVAP System Test
Intake System Test
Exhaust Systems Test
Crankcase system test
Car Sealing Test
Fuel Tank System Test
Turbo System Test
Various Pipe Fittings Test
ANCEL S200 smoke leak detector has a powerful pressure guage, easy to operate
1/2 psi pressure gauge and smoke regulator which helps you control the smoke effect easily and allowing you to estimate the size of the leak by the change of the gauge value.It will specifically mark where the leakage is coming from,improves the efficiency of diagnosis
how to work with ancel s200 smoke leak detector
Step1: Fill in 10ml-20ml test oil (baby oil) to the detector
Step2: Disconnect the pipe that needs to be connect with the detector
Step3: Connect detector with DC12V battery,device starts to work
Step4: The pipe will be filled with smoke,check the leak points
How to judge whether there is air leakage and the size of the air leakage port through the pressure gauge?
Ancel S200 is suitable for different types of cars, motorcycles, boats, etc

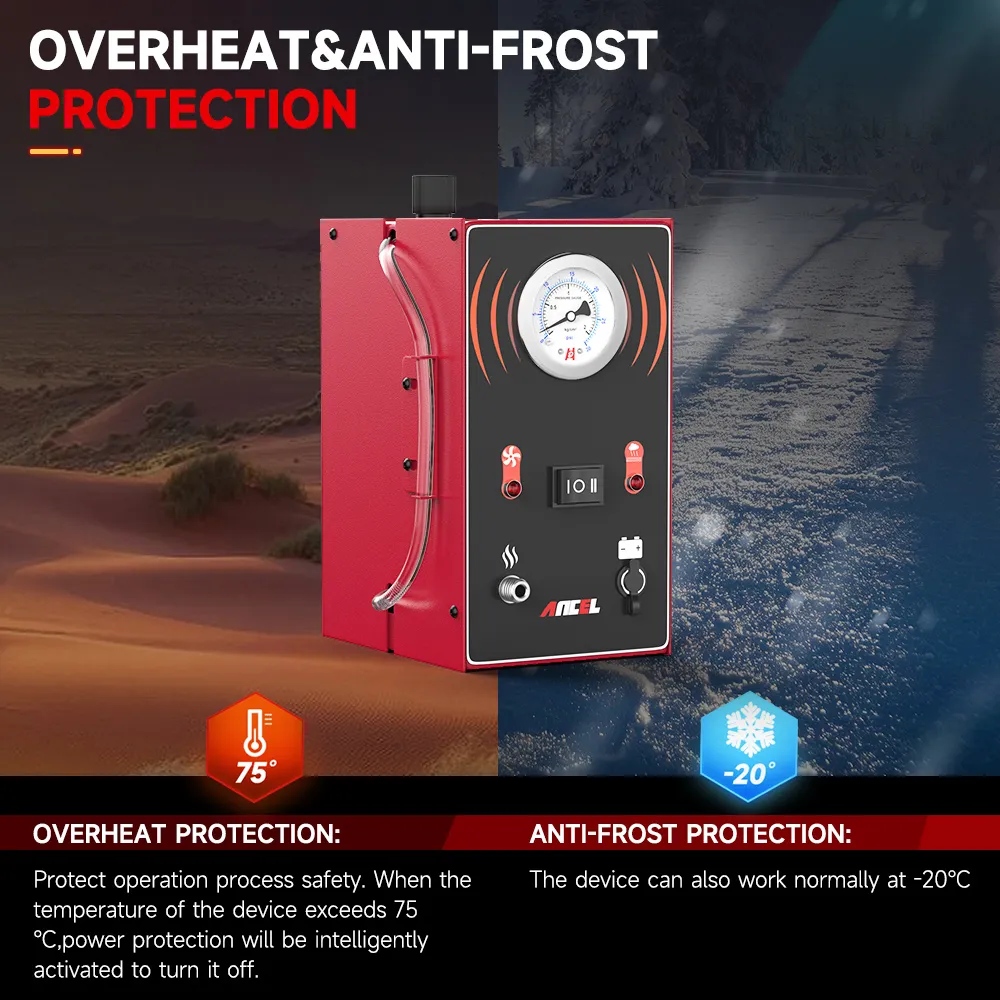

Overheat and anti-frost protaction
Specification
Power source:12V Fully Charged vehicle battery
Current:6A
Flow rate: <6 L/min
Pressure output:0.8-1.0 bar (0.8-14.5psi)

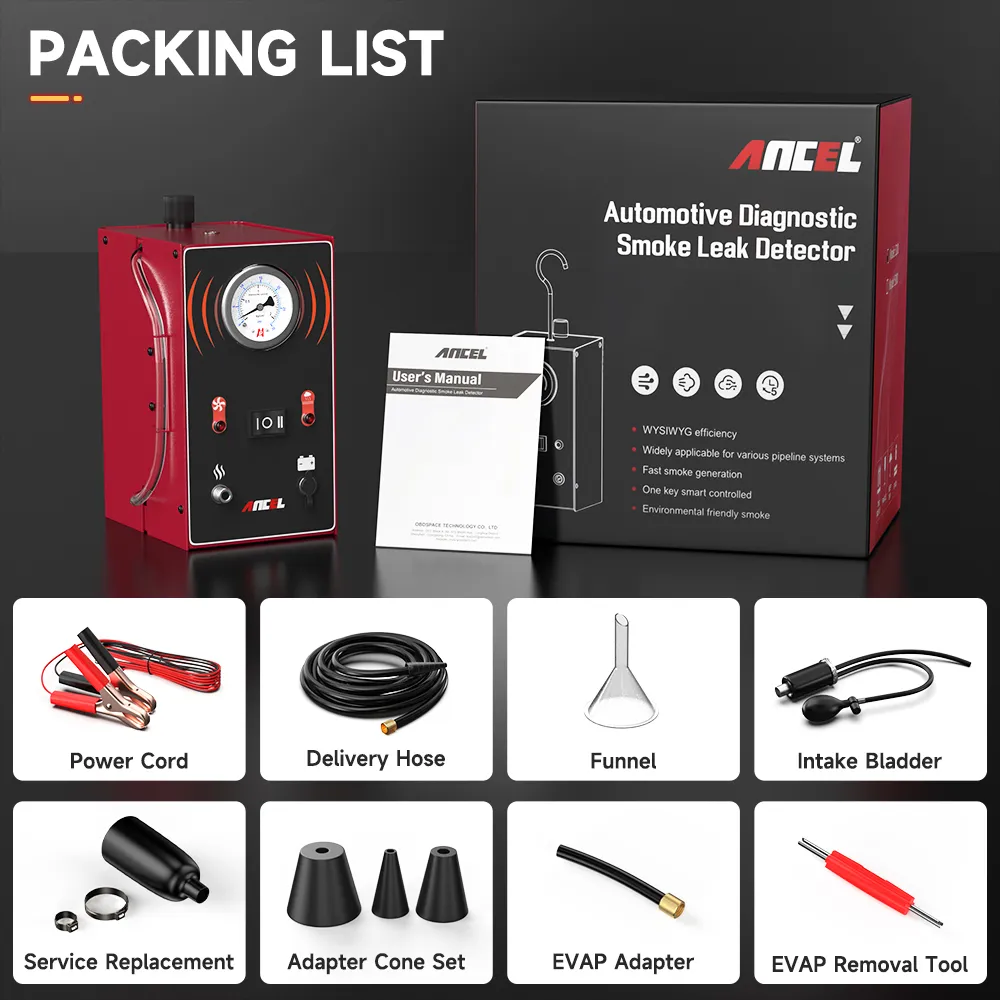

PACKIING LIST
