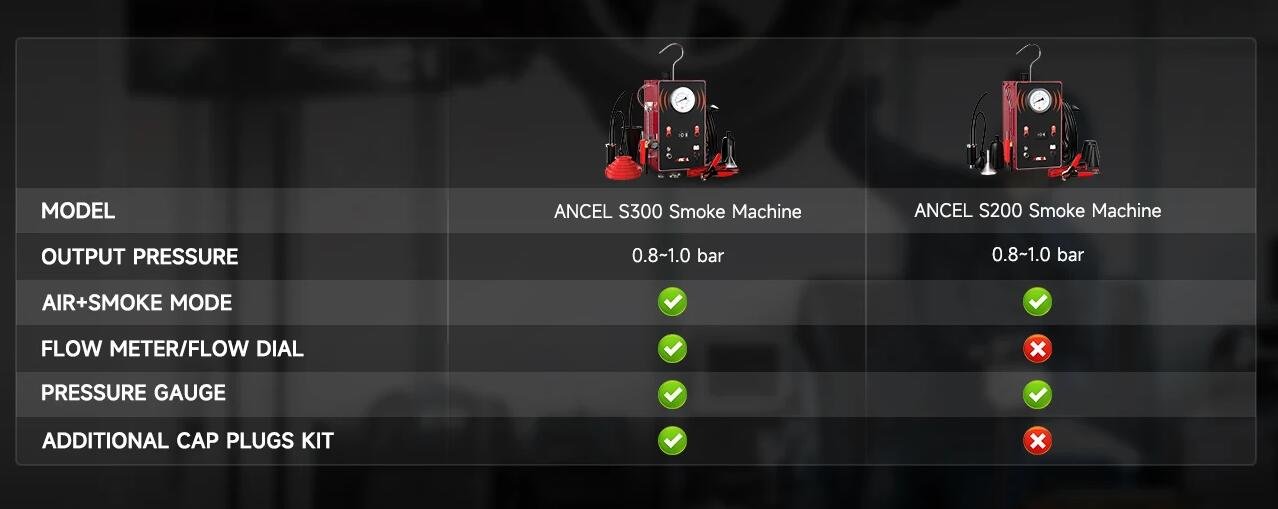

The difference of S200 and S300
S300 MODEL:
✔️1.OUTPUT PRESSURE
✔️2.AIR+SMOKE MODE
✔️3.FLOW METER/FLOW DIAL
✔️4.PRESSURE GAUGE
✔️5.ADDITIONAL CAP PLUGS KIT

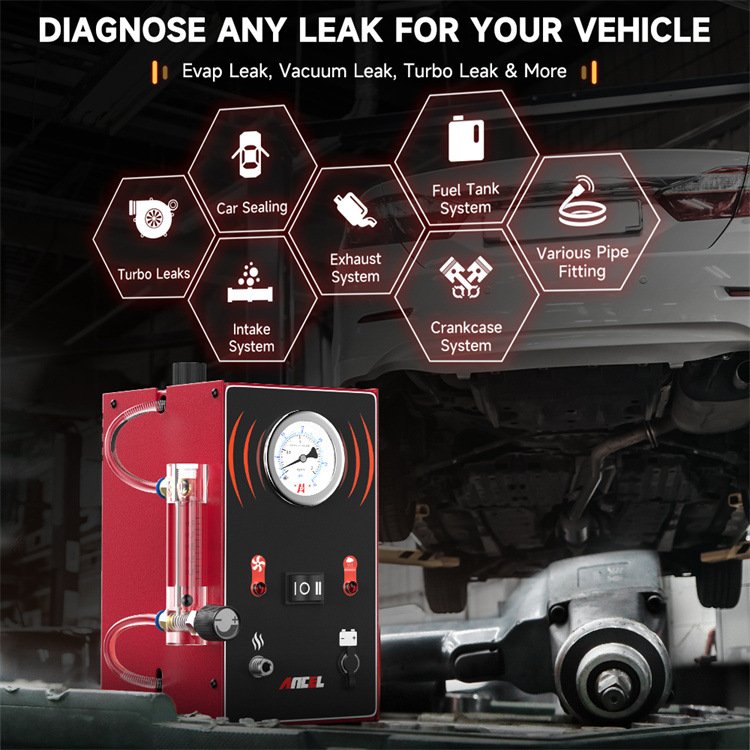

ANCEL S300 smoke leak detector supports multi-system testing, especially EVAP system
EVAP System Test
Intake System Test
Exhaust Systems Test
Crankcase system test
Car Sealing Test
Fuel Tank System Test
Turbo System Test
Various Pipe Fittings Test
Upgraded S300 Automotive Smoke Machine
Fits All Lines and Hoses

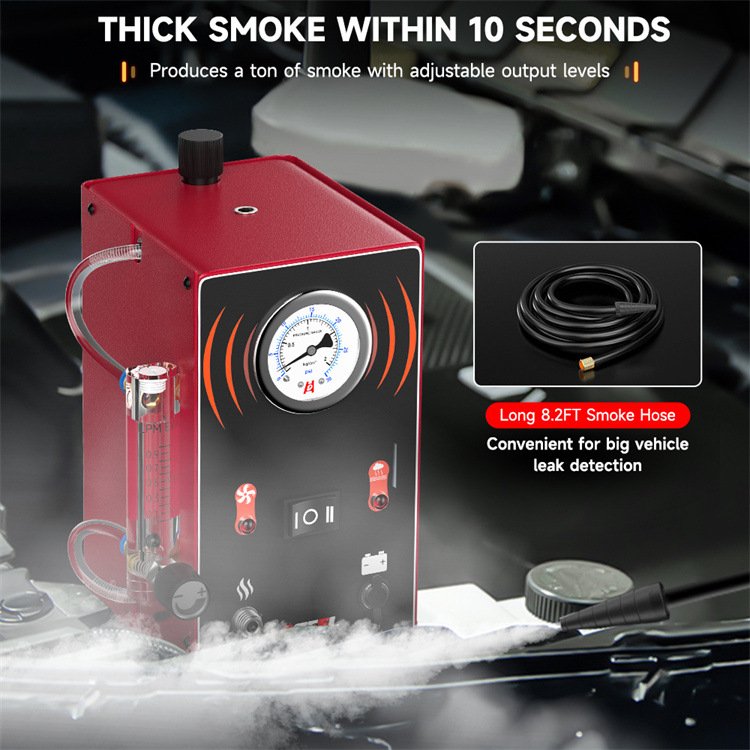

Adjustable Smoke Output Help To Pinpoint Leaks Quick
How to judge leakage- through the pressure gauge?
NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.
Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.
Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.
Adopt The Latest 5th Generation Technology
Overheat & Anti-frost Protection
Overheat Protection
When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.
Anti-frost Protection
The device can also work normally at -20℃.

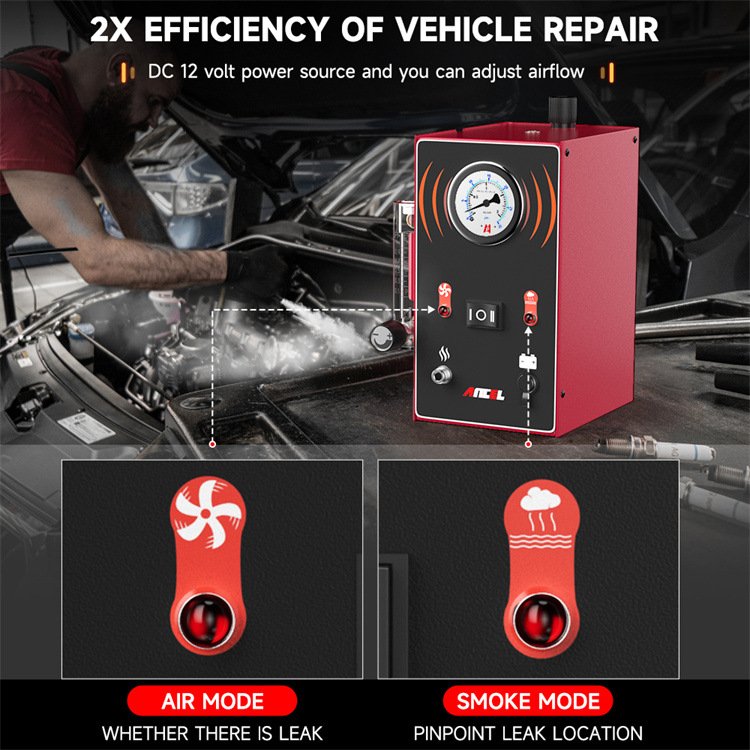

Two kinds of modes: AIR model+Smoke mode
Air mode :First, use the air mode to directly measure the leak, and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.Then there is no need to waste baby oil
SMOKE MODE:After the air mode determines that there is a leak, use the smoke mode to find the leak.
Easy To Detect an Air Leak Vehicle Cabin
How to use Ancel s300?
1. Fill 20ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.
2. Disconnect the pipe that needs to be connected with detector.
3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work
4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

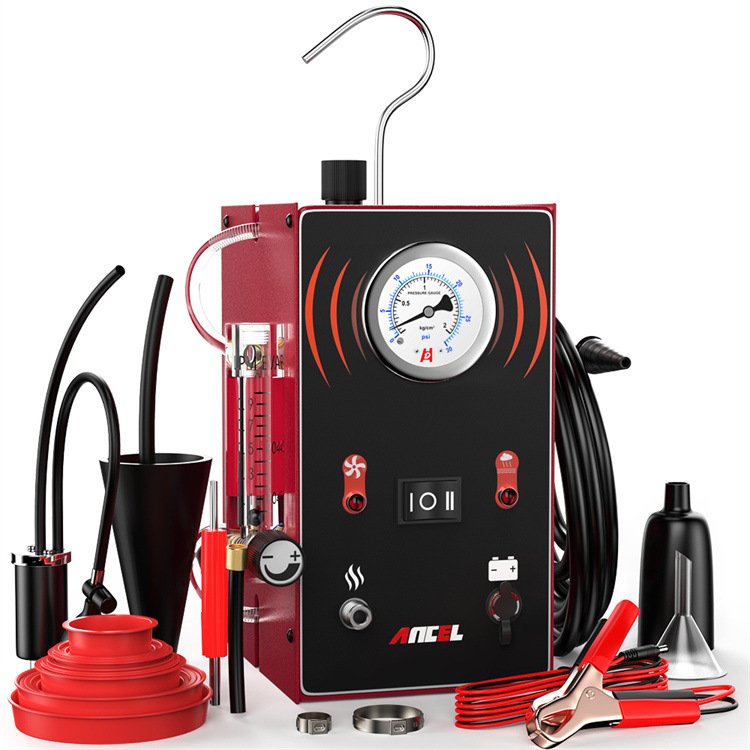

Diagnose All Types Of Leaks With Adapters
Power Cord
Delivery Hose
Funnel
Intake Bladder
Service Replacement
Adapter Cone
EVAP Adapter
EVAP Removal Tool
Cap Plugs Kit
Note:
1. When you use this Ancel 300 Car Smoke Leak Detector for the first time, fill with 10-20ml baby oil. Please be careful NOT to beyond this range.
2. Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
3 . Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
4. During the process of leak detection, please keep away from smoke-sensitive parts.
5. Do NOT run the detector over 8 minutes continuously. It needs interval rest.
6. The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
7. The round part of this detector has temperature, please be careful to avoid burns.
8. If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
