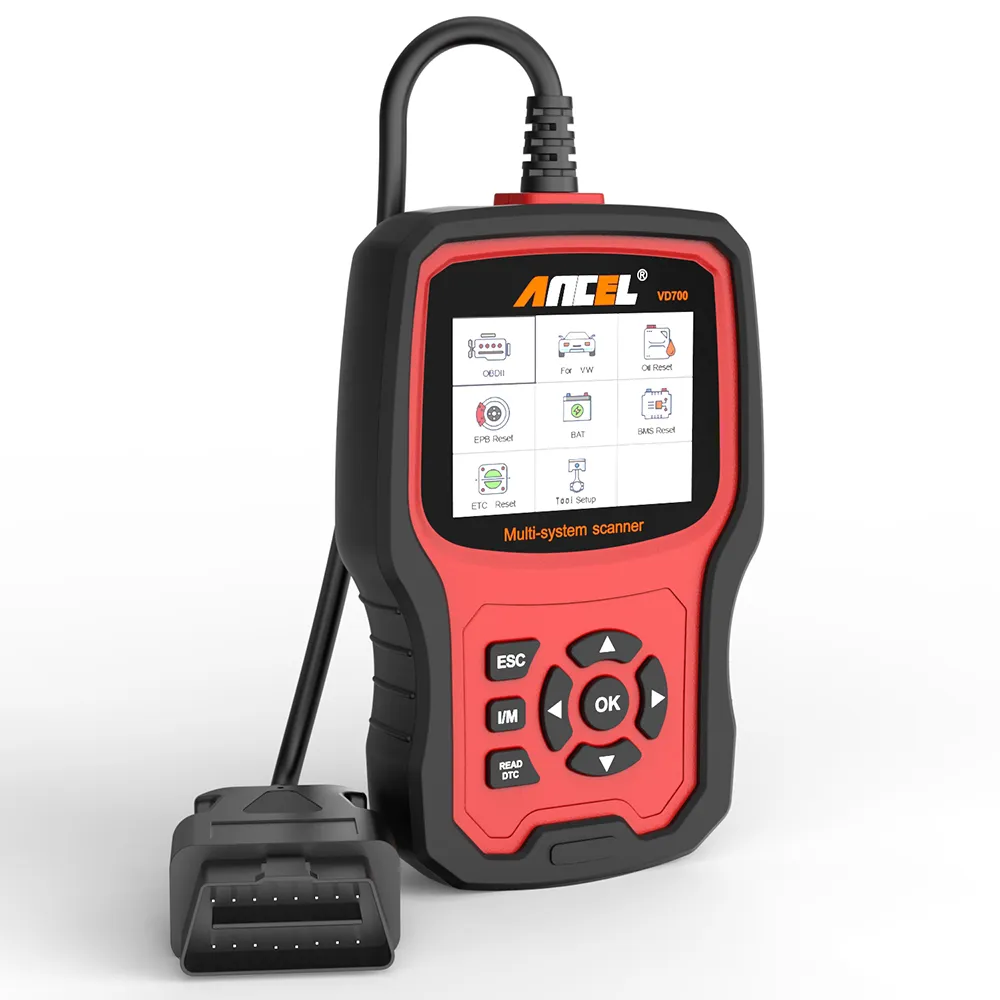

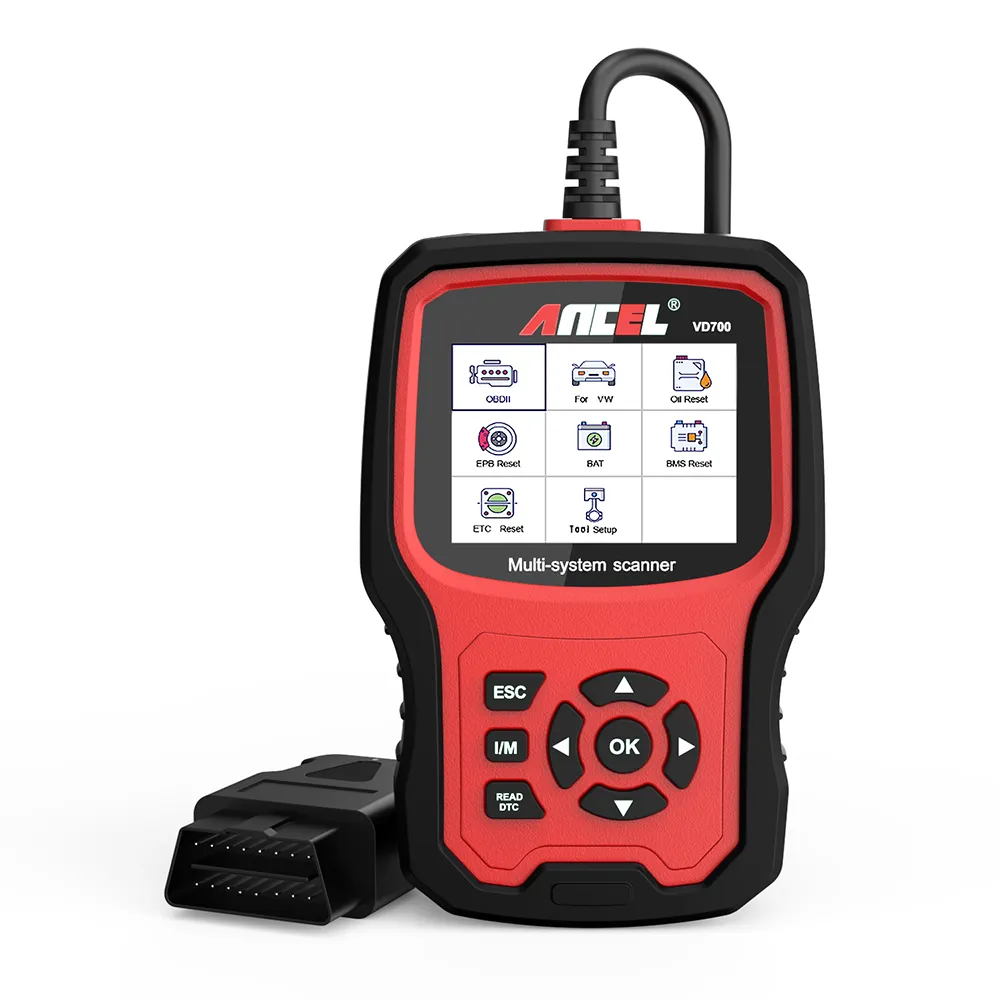

Ancel VD700 Car Diagnostic Scanner Automotive Full System OBD2 Scanner Professional ABS EPB TPMS DPF for VAG VW Audi Skoda
ANCEL VD700 is an upgraded version of the ANCEL VD500 OBD II scanner. It specializes in diagnosing Volkswagen Group vehicles (For VW / AUDI / SKODA / SEAT), it can do all systems diagnose (such as ABS, Transmission, SAS, SRS, ESP, TPMS and other systems) and special functions (such as throttle position adaption, brake pad reset, TPMS reset, steering angle learning, oil service reset, injector learning, Battery Registration and DPF reset, etc) for VAG vehicles. It comes with an advanced STM CPU, a 2 color UI theme 2.8-inch screen, 11 display languages and a special feedback function. It can diagnose your vehicle in merely seconds due to its automatic vehicle model identification function. We also provide lifetime free updates to make sure it always has the latest fault code database.
ANCEL VD700 Full-Systems Diagnostic Scanner For VAG
The ANCEL VD700 is an upgraded version of the ANCEL VD500 obd2 scanner. It can diagnose all VAG vehicles and it also has the ability to work on 12V cars and light trucks (non-electric) manufactured in 1996 or later that are OBD II-compliant with 16-Pin OBD II protocols (J1850 VPM, J1850PWM, ISO9141, KWP 2000 and CAN).
VD700 code reader can do the all system diagnosis for Volkswagen (VAG) Vehicles . it can read data stream and retrieve VIN information.
Please note: VD700 only can diagnose engine system for 16 pin Non-VAG vehicles sold in the US after 1996. But it can do more systems and special functions for VAG vehicles.
1.Engine system
2.Auto transmission system
3.ABS brake system
4.Auto HVAC system
5.Center electronic system
6.Airbags system
7.Steering wheel system
8.Instrument system
9. Immobiliser system
10.Navigation system
11.Radio system
12.Diesel pump system
13.Electric drive
14.Battery regul
15.Battery charger
16.Parking brake
17.Steering angle
18.Suspension alect
19.Sound system
20.Chassis control
21.Tire pressure
22.Active steering
23.Door electric system, drive/pass/rear left/rear right
24.Slide door, right/left
25.Automatic light
26.HAVC Heating, Ventilation and Air Conditioning
27.Air Condition Clutch
and more…
More Rest Services to be Provided—Save your time and money.
VD700 OBD2 scanner can do basic setting, adaptation and access authorization on VAG vehicles(if needed). Such as: throttle position adaption, brake pad reset, TPMS reset, steering angle learning, oil reset, injector coding,DPF reset and battery registration etc.
●TPMS Reset
You can use VD700 to clear the codes and turn off the TPMS warning light after you replaces the tire.
● DPF Regeneration
The most common reasons for DPF failures are: Short journeys where the engine doesn’t reach optimum operating temperature. Clogged EGR Valve increasing diesel soot passed to the DPF. Faulty fuel injectors sending too much fuel to the air/fuel mixture. VD700 will perform a forced regeneration, turn off the DPF light and reset ECU after the filter has been replaced, and reset the additive light after topping up.
● TPS Throttle position Adaption
If these problems occurs: engine may be stalling or misfiring, poor engine performance, lack of power, transmission (gear) may not be shifting correctly, it means that you need to get the throttle position sensor (TPS) inspected. After that, the trouble codes will need to be cleared. VD700 can clear codes and reset the TPS.
● Injector Learning
Once you have replaced the car injector, you will need to write a new injector code to inform the ECU how much compensation is required to achieve the optimum in lowering emissions and provide smooth running. VD700 can help you complete this process.
● Steering Angle Sensor Calibration
You can use VD700 to read the fault codes, perform the sensor calibration if needed, and clear the codes when you done.
● Oil Service Reset
When you want to reset your oil service after you changing the oil or simply want to reset your vehicle inspection warning light(please make sure your vehicle is in well condition), this is the device you need.
● Electrical Park Brake (EPB) Reset
VD700 is a essential tool required to release rear electric parking brake unit when replacing rear pads or discs so that the caliper piston can be moved back. It can also clear codes and turn off the EPB light when it’s done.
● Battery Registration
Disregarding the need to register and code for a new battery may result in improper charging. VD700 can help you register a new battery once you replace it. Just click for VW – special function – battery registration.
Basic OBD2 Code Readers
VD700 is capable of reading/erasing, showing error code definitions, turning off the MIL (check engine light), reading data stream, testing EVAP system, reading I/M and retrieving VIN information. Automatic vehicle model identification makes it easy to use. Great for personal and auto repair shop.
Battery Voltage Test
Multi-language Available
English, French, Spanish, German, Russian, Swedish, Portuguese, Finnish, Norwegian, Danish.
Ancel VD700 OBD2 Scanner Vehicle Testing Coverage list
Please Note: if you are not sure whether your car supported, or you focus on some function, please remember to contact me, and then send me your car models and year as below: xx car brand, xx car model,xx car release year. thanks
1.For Volkswagen before 2021 year 12V cars
CC, EOS, Golf, GTI, Jetta, Passat, Phaeton, Polo, Rabbit, Sharan, Tiguan, Touran, Touareg etc
2.For Audi before 2021 year 12V cars,
A3, A4, A6, A7, A8, A5, Q3, Q5, Q7, R8, RS3, TT, RS, RS5, S4, S6 etc
3.For Skoda before 2021 year 12V cars,
Octavia, Rapid, Yeti, Kodiaq, Fabio, Superb etc
4.For SEAT before 2021 year 12V cars;
leon, Ateca, Ibize, Altea, Cushion, Cord, Alhambra etc
NOTE
If you are not sure whether to support your car, you can leave a message for car brand + model + year, and we will check for you
1. For VW Commercial Vans and light truck:
1) For Caddy -2018
2) For Caddy Pickup -2002
3) For Crafter 2006-2017
4) For Crafter NF 2017-2018
5) For Transporter 2003-2018
6) For Amarok 2010-2018
7) For Multivan 2003-2009
8) For TGE 2017-2018
2. For Bentley:
1) For Continental 2004-2019
2) For New Continental GT 2012-2018
3) For Continental Supersports 2012-2018
4) For Continental Supersports Convertible 2012-2018
5) For Continental Flying Spur 2012-2019
6) For Continental Flying Spur Speed 2012-2019
7) For Bentayga 2016-2019
8) For Mulsanne 2011-2019
9) For Brooklands 2009-2010
10) For Azure 2000-2010
3. For Lamborghini:
1) For URUS 2018-2019
2) For Gallardo 2008-2014
3) For Gallardo NF / Huracan 2014-2018
4) For Aventador 2012-2018
4. For Bugatti:
1) For Veyron 2001-2016
2) For Chiron 2017-2019
Life-time Free Update Service
no need extra money for update or other functions. you will always have the latest bug fixes, new vehicles,more function will add with upgrade.
Special Functions Supported Car Protocols: (Very Important)
1, KWP1281 Protocol: Oil Service Reset, TP Position Check
2, KWP2000 Protocol: Oil Service Reset, TP Position Check
3, TP 20 Protocol: Oil Service Reset (oil service and inspection service,maintenance interval setting), TP Position Check , EPB Brake Pad Reset (2005-2012),BMS(Support system:19-Gateay 61-Battery Regulation 8C-Battery Energy Control),TPMS
4, UDS Protocol: Oil Reset(oil service and inspection service, maintenance interval setting), TP Position Check ,EPB Brake Pad Reset (2012-),BMS(Support system:19-Gateay 61-Battery Regulation 8C-Battery Energy Control),DPF,TPMS
For EBP Reset Funtion: The Touareg UDS protocol has a special operation process ,please contact us get instructions.
