BULLET POINTS:
J2534 REPROGRAMMING: The scanner works with SAE-J2534 to provide best solutions for BMW and Benz ECU programming, to help match the electronic control unit with new components after repair and replacement for any professional mechanics and technicians.
ULTIMATE SCANNER: Being MS908P upgraded, it is Autel’s latest and most sophisticated diagnostic scanner which boasts the best hardware including Hexa-CPU, 2GB RAM etc. for fast boot-up and multitasking, and the ergonomic design to resist damage of heavy use.
ALL-AROUND DIAGNOSES: This diagnostic device can access to vehicle’s all systems and subsystems. It takes care of professionals who like to perform advanced functions as ECU coding, bi-directional control, active test etc., for getting complex diagnosis efficiently.
EXCELLENT EXPERIENCE: Easy and intuitive navigation makes finding what you need simple and fast. Displays live data in text, graph, analog and digital gauge for intuitive analysis. Data Manager saving diagnostic records for future reviews. And much more.
EXTENDABLE FEATURE: This automotive diagnostic tool can expand the diagnostic capabilities by working with MP408, MV108 to go deeper into the unseen details for locating the fault efficiently, or by working with TS601 for diagnosing comprehensive TPMS problems.
DESCRIPTION:
Autel, as one of the world’s leading manufacturers in the automotive aftermarket, dedicates itself to developing professional diagnostic tools and translating global clients’ needs into superior cost-effective and innovative products with strong R&D and production capabilities.

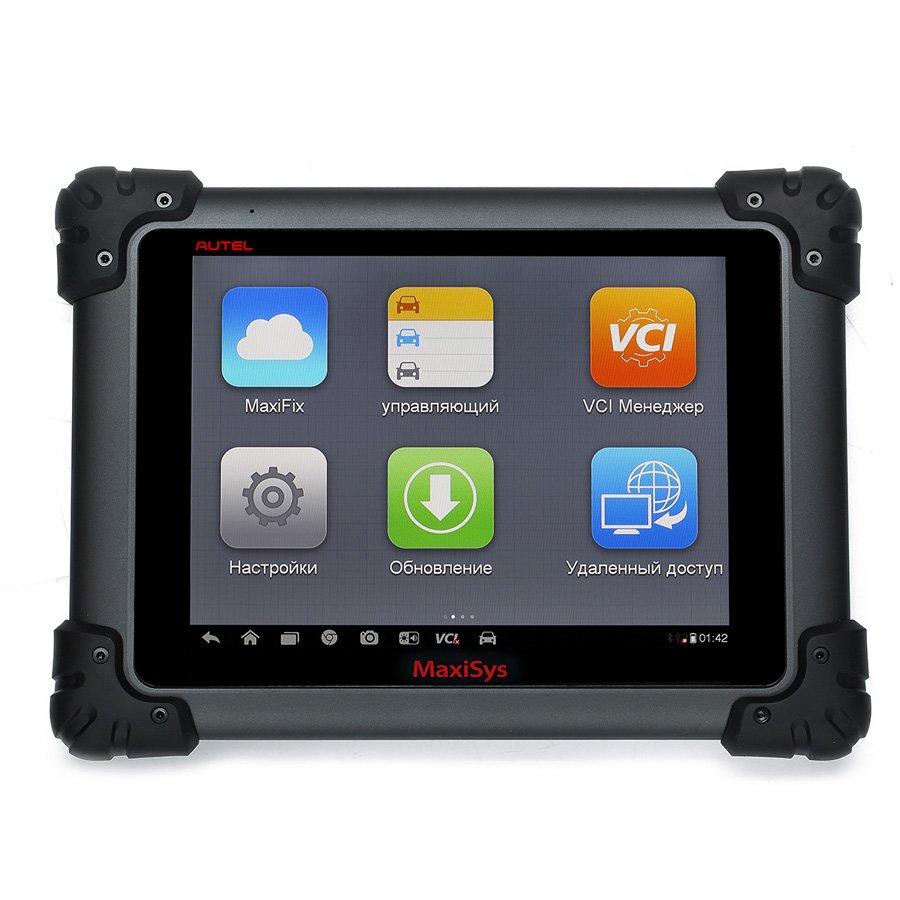

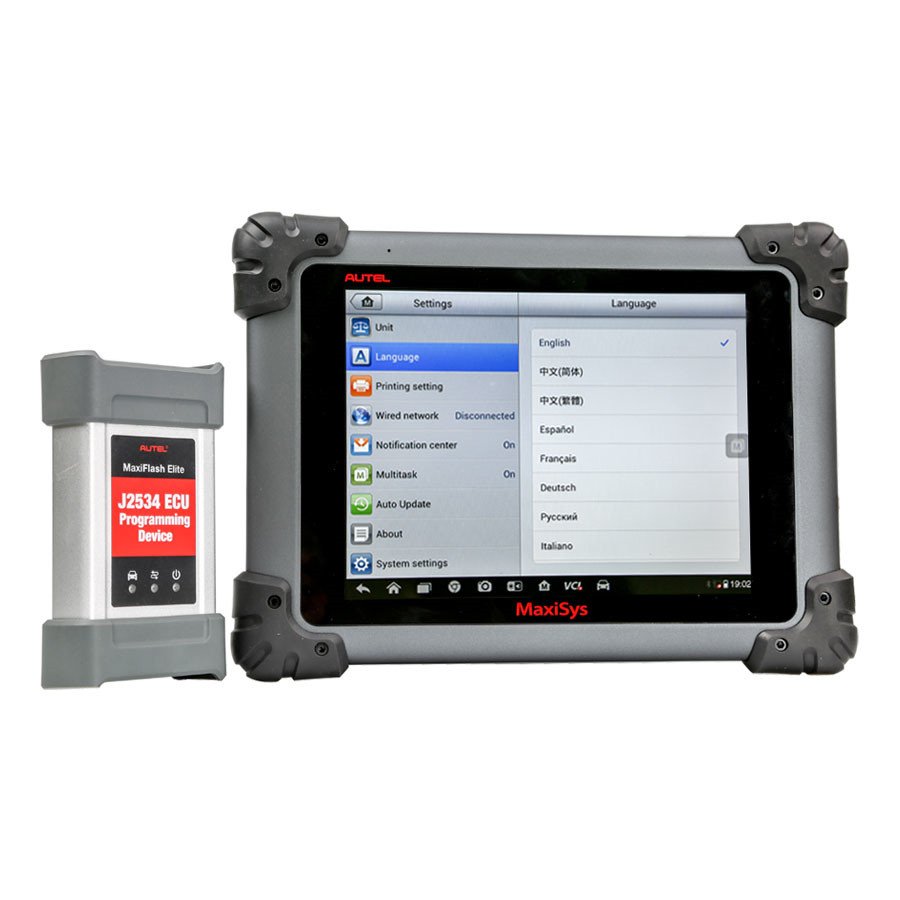

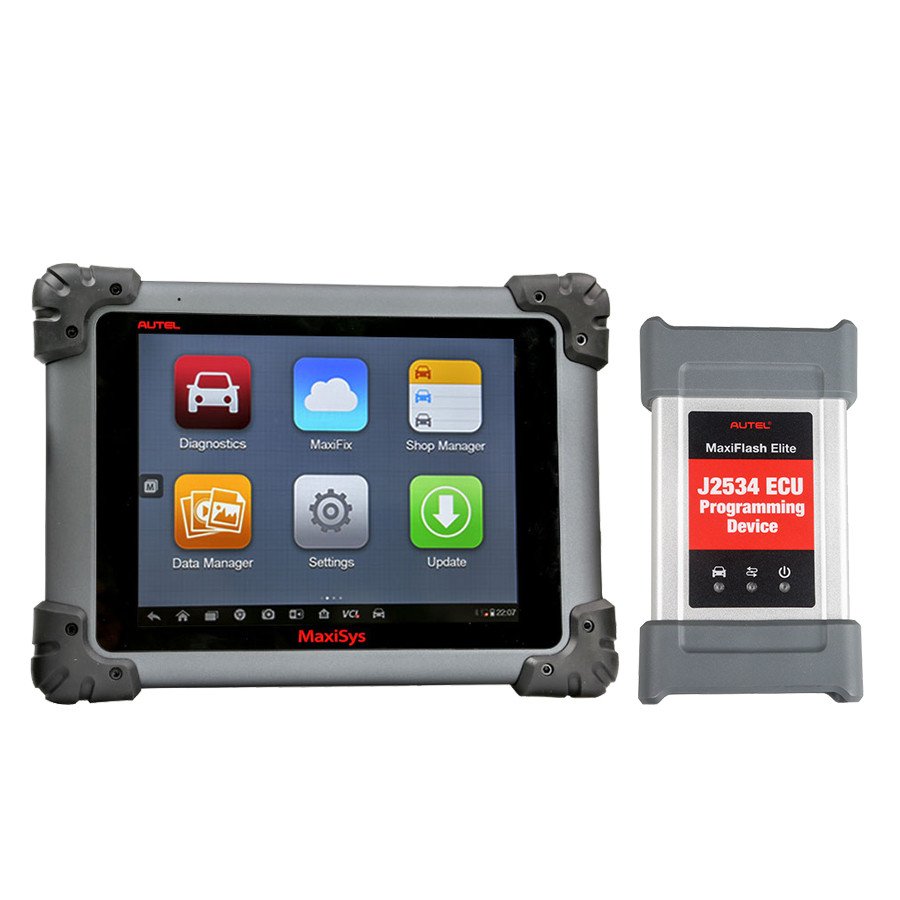

Autel MaxiCOM MK908P, featuring J2534 ECU programming (Benz & BMW) with the super-fast Hexa-Core (1.3GHz + 1.7GHz) processor, an intuitive 10.1-inch LED capacitive touch screen, multitask-capable Android 4.4.2 OS and the coverage of OE-level diagnostics, is the best possible auto diagnostic scanner providing evolutionary smart solution for professionals with Garage or Auto Repairing Shops.
FEATURES:
【Online J2534 Programming for BMW/Benz】
Updating vehicle controller software is becoming one of the leading solutions for vehicle repairs. Our J2534 box and software provides additional on-tool programming capability via the MK908Pro tablet for Mercedes and BMW, without the need to connect to the manufacture software, and with the list ever growing, which is undoubtedly considered to be one of the most valuable and worthy functions.
Using the updated OEM software, it is capable of replacing the existing software/firmware in electronic control units (ECUs), programming new ECUs and fixing software-controlled driveablity issues and emission issues. The J2543 also enables those who have subscriptions with manufacturer software platforms to access the manufacturer OEM software. Manufacturer OEM software enables the completion of the complex programming functions such as re-flashing modules, installing manufacturer software updates and security features such as key programming.
So with this J2534 reprogrammer you can:
Troubleshoot and deal with complex vehicle problems including Driveability, Fuel efficiency, Power loss, Fault codes, and Durability of mechanical parts etc.;
Grow profits by offering services previously sent to the dealership;
Offer the services needed to retain customers.
All you’ll need is to carefully follow step-by-step instructions provided by MK908P to solve the issues.
【Covering All Possible Diagnostics that Are OE-Related】
MK908P can be claimed as one of the most intelligent scanners as it scans all the diagnosable ECUs on vehicles. That is to say, the device covers all possible OE-Level diagnostics which allows you to establish a data link to the electronic control systems of the test vehicle via the VCI device for access to all vehicle systems and subsystems, such as Body, Chassis, Powertrain, Network and etc., to perform a comprehensive scanning process on ECUs to locate the faulty systems and retrieve the DTCs related. It will save you the hassle of diagnosing any un-identified engine errors you’d ever met:
Generic OBD II operations for retrieving OBD2 vehicle diagnostic information;
– Read Codes – displays detailed information of DTC records retrieved from the vehicle control module.
– Erase Codes – erases DTC records and other data from the ECM.
– Live Data – retrieves and displays live data and parameters from the vehicle’s ECU.
– And so on …
Special functions for various scheduled service and maintenance performances;
– Oil Reset: Reminds you to change the oil when required.
– EPB: Reads, clears and offers electronic park braking on flat roads.
– BMS: Shows all the information related to the battery management system.
– ABS: Reads and clears anti-lock braking system problems.
– DPF: Shows errors in the DPF system (removes soot from exhaust system).
– TPMS: Monitors air pressure in the tires.
– IMMO: Used for enhancing car security by serving as a code that starts the engine.
– And so on …
Active test for figuring out whether a specific subsystem or component in vehicles goes well.
– Unlike conventional scanners, MK908P users can get access to the vehicle-specific subsystem and component parts, and output commands to the related ECU, thus driving the actuators to perform a specific function for determining the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.
【Ultimate Configurations for Super-Level Diagnosis】
No doubt, as the upgraded version of MS908P, Autel MK908P OBDII scanner certainly surpasses much beyond the general expectations with any vehicle engine scanner tool. It is dedicatedly designed for 3 purposes – Multi Tasking, Speed and Simplicity that is the prime need, especially.
Super CPU & RAM: This Android OS-based, tablet-style scanner sports an extremely powerful Hexa-Core 1.3GHz + 1.7GHz processor, and makes use of the internal 64GB solid-state drive, along with 2GB of RAM, for super speedy and smooth performance. However MS908P, by contrast, only gets 1.4GHz Quad-Core Processor and 32GB SSD drive.
More Intuitive Display: Unlike MS908P supports 9.7” 1024*768 display, the image clarity image is more admirable in MK908P. It is equipped with a 10.1”, 1920*1200resolution and back-lit LED multi-touch capacitive display for better user experience. Moreover, there’s a built-in 8MP camera with a flashlight and autofocus. Compared with 5MP camera equipped in MS908P, you will take more detailed snapshots for deeper analysis. Also, saving that and all the diagnostic data/files are quite easy thanks to 64GB on board memory space (only 32GB in MS908P) at your disposal.
Useful Multitasking: The diagnostic scanner incorporates high-quality diagnostic protocols with multitasking capable software, so it shouldn’t come as a surprise that this scan tool not only has amazing speeds, but also gets the ability to multitask, to help you to keep an eye on impacts on other parts, while fixing a particular part of the engine.
All above factors make it as a perfect scan tool for auto shops and professional technicians.
【Abundant User-Friendly Add-On Features】
Extendable Feature: It can expand the diagnostic capabilities by working with MP408, MV108 to go deeper into the unseen details for locating the fault easily and accurately, or by working with TS601 for diagnosing comprehensive TPMS problems.
AutoVin Technology: The device equips with the latest AutoVIN technology with advanced Auto-Scan functions to identify CAN-Enabled vehicles, in one touch. It displays the data in the form of text, graph, analog and digital gauge for efficient analysis.
Fast Data Transfer (VCI): The package comes with both dual band 802.11n Wi-Fi technology and long range Blue-tooth connectivity that provides its users with an ultra-fast Vehicle Communication Interface. You don’t have to wait. Just plug it into the OBD-II dashboard and it will diagnose within seconds.
MaxiFix: The MaxiFix application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiCOM users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.
Data Manager: The Data Manager application is used to store, print, and review the saved files for future reviews.

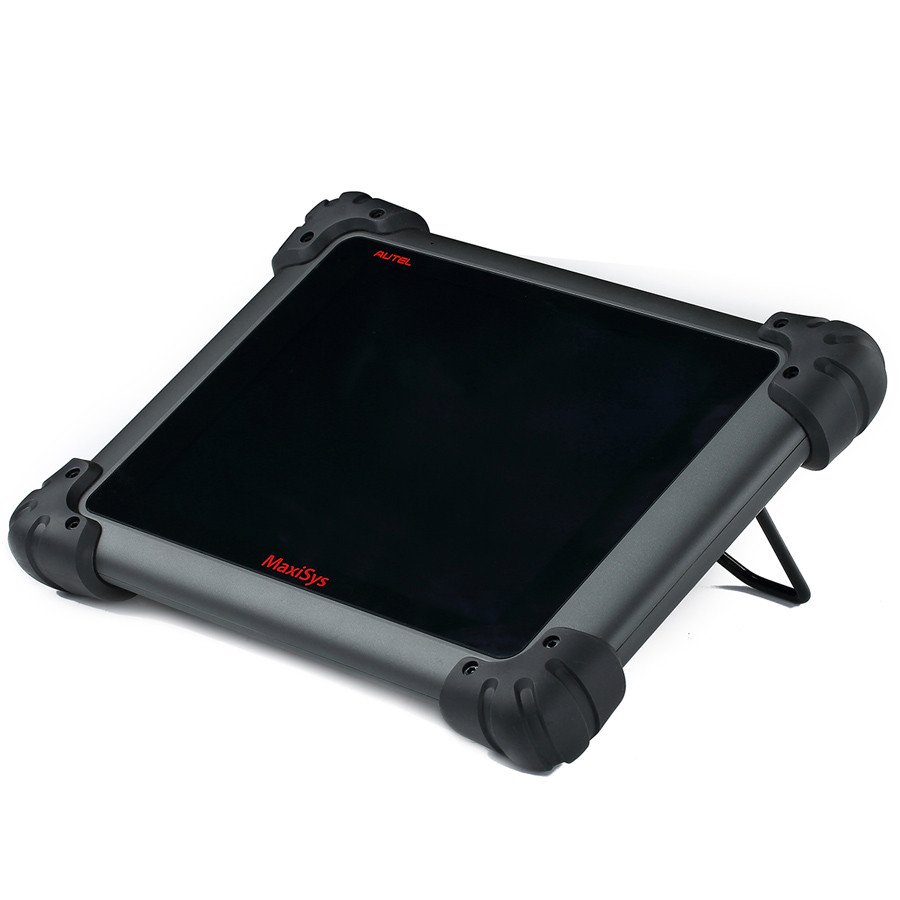

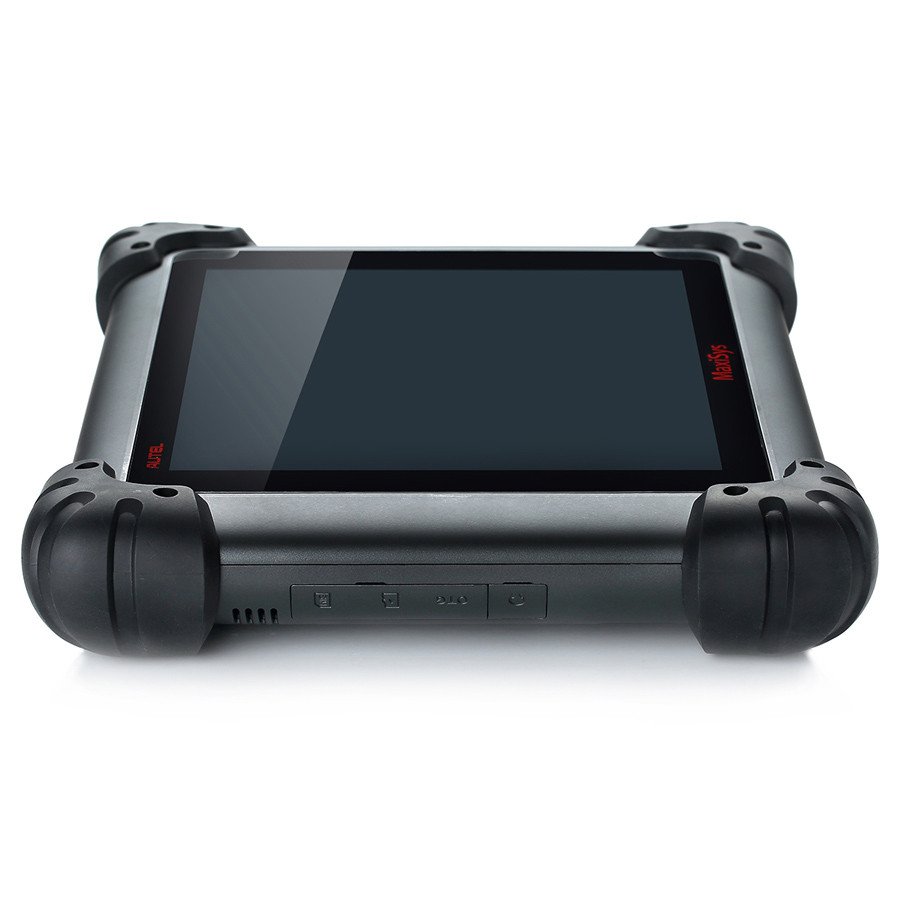

Ergonomic Design: The product has been designed to be carried single handy yet it doesn’t mean it will fit in pocket. In particulars on the outside you will see it adoptsthe real rubber protection design on the both sides to be more ergonomic, and to resist damage of daily heavy use for maximum longevity.
Big Storage Capacity: The diagnosing tool has 2GB RAM that dumps huge amount of temp files and supports frequent live streaming. The dedicated RAM avoids the device-hang problem and ensures smooth operations. The 64GB Internal SSD stores all the detailed history of your clients.

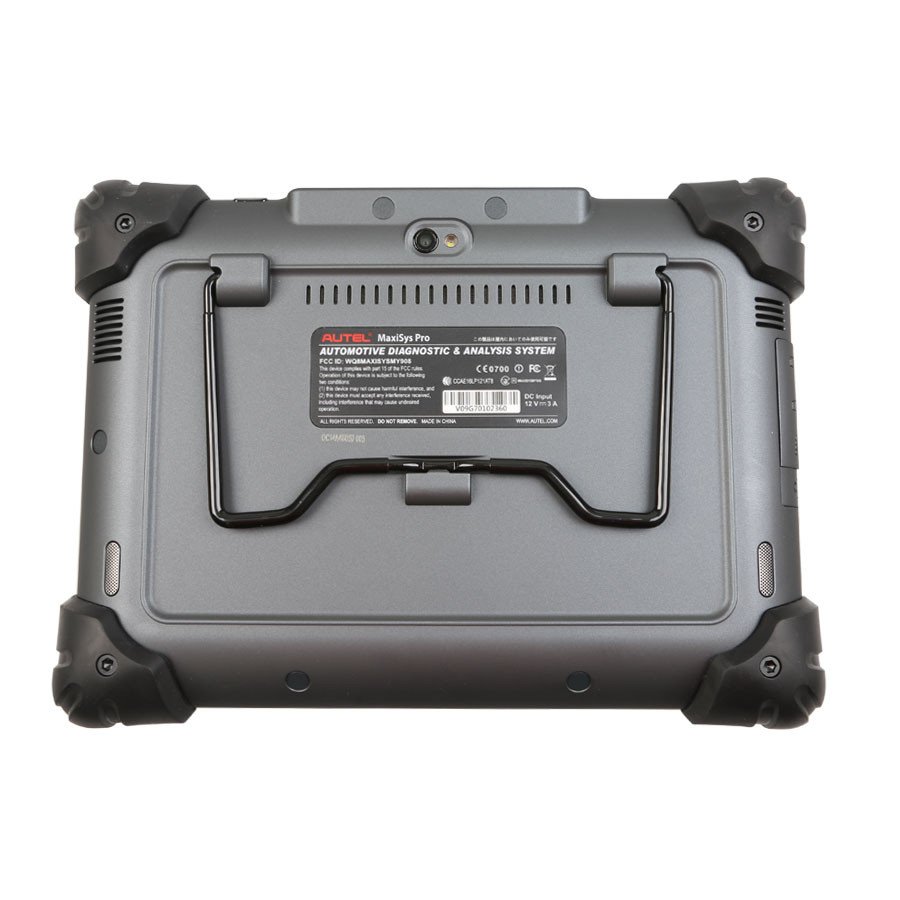

Auto Focus Camera: The product comes with built-in 8 mega-pixel rear camera with a flash-light. The camera provides high-quality images as it has auto-focusing ability.
And so much more …
SPECIFICATION:
Operating System: AndroidTM 4.4.2, KitKat
Processor: Samsung Exynos hexa-core Processor
(1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory: 2GB RAM & 64GB On-board Memory
Display: 10.1-inch LED screen with 1920×1200 resolutions

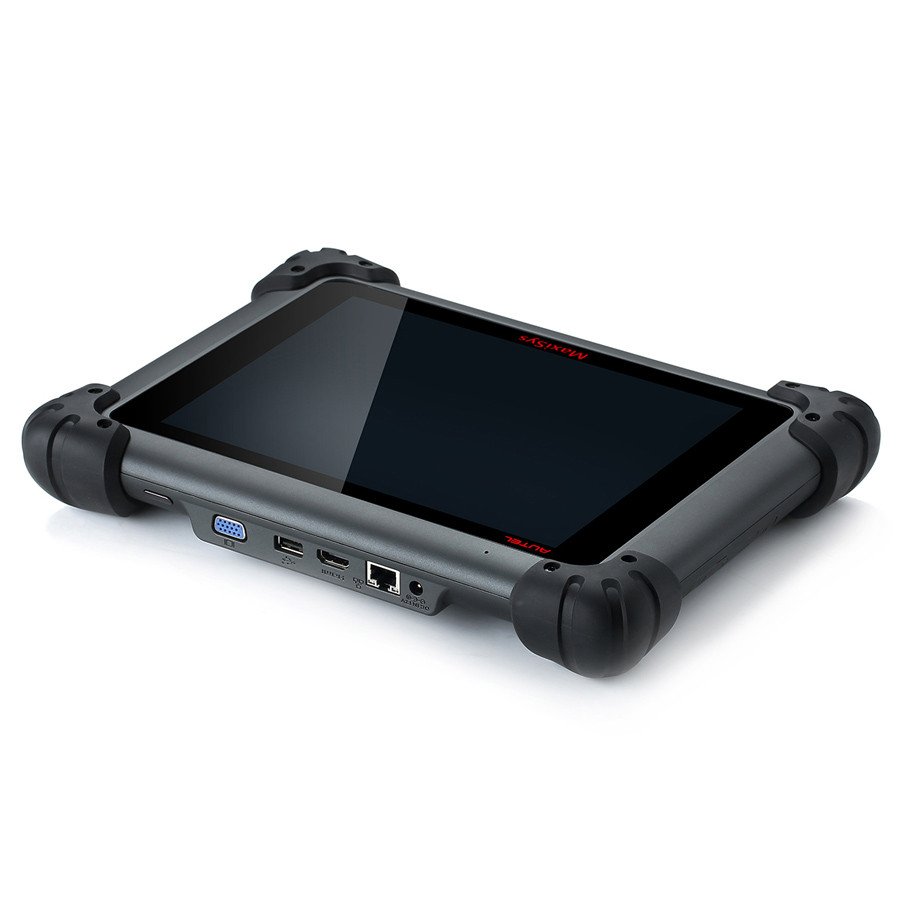

Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI
Camera (rear): 8.0 Megapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone; Dual Speakers; 3-Band 3.5 mm stereo/standard headset jack; Power and Battery; 15000 mAh 3.8 V lithium-polymer battery; Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage: 12 V (9-24 V)
Power Consumption: 6.5 W
Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Housing: Strong plastic housing with protective rubber boot
Dimensions (WxHxD): 312mm (12.28”) x 208mm (8.18”) x 36mm (1.41”)
Weight (NW): 1.48kg (3.26 lb)
Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed, Middle speed, Low speed and Singlewide CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
【Wide Compatibility and Vehicle Coverage】
This car diagnostic tool targets the standards of Asia, United States or Europe continents so as to offer extensive vehicle coverage. It is compatible with more than 80 US, European, and Asian makes and models including:
Asia:
Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, Ssang Yong, Subaru, Suzuki, TATA, Toyota
Europe:
Abarth, Alfa, Aston Martin, Audi, Bentley, Benz, BMW, Bugatti, Citroen, Dacia, Ferrari, Fiat, Ford EU, Jaguar, Lamborghini, Lancia, Land Rover, LT3, Maserati, Maybach, Mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volvo, Volkswagen, Volkswagen CV
America:
Chrysler, Dodge, Ford, GM, Jeep
And once you find your car model, you would be highly impressed with the list of diagnostic solutions that this diagnostic scan tool has to provide. Also, it doesn’t mean it’s non-compatible with the vehicles manufactured in other regions or newly launched as the latest updates are frequently launched.
【Multiple Language Support for Variety and Flexibility】
This diagnostic device has a multilingual function with the ability to access the data in diverse languages as follows:
English, Chinese Simplified, Chinese Traditional, Spanish, French, German, polish, Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Farsi, Russian.
NOTICE:
Please close the anti-virus software in your PC when updating the device.
TIPS:
Feel free to get technical support via email/Q&A, or hotline on our official site, or Facebook, or Twitter, if you are unsure if the scanner tool is suitable for your vehicle, or any questions.

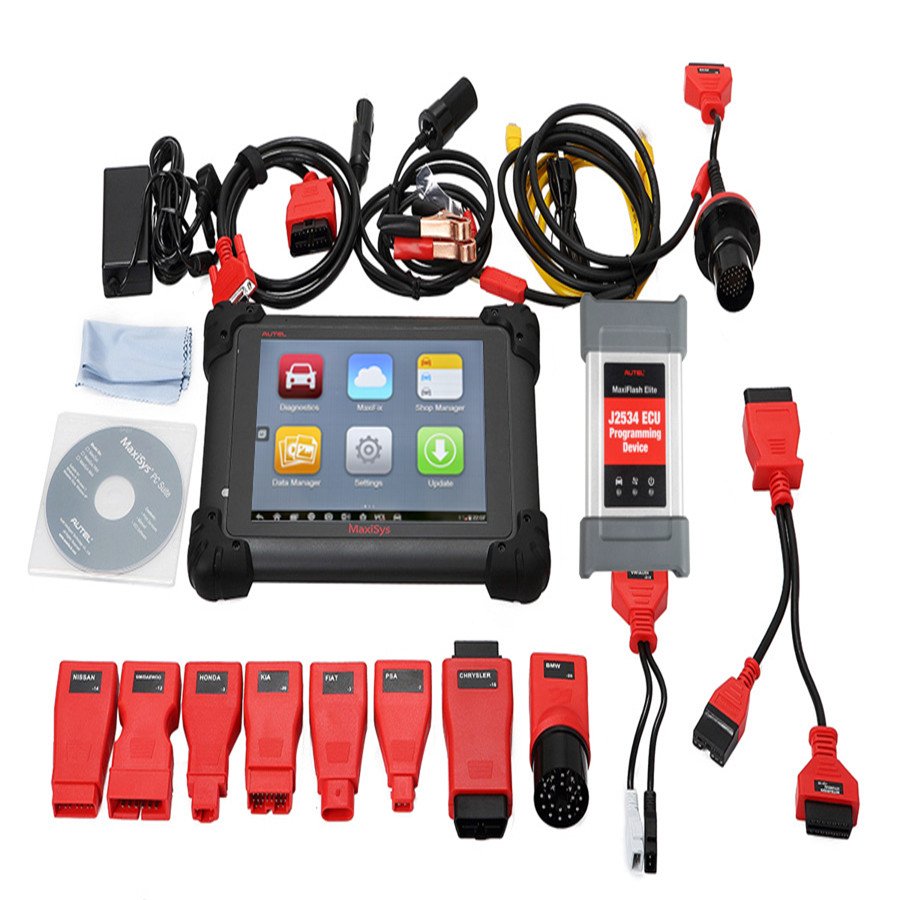

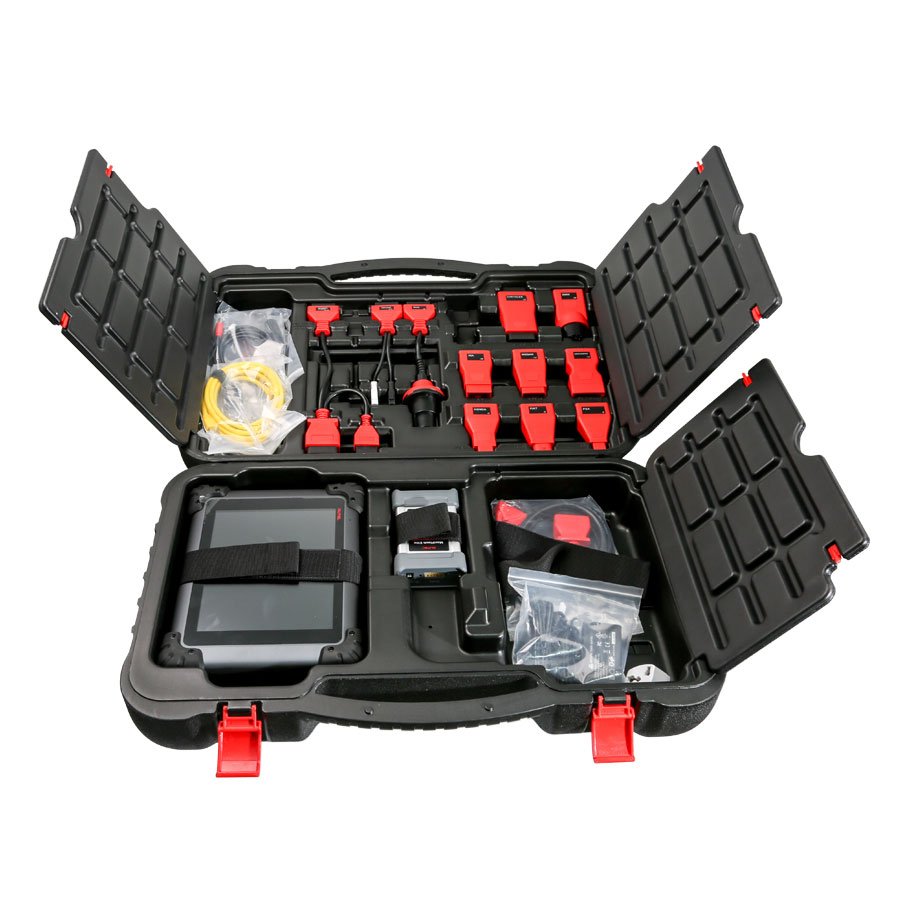

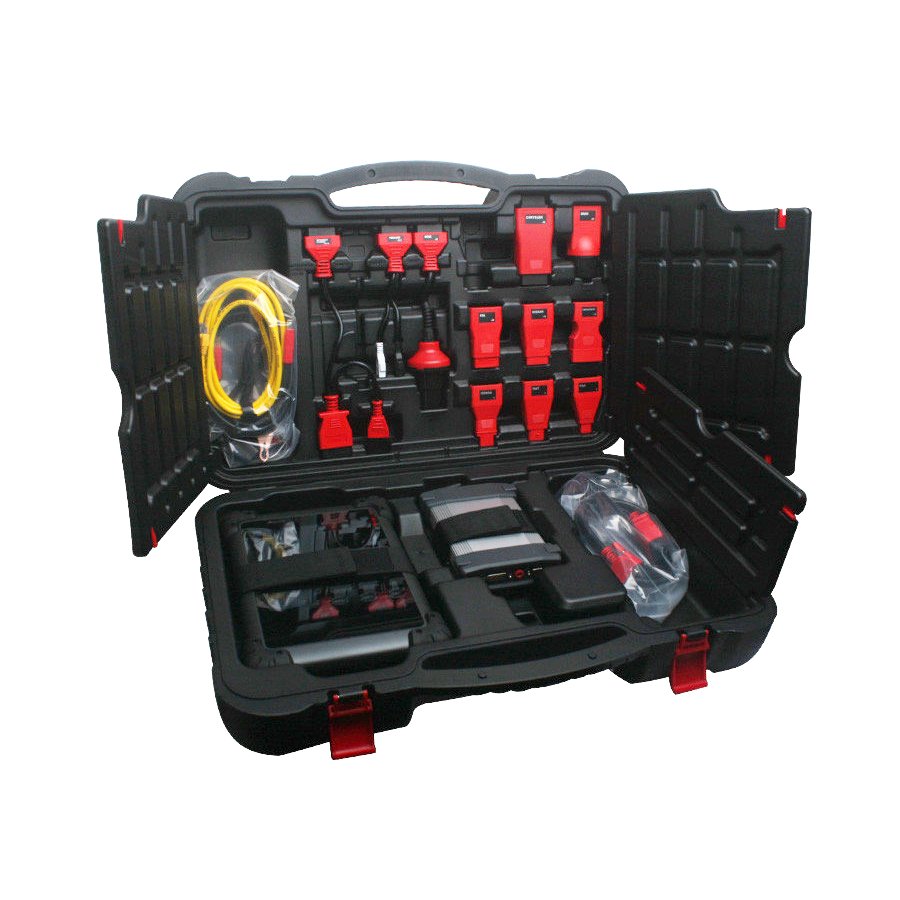

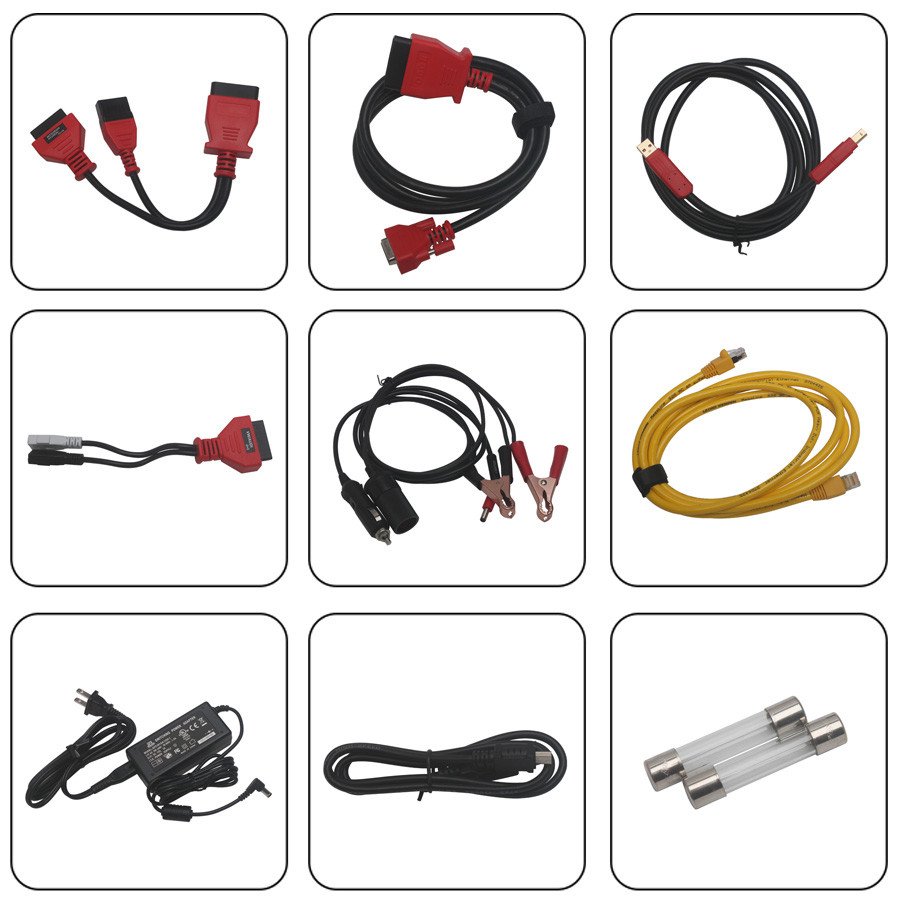

PACKAGE LIST:
1*Main Unit – MK908P

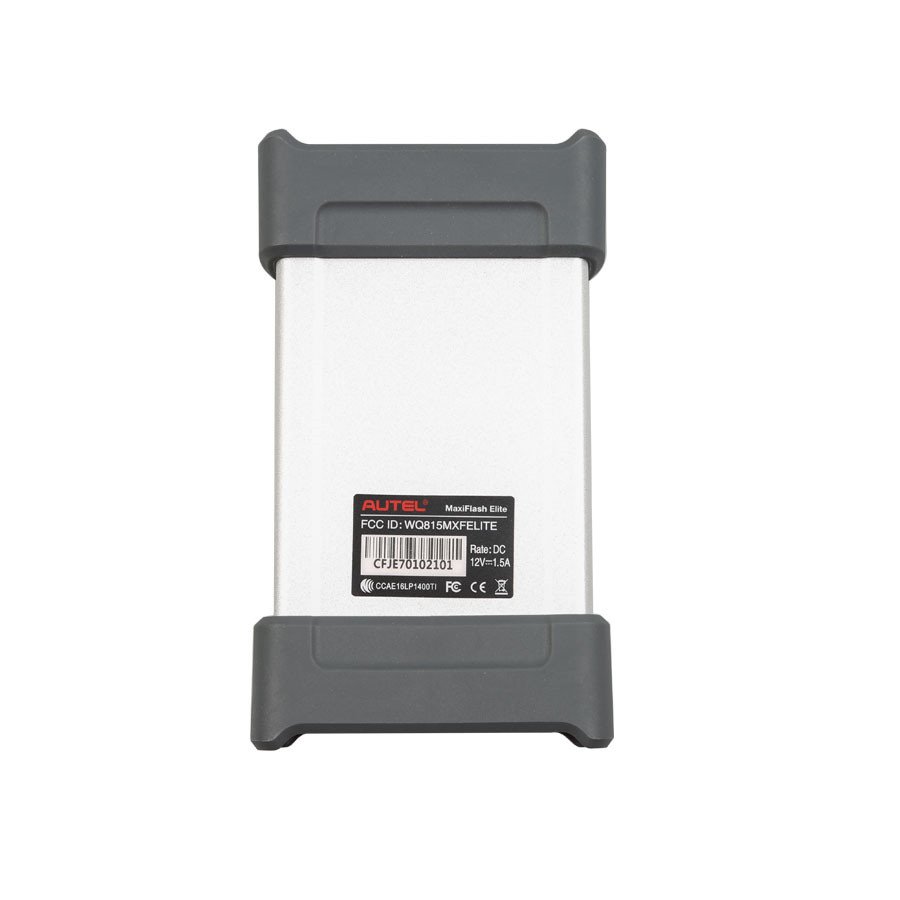

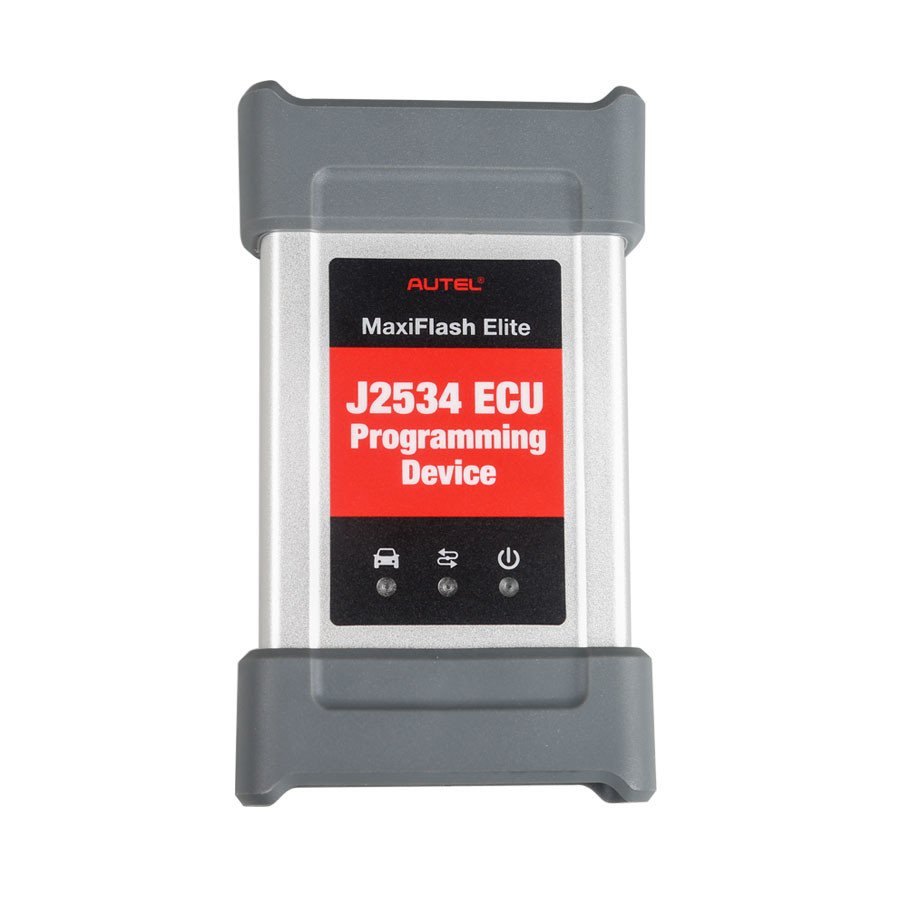

1*J2534 Box
1*Main Cable
1*Standard 2.0 USB Cable
1*Mini USB Cable
1*AC/DC External Power Adapter
1*Ethernet Serial Cable
1*Cigarette Lighter
1*Clipper Cable
2*Light Fuse
1*BMW Ethernet Cable (Optional)
1*USB Ethernet Adapter

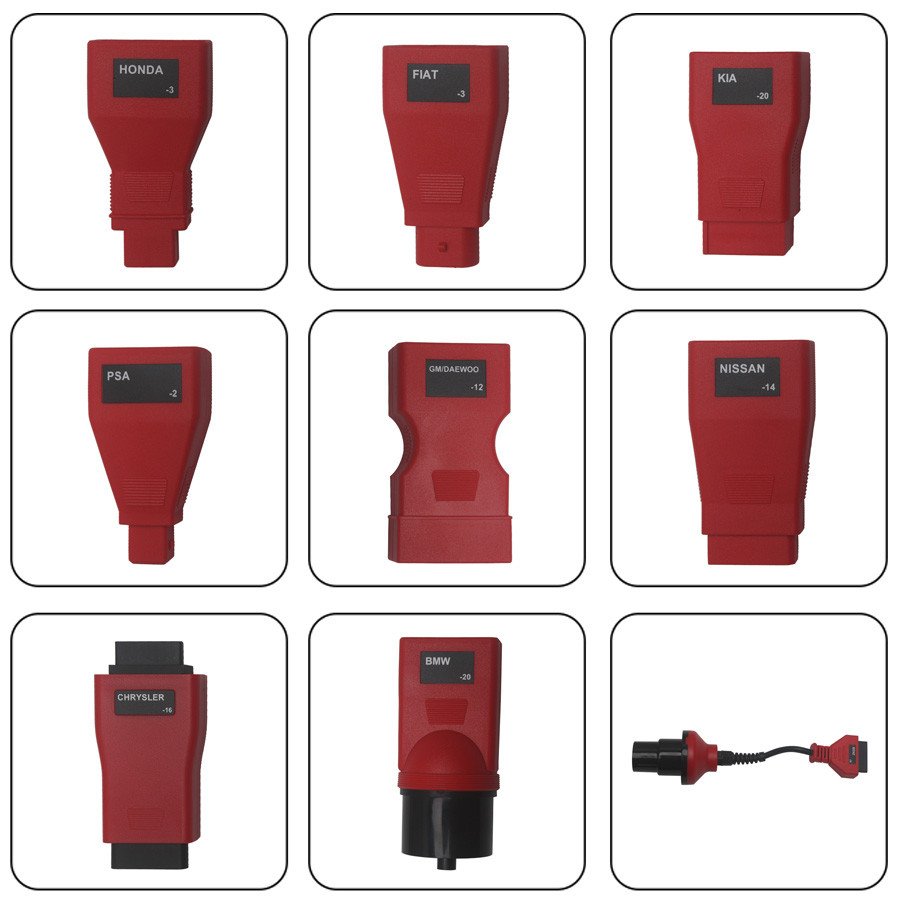

14*OBDI Adapters (Benz-14; Chrysler-16; BMW-20; Kia-20; Nissan-14; GM/Daewoo-12; Honda-3; Fiat-3; PSA-2 Benz-38; VW/Audi-2+2; Mitsubishi/Hyundai-12+16)
