Autel Maxisys MS919 Diagnostic Tools 5in1 VCMI Intelligent Diagnostics J2534 Programming Online Coding OBD2 Scanner Toplogy 2.0

How the Autel MS919 differs from the older Elite and MS908s:

– More memory: 128GB Memory
– VCI interface with updated J2534 includesoscilloscope, waveform generator, multimeter, CanBUS tester
– Topology M Module Listing CAN BUS Tree
– Faster processor
– Does not include a docking station
– Does not include early OBD-II adapters!
– Android 7.0
– 1-year subscription with renewable warranty.

Features

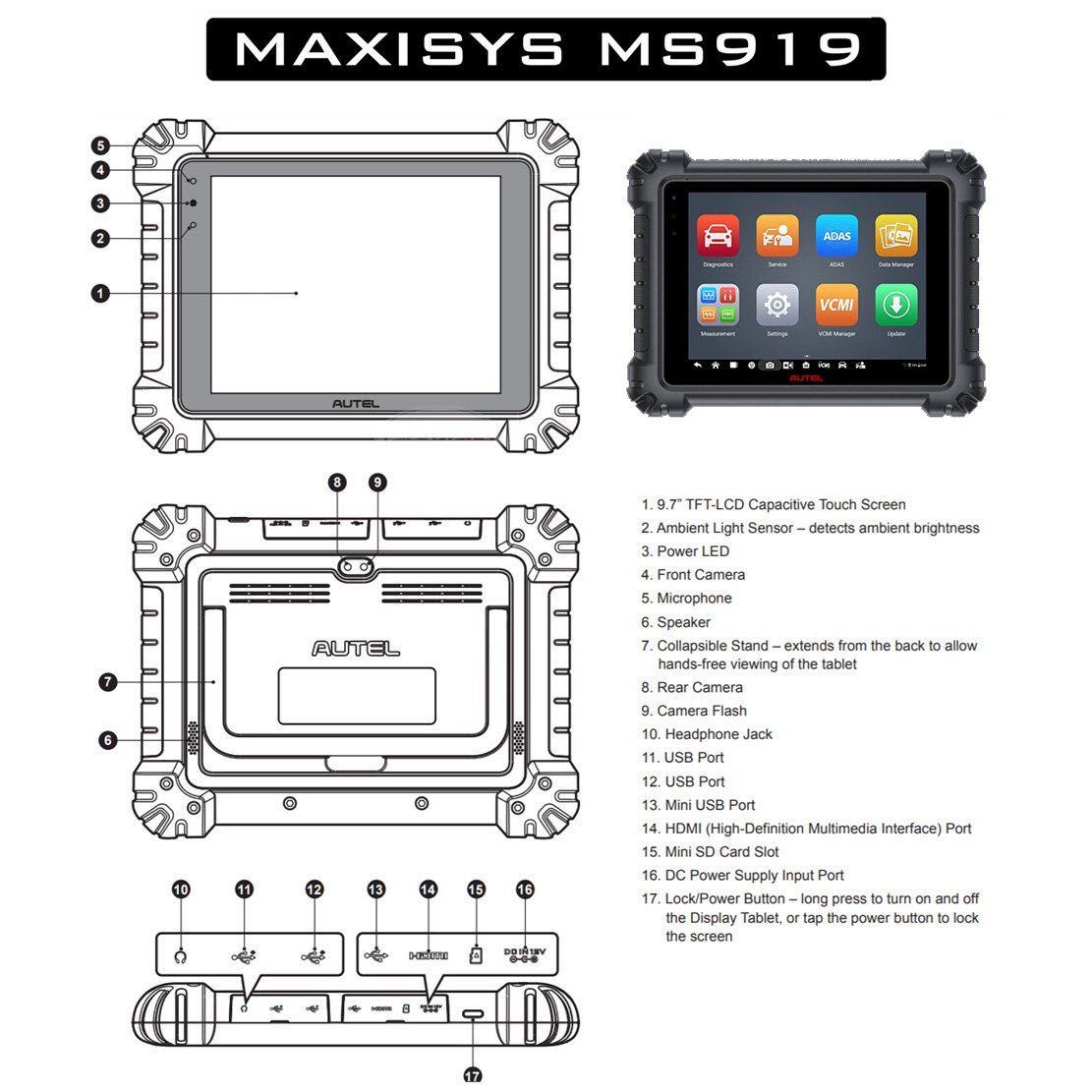

– 9.7’’ Touchscreen (1536 x 2048)
– Android 7.0
– 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
– Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
– Oscilloscope Preset Guided & Component Tests / Waveform Library
– New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
– Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
– Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
– Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
– Code-Related Technical Service Bulletins (on select vehicles)
– License Plate Reader
– ScanVIN: Barcode or Text Recognition with Camera
– Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)

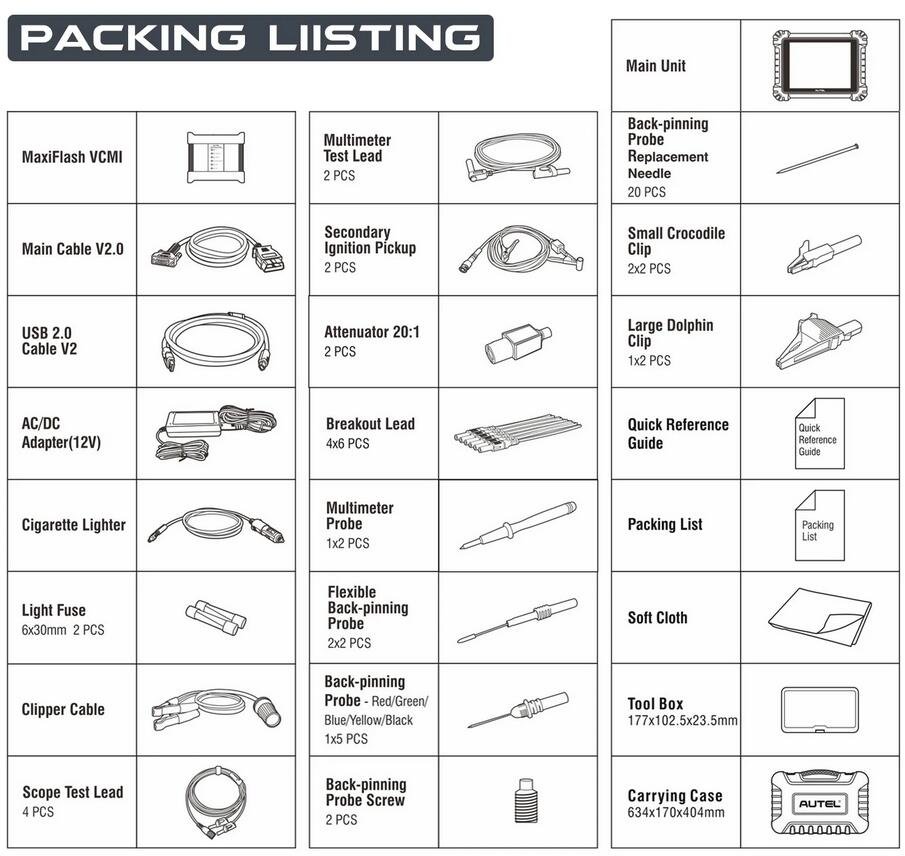

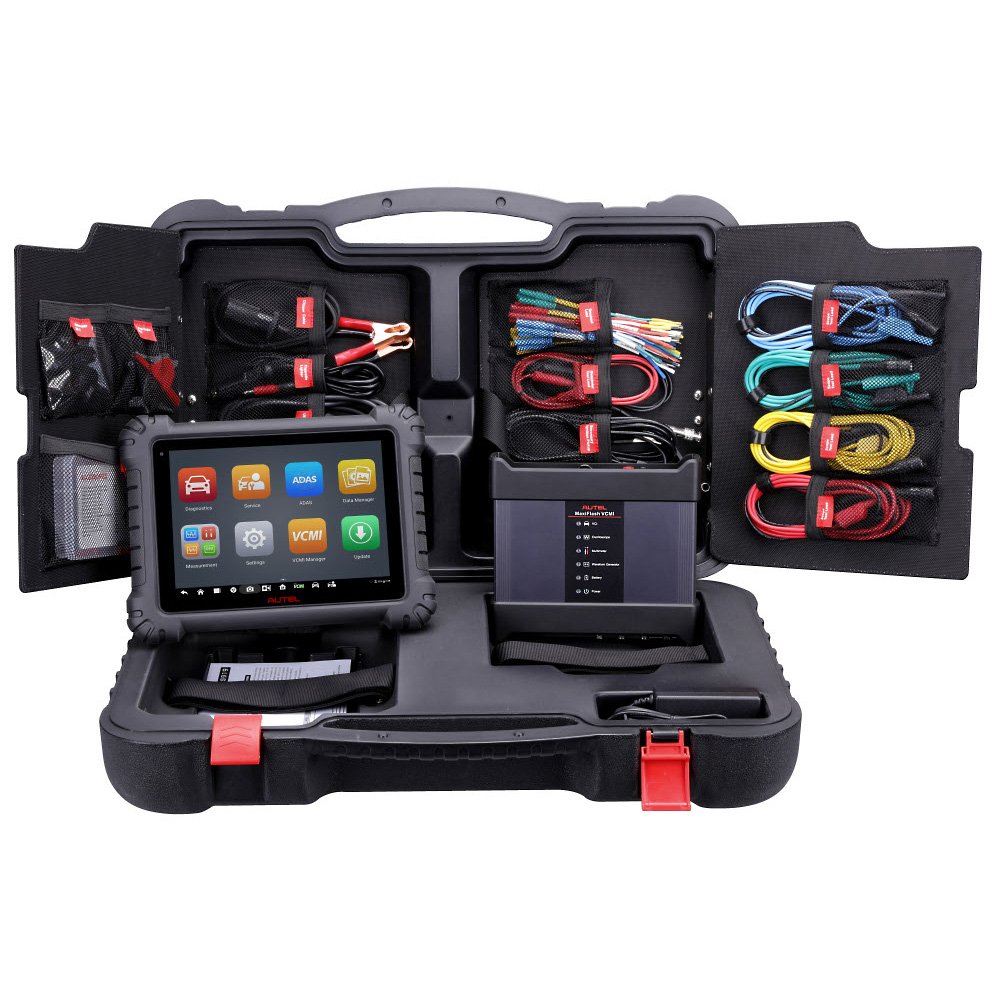

– IncludesCables, Scope Connectors, Carrying Case
– Enhanced Diagnostic Reports: PreSCAN & PostSCAN
– 15000mAh – 8hrs Continuous Use
– 16MP Rear Camera & 5MP Front Camera
– 1-year Warranty & Software Subscription

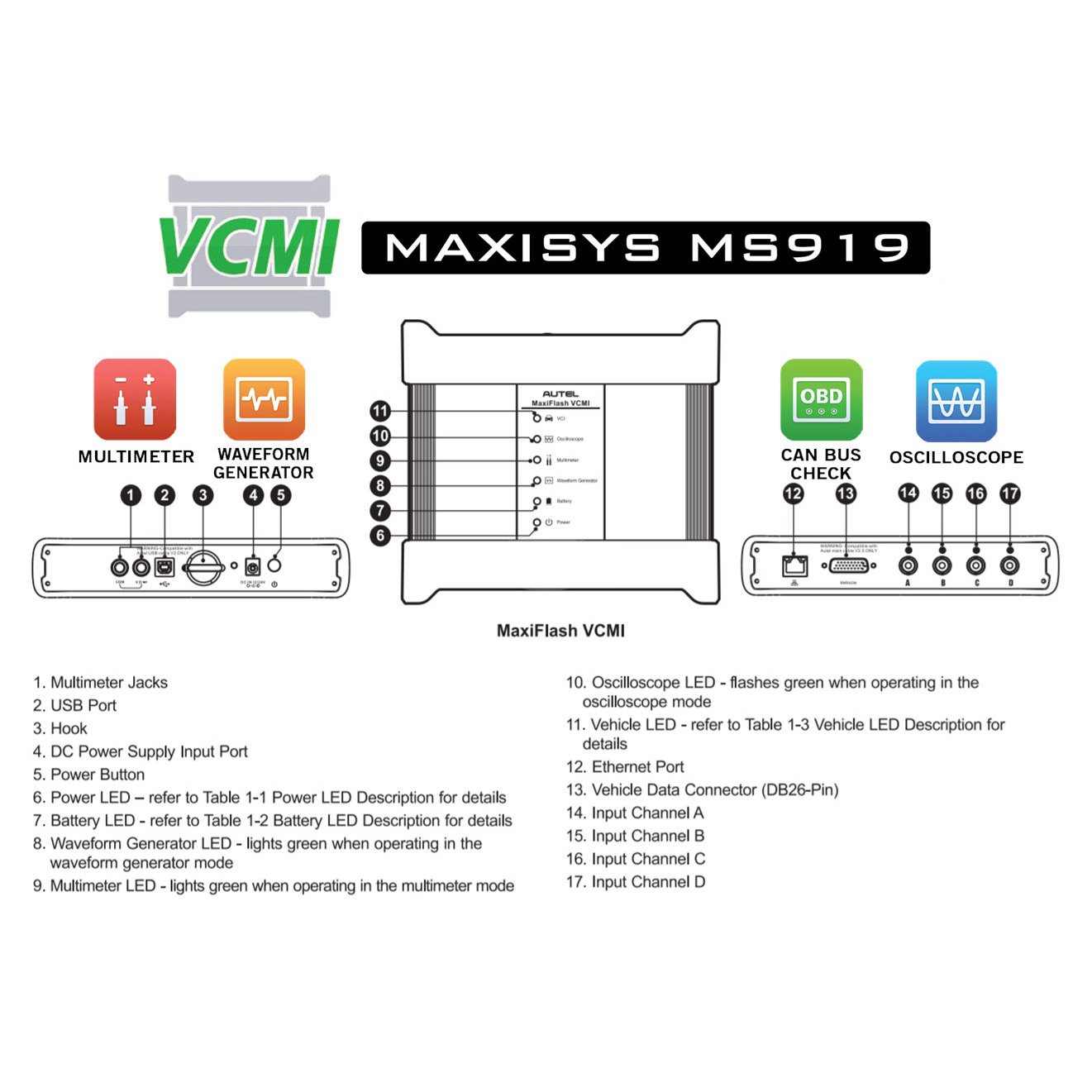

The Most Powerful 5-in-1 VCMI:

Autel MaxiFlash VCMI is more powerful than ever with 5 tools (Oscilloscope, Waveform Generator, Multimeter, Can BUS tester and VCI) integrated! It can provide simultaneous and in-depth analysis on test components.

● Oscilloscope: 20MHz bandwidth, up to 80MS/s sampling rate, Easier operation with built-in preset guided test;
● Waveform Generator: Producing electrical signals and analyze the performance of the vehicle hardware by varying the frequencies of different waveforms;
● Multimeter: With Multimeter function built-in, you can measure voltage, current, and resistance without any other tool;
● OBD2 CAN BUS Check: Easy and fast Muti-function detection;
● VCI: Fastest and stable wireless data communication up to 164 feet/50m, diagnostic speed increases by 30%.

Autel MaxiSys MS919: Support OE Diagnostic Protocols Same as Autel Ultra:

Autel wireless auto diagnosis scanner MaxiSys MS919 with the 5-in-1 VCMI supports new CAN BUS Protocols And OE Diagnostic Protocol Standards:

● Support D-PDU/J2534/RP1210: work with OE factory softwares for ECU Programming and coding
● Support CAN FD/ DoIP Protocols: working perfectly on GM vehicles produced after 2020, and BMW F G Chassis models, Jaguar & Land Rover after 2017, Volvo after 2018.
● Support FCA Autoauth: work on 2018 & later FCA cars (Chrysler, Dodge, Jeep, Alfa Romeo, Fiat) directly without the 12+8 cable.

NOTE: The CAN FD/ DoIP protocols are not universal to all the vehicles. Please check compatibility before purchase.

Topology Map 2.0 Version:

Autel MS919 Top automotive diagnostic scan tool with 2023 newest enhanced Topology 2.0 can display the entire system in Topology Map to glance all the modules with faults, which is easy to locate faults and causes.

● Color-coded topology displays all system status in one page
● View structure of communication between modules
● Makes Supported: BMW, Ford, Volkswagen, Audi, GM, Chrysler, Nissan, Honda, Toyota-Lexus, Jaguar Land Rover, Mercedes-Benz, Hyundai, Kia, Volvo.

NOTE: Please be noted that Topology is not universal to all the above vehicle brand models, please send your VIN to us before you place order.

Intelligent Diagnostics:

Intelligent Diagnostics is a specific fault code analysis function, with which you can access the most comprehensive and the latest code-specific data, DTC analysis, repair assist, repair tips, and relevant repair cases. It has been drawn from real world shop repair orders and records and with input from experienced industry professionals. Intelligent Diagnostics adopts the scientific data cloud computing technology to match the specific fault code with the exact vehicle model. And the data has been thoroughly verified by automotive maintenance professionals.

● Service Bulletin (OEM Info): See official announcements issued by vehicle manufacturers regarding common problems including vehicle modules, DTCs, repair methods, program updates and recall stategies;

● DTC Analysis: The DTC Analysis describes possible causes and solutions for vehicle faults. Currently available on GM, Ford, Toyota, Lexus, Nissan, Honda, VW, Audi, BMW, FCA, Mercedes.

● Repair Assist: intelligently prioritizes DTCs and leads the user to the proper repair. Repair Assistant – This Repair Assist Software displays a list of recommended tests, the completion status and priority for undertaking. Very simply, the higher the priority, the earlier the components should be tested.

● Repair Tips: step by step guidance to efficiently to solve multiple faults

● Relevant Case: Relevant Cases: The software automatically recommends repair processes that may be relevant to the vehicle and fault. These repair cases/suggestions provide the technician with great insight when diagnosing and repairing vehicle faults.

Compatible with: BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Mercedes-Benz, VW, etc.
