Laser Measurement
• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
• Laser measurement with 0.1mm accuracy
• Full tread measurement
• Quick Check both tread depth & brake discProduct features/functions

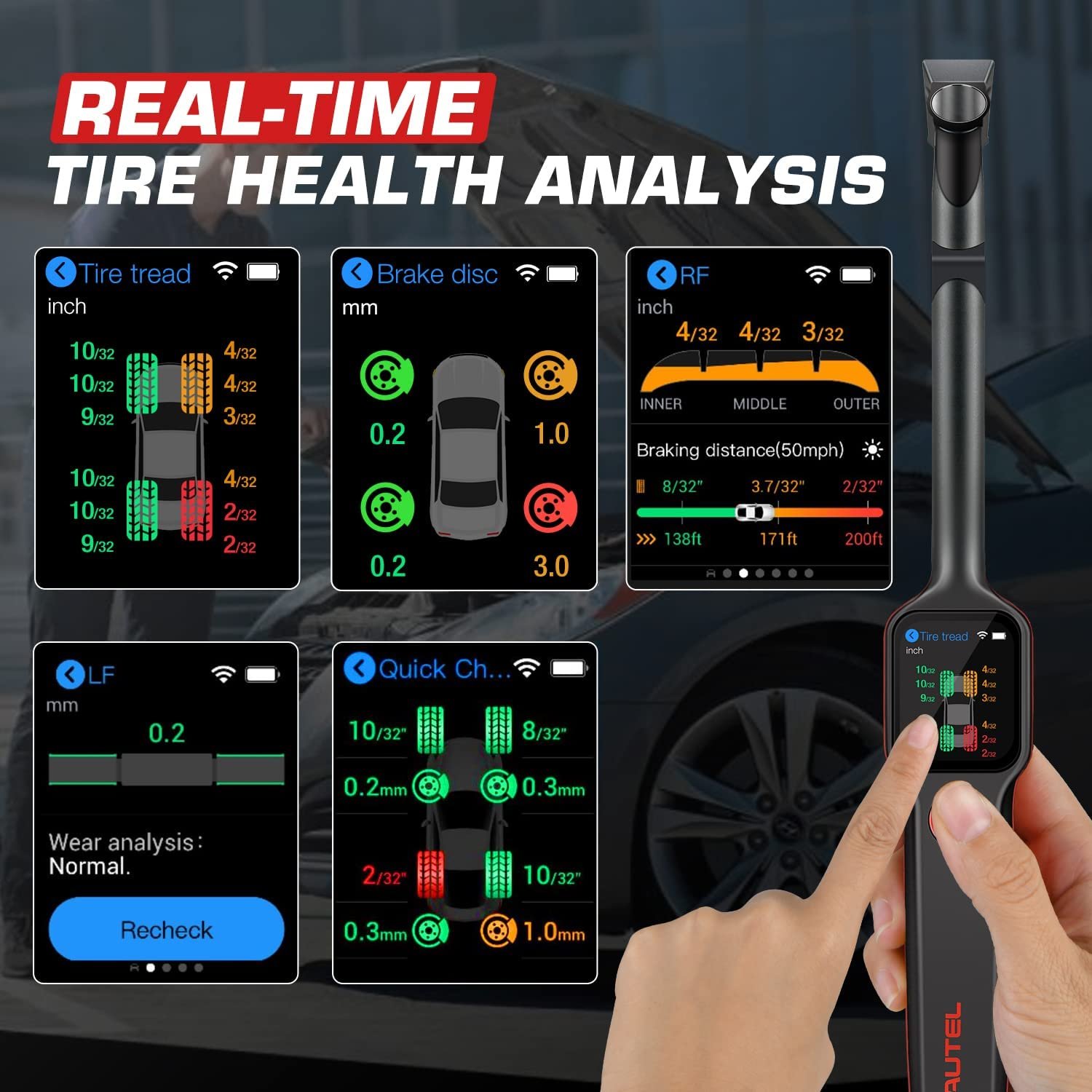

Real-Time Tire Health Analysis
• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for single tire tread / brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
• Scan DOT, tire expiration notice, tire recall lookup
• Take photos of tire wear & damage
Vehicle Coverage
Autel TBE200 Supports 99% Vehicle to Ensure Your Safe Driving.
Autel TBE200 laser tpms tool is compatible with passenger cars, off-road vehicles and commercial vehicles.
Tire pressure wear standard is that when the tire is worn to the depth of the tread groove of only left 1.6 mm, it must be replaced. At this time, the “wear mark rubber strip running through the tread” will be clearly revealed, it means that the tires should be replaced immediately. Otherwise, the tires will slip when driving, which will prolong braking distance; in a more serious case, when the tire is driving on a slippery surface, prone to “floating and slipping” causing steering wheel and brake failure, It can lead to safety accidents, and it is also easy to cause puncture accidents.
Via dual camera, the technician can document tire wear and damage and scan the Tire Identification Number (TIN). The TIN is the string of six to 13 numbers or letters marked on the tire sidewall following the letters DOT (Department of Transportation) identifying the tire’s week and year of manufacture.
How to Use
STEP 1: Long press the power button to turn on the tool.

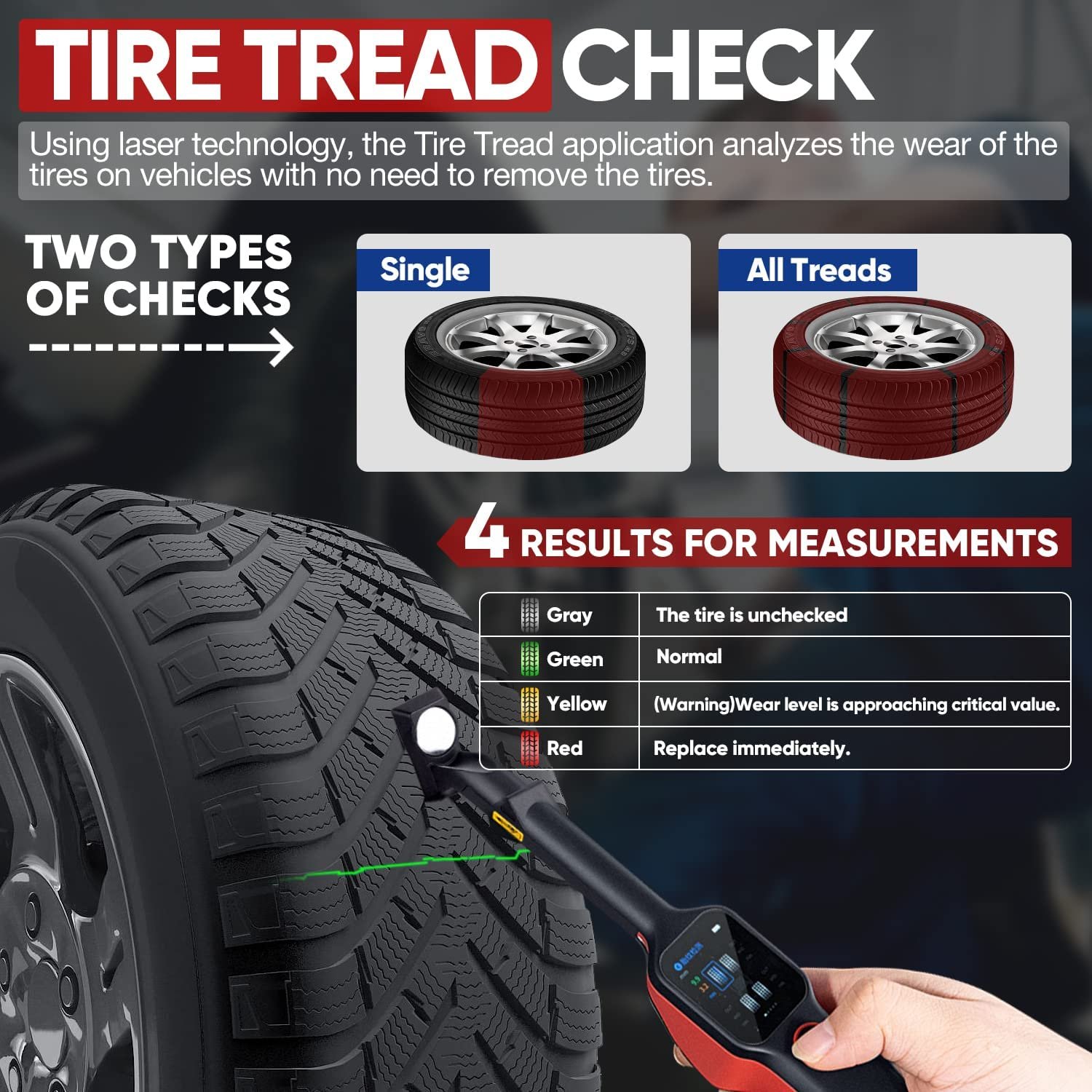

STEP 2: Perform Tire Tread Check: On the Main Job screen, tap the Tread Check icon, and place the tool on the tire surface. Short press the power button. Ensure the laser line is perpendicular to the channels of the tire. The screen will display real-time measurement data, slide left to view details.
STEP 3: Possible Results for Measurements: Wear status is represented by icon color: A gray icon indicates the tire is untested; green indicates the tire is in good condition; yellow indicates a replacement is recommended; red indicates immediate replacement is recommended.

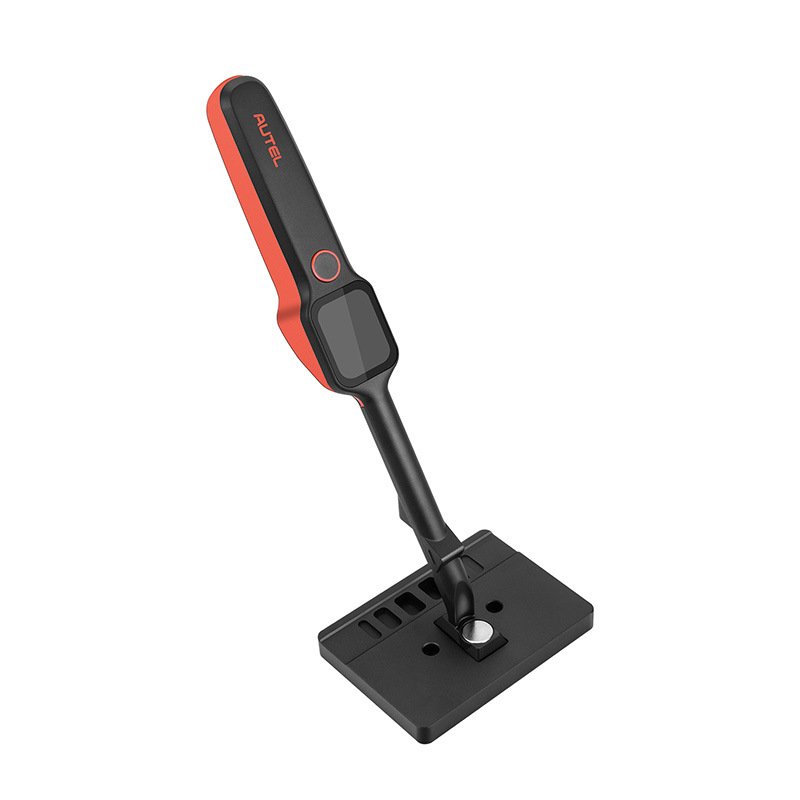

STEP4: Calibration: On the Main Job screen, tap the Calibration icon, and place the magnetic head on the calibration table. Press the power button to start. Wait for 1-2 minutes until calibration is complete.
Calibration frequency: Calibration is recommended every two months. Immediate calibration should be performed if deviations are detected or if the tool is dropped or in some manner mishandled.
Specification
|
Processor |
4x ARM Cortex-A35 (1.5 GHz) |
| Processor | Quad-core processor (1.5 GHz) |
| Memory | 1GB RAM LPDDR3 & 4GB ROM |
| Display | 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution |
| Connectivity | • Wi-Fi • USB 2.0 & Type C |
| Camera | CMOS WXGA, 1 megapixel & 8 megapixel, 30fps |
| Audio Output | Output: Beep |
| Power and Battery | • 3.7 V/3000 mAh 18650 lithium-ion battery • Charges via 5 V AC/DC power supply |
| Tested Battery Life | Around 8 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 300 mA (AMOLED on with default brightness) @3.7 V |
| Operating Temperature | -10 to 45°C(14 to 113°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) |
283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”) |
Comparison Chart

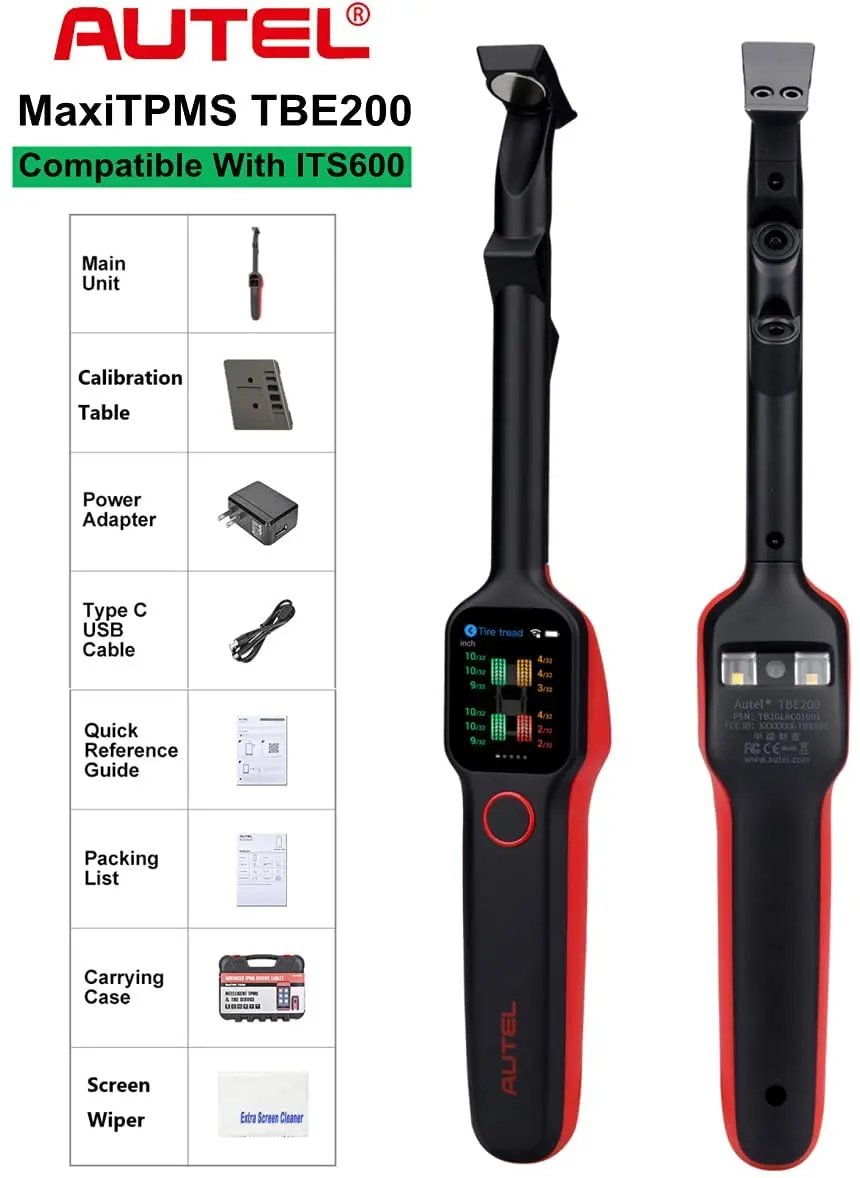

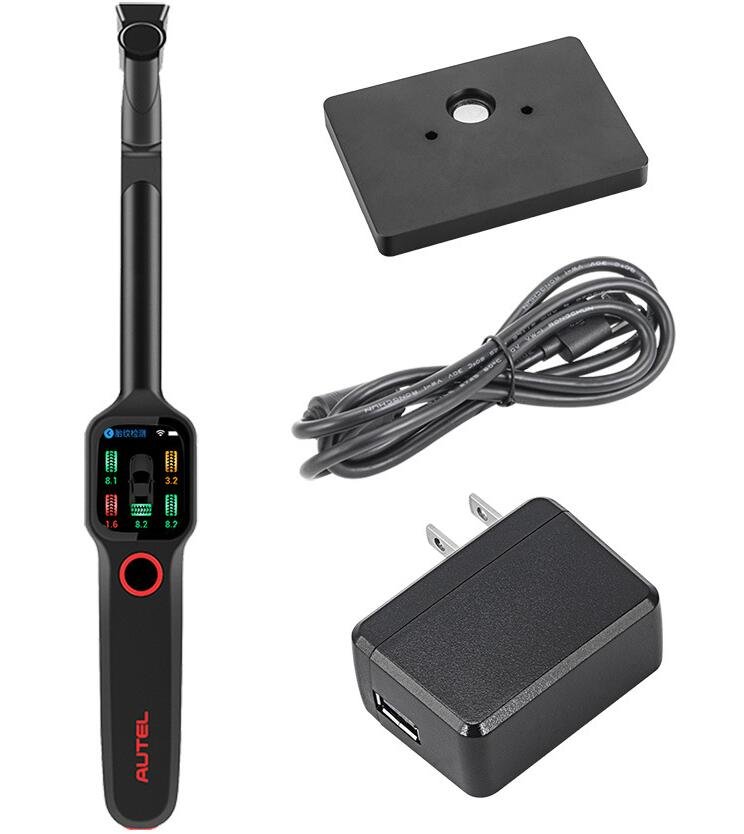

Packing List
1 x TBE200
1 x Calibration Table
1 x Power Adapter
1 x Type C USB Cable
1 x Quick Reference Guide
1 x Packing List
1 x Carrying Case
1 x Screen Wiper
