Auto TPMS 50448 Plus for GM+Ford Tire Pressure Reset Device Activation Tool 2 in 1 EL-50448+EL-50449 Reset Scan Tool

TPMS 50448 Plus 2in1 is Auto TPMS Relearn Tool, 50448 Plus is Activation Tool for GM and Ford

TPMS 50448 Plus 2in1 is able to work with both for GM series and for Ford series vehicles.It is an essential tool for replacing tire pressure sensors, tire pressure alarms or tire replacements in models such as the for GM series (for Opel / for Chevy / for Buick / for GM / for Cadillac) and for Ford series (for Lincoln / for Mercury).

How to switch between for GM and for Ford brand?

Hold the power button for 3 seconds and 2 LEDs flashing 2 times, selected brand’s LED flashing 2 times.

How do I detect which mode my device is in?

Press the power button, if the Green LED flashing, means 50448 Plus 2in1 in GM mode, if the Red LED flashing, means 50448 Plus 2in1 Plus in Ford mode.

Auto TPMS Relearn Tool 50448 Plus 2in1 Plus Usage:

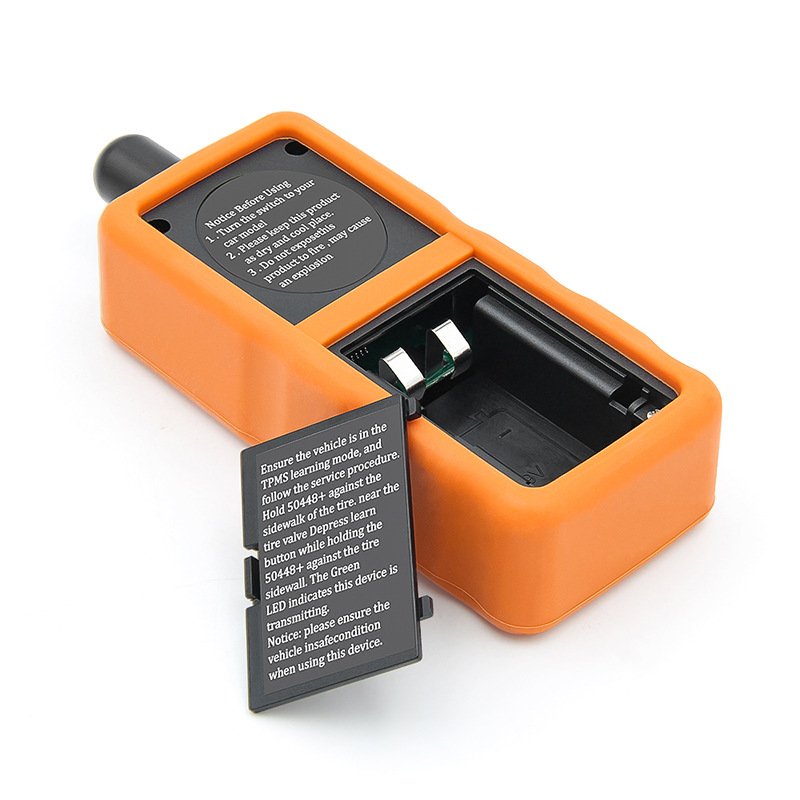

1. Need 1x Pcs 9V battery to work

2. Set the car in TPMS learning mode. (car horns twice)

3. Starting from the left front tire, the antenna of the dedicated tool for tire pressure monitoring is facing upwards against the tire sidewall near the rim of the valve stem to start the antenna. Press and release the button and wait for the speaker to emit a chirp.

Once the speaker is chirping, the sensor information is read and the turn signal to be read at the next position will light.

4. Follow this order to rest TPMS one by one: Front left, front right, rear right, rear left.

5. After all sensors reset, the car horns twice, the TPMS re-learn finished.

How to set the car to TPMS relearning mode?

For GM series cars:

1. Make the gear in P position.

2. Use cruise to choose TPMS re-learn mode in the dashboard settings.

3. Horn will ring twice and the TPMS indicator flashes, then the learning mode has been successfully entered. If equipped,the message center will display the front left (LF) tire.

For Ford series cars:

1. Make the gear in P position.

2. With the ignition switch to OFF, press and release the brake pedal.

3. Turn the ignition switch from the OFF position to the RUN position 3 times and end at RUN position.

4. Depress and release the brake pedal.

5. Ignition to OFF position.

6. Ignition goes from the OFF position to the RUN position 3 times and ends at RUN position.

7. Horn will ring once and the TPMS indicator flashes, then the learning mode has been successfully entered. If equipped, the message center will display the front left (LF) tire

EL-50448 Compatibility Vehicle List:

2010 for 9-5

2010 for Acadia, Enclave, OUTLOOK, Traverse (VIN R/V)

2010 for Allure, LaCrosse (VIN G)

2010 for Antara, Captiva, Terrain, Winstorm

2010 for Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)

2010 for Aveo, G3, Barina (VIN S/T)

2010 for Buick Excelle

2010 for Buick Regal (China)

2010 for Camaro (VIN F)

2010 for Canyon, Colorado (VIN S/T)

2010 for Cobalt, G5 (VIN A)

2010 for Corvette (VIN Y)

2010 for Cruze (China)

2010 for Cruze

2010 for CTS (VIN D)

2010 for Daewoo Lacetti

2010 for DTS (VIN K)

2010 for Equinox, Terrain (VIN L)

2010 for Express, Savana (VIN G/H)

2010 for G6 (VIN Z)

2010 for H3/H3T (VIN N)

2010 for HHR (VIN A)

2010 for Impala (VIN W)

2010 for Insignia

2010 for LaCrosse (China)

2010 for Lucerne (VIN H)

2010 for Malibu (VIN Z)

2010 for Opel/Vauxhall Astra

2010 for Sierra, Silverado (VIN C/K)

2010 for SKY, Solstice (VIN M)

2010 for SRX (VIN N)

2010 for STS (VIN D)

2010 for VE/WM – Sedan, Sportwagon, Ute, Lumina, Caprice, HSV

2010 for VUE (VIN Z), Captiva Sport

2011 for Acadia, Enclave, Traverse (VIN R/V)

2011 for Alpheon

2011 for Antara, Captiva

2011 for Astra

2011 for Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)

2011 for Aveo, Barina (VIN S/T)

2011 for Buick Excelle

2011 for Buick Regal (China)

2011 for Camaro (VIN F)

2011 for Canyon, Colorado (VIN S/T)

2011 for Caprice PPV

2011 for Captiva Sport

2011 for Corvette (VIN Y)

2011 for Cruze

2011 for CTS (VIN D)

2011 for DTS (VIN K)

2011 for Equinox, Terrain (VIN L)

2011 for Express, Savana (VIN G/H)

2011 for HHR (VIN A)

2011 for Impala (VIN W)

2011 for Insignia

2011 for LaCrosse (China)

2011 for Lucerne (VIN H)

2011 for Malibu (VIN Z)

2011 for Orlando

2011 for Regal (VIN G)

2011 for Sierra, Silverado (VIN C/K)

2011 for SRX (VIN N)

2011 for STS (VIN D)

2011 for VE/WM – Sedan, Ute, Sportwagon, Caprice, Lumina, Omega, VXR8

2011 for Volt

2012 for Acadia, Enclave, Traverse (VIN R/V)

2012 for Alpheon  (2706)

2012 for Ampera, Volt (VIN R) (Europe)

2012 for Antara, Captiva

2012 for Astra-J  (2857)

2012 for Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)

2012 for Aveo Classic, Barina Classic (VIN T)

2012 for Aveo, Sonic  (2777)

2012 for Barina  (2774)

2012 for Buick Excelle  (2861)

2012 for Camaro (VIN F)

2012 for Canyon, Colorado (VIN S/T)

2012 for Caprice PPV

2012 for Captiva Sport

2012 for Chevrolet Cobalt  (2809)

2012 for Colorado (Other IO), S10 (South America)

2012 for Corvette (VIN Y)

2012 for Cruze  (2863)

2012 for CTS (VIN D)

2012 for Equinox, Terrain (VIN L)

2012 for Express, Savana (VIN G/H)

2012 for Impala (VIN W)

2012 for Insignia  (2707)

2012 for LaCrosse (China)  (2710)

2012 for LaCrosse (VIN G)  (2709)

2012 for Malibu (VIN Z)

2012 for Opel Combo-D

2012 for Optra, Viva (VIN J)

2012 for Orlando  (2859)

2012 for Regal (China)  (2711)

2012 for Regal (VIN G)  (2708)

2012 for Sierra, Silverado (VIN C/K)

2012 for Sonic (US/Canada)  (2775)

2012 for SRX (VIN N)

2012 for VE/WM – Sedan, Ute, Sportwagon, Caprice, Lumina, VXR8

2012 for Verano (US/Canada)  (2816)

2012 for Volt (VIN R)

2012 for Zafira-C  (2860)

2013 for Acadia, Enclave, Traverse (VIN R/V)  (3206)

2013 for Alpheon  (3094)

2013 for Ampera, Volt (VIN R) (Europe)  (3211)

2013 for Antara, Captiva  (5376555)

2013 for Astra-J Convertible/Coupe  (5376567)

2013 for Astra-J  (5376577)

2013 for ATS (VIN A)  (3086)

2013 for Avalanche, Escalade, Suburban, Tahoe, Yukon (VIN C/K)  (3088)

2013 for Aveo, Sonic (Africa, Middle East, AP, South America, CKD, Mexico)  (5376711)

2013 for Aveo, Sonic (Europe)  (5376704)

2013 for Barina  (5376837)

2013 for Camaro (VIN F)  (3106)

2013 for Caprice PPV  (3105)

2013 for Captiva Sport  (3101)

2013 for Cobalt  (3107)

2013 for Colorado, Colorado 7, S10, Trailblazer  (5392270)

2013 for Combo-D

2013 for Corvette (VIN Y)  (3104)

2013 for Cruze (Global)  (5377099)

2013 for CTS (VIN D)  (3085)

2013 for Encore (China)  (5377162)

2013 for Encore, Trax (North America)  (5377181)

2013 for Equinox, Terrain (VIN L)  (3100)

2013 for Excelle  (5377155)

2013 for Express, Savana (VIN G/H)  (3103)

2013 for Impala (VIN W)  (3102)

2013 for Insignia  (3098)

2013 for LaCrosse (China)  (3095)

2013 for LaCrosse (VIN G) (North America)  (3090)

2013 for Malibu (China)  (3096)

2013 for Malibu (Europe, Other IO and South America)  (2713)

2013 for Malibu (North America)  (3093)

2013 for Mokka, Trax, Tracker (Europe)  (5377179)

2013 for Onix  (3166)

2013 for Orlando (Global)  (5377530)

2013 for Regal (China)  (3099)

2013 for Regal (VIN G) (North America)  (3089)

2013 for Sierra, Silverado (VIN C/K)  (3087)

2013 for Sonic (US/Canada)  (5377994)

2013 for Spark (US/Canada), Barina Spark (Automatic Transmission)  (5421555)

2013 for Spin

2013 for SRX (VIN N)  (3201)

2013 for Trax, Tracker (Africa, Australia, Middle East, South America)  (5377156)

2013 for VE/WM Ute, Caprice, Lumina

2013 for Verano (US/Canada)  (5377996)

2013 for Volt (VIN R) (North America, Holden)  (3210)

2013 for XTS (China)  (3092)

2013 for XTS (North America)  (3091)

2013 for Zafira-Tourer

2007-2014 for Ford F-150

2008-2015 for Ford F-250 F-350 F-450 F-550 Super Duty

2007-2015 for Ford Mustang

2007-2014 for Ford Edge

2006-2015 for Ford Escape

2008-2015 for Ford Expedition

2006-2016 for Ford Explorer

2008-2015 for Ford Flex

2008-2015 for Ford Taurus

2008-2015 for Ford E-150 E-250 E-350 E-450 Econoline Vans

2008-2015 for Ford Fiesta

2008-2015 for Ford Focus

2008-2015 for Ford Fusion

2008-2011 for Ford Crown Victoria

2011-2015 for Ford Transit Connect

2006-2011 for Ford Ranger

2007-2015 for Lincoln MKX

2007-2015 for Lincoln MKT

2008-2015 for Lincoln MKZ

2008-2015 for Lincoln MKS

2008-2015 for Lincoln Navigator

2008-2011 for Lincoln Town Car

2007-2008 for Lincoln Mark LT

2006-2010 for Mercury Mountaineer

2006-2010 for Mercury Monterey

2006-2011 for Mercury Mariner

2006-2011 for Mercuy Grand Marquis

2006-2011 for Mercury Milan

For GM vehicles equipped with a 315 or 433 MHz Tire Pressure Monitoring (TPM) system, a “Sensor Re-Learn Procedure” must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool EL-50448.Also works on 2014 for G-M models

Notice:

1. When using 50448 Plus 2in1, please make sure antenna in correct position.

2. Please make sure the 9v battery in good condition.

The package does not include the charger and battery.

Package includes:

1PC x Auto TPMS 50448 Plus 2in1 Auto TPMS Relearn Tool
