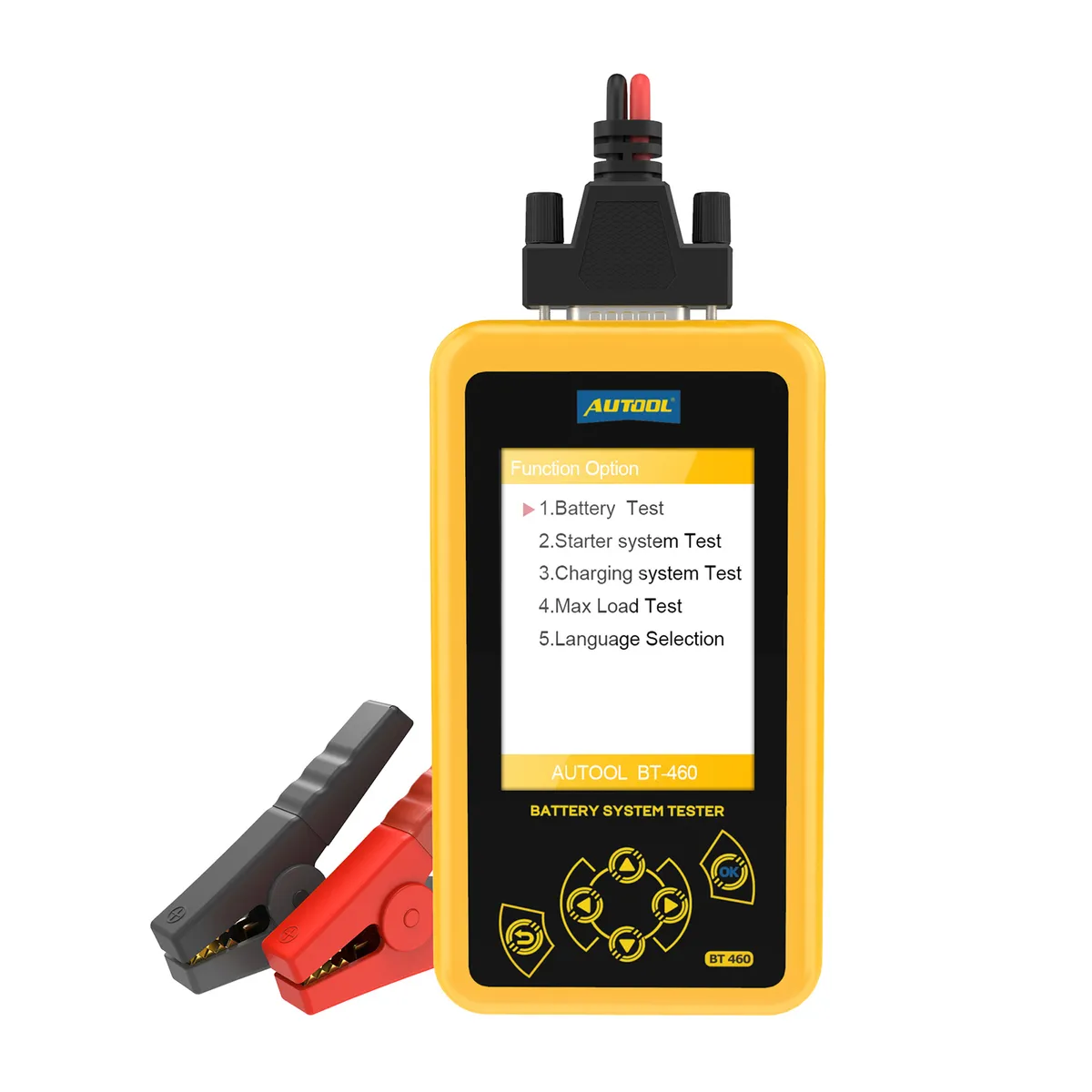

AUTOOL BT460 Car Battery Tester Automobile Battery Analyzer Load Tester Tester Machine Charging Starting Systems Tester 12V 24V

AUTOOL BT460 Car Battery Tester Automobile Battery Analyzer Load Tester Tester Machine Charging Starting Systems Tester 12V 24V

Product Description

AUTOOL BT460 Car Battery Load Tester is dedicatedly developed to test 12V/24V regular flooded, automotive lead-acid batteries, AGM flat plate, AGM spiral, GEL, and EFB batteries. Applying the advanced conductance testing technology, BT460 can give you accurate testing results in seconds. Fit in your glove box, It provides a handy device for automobile factory, garage, auto battery manufacturer, Pros and DIYers with a quick, simple and cost-effective solution.

BATTERY & CRANKING & CHARGING & MAX LOAD TEST

Not only is it convenient for car owners to use it for daily servicing, but it can also help pros test the voltage of the battery under loading through a load test. With this battery tester, you can check the overall health of the battery, and run a complete system charging test.

PROFESSIONAL& SAFETY

Test standards include most battery standards in the world, CCA IEC EN DIN SAE JIS and OTHER SPECIES, which covers from 30- 1700 CCA. With Polarity Reverse Protection, both the battery and device won’t be damaged.

HD COLOR SCREEN

Test standards include most battery standards in the world, CCA IEC EN DIN SAE JIS and OTHER SPECIES, which covers from 30- 1700 CCA. With Polarity Reverse Protection, both the battery and device won’t be damaged.

MULTI-LANGUAGE Support

12 Languages are available. Available in English, Spanish, German, French, Russian, Portuguese, Chinese, Turkish, Russian, Japanese, Thai and Korean. Other languages can be customized.

3-YEAR WARRANTY

For damage caused by non-human factors, we promise to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.

How to use

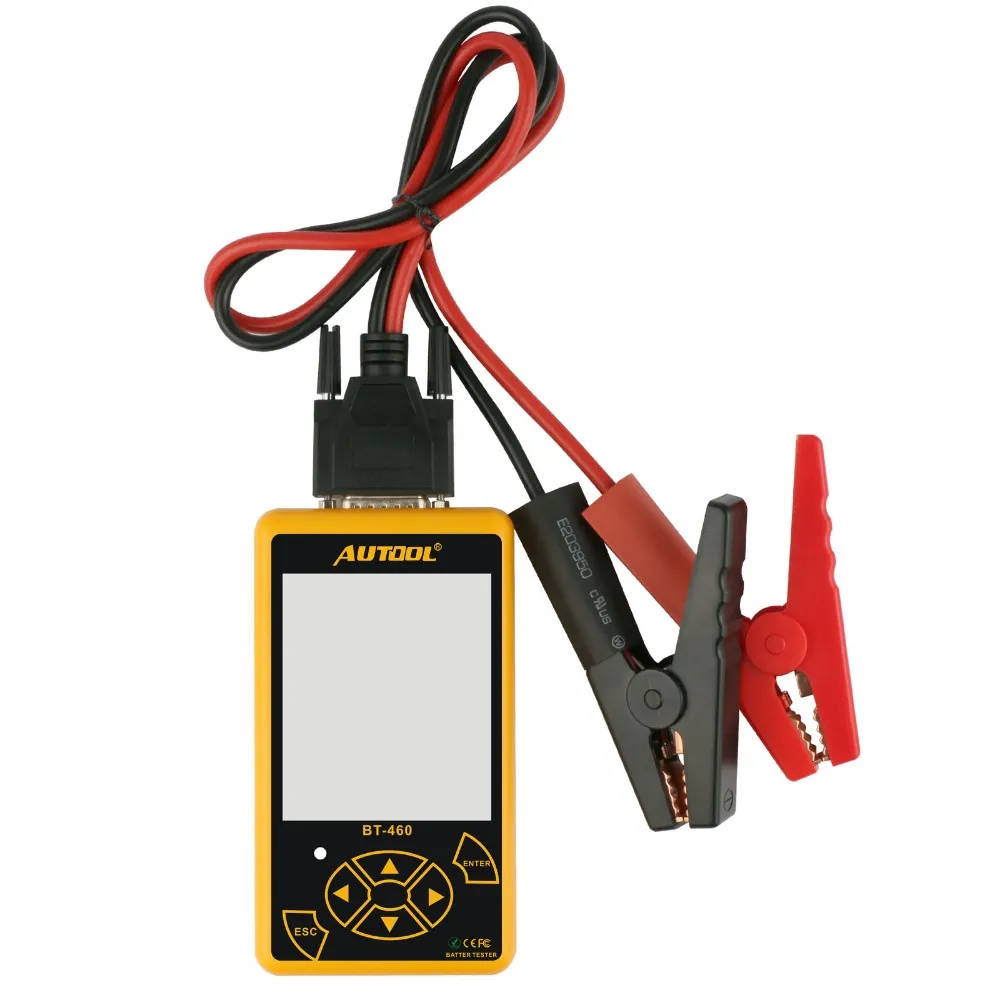

Step 1. Connect the 12V battery, red clips to positive pole and black clips to negative pole.

Step 2. Battery Test: Firstly select the type of battery to be tested, then the test criteria and the test range, and then you have the results within few seconds.

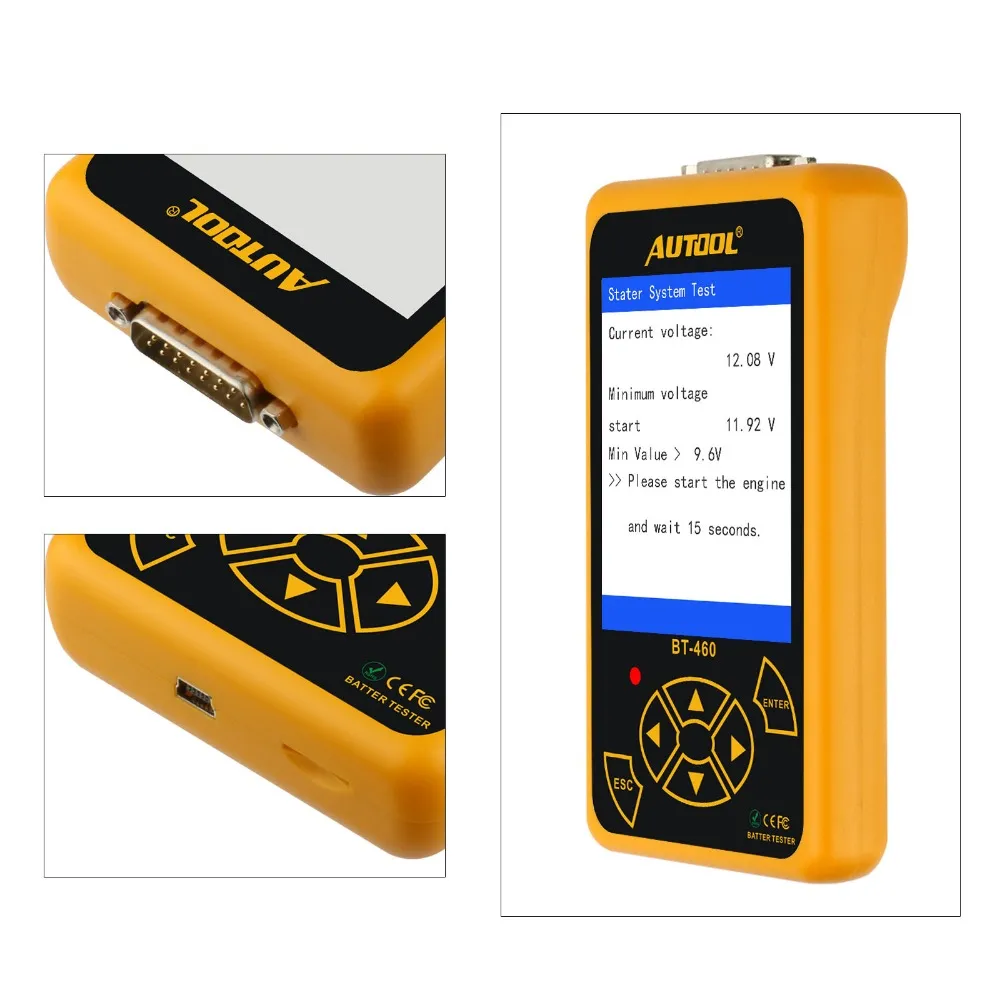

Step 3. Cranking Test: After selecting the cranking test function, follow the prompts to start the engine. Test completed.

Step 4. Charging Test: After entering the charging test function, follow the prompt to increase the speed to 2500 RPM for 5 seconds, then press OK. Test completed.

Step 5. Max Load Test: Select the max load test function, turn on the car’s electrical appliances, start the car engine and click OK.

Technical Parameters:

Measure Standard Measure Range
CCA 100-2400
JIS 26A17–245H52
DIN 100-2200
IEC 100-2200
EN 100-2400
SAE 100-2400
GB 30-220Ah
BCI 100-2400
MCA 100-2400
CA 100-2400

DC Voltmeter test range is 8-30DCV
Working Environment Temp.: -20°C-50°C

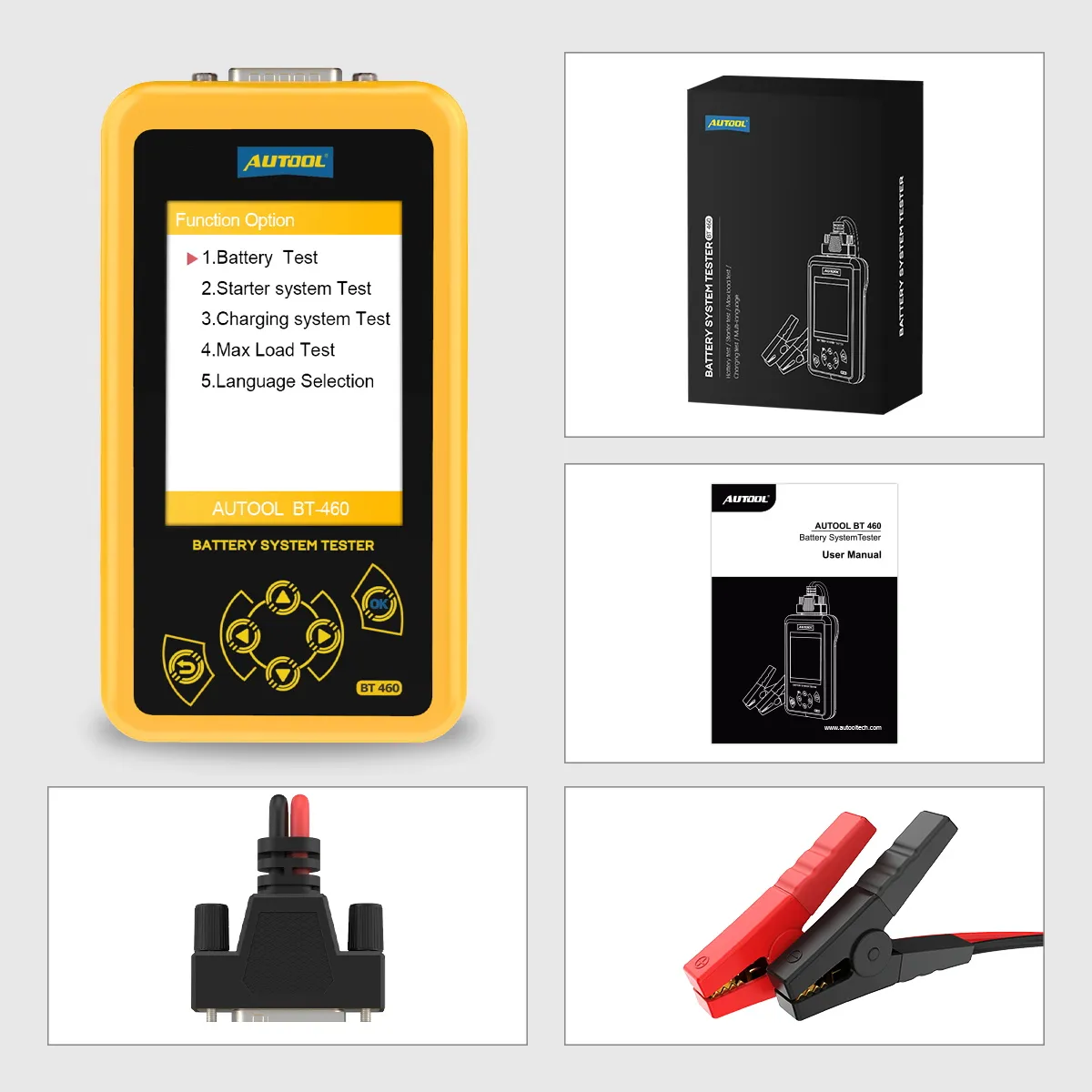

Packing List

1pc* AUTOOL BT460 Car Battery Load Tester
2pcs* Full copper core kelvin clip
1pc* Manual
