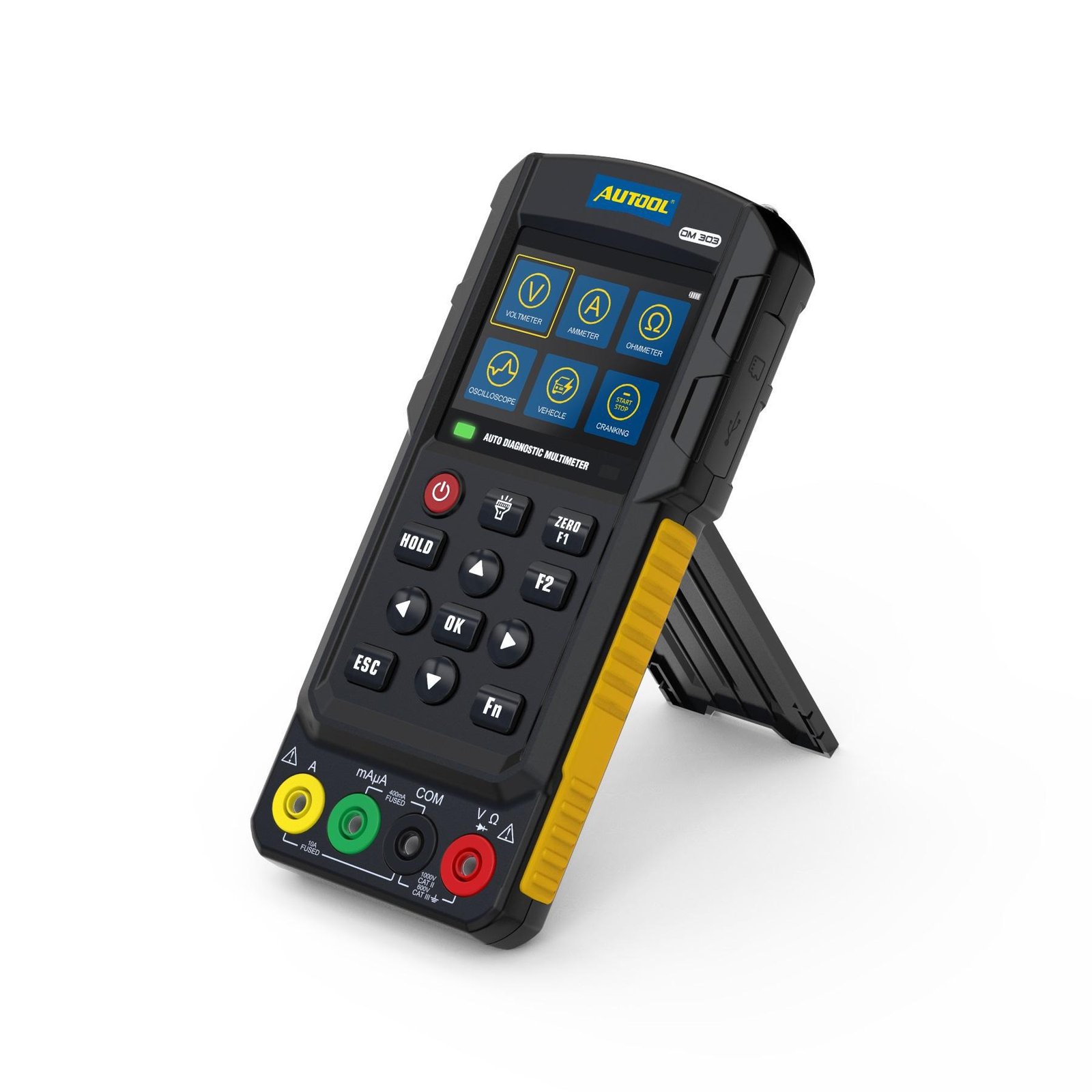

AUTOOL DM303 Auto Diagnostic Digital Multimeter Oscilloscope Ammeter Analog Signal Test Ohmmeter Car Circuit Tester with K/CAN
AUTOOL DM303 Automotive Diagnostic Multimeter is a handheld new diagnostic oscillometric multimeter integrated digital oscilloscope, digital multimeter developed with the embedded digital control technology.
The multimeter mode can measure the AC-DC voltage and current, resistance, diode forward voltage drop, on-off and frequency.
Oscilloscope mode is a complete intelligent measurement system that includes signal input, data scanning, data processing and automatic search, with a waveform test bandwidth of 500KHZ. With a variable sampling frequency, the slowly varying signal quantity can be measured. It is applicable to the measurement and observation of various signals on the automobile circuit during car overhaul, including the engine drive signal and engine power voltage of the new energy vehicle, fuel car engine ignition signal, camshaft signal, crankshaft signal, wheel speed sensor signal, oxygen
Features:
1.Working Modes:AUTOOL DM303 has 2 working modes-multimeter mode and oscilloscope mode.
2.Powerful Functions:It can measure the AC/DC voltage and current,resistance,diode forward voltage drop,on-off and frequency.Besides,it can measure motor drive signal and motor power voltage of new energy vehicle,fuel car engine ignition signal,camshaft signal,crankshaft signal, wheel speed sensor signal,oxygen sensor signal and so on.
3 .Multilingual:Support multilingual settings: English, Russian, French, Italian, German,Spanish, Portuguese, Polish, Dutch, Chinese, Korean, Japanese.

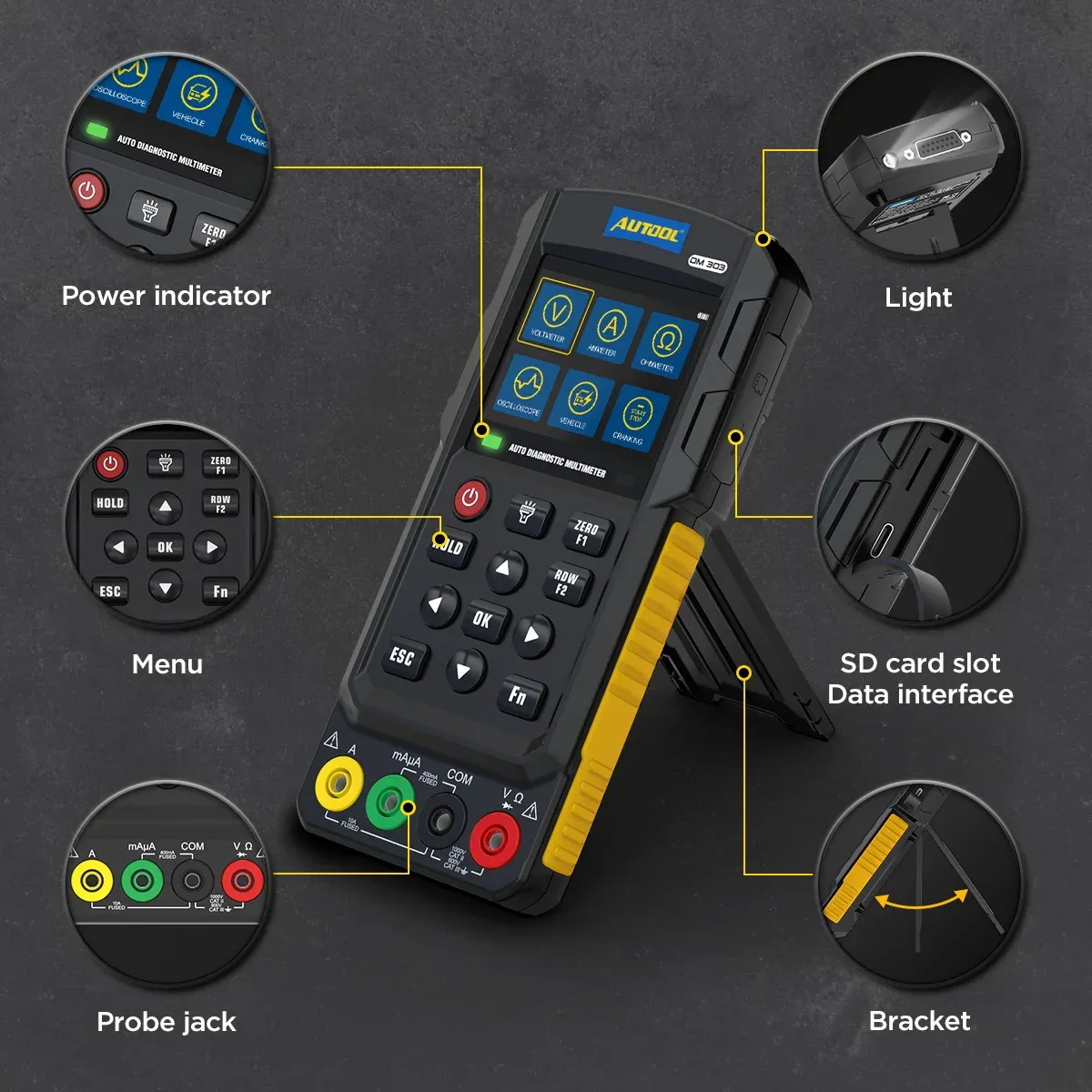

4.Colorful HD LCD Dislay: AUTOOL DM303 has a 2.8-inch color screen, with a resolution of 320*240.Adjustable screen brightness, clear and intuitive data,suitable for various working environments.
5.LED Light Design:AUTOOL DM303 is built with a LED light which mades your job easier in dark enviroment.
6.Portbale Toolbox&Easy to Carry:The main unit and accessories can be well stored, easy
12 TEST FUCTION
DC/AC Voltage Measurement,
DC/AC Current Measurement,
Resistance Measurement,
Frequency Measurement,
Diode Test,
Oscilloscope Test,
Automotive Circuit Test,
Cranking Test,
Injector Test,
Relay Test,
Analog Signal Test,
Ignition Signal Test,
K/CAN Line Data.
INTERFACE DISPLAY
Oscilloscope modeis a complete itelligent measurement system,which includes signal input, data sampling, data processing and automatic search, with the waveform test bandwidth of 500KHZ. With a variable sampling frequency, the slowly varying signal amount can be measured.It is applicable to measuring and observing various signals on the automobile circuit during the car overhaul, including the motor drive signal and motor power voltage of new energy vehicle, fuel car engine ignition pulse signal, camshaft signal, crankshaft signal, wheel speed sensor signal, oxygen sensor signal and so on.
2.8 INCH COLOR DISPLAY
Adjustable screen brightness, clear and intuitive data, suitable for various working environments.
12 Languages
As so far, DM303 ontains English, Spain, Italy, French, Russian, Deutschland, Portuguese, Poland, Netherlands, Japanese, Korean and Chinese.
PORTABLE TOOLBOX
The main unit and accessories can be well stored, easy to carry, and the box is resistant to flling and crashing, effectively protects the instrument.
SOFTWARE UPGRADING
The instrument can update the application software with SD card and copy the updated file to SD card.

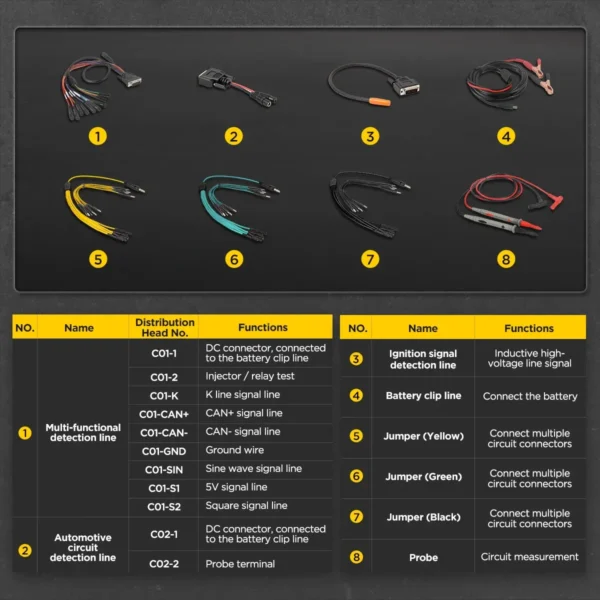

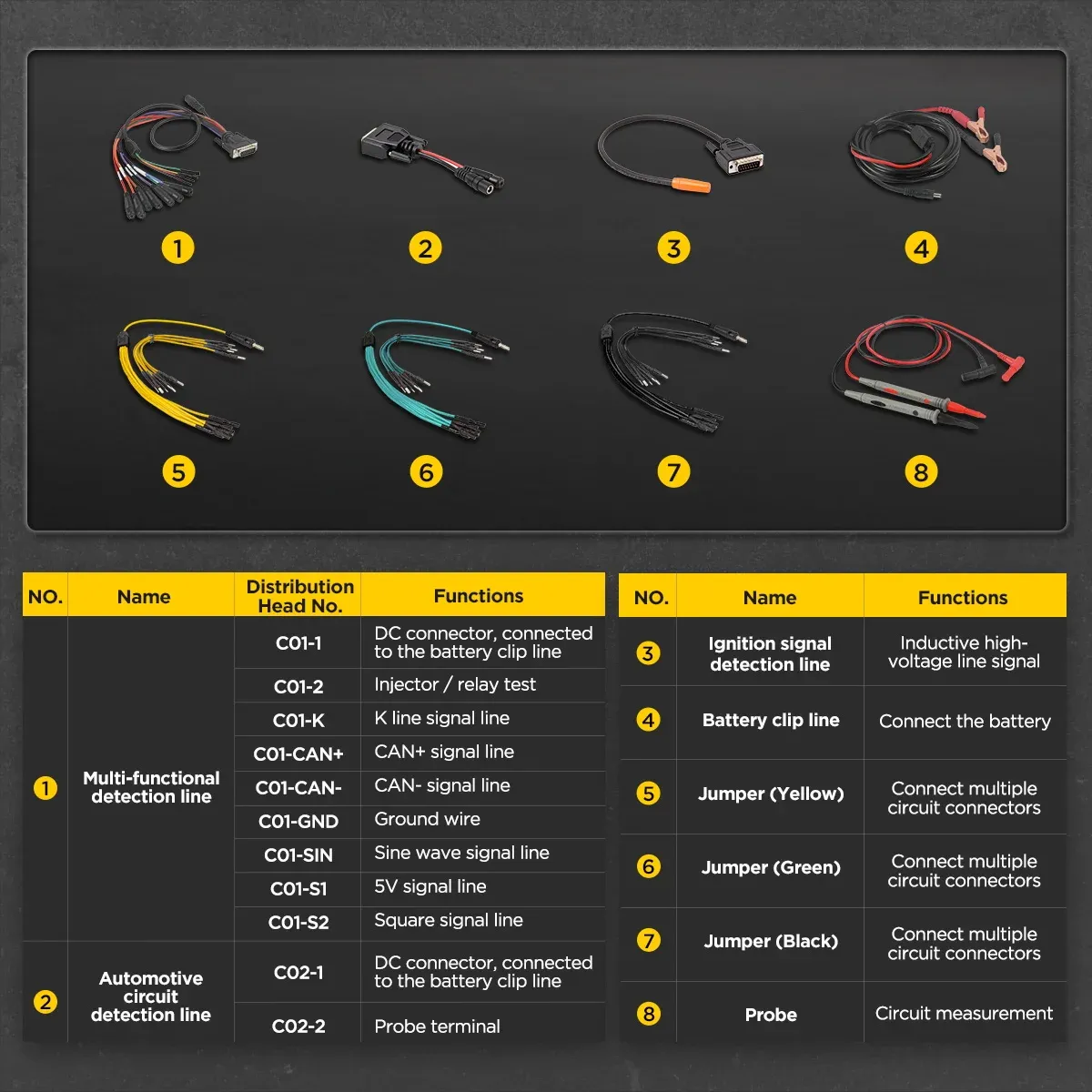

Multi-functional detection line
C01 – 1 DC connector, connected to the battery clip line
C01 – 2 Terminals for injector test and Automobile relay test
C01 – K K line signal line
C01 – CAN+ CAN+ signal line
C01 – CAN- CAN- signal line
C01 – GND Ground wire
C01 – SIN Sine wave signal line
C01 – S1 5V signal line
C01 – S2 Square signal line
C02 – Battery clip line
C03 – Ignition pulse signal detection line
C04 – 1 DC connector, connected to the battery clip line
C04 – 2 Probe terminal
C05 – Jumper(Black)
C06 – Jumper(Green)
C07 – Jumper(Yellow)

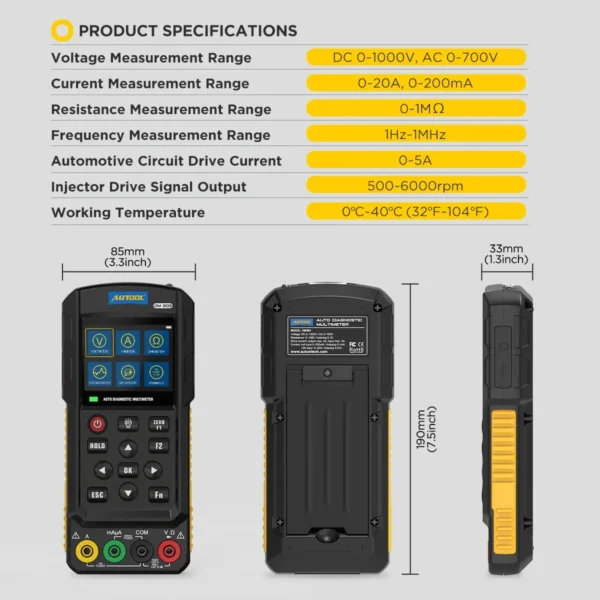

Input impedance for the voltage measurement: it is 2~3MΩ when the voltage is lower than 160V; it is 10MΩ when the voltage is higher than 160V.
The maximum input voltage is 1000Vpp; The analog bandwidth is 500KHz; The voltage range is converted automatically; The 10A terminal fuse for current measurement is 15A self-recovery fuse, and the maximum measurable current is 20A; The current measurement mA/uA terminal fuse is 0.5A self-recovery fuse, and the maximum measurable current is 200mA
Working temperature: 0~40°C(32~104°F) Humidity: ≤75%;
Storage temperature: 10~50°C(14~122°F) Humidity: ≤70%;
Altitude: 2000m.

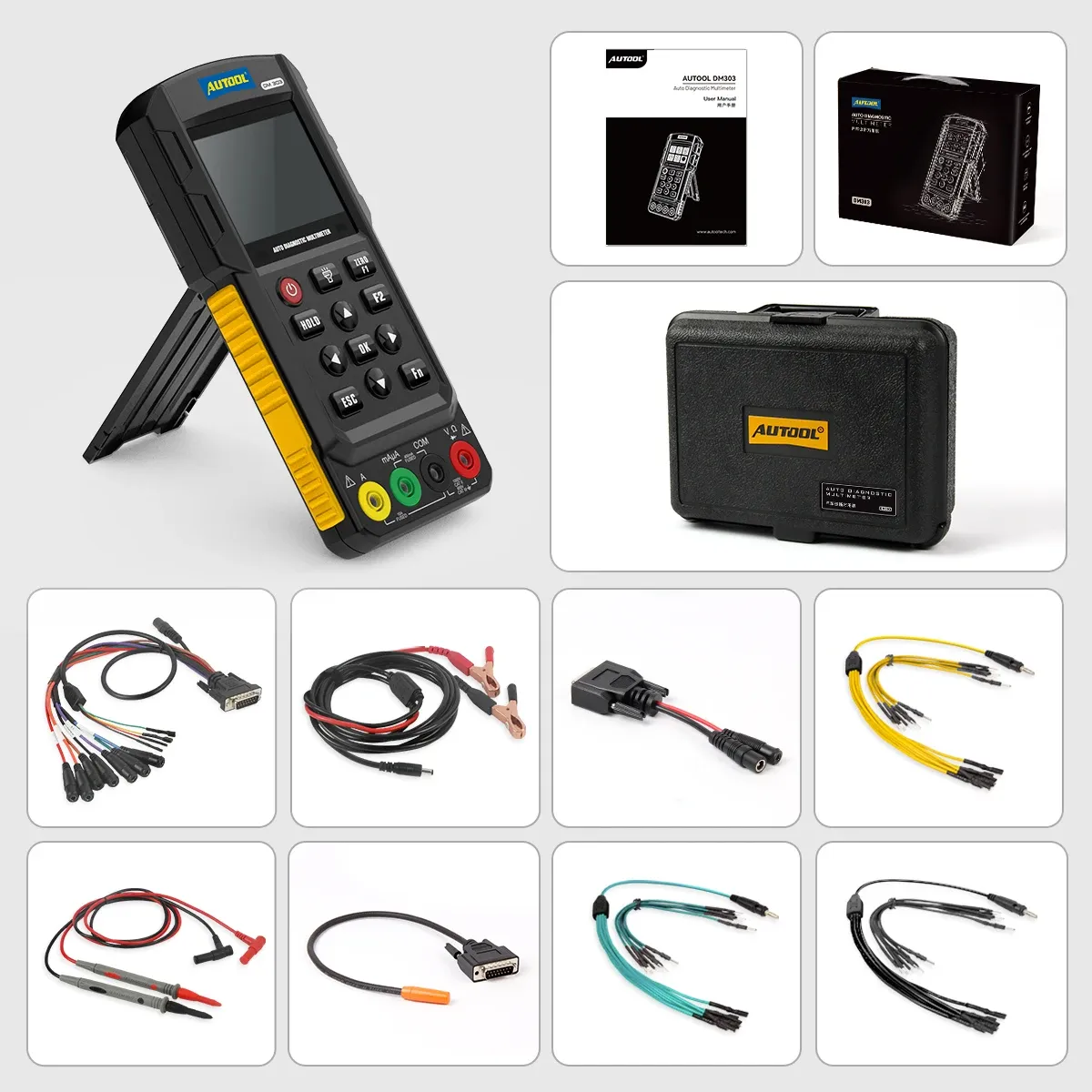

Package List:
1x Main Unit
1xMulti-functional detection line
1xAutomotive circuit detection line
1xlgnition signal detection line
1xBattery clip line
1xJumper (Yellow)
1xJumper (Green)
1xJumper (Black)
1xProbe
