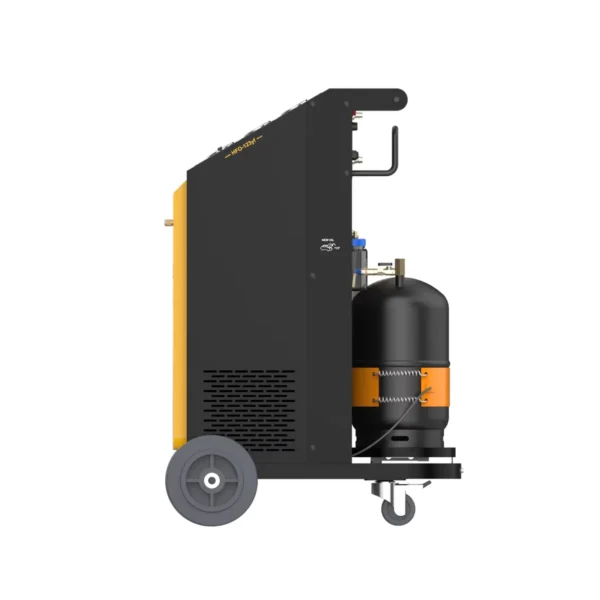

AUTOOL LM 707 Fully Automatic Refrigerant Filling Machine A/C System Maintenance
The AUTOOL LM 707 Refrigerant Filling and Recovery Machine incorporates the most advanced and smart control tech and manufacturing process which is the right assistant tool for auto air conditioning repair and maintenance personnel. It is fully automatic intelligent equipment integrating the functions of refrigerant recovery, vacuuming, refrigerant oil charging and refrigerant filling. This product holds with smart control operation interface, reliable manufacturing process and leading technology principle. It is a preferred auto air conditioning maintenance equipment you highly crave.
AUTOOL LM707 Refrigerant Recovery Machine Feature:
1.[Widely Applicable]AUTOOL LM707 Fully Automatic Refrigerant Filling Machine has patented pipeline design to ensure high efficiency of air pump recovery and liquid recovery.Features covered Refrigerant recovery and purification,Drain used refrigerant oil,Scheduled vacuuming,Adjustable oil filling,Adjustable refrigerant filling,Fully automatic operation.
2.[Built-in Database]AUTOOL LM707 Fully Automatic Refrigerant Filling Machine has built-in data of various models for selection, and can query information such as the type and filing volume of refrigerant oil, the type and filing volume of cooling agent,etc.The equipment can automatically match the corresponding refrigerant type and filling volume according to the auto model, so that the user does not need to worry about the selection of auto refrigerant information.
3.[Built-in compressor]The AUTOOL LM707 Automatic Refrigerant Filling Machine is equipped with a compressor, which can realize accurate and continuous refrigerant recovery and effectively control the freezing phenomenon in the drying filter.
4.[Built-in electronic scale]The AUTOOL LM707 Automatic Refrigerant Filling Machine is equipped with a high-precision electronic scale, which can prevent overfilling and accurately measure the volume of refrigerant.
5.[Fully Automatic Operation & Smart Control Panel]After setting the relevant parameters, the machine will completely automatically execute without manual operation.This Refrigerant Recovery Machine with a large LCD display, its operation process and data can be seen at a glance, the entire operation can be done through the touch panel.
6.[Powerful Functions]Dual R134 and HFO1234yf refrigerant recovery and recharge AC machine. AUTOOL LM707 Refrigerant Recovery Machine combines the functions of refrigerant recovery, vacuuming, refrigerant oil charging and flushing.
7.[Recovery Rate 96%]Recovery function extracts very limited compressor oil (5 ml or less) from A/C loop while flush removes up to 96% compressor oil from A/C loop. Serving all fuel, electric and hybrid vehicles.
8.[Built-in filter]Oil and air can be automatically separated and collected through separate tubes to ensure separate recovery of steam and liquid.
9.[24 Language Support ]lt supports 24 language settings, including English, Russian, Spanish, German.Polish, Indonesian, Czech, Turkish. Croatian, Serbian, French, Swedish.Persian, Arabic, Bulgarian, Dutch, Finnish, Korean, Thai, Lithuanian, Vietnamese.Portuguese Simplified Chinese, and Traditional Chinese.
10.[Three Years Warranty and Lifelong Maintenance]For the damage caused by non-human factors, AUTOOL promises to resend the parts for free within 3 years. For any demand, we warmly welcome you to contact us, and we will reply you as soon as possible within 24 hours.
AUTOMATION PROCESS
The software allows for the pre-setting of parameters, which enables the machine to carry out all tasks according to a predetermined workflow.
ACCURATE RECOVERY
Built-in scales and sensors diagnose the weight of the tank with recoveries of up to 96%,minimizing refrigerant loss during refrigerant replacement.
BUILT IN DATABASE
This machine comes with built-in data for a variety of car models,making it easy to automatically match the refrigerant flling volume according to the specific car model.
7-INCH INTELLIGENT CONTROL PANEL
It is equipped with a 7-inch color touchscreen display, which provides an easy-to-use interface for improved workflow visibility and efficiency.Additionally, the machine also features three independent gauges and touch buttons, providing an outstanding user experience.
R-134a / HFO-1234yf
Connect either HP or LP hose with external refrigerant R-134a or HFO-1234yf tank, and turn on the machine, select corresponding refrigerant type, run recovery to fill equipment with refrigerant.(Only one of the two types of refrigerants can be selected, and it cannot be replaced with other types of refrigerants after selection. At present, only LM708 supports the switching test of R-134a and HFO-1234yf refrigerants.)
24 LANGUAGE SUPPORT
lt supports 24 language settings, including English, Russian, Spanish, German, Polish, Indonesian, Czech, Turkish. Croatian, Serbian, French, Swedish, Persian, Arabic, Bulgarian, Dutch, Finnish, Korean, Thai, Lithuanian, Vietnamese, Portuguese Simplified Chinese, and Traditional Chinese.
INTERIOR DESIGN
Built-in Compressor
Enables accurate refrigeran recovery
Built-in Electronic Scale
Precisely weighing the refrigerant amount
Built-in Drying filter
Ensures the recovered refrigerant is clean and can be reused.
Refrigerant Database
1.Recovers and purifies refrigerant from automotive A/C to equipment tank.
2.Evacuates air and moisture from the A/C system.
3.Inject refrigeration oil to automotive A/ C system, with volume set manually, or automatically.
Charge refrigerant from equipment gas cylinder to automotive A/C system.
4.Recoveryfunction extracts very limited compressor oil (5ml or less) from A/C loop while flush removes up to 96% compressor oilfrom A/C loop.
5.Liquid refrigerant is charged through one service port,and recovered through other port to dissolve the compressor oil in the A/C loop,then the oil is separated and discharged into used oil vessel in the machine. The liquid flow direction is changed during the flush process.
6.Performs the selected functions in a fully automatic sequence. The machine will stop automatically once all the selected functions have been completed.
Specifications :
Input power 110V-220V ±10% 60Hz
Compressor power 3/8HP
Average gas state refrigerant recovery speed (through charge / suction port) 0.25Kg/min
Vacuum pump capacity 60L/min, non-sparkle
Recovery rate 96%
Accuracy of gas cylinder load cell ±10g
New oil bottle capacity 250ml
Used oil bottle capacity 400ml
Max. Pressure 20bar
Charge speed 2Kg/min(max.)
High pressure gauge range – 1bar~40bar
Low pressure gauge range – 1bar~22ba
Flush:
Optional, Flush time range: 10-60 minutes.
For medium or small A/C (refrigerant volume at 500g) it is recommended to setflush time at 30 minutes; For large A/C (refrigerant volume at 1000g) it is recommended to setflush time at 60 minutes.
Note :
We will provide you with a free upgrade package, so you can easily update the vehicle models for this device via PC.
1.Click the update file LM-707 in the PC.
2.Click start in the PC.
3.When update finish, the PC displays “Update success”.
Packing list:
1pc * AUTOOL LM707 Automotive Refrigerant Recovery and Filling Machine main unit
2pcs * Refrigerant hoses (1 red and 1 blue)
4pcs * Refrigerant quick connectors (2 for high pressure and 2 for low pressure)
1pc * User manual
