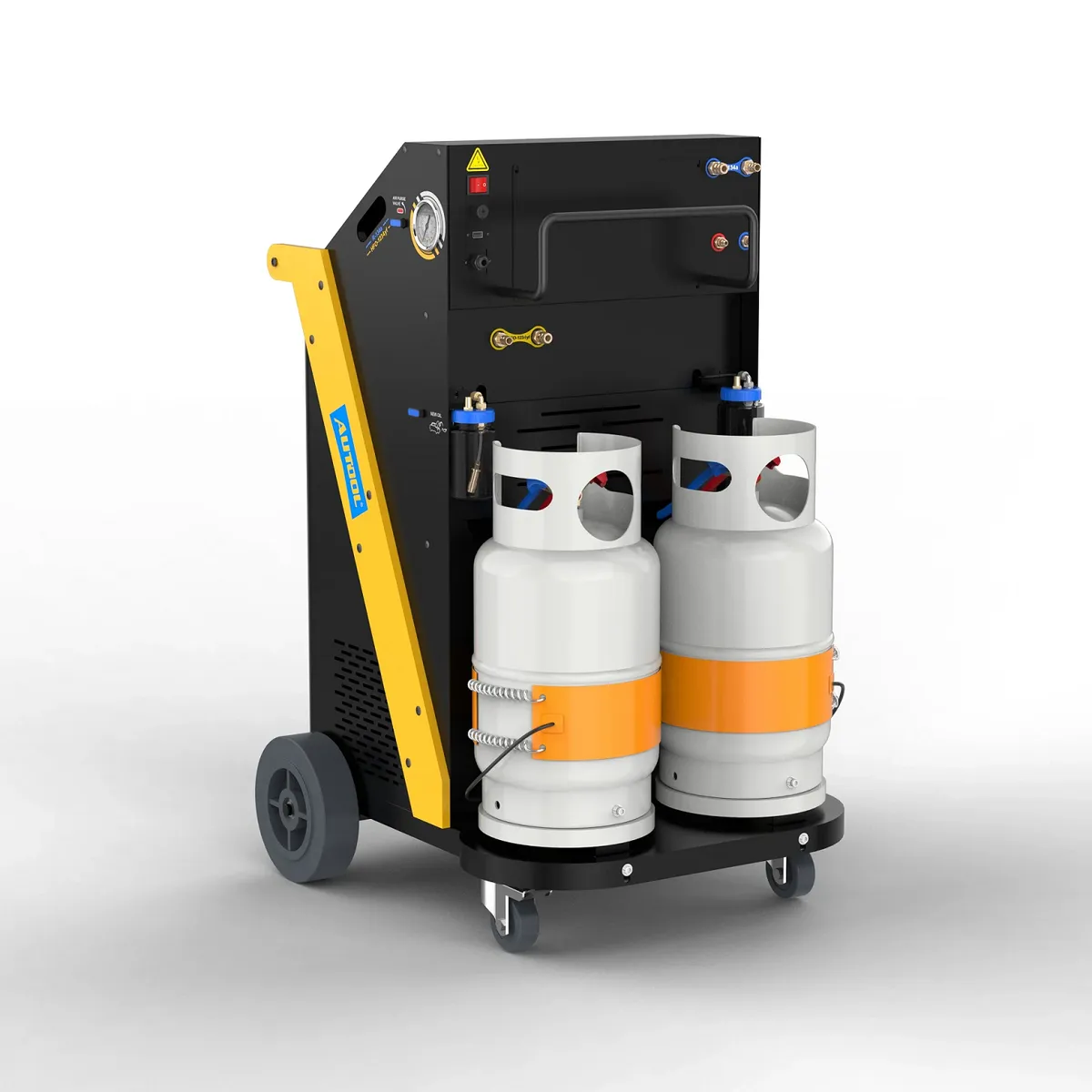

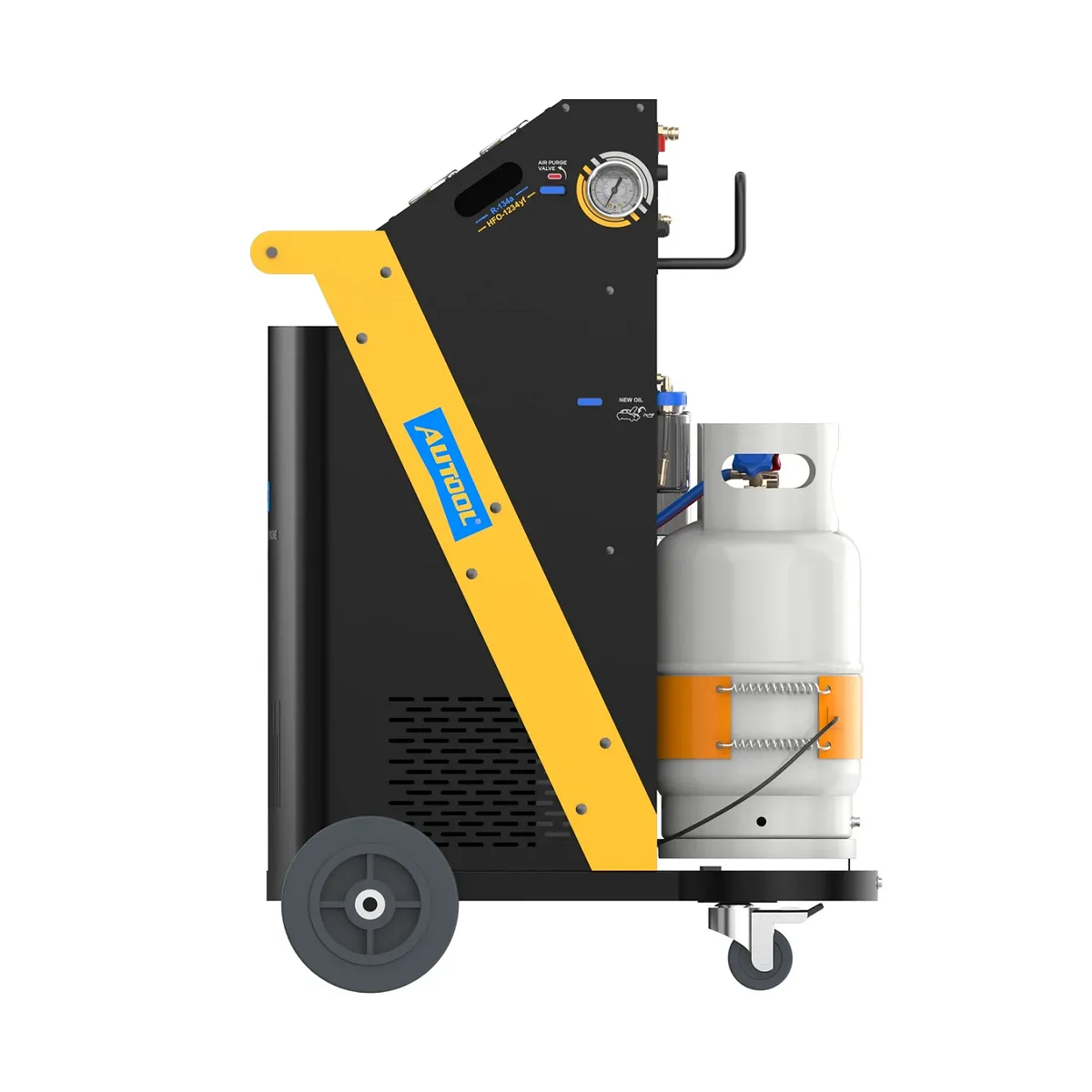

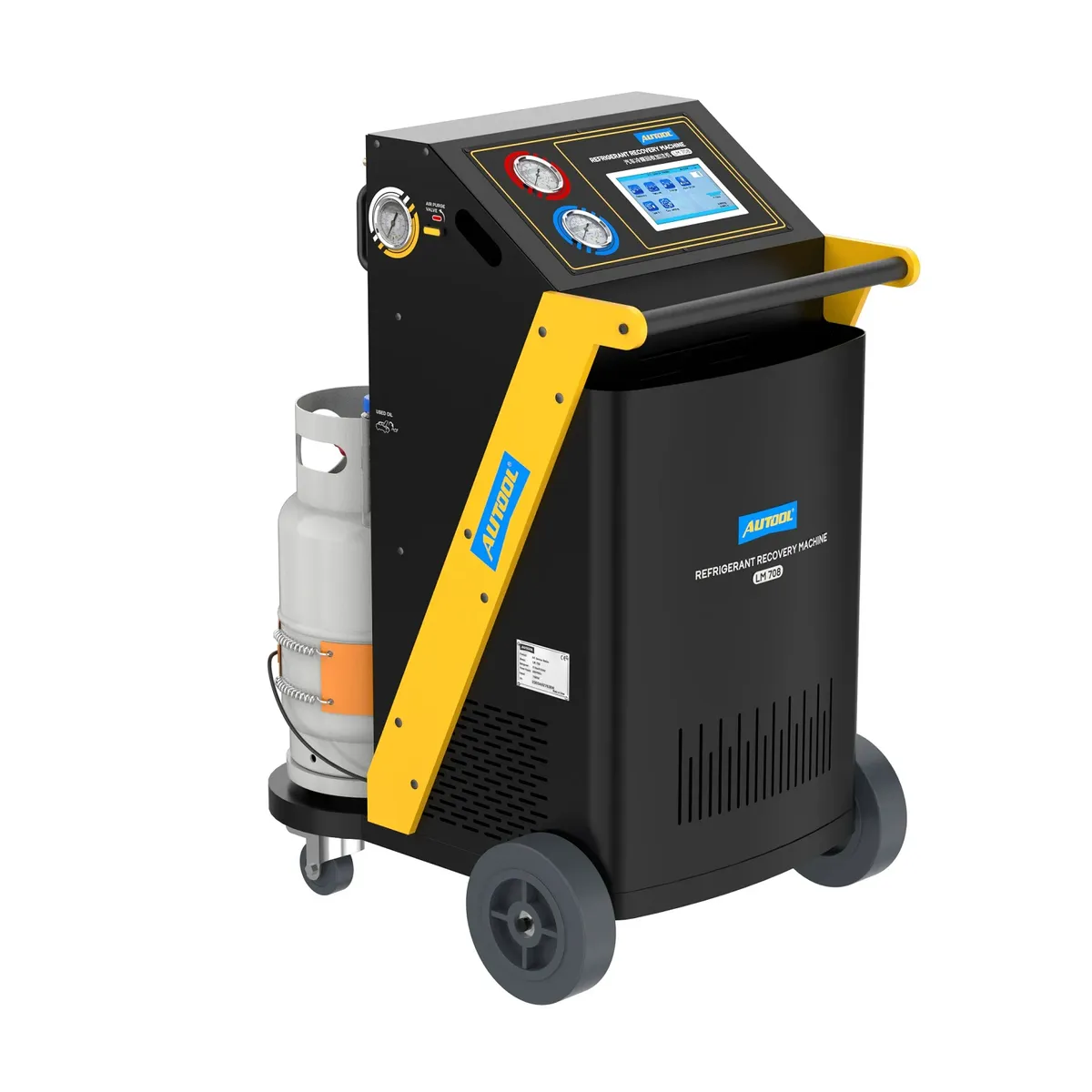

AUTOOL LM708 AC Refrigerant Recovery Machine Automotive Refrigerant Recycling and Filling Machine for R134a/R1234yf Vacuum
INDEPENDENT OPERATION OF DUAL SYSTEMS
The dual system can support both R-134a and HFO-1234yf refrigerants simultaneously, with a capacity of 10 kilograms each.This feature enables the tool to service vehiclesusing either R-134a or HFO-1234yf refrigerants.
AUTOMATION PROCESS
Built-in Database
This Refrigerant Recovery Machine has built-in data of various models, and can automatically match the corresponding refrigerant type and filling amount according to the vehicle model, which is very convenient.
7-INCH INTELLIGENT CONTROL PANEL
It is equipped with a 7-inch color touchscreen display, which provides an easy-to-use interface for improved workflow visibility and efficiency.
24 LANGUAGE SUPPORT
lt supports 24 language settings, including English, Russian, Spanish, German, Polish, Indonesian, Czech, Turkish. Croatian, Serbian, French, Swedish, Persian, Arabic, Bulgarian, Dutch, Finnish, Korean, Thai, Lithuanian, Vietnamese, Portuguese Simplified Chinese, and Traditional Chinese.
WIDE RANGE OF APPLICATIONS
It’s suitable for fuel vehicles, hybrid vehicles, or new energy vehcle.
INTERIOR DESIGN
Built-in Compressor:Enables accurate refrigerant recovery.
Built-in Electronic Scale:Precisely weighing the refrigerant amount.
Built-in Drying filter:Ensures the recovered refrigerant is clean and can be reused.
Refrigerant Database
1.Recovers and purifies refrigerant from automotive A/C to equipment tank.
2.Evacuates air and moisture from the A/C system.
3.Inject refrigeration oil to automotive A/ C system, with volume set manually, or automatically.
Charge refrigerant from equipment gas cylinder to automotive A/C system.
4.Recoveryfunction extracts very limited compressor oil (5ml or less) from A/C loop while flush removes up to 96% compressor oilfrom A/C loop.
5.Liquid refrigerant is charged through one service port,and recovered through other port to dissolve the compressor oil in the A/C loop,then the oil is separated and discharged into used oil vessel in the machine. The liquid flow direction is changed during the flush process.
6.Performs the selected functions in a fully automatic sequence. The machine will stop automatically once all the selected functions have been completed.
Three Years Warranty
For any quality problems. If LM708 has any defect, we will provide new replacement or solutions for our customers until satisfaction without delay, and provides lifetime technical support. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.
Specifications :
Input power 110V ±10% 60Hz
Compressor power 3/8HP
Average gas state refrigerant recovery speed (through charge / suction port) 0.25Kg/min
Vacuum pump capacity 60L/min, non-sparkle
Recovery rate 96%
Accuracy of gas cylinder load cell ±10g
New oil bottle capacity 250ml
Used oil bottle capacity 400ml
Max. Pressure 20bar
Charge speed 2Kg/min(max.)
High pressure gauge range – 1bar~40bar
Low pressure gauge range – 1bar~22ba
Flush:
Optional, Flush time range: 10-60 minutes.
For medium or small A/C (refrigerant volume at 500g) it is recommended to setflush time at 30 minutes; For large A/C (refrigerant volume at 1000g) it is recommended to setflush time at 60 minutes.

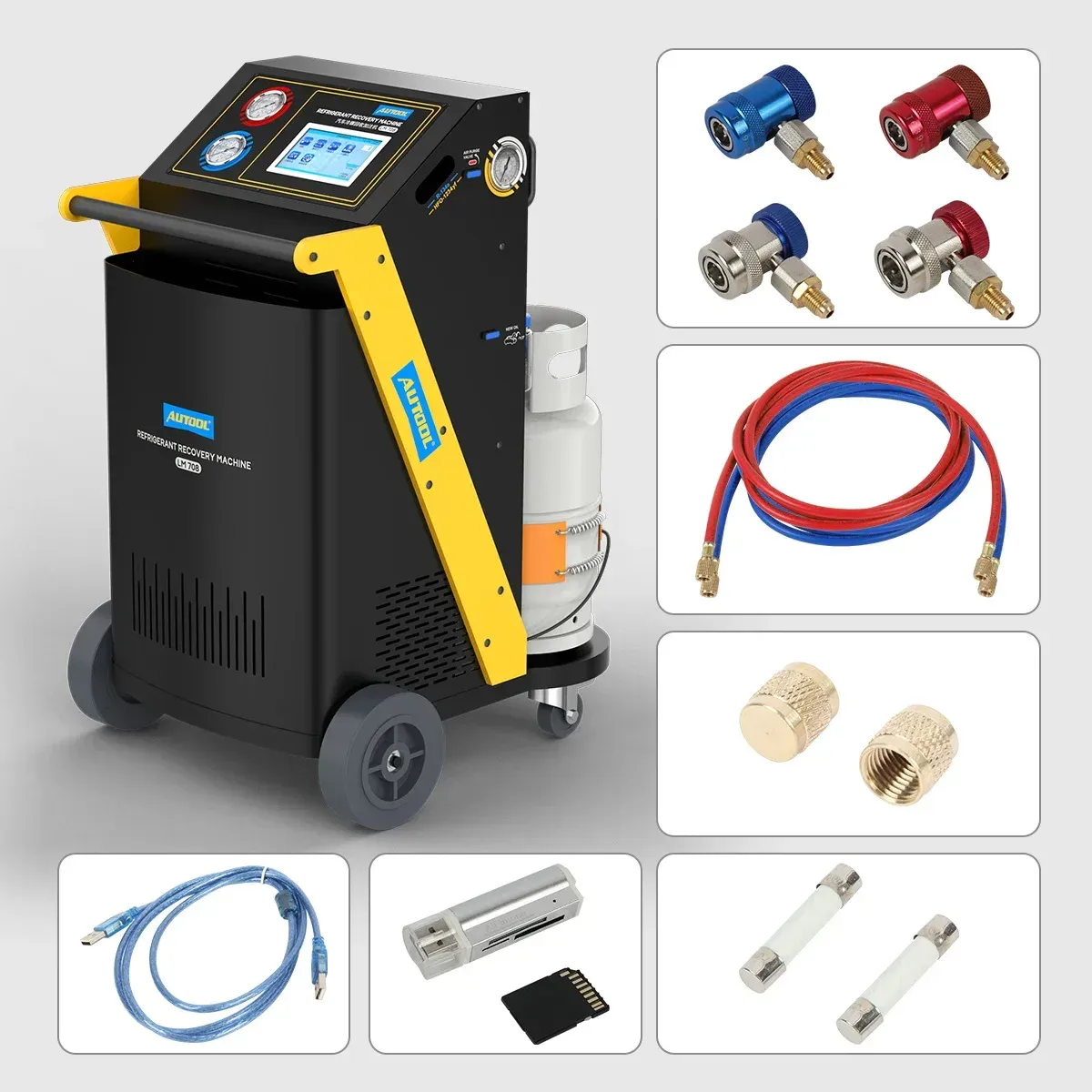

Packing list
1pc * AUTOOL LM708 Automotive Refrigerant Recovery and Filling Machine main unit.
2pcs * gas cylinders.
2pcs * Refrigerant hoses (1 red and 1 blue).
4pcs * Refrigerant quick connectors (2 for high pressure and 2 for low pressure).
1set * 7/16 plug.
1pc * USB upgrade cable.
1pc * SD card and card reader.
2pcs * 30A fuse.
1pc * User manual.
Note :
We will provide you with a free upgrade package, so you can easily update the vehicle models for this device via PC.
1.Click the update file LM-708 in the PC.
2.Click start in the PC.
3.When update finish, the PC displays “Update success”.
