AUTOOL Original SDT203 Car Smoke Leak Detector Pipe EVAP Vacuum Leakage Diagnostic Tool EVAP Pipe Leakage Analyzer for 12V Car

$240.79

In stock
Buy it now
Brands:
SKU: GFX24891

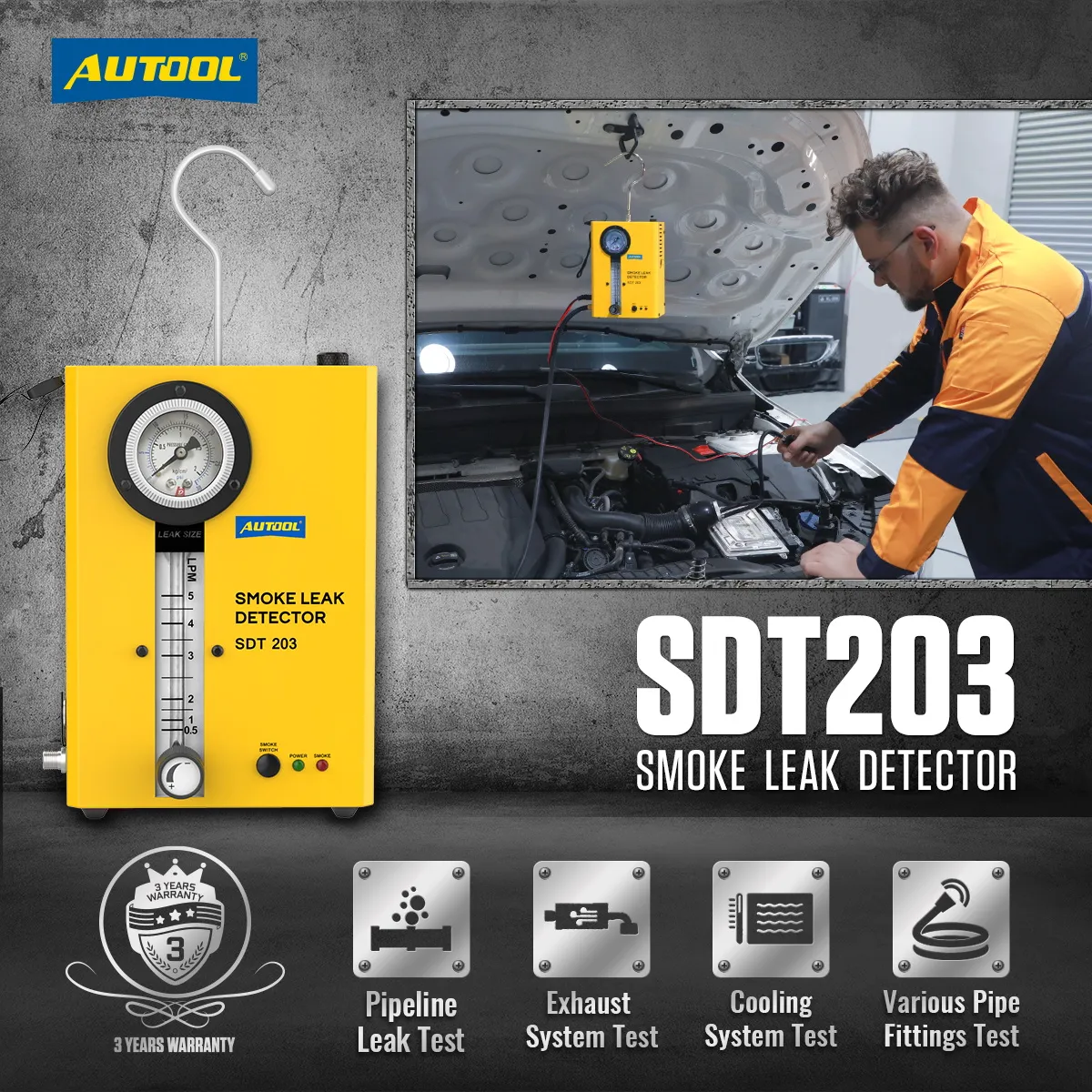

AUTOOL SDT203 Car Smoke Leak Detector Pipe EVAP Vacuum Leakage Diagnostic Tool

AUTOOL SDT203 Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on the pipe systems quickly and exactly, such as Intake System Test, Exhaust Systems Test, Cooling System Test, Crankcase system test, Car Sealing Test, Fuel Tank System Test, Turbo System Test, Various Pipe Fittings Test.

Comparision Between All Kinds of Autool SDT Serials:

How to do leak test?

1. Fill 10ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.

2. Disconnect the pipe that needs to be connected with detector.

3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.

4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

What can be used with AUTOOL SDT203 auto evap smoke leak diagnosis machine?

Over 80% of all standard OBD II trouble codes that can be generated are pressure-related, either air or oil line pressure. The majority of pressure problems are caused by a failure of a leak somewhere. By checking the sealing of the vehicle’s pipework, leaks can be more accurately identified.

Using SDT203 evap smoke machine leak tester, you can check Car Sealing, Throttle Shafts, Engine Block, Turbo Test System, Crankcase System, Intake System, Exhaust System, Fuel Tank System, EVAP System, EGR System, Cooling System, Various Pipe Fittings Leakage Problems.

Full system diagnostics, don’t miss any leaks.

1. Crankcase System Test: Excessive pressure or corrosion of the crankcase is the main reason to damage the seal of the crankcase and cause oil leakage.

2. Intake System Test: Leakage in the air intake system will lead to insufficient intake of the car engine, which will result in scant engine power.

3. Car Sealing Test: Poor airtightness of the car may lead to a lot of inconvenience like inability to keep warm dusty, not soundproof, and not waterproof , etc.

4. Fuel Tank System Test: When there are gaps in the fuel tank and piping caused by improper installation or insufficient sealing of the fuel tank cap, it can cause leaks in the fuel tank system.

5. Turbo Test: The leakage of coolant would cause the engine to report high water temperature.Various Pipe Fittings Test: Smoke testing of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.

6. EVAP System Test: Leakage of the fuel evaporation system will cause fuel vapor to leak into the atmosphere, causing waste and pollution or unstable engine idling.

7. Exhaust System Test: Unpurified harmful gases to be discharged into the atmosphere or increase vehicle noise is the main disadvantage when leaks happened in the exhaust.

AUTOOL SDT 203 Car Smoke Leak Detector Features:

1.[Wide Range of Applications]: For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats. Suitable for all car models.

2.[Powerful and Easy to Operate] :The AUTOOL SDT 203 has its own Air Pump without relying on other machines and Pressure Gauge with precise scales. Simply connect the detector with the DC12V battery, it can output thick smoke within 30s after turning on.

3.[Advanced Technology]:It works on the EVAP system. (Provided with another version that specially designed for EVAP system). Equipped with dual flow meters for accurate data display & Independently controlled Air mode and Smoke mode.

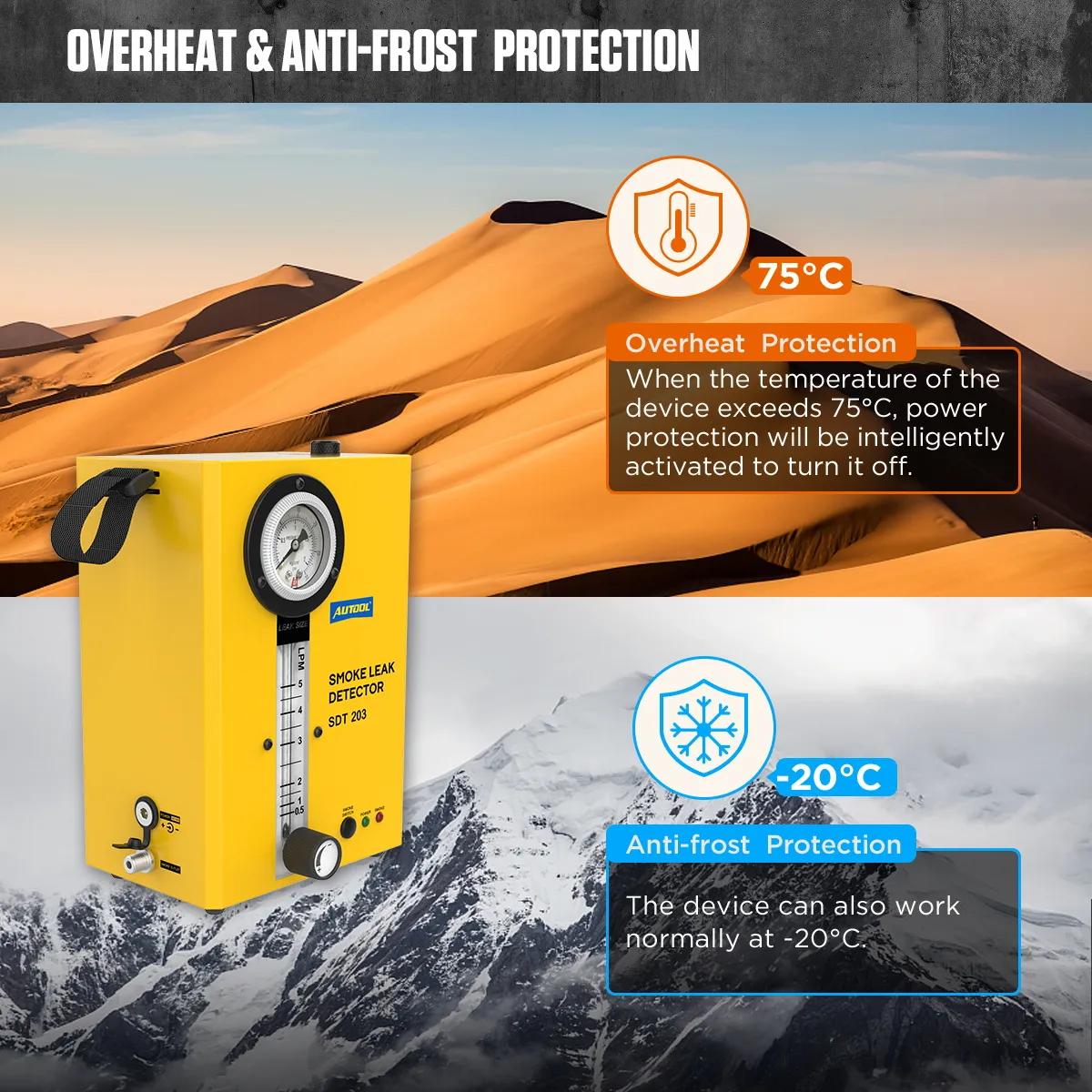

4.[Overheat & Anti-frost Protection]:This smoke detector has an intelligent protector, if it exceeds the working limit, such as over 75 °C, it will automatically turn off the power to secure the safety of both the operator and device.

5.[3 Years Warranty]:For damage caused by non-human factors, we promise to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.

Caution:

1.When you use this AUTOOL SDT 203 Car Smoke Leak Detector for the first time, fill with 10ml oil . Please be careful NOT to beyond this range.

2.The testing liquid : both liquid paraffin and baby oil are OK.

3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

5.During the process of leak detection, please keep away from smoke-sensitive parts.

6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.

7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 °C, it will automatically turn off the power. In this case, please operate it later.

8.The round part of this detector has temperature, please be careful to avoid burns.

9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

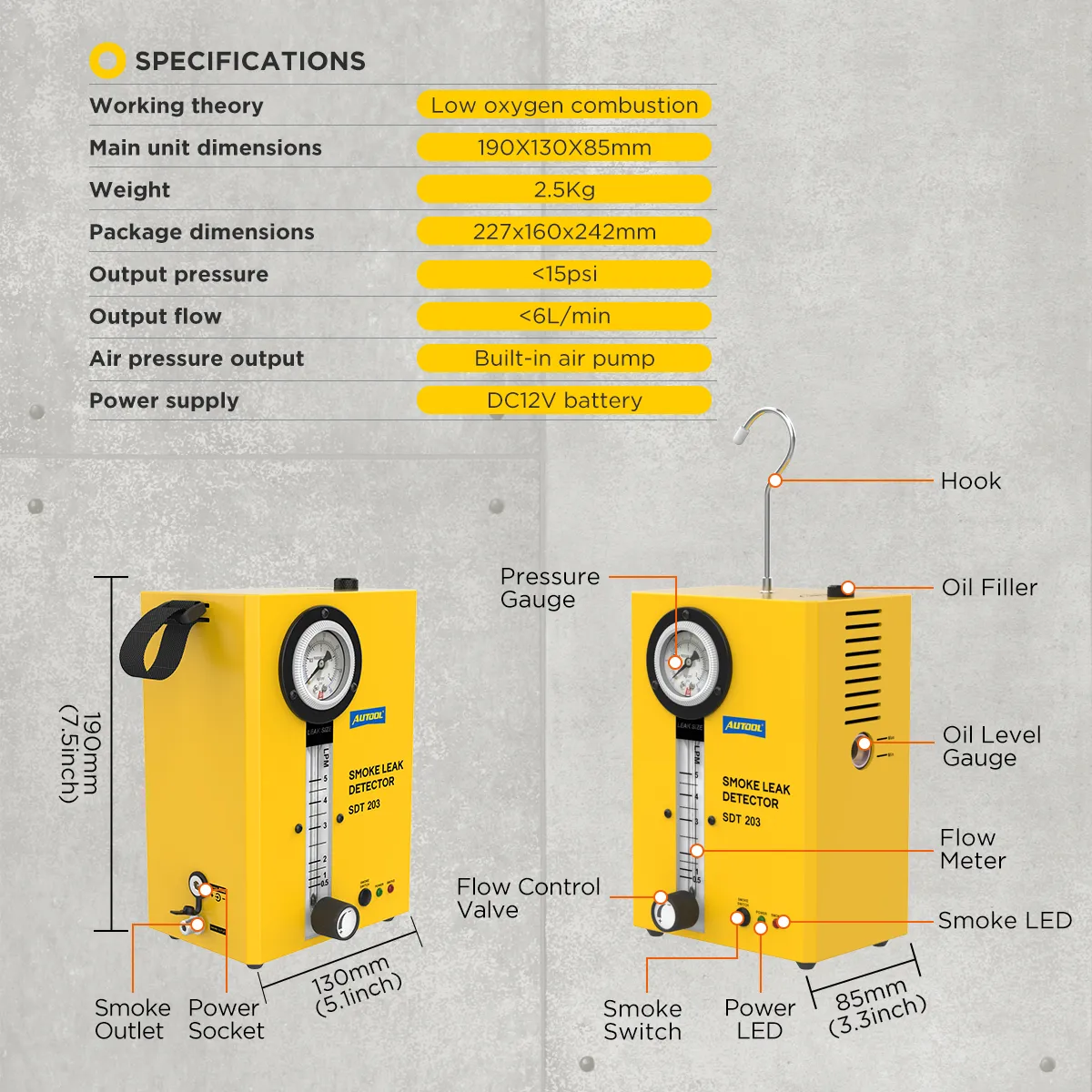

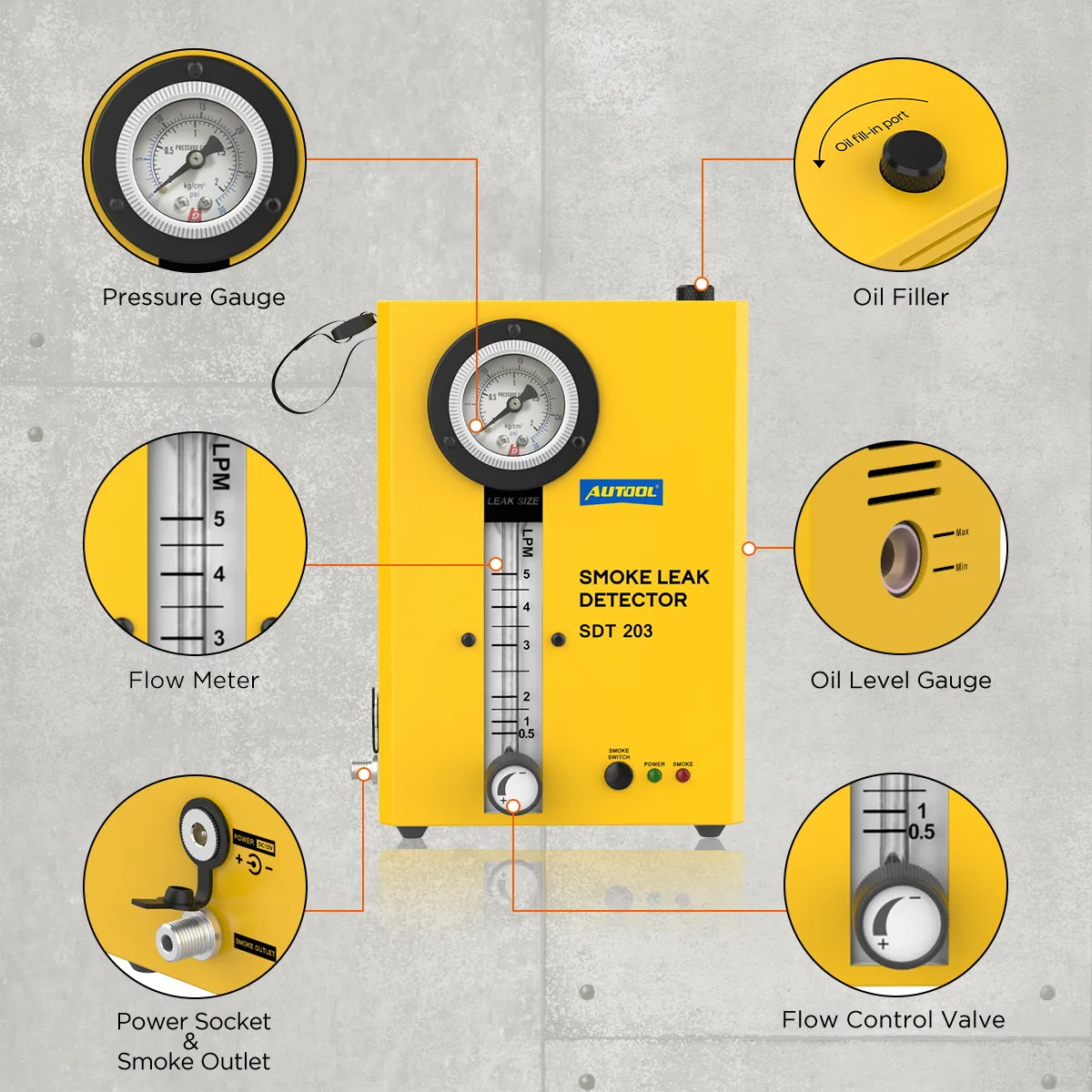

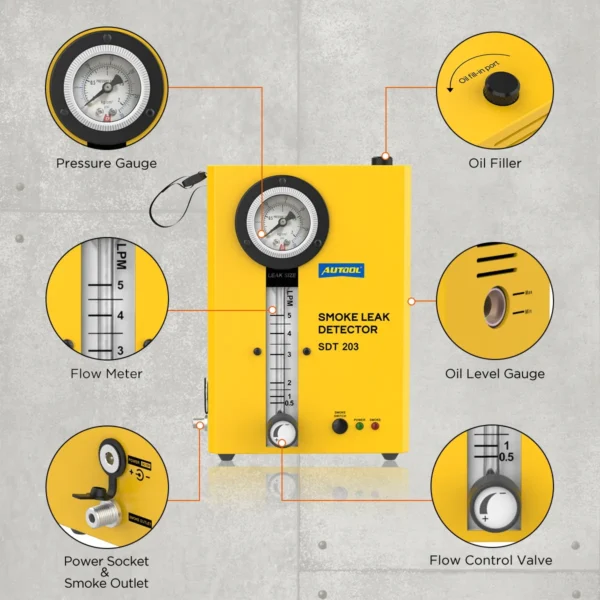

Main Unit Structure :

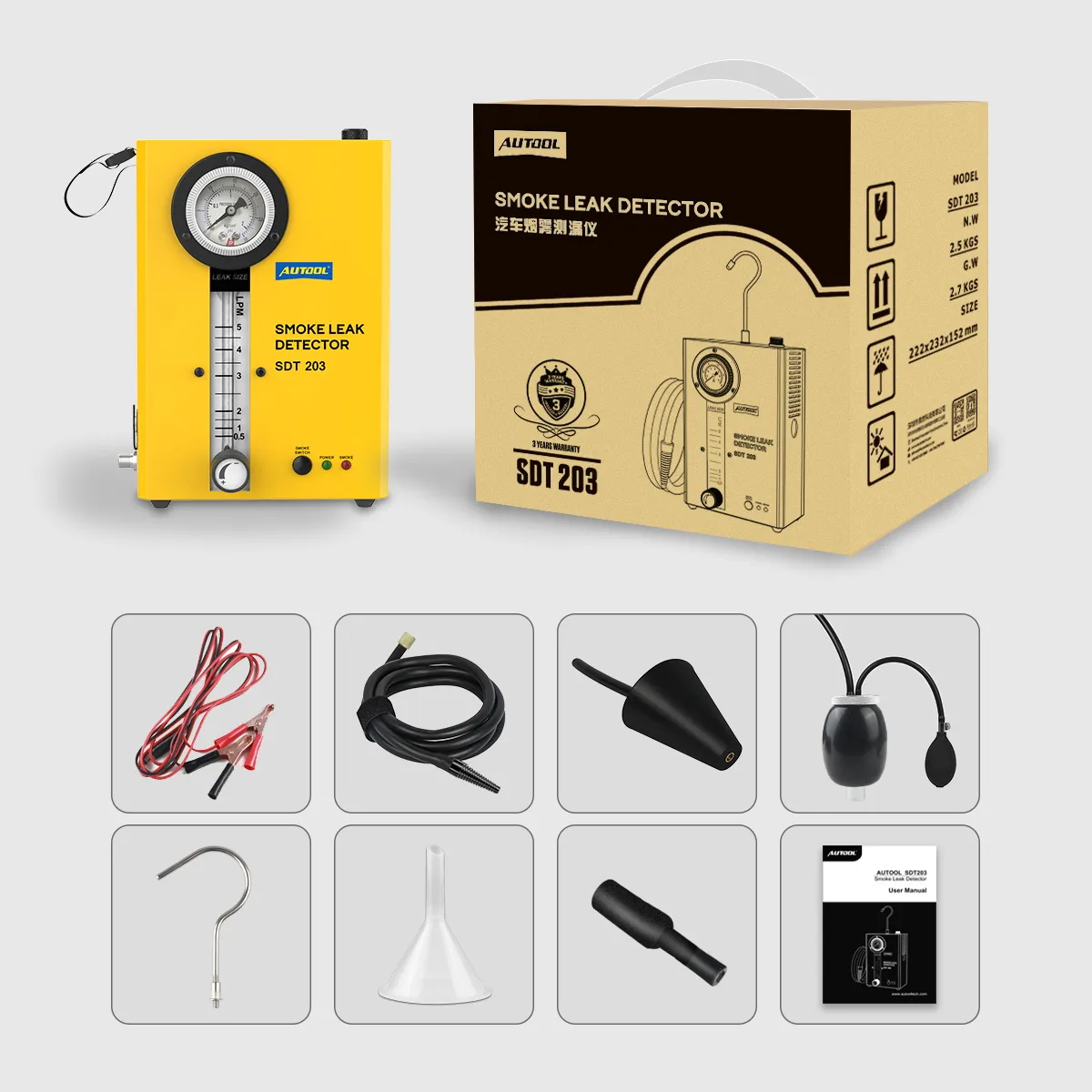

Packing List:

1pc* AUTOOL SDT 203 Car Smoke Leak Detector main unit

1pc* Power Cord Clamp

1pc*Smoke Hose

1pc* Standard Cone Adapter

1pc* Universal Airbag

1pc* Hard Rubber Hose Plug

1pc* Hook

1pc* funnel

1pc* User Manual

Weight 2.5 kg
Manufacturer

AUTOOL
