AUTOOL Original Upgraded SDT206 Car Smoke Leak Detector Pipe EVAP Vacuum Leakage Diagnostic Tool EVAP Pipe Leakage Analyzer
Description:

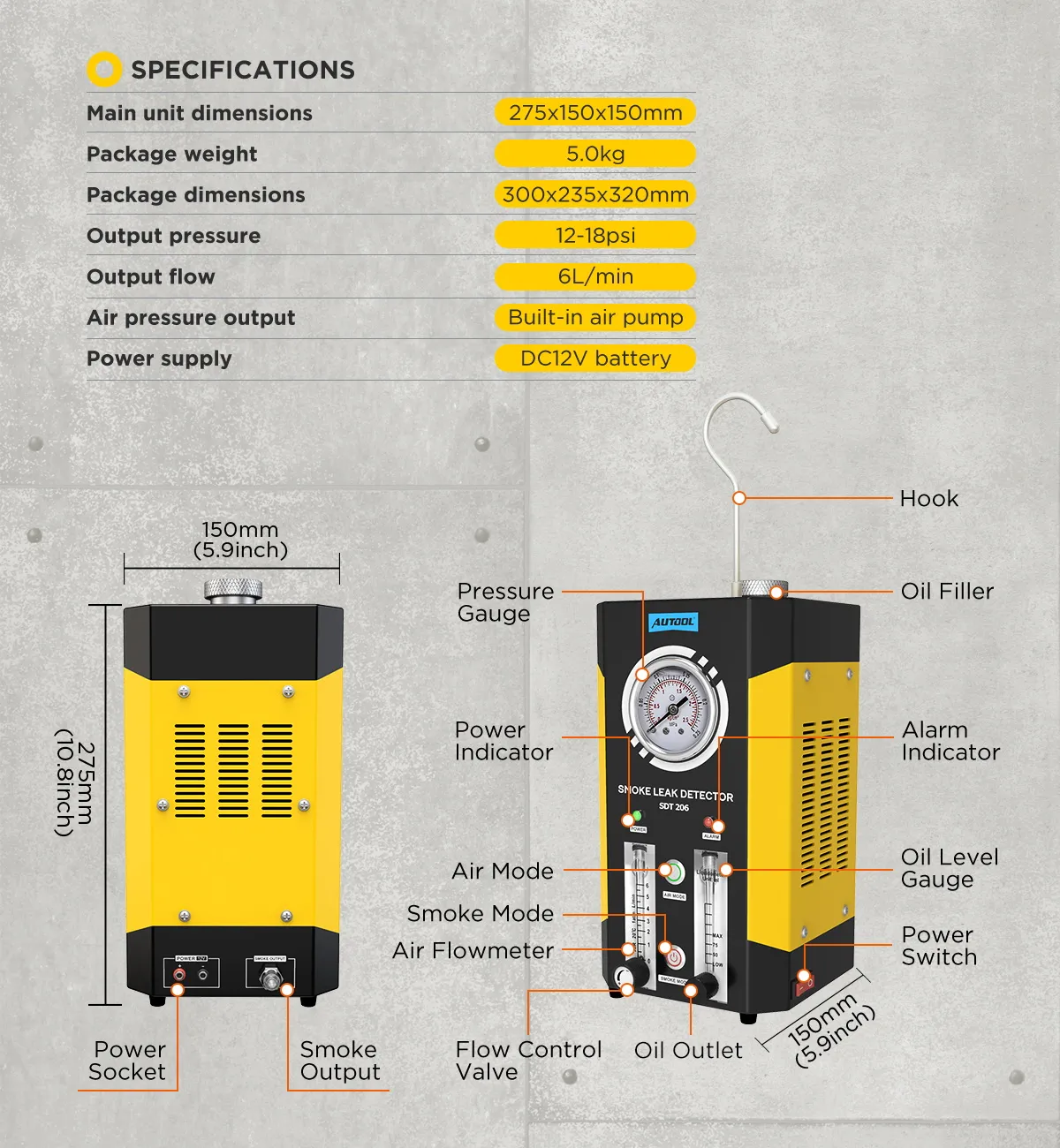

The AUTOOL SDT-206 Smoke Leak Detector is designed for pipeline leak detection in automotive air intake system, fuel system and cooling system.
Features:
It is suitable for all family cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats.
It is the great partner of car diagnose tool. It works with the car diagnose tool to accurately locate the physical fault of the car and quickly detect the hidden fault of the car engine.
★2019 AUTOOL SDT 206–The 2019 SDT-206 with dual modes(Smoke Mode and Air Mode), designed for detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Such as Fuel Pipe Air intake System and Cooling Tank.
Notes:
1.SDT-206 is for all pipe systems include EVAP.
2.Please do leak detection away from smoke-sensitive parts.
3.Do not run the detector over 5 minutes. It needs interval rest.
4.The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later.
Comparision of SDT 106, SDT 202, SDT 206 and SDT 208
How to operate?
1.Open the engine cover, and hang the detector in the cover.
2.Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple.
3.Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.
4.Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way.
5.Turn on the power switch, and detector starts to work.
6.Adjust the flow gauge. Control the input smoke value and pressure to make sure the pipe system can afford the pressure.
7.In about 3 minutes, the pipe will be filled with smoke.
8.Observe the floating ball in flow gauge. If the floating ball stays still in the bottom, the pipe is sealed with. If the floating ball is arising or bouncing, the pipe is leaking.
9.Position the leak points by floating ball. If the bounce arises highly, the leakage is serious.
10.Check the leak points. Please use head lamp if necessary.
11.After leak detection, please connect well the wires and pipe.
Cautions:
1.When you use this detector the first time, please fill 20-30ml oil, not beyond this range.
2.New oil can be filled with only when the smoke is light,and it can’t be filled over 15ml every time.
3.Before filling new oil, please pour out the remaining oil in the detector.
4.Please replace the detector oil regularly.
ABOUT SMOKE OIL
This product can be used with Baby oil or skin care glycerin or industrial glycerin,the selected smoke oil shall be pure non-aqueous liquid and in a fluid state. Do not use viscous smoke oil which can easily damage the equipment. Use a measuring bottle with pointed tip when adding smoke oil. If it is overfilled, open the oil outlet to drain an appropriate amount of smoke oil.
EVAPORATIVE EMISSION CONTROL SYSTEM (EVAP) DETECTION METHOD
The American cars produced after 1996 are equipped with EVAP service ports; The EVAP service ports are usually located in the engine compartment for most US cars but elsewhere for some special cars. Conventional EVAP detection method: Open the plastic cover of the EVAP service port, then remove the one-way valve clockwise with a valve wrench and install the EVAP service port adapter to import the smoke into the EVAP system for leak detection.
Vehicle voltage:
Information:
Packing List:

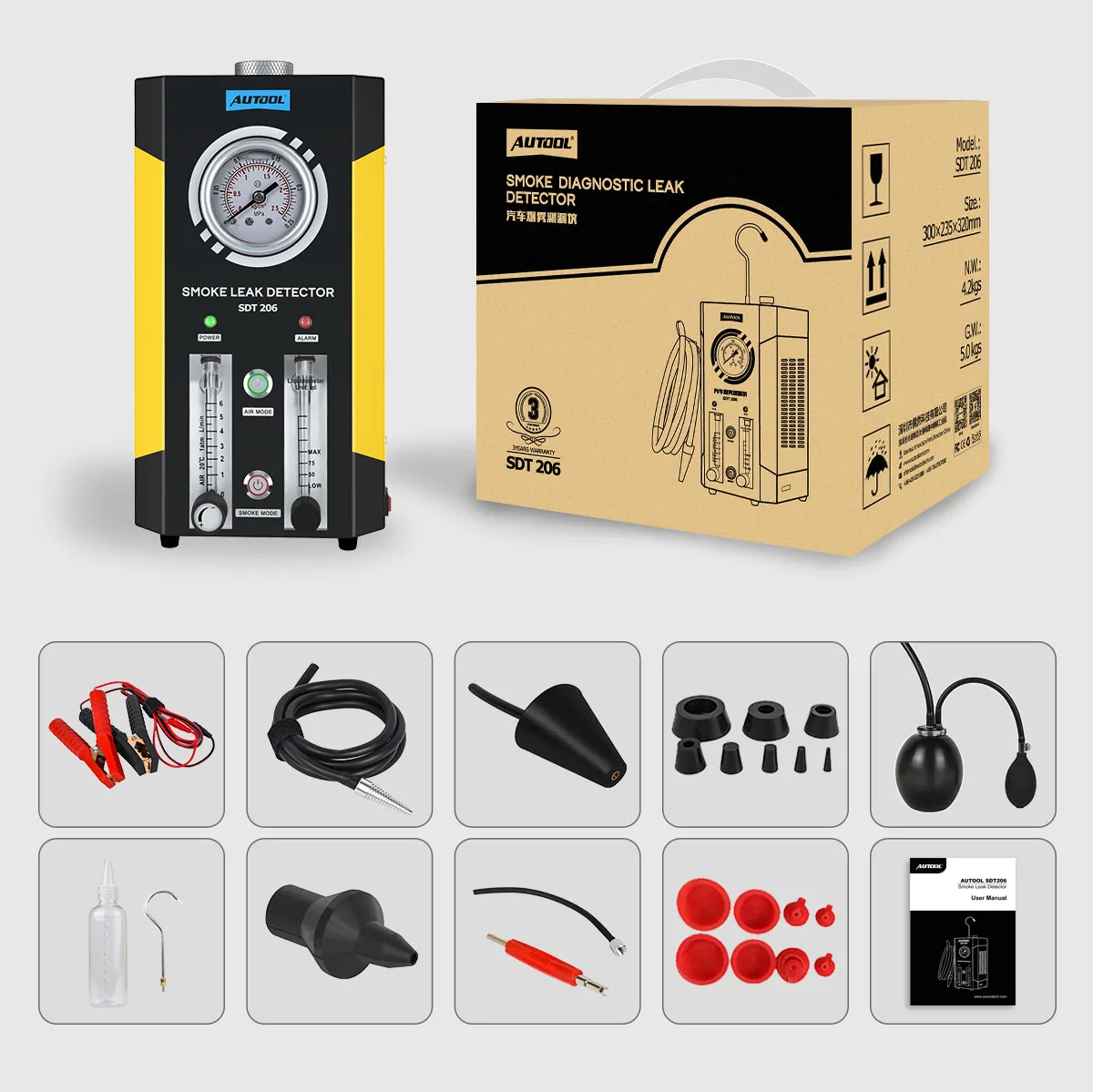

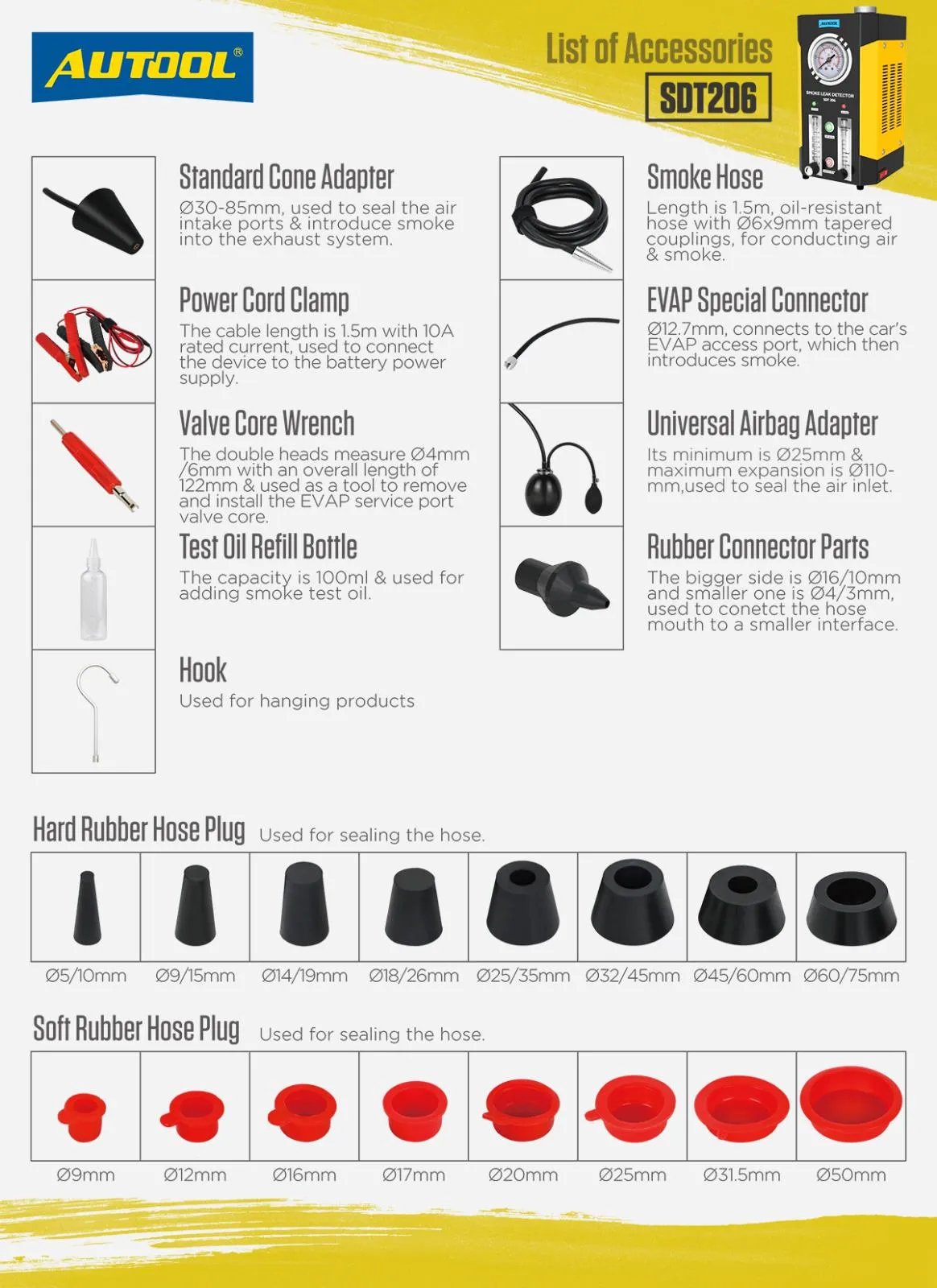

1pc * AUTOOL SDT 206 Car Smoke Leak Detector Main Unit
1pc * Hook (with hand-tighten nuts)
1pc * Rubber Connect Parts
1sets * Hard Rubber Hose Plug (with serial specification)
1sets * Soft Rubber Hose Plug (with serial specification)
1pc * Standard Cone Adapter
1pc * Universal Airbag Adapter
1pc * Power Cord Clamp
1pc * Valve Core Wrench
1pc * Test Oil Refill Bottle(oil not included)
1pc * EVAP Special Connector
1pc * Smoke Hose
1pc * User Manual
