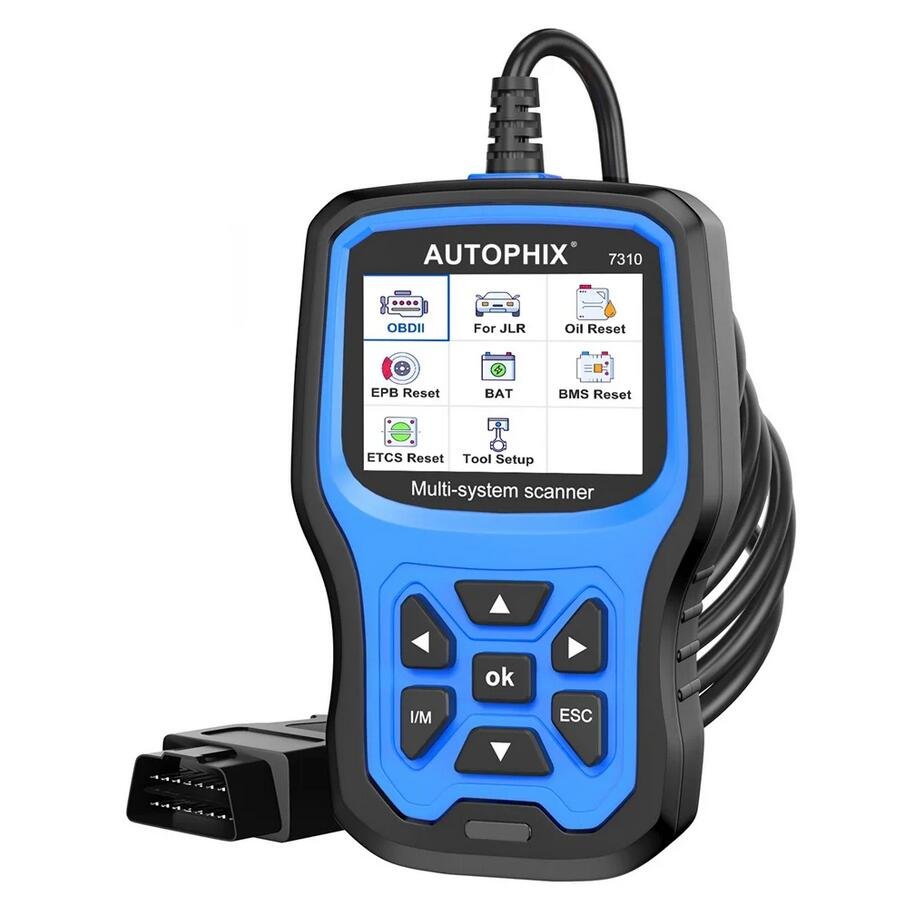

AUTOPHIX 7310 Advanced Full-System Diagnostic Tool
ABS System–Speed Control–Airbag System–Transmisson System–Transfer BOX Systeml–Tire Pressure Monitor–
Engine Control–Body Control–Battery Energy Control–Powertrain Control–Cruise Control–Gear Shift System–
Headlamp Control–Parking Brake Control–Steering Angle Control–Digital Audio Control–Image processing–Vehicle Information
Offer All System-Checking for Your Land Rover or Jaguar:
1. Engine System:
Engine device that provides power for the automobile and the heart of the automobile. It determines the power, economy, stability of the automobile. The 7310 scan tool can read and clear your engine error codes, letting you know what’s wrong with your car.
2. Auto Transmission System:
AT is a set of transmissions used to coordinate the engine speed and the actual speed of the wheel, which is used to give full play to the best performance of the engine. 7310 OBD2 scanner can read/clear codes and the error information from AT.
3. Airbag System:
SRS is a device that expands the airbag to protect the passenger before the second collision occurs called Supplemental Restraint System (SRS). 7310 OBD2 scanner can read/clear code, turn off warning light of airbag.
4. ABS System:
ABS automatically controls the braking force of the brake when the car is braking so that the wheels are not locked and in the state of edge rolling slip (the slip rate is about 20%) to ensure the maximum adhesion between wheels and ground. 7310 OBD2 scanner can turn off the light, and locate in the error part.
5. Throttle Adaptation: The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel-injected car, a throttle position sensor and airflow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.
Special function for Land Rover or Jaguar
✔️Oil Light Reset
The Engine Oil Life System calculates when to change the engine oil and filter based on vehicle use. An oil change is required whenever indicated by the display and according to the recommended maintenance schedule. Whenever the oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where the oil is changed prior to a service indicator being turned on, also reset the system.
✔️Throttle Position Learning
Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state;
✔️Battery Registration Reset
The BMS function allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, activate the rest state of the vehicle, and charge the battery via the diagnostic socket.
✔️EPB Replace Brake Pads
The EPB function has a multitude of uses to maintain the electronic braking systems safely and effectively. The applications include deactivating/activating the brake control system, assisting with brake fluid control, brake diagnostics, opening and closing brake pads, setting brakes after disc or pad replacement and also reading and clearing EPB/SBC trouble codes. It is also capable of retrieving Fault Codes information from the ECU.
✔️SAS (Steering Angle Sensor)
The SAS Calibration Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor.
✔️ABS (Brake Auto Bleed)
The SRS crash data diagnose and reset. Read the SRS(Airbag) system error code accurately and erase the error code, turns off the airbag warning light. To prevent the dreadful danger caused by the airbag not working properly after a collision.
✔️ SRS (Adjustment steering-angle sensor)
The ABS diagnostic function is used to retrieve and clear error codes, display and save data streams or module information. What is more, the Auto Bleed function will help get air that is trapped in the ABS actuator module out when bleeding your brake lines to ensure that repairs to this vital system are effective and complete.
✔️DPF Service
The DPF function allows you to carry out numerous functions on the Diesel Particulate Filter system. The tool will retrieve/erase DPF-related codes, reset the DPF light after the filter has been replaced, micromanage the injection rate, and burn off collected particles when a maximum fill level is reached.
Airbag reset, Auto Gearbox reset, Air Suspension reset, Transmission System Functions/ESP System Functions /Immobilizer System Functions, etc.
Full OBDII functions for all cars
Read Codes,Clear Codes,Show Live Data,Vehicle Information,I/M Readiness,On-Board Monitor Test,EVAP System Test,Code Lookup
Battery Resgistration
How to register a battery with this car diagnostic tool for JLR vehicle?
In fact, it’s much easier than imagination. Here is the process step by step: Remove old battery -Install new battery -Enter a new battery digits code(Please correctly enter the digit battery code, Or it will affect the accuracy of the product). If you still have questions about battery replacement or other detail problems, just write to us, we’ll try our best to help you out.
Supports Multiple Languages
English,German,Spanish,French,Italian,Russian,Portuguese,Finnish,Danish,Swedish,Norwegian,Polish
The AUTOPHIX 7310 Code Scanner is compatible with All Land Rover and Jaguar from
🚗➤Land Rover Series
Range Rover / Range Rover Velar / Range Rover Sport
Evoque / Evoque II / Freelander / Discovery / Discovery Sport / Defender
🚗➤Jaguar Series
XE / XF / XK / XJS / XJ / E-Pace / F-Type / I-Pace / S-Type / X-Type
🚗➤Note：please give me your car brand, model and release year, I will check if it’s compatible with your car.
Lifetime Free Update
Specifications
● Display：Backlit, Colorful, 320×240 pixel
● Operating Temperature：0 to 60°C (32 to 140 F°)
● Storage Temperature：0 °C to 80°C (32 to 176 F°)
● External Power：8.0 to 18.0 V power provided via vehicle battery
● Size：170mm*96.5 mm*29 mm
● Height: 0.58kg
FQA
1. How to get it to start?
Simply plug into the OBD II port on your car and turn the ignition on. It does not need any battery or charger, gets the power directly from the OBDII data link connector in your vehicle.
2. Why the vehicle linking error?
I: Confirm that the ignition is ON, check if the scan tool’s connector is securely connected to the vehicle’s DLC;
II: Turn the ignition off and wait for about 10 seconds and turn the ignition back to on and continue the testing;
III: Verify the control module is not defective.
4. How can I change the brightness of the screen?
AUTOPHIX 7310 has Two skin styles for choosing, you can choose white skin to enhance visibility during the day, and you can choose black skin to protect your eyes during the night. These functions can be implemented on the settings menu.
