BMW CAS3 CAS4 Test Adapter for Yanhua Mini ACDP

Product Description

YH BMW CAS3 CAS4 Test Adapter can test: whether CAS is broken, whether key programming is complete, whether the key frequency is accurate etc.

YH BMW CAS3 CAS4 Test Adapter

CAS Tester function:
1. Whether CAS program is running normally.
2. Whether CAS data is valid.
3. Whether the key is outputting inductive signal.
4. Whether the key is legal.

Tester indicator meaning:

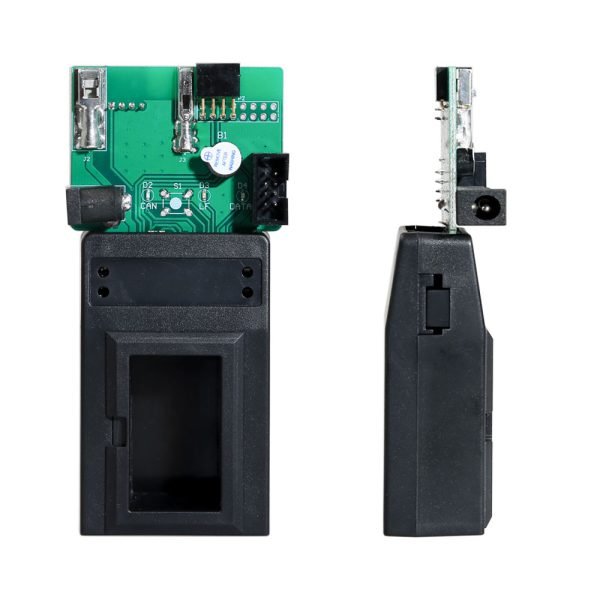

1. The indicator D2 flashes to indicate that the tester CAN Bus communicates with the CAS module normally.
2. The indicator light D4 is on for a long time, indicating that the CAS module data is valid.
3. Put the key into the induction coil, and the D3 indicator flashes, indicating that the key is outputting LF signal.
4. If the tester beeps, indicating that this key is the valid key of the corresponding CAS module, or the newly programmed key is learned successfully.

Package includes:

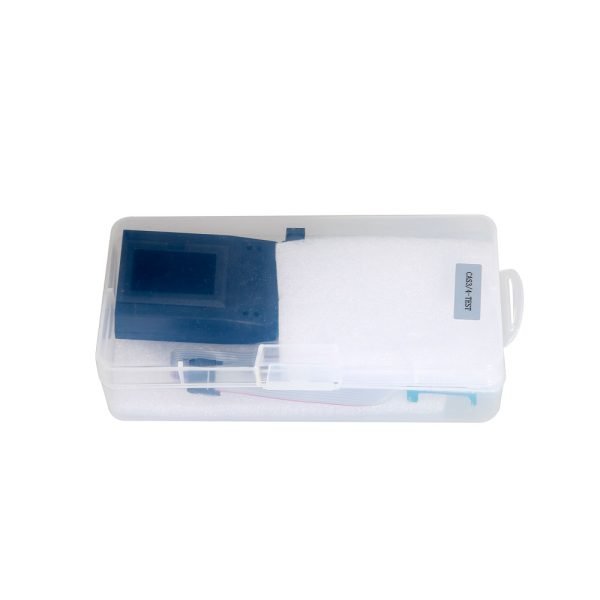

1pc x CAS3/4 Test Adapter Host
1pc x CAS3 Interface Board

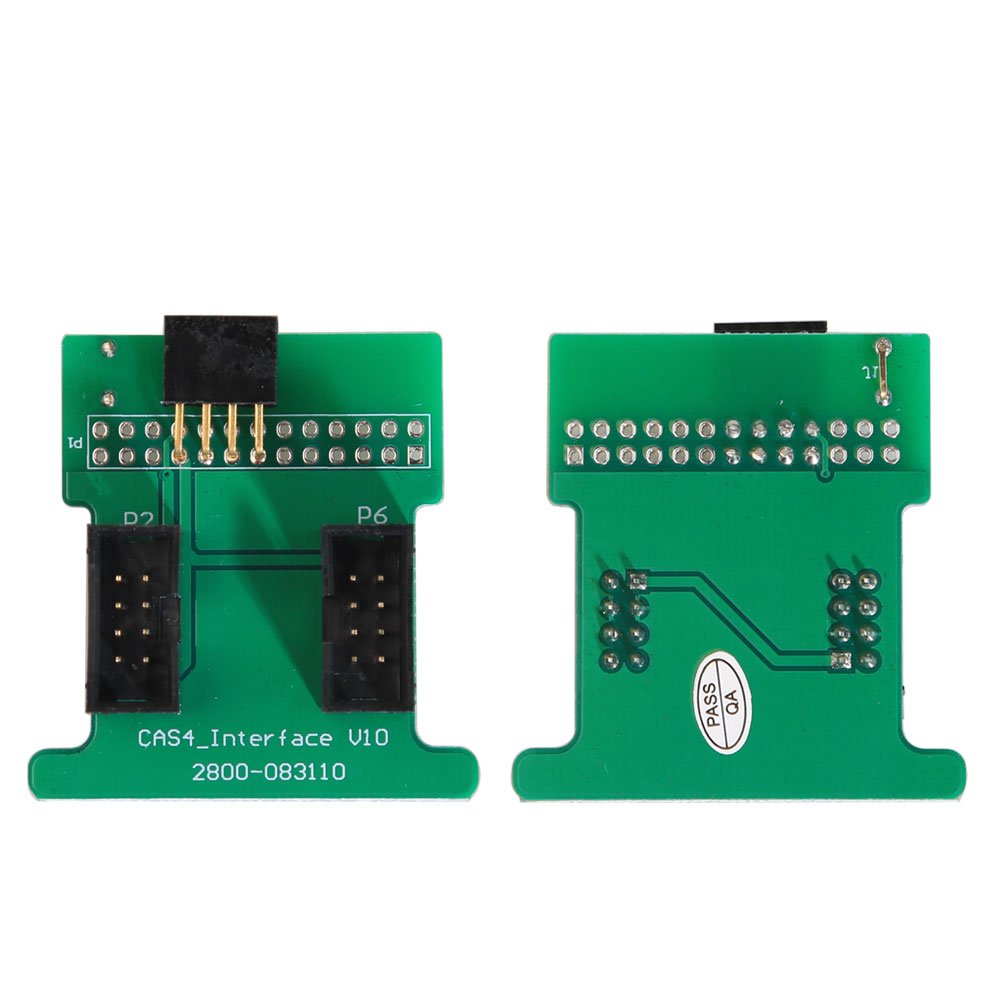

1pc x CAS4 Interface Board

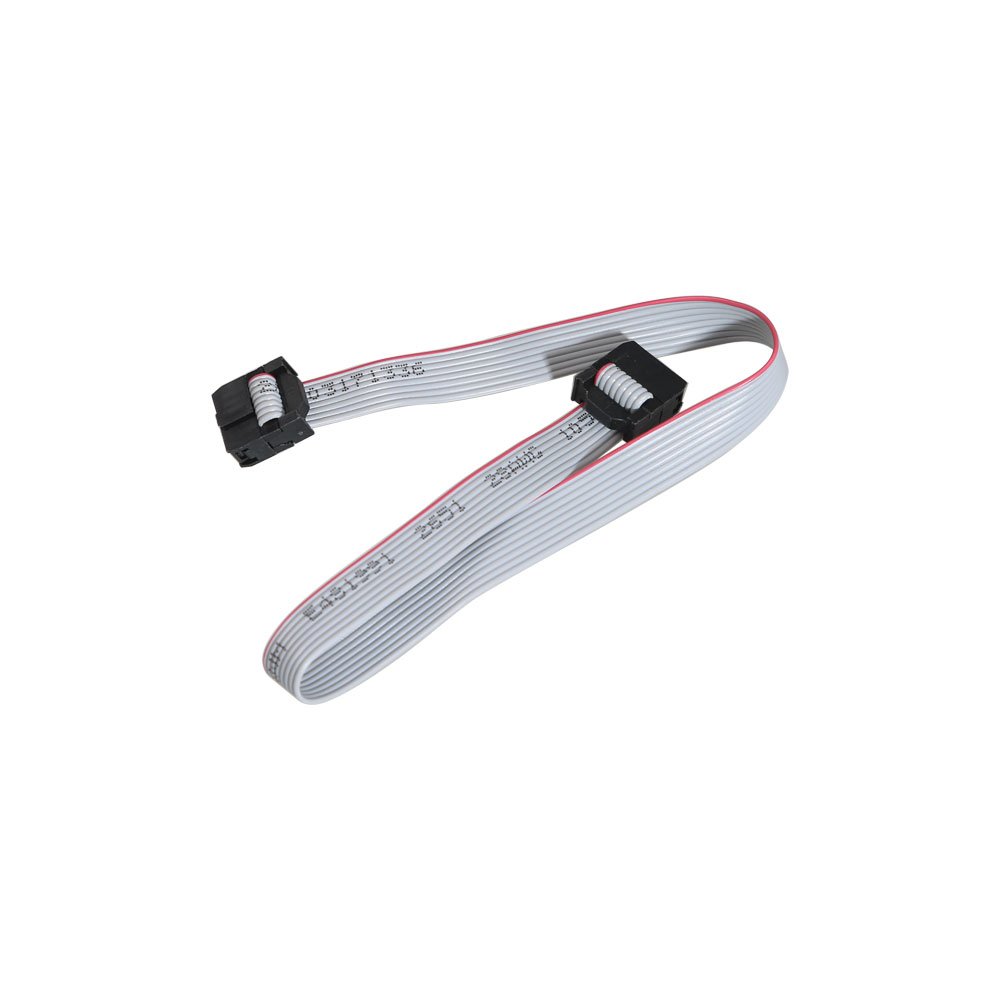

1pc x 8P Cable
