CAN Filter 18 in 1 for Benz/BMW Universal CAN Filter

CAN Filter 18 in 1 Benz/BMW Universal Filter

Latest Benz / BMW Universal CAN Filter
Applicable vehicle list:
1. Benz 18 types chasis model:S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)

BMW:CAS4/FEM Fxx

NOTICE!!
New style: 222/205/217
Old style: 166/212/463
CHECK the car model correctly before mileage adjustment.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1

2. BMW Model:
BMW: CAS4/FEM Fxx
BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);
This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.
YH Benz / BMW Universal filter — Diagram for BMW

Hereis the wiring diagram:

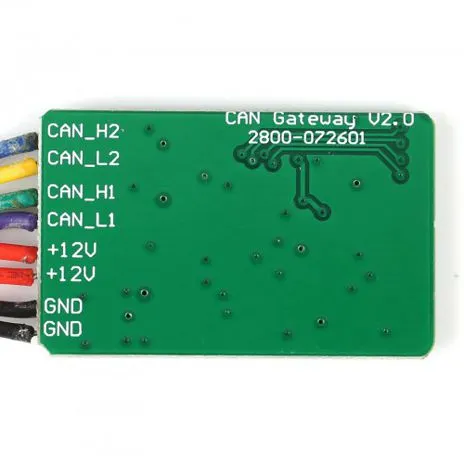

Black ——— GND Red ——— +12V White ——— +5V
Purple ——– L1(CAN_L1) Green ——— H1(CAN_H1)
Yellow ——— L2(CAN_L2) Blue ——— H2(CAN_H1)
NOTICE! Please connect the 2 BMWdots together (short circuit) BEFORE connection to thecar!

1. diagramfor BMW 1 series F20 instrument:

2.diagramfor BMW 3 series F30 instrument:

3.diagramforBMW 3 GT series F30 instrument:

5.diagramforUSA Strandard BMW X5 F15 instrument:

6.diagramforBMW FEM:

7.diagramforBMW CAS4(1L15Y/5M48H/1N35H)

8.diagramforBMW X3 F25 instrument:

Package List:

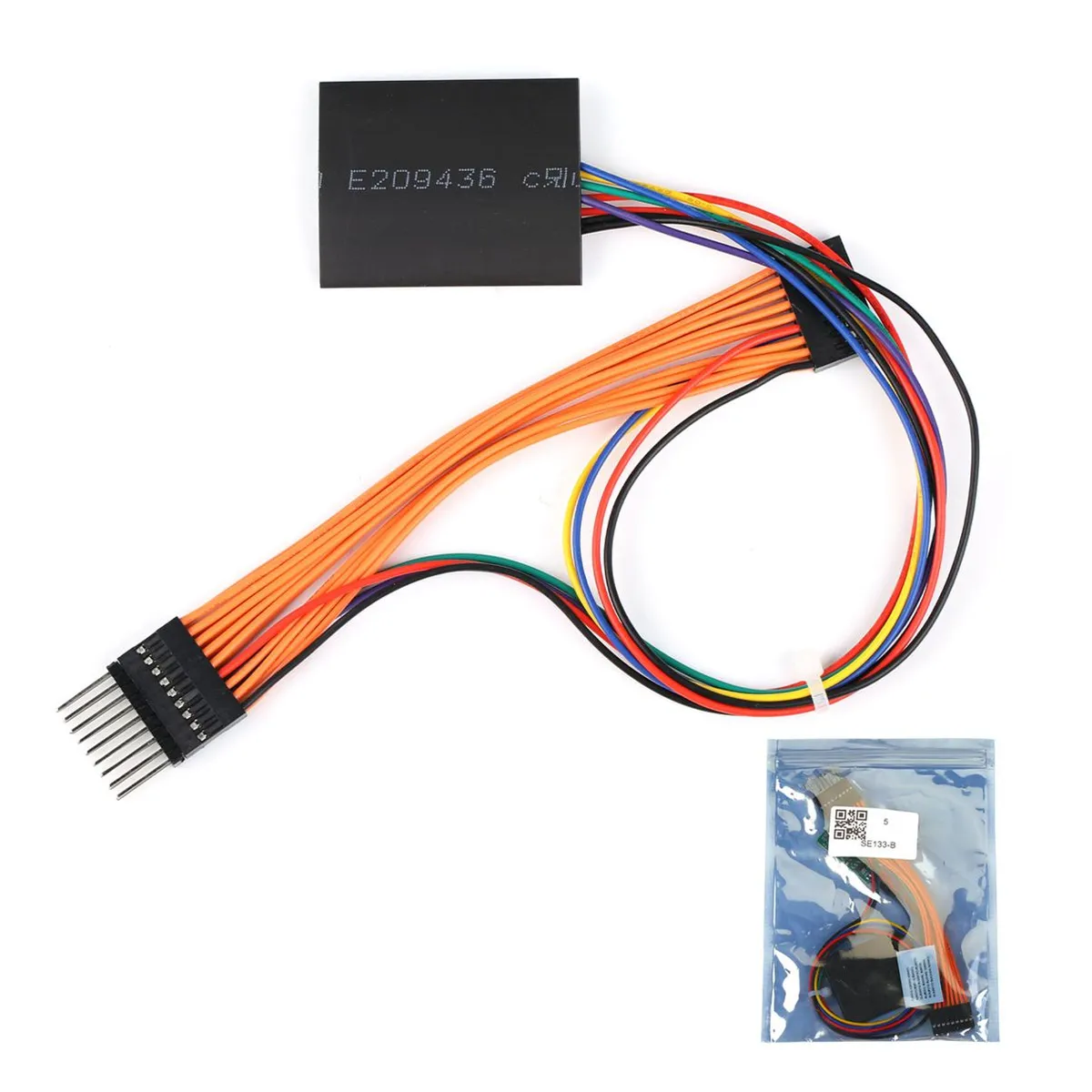

1pc x CAN Filter 18 in 1 for Benz/BMW Universal filter
