CAT ET4 478-0235 2019A/2023A/2024A for CAT Truck Diagnostic Tool

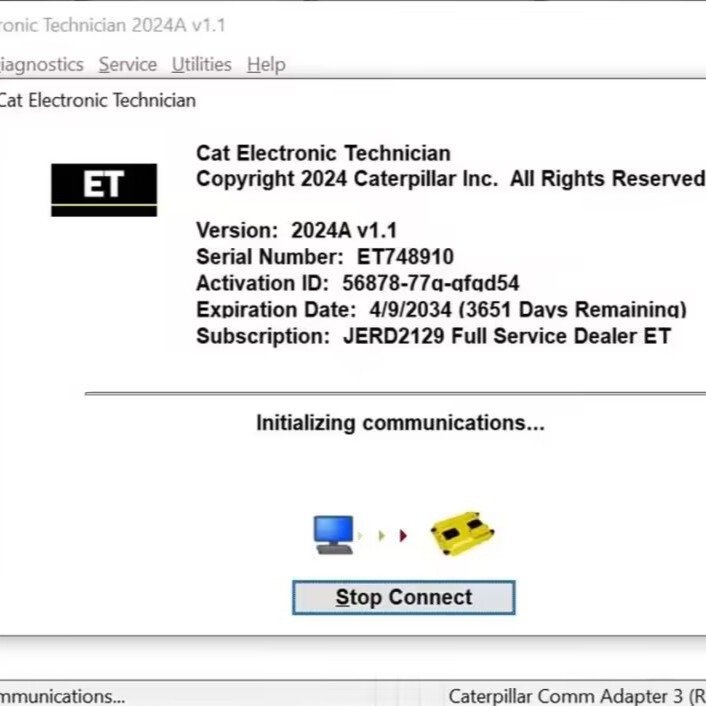

Caterpillar Electronic Technician 2024A (Replaces CAT ET 2023A, 2022C, 2021B, 2021A, 2020A, 2019C, 2019B) with WinFlash future is an updated version of Caterpillar dealer diagnostic software that helps technicians diagnose existing and potential problems with their electronically controlled Caterpillar engines and machines.

2024A Caterpillar Electronic Technician Software with CAT ET 4 Cat Caterpillar Adapter 4 supports Caterpillar diagnostics through 2024.

5 Reasons to Buy CAT Caterpillar ET Diagnostic Tool Adapter 4

1. Latest Version: 2024A

2. Supported Operating Systems: Windows 7 32-bit, Wnidows 7 64-bit, Windows 8/8.1 32-bit, Windows 8/8.1 64-bit, Windows 10 32-bit, Windows 10 64-bit

3. We will activate the 2024A version software after you install it (after installing the software, please contact us to activate the software for you)

4. Supported Languages: Chinese (Simplified), Danish, German (Germany), French (France), Portuguese (Portugal), Japanese, Spanish (Traditional), Italian (Italy), English (United States)

5. Support Caterpillar diagnostics until 2024

Caterpillar ET 2024A (Replaces CAT ET 2019C, 2021B) Electronic Technician Diagnostic Software:

Region: Global Support Multi-language: English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish Compatible OS: Windows 7 32-bit, Windows 7 64-bit, Windows 8/8.1 32-bit, Windows 8/8.1 64-bit, Windows 10 32-bit, Windows 10 64-bit All CAT supported vehicles With CAT Diagnostic Tools you can: View active and logged diagnostics View events where anomalies occurred and were logged by the ECM View the status of a group of parameters (temperature, pressure, etc.) simultaneously

Record and log performance data
Graph a set of status parameters
View the current configuration of the ECM
Change the ECM configuration
Perform diagnostic tests
Perform calibrations
Print reports and diagnostic results
For certain machine and engine products, additional features are included in the Service Tools program

Product Description

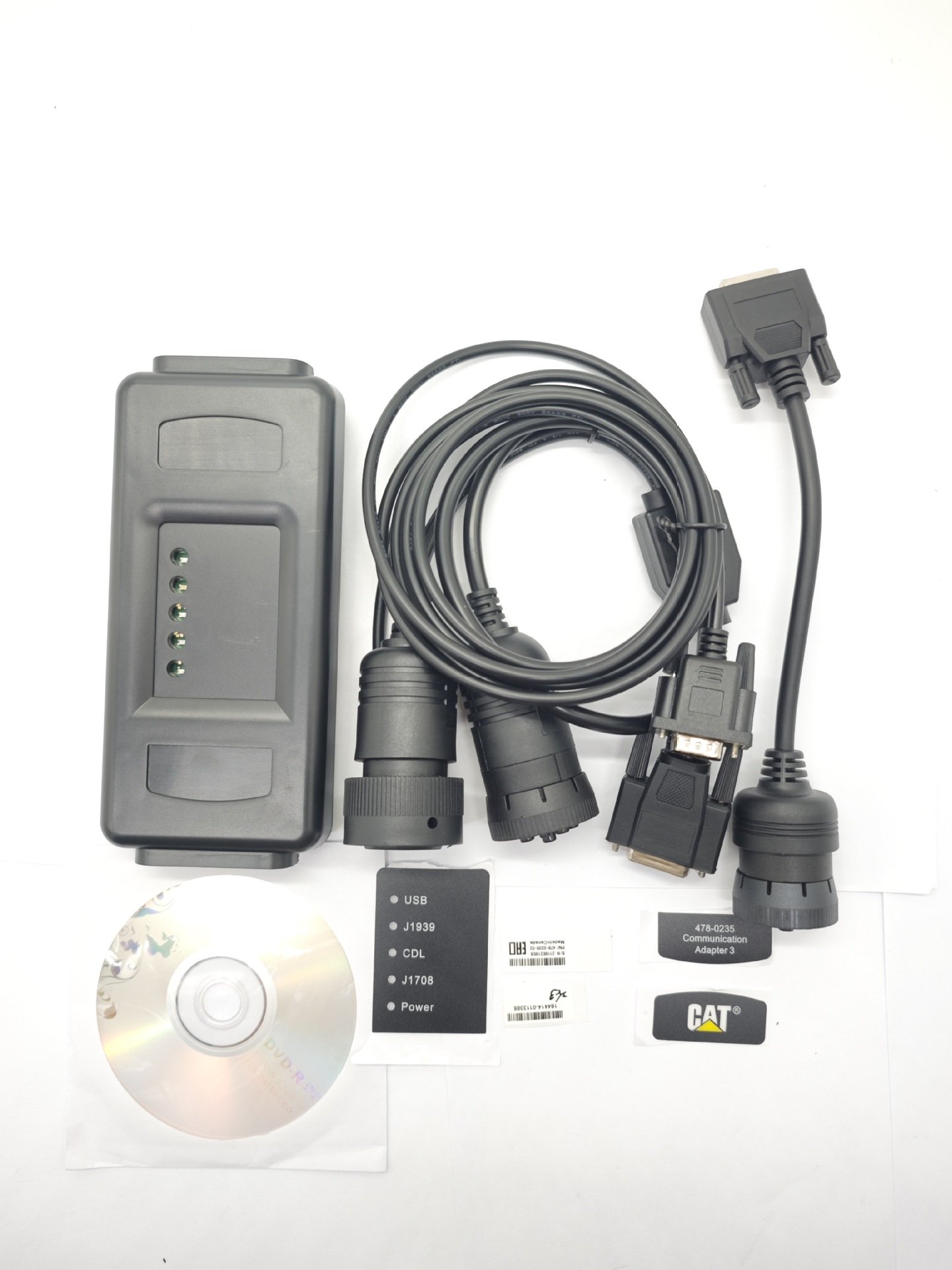

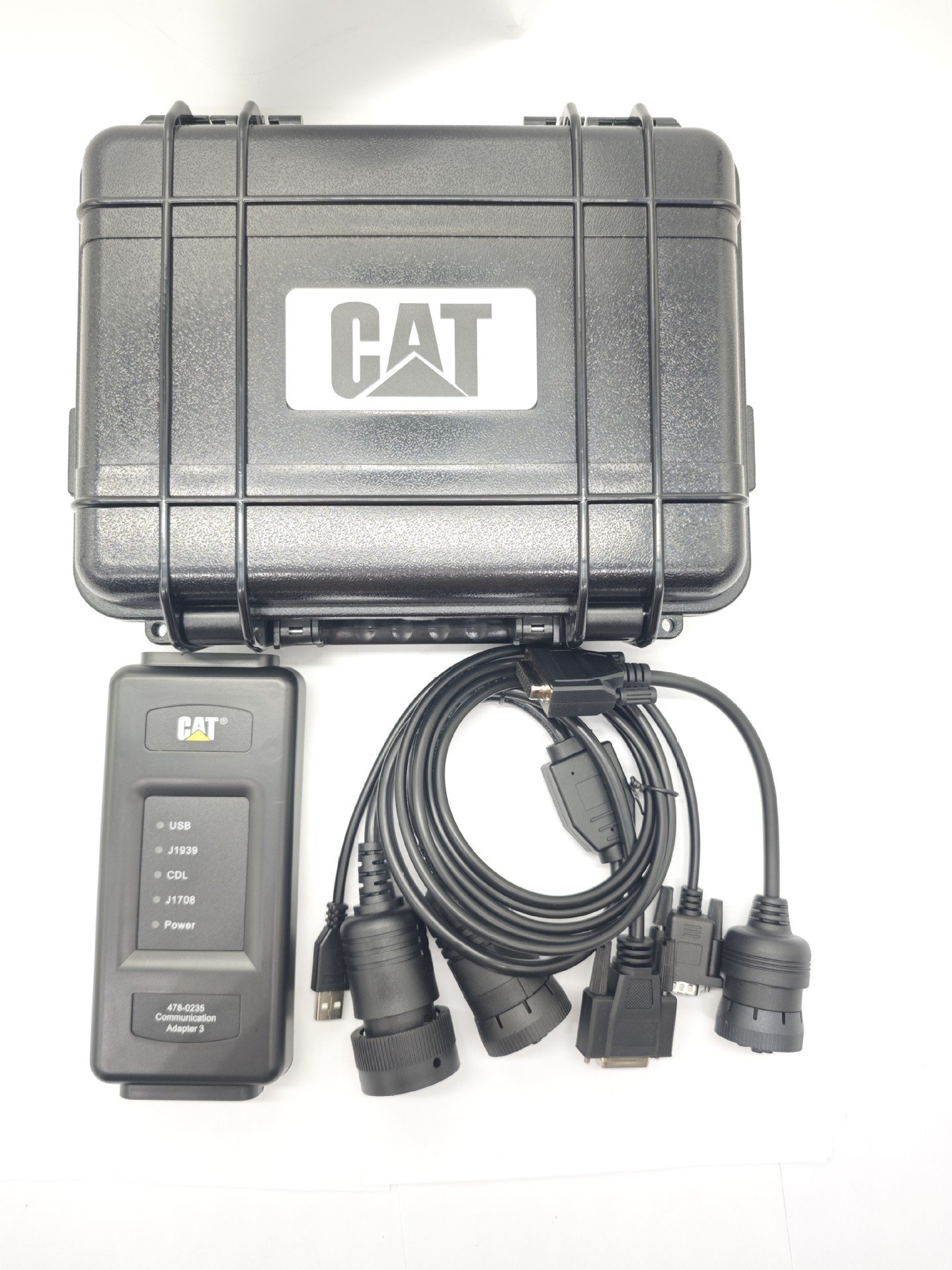

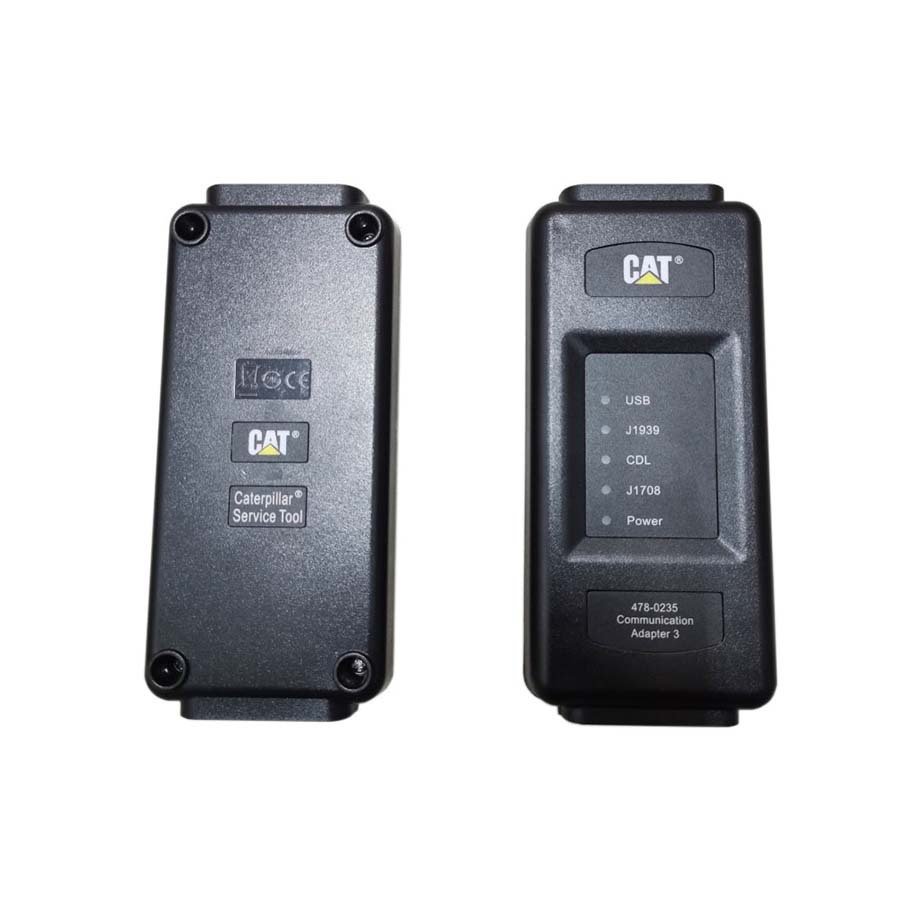

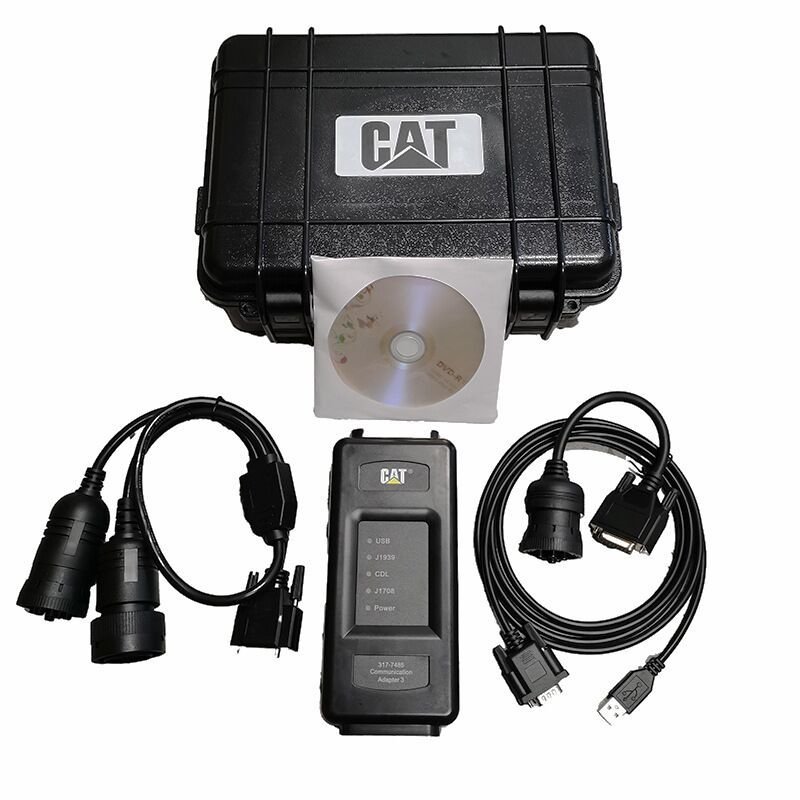

The CAT Caterpillar ET Diagnostic Tool from Caterpillar provides access to the Electronic Control Module (ECM) from a personal computer. Many critical work tasks can be performed using the Electronic Service Tool. The user can display the status of a group of parameters (temperatures, pressures, etc.) simultaneously, view active and clearly documented diagnostics, display the current configuration of the ECM, and more. The service tool works in conjunction with a communication adapter to allow connection to the ECM. The graphical interface makes the software easy to learn and simple to use. Each function has a separate drop-down menu, enhancing the “ease of use”. When the program is started, the version and identification of the ECM are automatically retrieved and displayed on the summary screen. Diagnostic tests and calibrations can also be performed.

The CAT Caterpillar ET Diagnostic Tool enables service technicians to reprogram the ECM, reconfigure control system parameters, fine-tune performance, or diagnose the root cause of a fault the first time. These powerful tools allow service personnel to quickly and accurately display and analyze important performance and health information for any system. The service tool communicates with any system that uses ATA (J1708), J1939, or the Caterpillar proprietary data link network. Service tools provide the information and functionality needed to help technicians diagnose problems and perform repairs, as well as customize and personalize product operation. Caterpillar service tools go beyond the capabilities of a pre-programmed ECM or on-board display system by allowing customers to design flexibility and configurability into their products.
