CEM DT-156 Pro Paint Coating Thickness Meter Gauge Auto F/NF Probe Tester 1250um V-groove

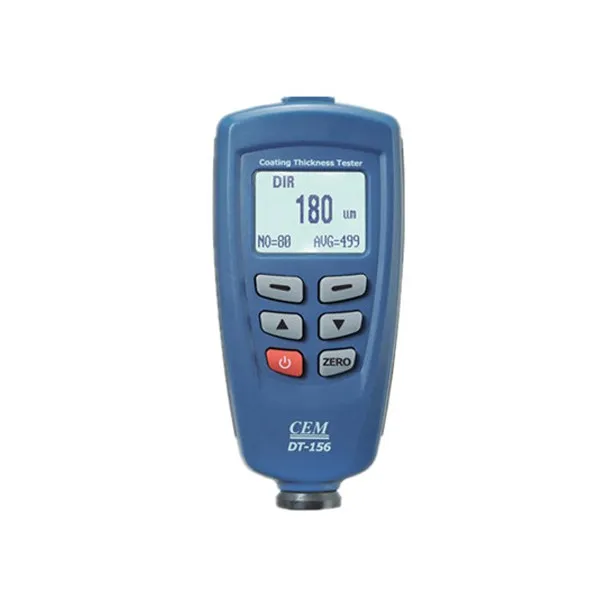

This professional Coating Thickness Meter (DT-156) is a compact and handy gauge designed for non-destructive, fast and precise coating thickness measurement with measuring range 0 ~ 1250 μm / 0 ~ 50 mil. It works either on the magnetic induction principle or the eddy current principle, depending on the type of sensor probe selected (Fe or No Fe). With the two types of probe equipped, only one gauge is required to measure non-magnetic coatings on a magnetic substrate (ferrous, Fe) or insulating coatings on a non-magnetic conductive substrate (non-ferrous, NFe). The V-groove in the sleeve of the probe facilitates reliable measurements on small cylindrical parts.

This gauge has two measuring modes, CONTINUE & SINGLE and two working modes, DIRECT & GROUP to meet your various needs. DIRECT mode is recommended for simple, quick and occasional measurement while GROUP mode permits storage of maximum 400 data for statistical analysis. It provides statistic functions including AVG, MAX, MIN, S.DEV. USB cable and software CD are included for connection and work with PC. Other important features are backlight LCD, high/low alarm, auto power off and calibration foils included.

This professional equipment is ideal for manufactures and their customers, for offices and specialists, for paint shops and electroplaters, for chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering. It is also suitable for laboratory, workshop, and outdoor use.

CEM DT-156 Features:

Two types of probe equipped, Fe & No Fe

Measuring Coatings: Non-magnetic coatings (e.g. paint, zinc) on steel; insulating coatings (e.g. paint, anodizing coatings) on non-ferrous metals

Wide measuring range (0 ~ 1250 μm / 0 ~ 50 mil) and high precision

Two measuring modes: CONTINUE & SINGLE

Two working modes: DIRECT & GROUP (4 groups)

Max 400 data memory

One point calibrating and two points calibrating independently for each working mode

Statistic display: AVG, MAX, MIN, S.DEV

LCD with blue backlight

V-groove in the sleeve of the probe facilitates reliable measurement on small cylindrical parts

Probe made of hard and durable material

High and low alarm

Low battery and error indication

Auto Power off (can be disabled)

Substrates & calibration foils included

USB cable and software CD included (compatible with Windows 98/2000/XP/Vista/7)

CEM DT-156 Specifications:

Sensor Probe	F	No Fe
Working Principle	Magnetic induction	Eddy current principle
Measuring Range	0~1250µm 0~49.21mils	0~1250µm 0~49.21mils
Guaranteed Tolerance (of reading)	0~850µm (±3%+1µm) 850µm~1250µm (±5%)	0~850µm (±3%+1.5µm) 850µm~1250µm (±5%)
Guaranteed Tolerance (of reading)	0~33.46mils (±3%+0.039mils) 33.46mils~49.21mils (±5%)	0~33.46mils (±3%+0.059mils) 33.46mils~49.21mils (±5%)
Precision	0~50µm(0.1µm) 50µm~850µm(1µm) 850µm~1250µm (0.01mm)	0~50µm(0.1µm) 50µm~850µm(1µm) 850µm~1250µm (0.01mm)
Precision	0~1.968mils (0.001mils) 1.968mils ~33.46mils (0.01mils) 33.46mils ~49.21mils (0.1mils)	0~1.968mils (0.001mils) 1.968mils ~33.46mils (0.01mils) 33.46mils ~49.21mils (0.1mils)
Minimum Curvature Radius	1.5mm	3mm
Diameter of Minimum Area	7mm	5mm
Basic Critical Thickness	0.5mm	0.3mm
Working Temperature	0°C ~40°C (32°F~104°F)
Working Relative Humidity	20%~90%RH
Item Size	110 x 50 x 23mm
Item Weight	100g

Packing List:

1 x Coating Thickness Gauge

5 x Calibration Foils

1 x Aluminum Substrate

1 x Iron Substrate

1 x USB Cable

1 x Software CD

2 x 1.5V AAA Battery

1 x Instruction Manual

1 x Small Storage Box

Standard Factory Package
