Top 9 Reasons to get CGDI Prog MB Key Programmer:
1. Supports fastest for Benz Car key add: collection time 1’50s, password calculation time 40s, 99% get password for one time calculator, it is the fastest key programming tool to calculate the password at present.
2. Work with both BE key and original key
3. With new Diode equipped, which makes infrared more sensitive to keyless go key. No need to replace diode chip yourself anymore
4. CGDI MB All Key Lost Support List:
W164, W216 (2009-)
W164, W216 (2009-)(Fast)
W164 (Old), W221 (-2009)
W164 (Old), W221 (-2009)(Fast)
W166, W197, W212(Old), W212, W246
W169
W169 (Fast)
W172, W204, W207, W209, W211
W172, W207, W209, W211(Fast)
W202, W203, W208, W210, W463, W639 (K)
W202, W203, W208, W210, W463, W639 (K)(Fast)
W215 W220
W230
W639 (CAN 2009-)
W639 (CAN 2009-)(Fast)
W906
List keeps updating
5. Support more for old Mercedes cars key programming by OBD compared to for other Mercedes key programmer like VVDI MB Tool, such as
W210, W203, W639, W220,W215, W169
for Mercedes E Series W210 before year 2004
for Mercedes C Series W203 before year 2005
for Mercedes V Series V639 before year 2008
for Mercedes A Series W169 before year 2009
for Mercedes B Series W169 before year 2009
for Mercedes S Series W220 before year 2005
for Mercedes E Series W211 before year 2008
6. With Mileage Repair and Gateway Read/Write Authorization (Since March 2nd, 2019), but this authority need to pay extra money.
Mileage Repair Support Mercedes List:
C(W204) / GLK(X204) / CLK(207) /E(W212) /SLS(197) /CLS(W218) / R-Class(W251) /GL(X164) / ML(W164) / E-Class(W211) / CLS(W219) S-Class(W211) / CL(216) C-Class(W203/ CLK(W209) / SLK(R171), Keep Updating…
7. CGDI MB support ECU renew on these models at present:
ME9.7, MED17, CR3.xx, CR4.xx, CR5, CR60.xx, CRD.11, CRD2.xx, , SIM266, SIM271DE2.0, SIM271KE2.0, SIM4LE, SIMELKE
Support Gearbox Renew on EGS 7G
8. Free Update Online, please download latest software
9. Language: English, Spanish, French, German and Chinese
Notice:
Please don’t disassemble CGDI device yourself, or it will get damaged.
There is an encrypted battery inside machine, once device open, it will get power failure automatically and need to return for repairing.
What is the token policy for CGDI Prog MB?
First of all, remove the limit on the number of password calculations per day. You can calculate the password as much as possible within a day.
Of course, the premise is that you have more than enough points. Please pay for$5 Only One Token for CGDI Prog MB if you need.
Blue Member: One Free Token Lifetime
Silver Member: Two Free Token Valid 180 days.
When license gets expired, please pay toToken Service 180 Days for CGDI MB Key Programmer. After you pay for it, can calculate online two times free 180 days again.
How to activate CGDI Prog MB?
CGDI Prog MB needs activation when you receive it. Please follow the steps as below:
1. Download for Benz Monster Latest software, there will be user manual too in the software catalogue
2. Install software on your laptop, activate device yourself from menu Online Store.
You can choose “Blue Member One Free Token Lifetime” or “Silver Member Two Free Token Valid 180 days” online yourself now.
No need to wait for engineer’s activation anymore. Save much time!
CGDI MB Prog Programming Key Features:
1) Automatically identify the basic key information (including how many times you used SSID)
2) Can directly read pin code of BE keys via infrared, can erase BE keys.
3) NEC adapter can write the original for Benz smart key and common key.
4) Can write for Benz original key via infrared.
5) Can restore the data of key and EIS with the key password.
CGDI MB Prog Function List:
1) Able to add keys for Mercedes Benz and program a new key when all keys are lost.
2) Add new for Mercedes Benz keys: Data acquisition for 1 minute 50 seconds, pin code for 40 seconds and 99% success.
3) Program a new key to the following models when all keys are lost: 211, 209,204, 207, 212, 166,246,197,172,164+, 216 etc.
4) Can read EIS data via OBD, no need to distinguish the EIS/EZS model.
5) Can display the key status and directly disable the key position.
6) Can display EIS Number, can distinguish the for Benz model
7) Can display EIS status.
8) Automatically identify EIS model.
9) Automatically identify CAN protocol
10) Can directly read key pin code via infrared on parts of 209/211/220/215 EIS.
11) Can read/write EIS via infrared.
12) Can generate the key data of HC05/908/912/9S12/NEC EIS/EZS with only 26s,format include:11/ 41/51 (41 format is smart key data)
CGDI MB Prog for Mercedes Benz Car List:
for Mercedes-Benz A series (2004 -)
for Mercedes-Benz B series (2005-)
for Mercedes-Benz C Series (2001 – , including 210)
for Mercedes-Benz E Series (2001-, including 203)
for Mercedes-Benz CL series (2001-)
for Mercedes-Benz GLK (2004-)
for Mercedes-Benz ML series (2003 -)
for Mercedes-Benz R series (2003 -)
for Mercedes-Benz G series (2003 -)
for Mercedes-Benz S Series (2001 -, including 220)
for Mercedes-Benz SLK (2003- )
for Mercedes-Benz SLS (2004 -)
for Mercedes-Benz Vito (2003-)
for Mercedes-Benz Sprinter (2003 -)
for Mercedes-Benz Vito (2003 -)
Add more later…
CGDI Prog MB Latest Update Information:
CGDI MB for BenzMonster V3.1.0.0 (2021.04.14)
1. Fix known issues and optimize user experience.
CG-MB for BenzMonster V3.0.4.0 (2020.09.28)
1. Added CGDI keyless go key upgrade function.
2. Added the EIS ytpe of W215/220/230 for all key lost.
3. Added W215/220/230 for all key lost with fast collection.
4. Added the function of reading FBS4 EIS SSID.
5. Added the function of reading FBS4 key SSID.
6. Added the function of obtaining SSID from the instrument.
7. Improved the K-line EIS writing method.
8. Optimized the collection function of the old W221 all key lost.
9. Optimized the display of car computer and ELV wiring diagram.
CG-MB for BenzMonster V3.0.3.0 (2020.08.31)
1. Improved the function of loading and saving files on the lock interface, and supported more file types.
2. Added the functions of erasing, writing, activating lock, and writing VIN of new & old EIS W164 without gateway.
3. Added the function of displaying the current voltage when it is insufficient.
4. Added the wiring diagram of the old EIS W164 when without gateway. (different from the wiring diagram of all lost.)
5. Fixed other problems.
CGDI MB V3.0.1.0 (2020.05.28)
1. Added CGDI MB keyless go key (76 version) resetting function.
2. Added the function of reading new BGA key to get EIS data.
3. Added operation tutorial viewing function.
4. Added Russian language. (Need to be authorized by dealer).
5. Added W203 ELV writing function.
6. Added the new W164 EIS (special) all key lost collection function. (The number of this W164 EIS is 164545, but the casing is new.)
7. Optimized interface layout and fixed BUG.
CGDI MB V3.0.0.0 (2020.05.06)
1. The mileage repair function is now divided into four independent modules:
FBS3 mileage repair (released)
FBS4 mileage repair-install hardware filter（-2018） (released)
FBS4 mileage repair-install software filter （-2018）(this update adds features, need to be used with mileage repair adapter)
FBS4 mileage repair-restore factory settings （-2018）(this update adds functions, no disassembly)
The above functional modules require authorization before they can be used, please contact customer service for details.
2. Unified server query interface to optimize network connection stability.
3. Optimize the key reading process for a better experience.
4. The main interface adds technical support contact information.
5. Other optimization and problem repair.
This update is a simultaneous update of the software and the server. The old version of the software will not be available after the new version is released.
CG-MB for BenzMonster V2.9.5.0 (2020.03.30)
1. Added 205、447 meter mileage repair function.(V850E)
(This update installs a hardware filter version of the instrument, please stay tuned for other types!)
2. Optimized the wiring diagram display.
CG-MB for BenzMonster V2.9.4.0 (2020.01.17)
1. Add the function of displaying and writing the key flag byte.
2. Add 2035450308 erase and write functions.
3. Fixed the problem that the smart 21DF key was successfully written and failed to display.
4. Add Turkish language display and Turkish language authorization function.
5. Other issues fixed and performance optimized.
6. You cannot use the device with the old software version, please install the latest software version.
CGDI MB Prog Customers Feedbacks:
-W220 first test, Read Blank Key, Read Write Erase key OK, read EZS and Password from Key…works
-Tested on W212
Read EZS —> OBD work Fine
Calulating PW from EZS —> Work fine Online Server
Key Calculating —> v041 & v051 Work fine online Server
– for Mercedes W212 2010 e250 Petrol Automatic works
– for Mercedes W221 2010 Facelift S600 V12 works
– W207 on bench OK, 11 minutes
– W203 2004 spare key making takes about 13 minute when begining to programming new key. Read pass NEC key by IR and calculate PSW Key still working after get PSW.
– Test with my W209 545 31 08 on bench as add key: 15mins all done. Trying all key lost, failed. But a friend do with W209 545 05 08 succes PSW by IR without gayeway
– W246 2014 FSB3: Add key succesful in 15mins
W219 2008: Add key also 15min OK
– W221 2008 with key v57 from Japan: Add key success after 30min, get PSW in the 2è upload.
W221 2010 Facelift Work too
2007 w221 from Japan: Add key on bench，good and very fast 10min got pass
Add Key on W221 2007, i was complete in ~12min. CGDI is very fast,Upload collect data after 2 or 3 min show me PW
Class C W203 2005 adding key on car.Spare key made in under 10 minutes.
W204 2010 adding key on bench.Total time about 15mn.
W212 2012 all key lost programming work!
CGDI MB tool works good to do W207 W204 lost keys on bench.
CGDI work not on all by OBD
W906 Sprinter don’t work (CGDI Supports W906 only CAN BUS not K-line)
W230 SL55 AMG 2006 dont work (CGDI supports W230 CAN BUS, you can send EIS and CGDI MB tool to factory to add K-line)
CGDI MB Prog FAQs:
Q1: need to know more info about yellow cable, its to kline but where to connect it when using obdii and when using on bdm?
A1: When using OBD, need disconnect ESL connector and look for K line pin to connect Yellow clip. When using on bench: look for EZS-ELV wiring and plug the clip to kline pin
Q2: What about mileage correction (reset to 0)? vvdi vs cgdi
A2: CGDI can show mileage from EZS, new software come out, updated
Q3: When we have CGDI tool working all by OBD why lads want the tool to work on the bench???
A3: For example if car is some further from workshop and you must spent time driving to the car or customer is just TOO far to drive, so then he can sent EIS or drive by himself bringing EIS it with him at workshop. It’s time saver and what if tool will not work via OBD? You will loose many time driving ex. 30 miles x2. If you have on bench, you can work at your place without risk of wasting time. Also calculating psw at the place of car might last 30 minutes, 1 hour in all keys lost? It’s much time to sit in the car + you have to take care of battery charger. If you have on bench, you can drink a coffee or a beer if you want and enjoy the waiting time. Still no tool which can do all merc by OBD anyway.

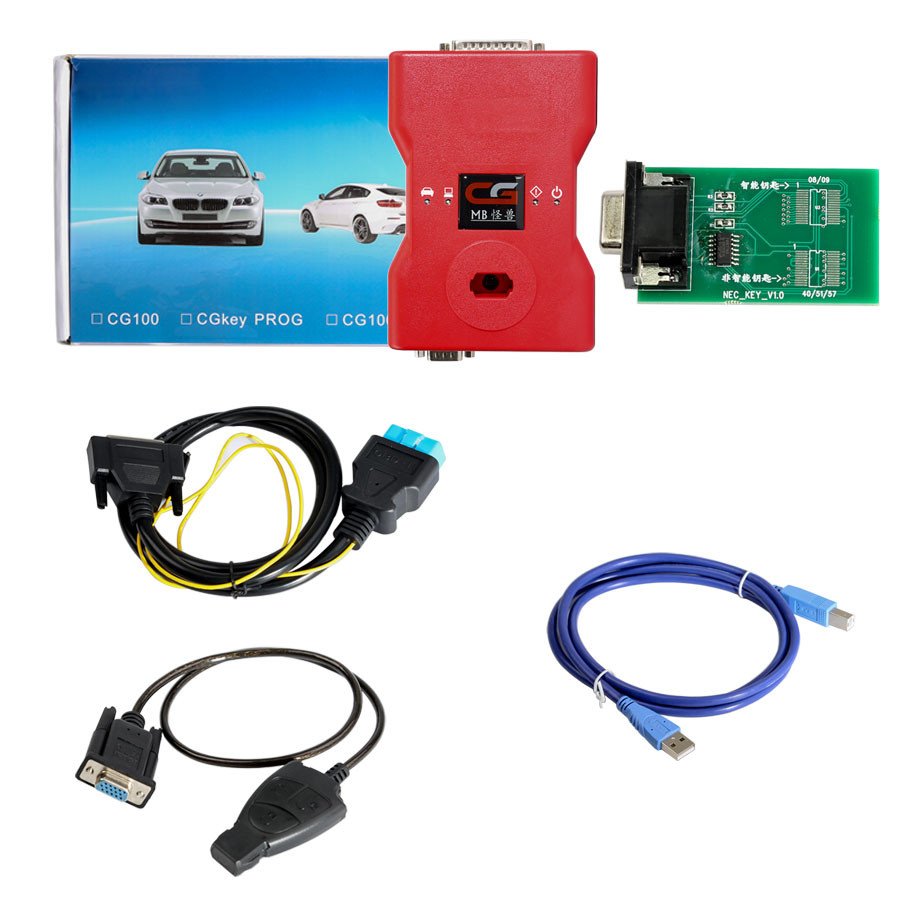

CGDI MB Prog Package List:
1pc x CGDI MB Multiplexer
1pc x NEC Key Adapter
1pc x IR Adapter
1pc x OBD Cable
1pc x USB Cable
Tech Support
For Mercedes Benz W166 all keys lost and program new keys, CGDI MB Pro is good choice, here share user manual with pictures.
Guide:
Select Lock(EIS)
Click on “Read EIS data” then “Computer password”
Click on “Copy key without key” then “Collect Data”.
Prepare to collect data, please wait…
Please insert the simulation key into the lock in 30 seconds.
CGDI MB programmer is collecting data.
Data acquisition succeed, save it by default.
Click on “Upload data” then open the data you saved.
Upload data successfully.
Click on “Query password”
Wait for 2 minutes, query password succeed.
Click on “Lock (EIS)” then CGDI MB display password, copy it.
Click on “Paste password”
