Common Rail Injector Tester Kit CRI200 Support Magnetic And Piezo Injector Test+SH60 Common Rail Nozzle Injector Tester

Common Rail Injector Tester Kit CRI200 Support Magnetic And Piezo Injector Test+SH60 Common Rail Nozzle Injector Tester

Briefintroduction

CRI200highpressurecommonrailinjectortesterfunctionisusedtodrivecommonrailinjector,whileprovidingBossch,Densso,Delphhiandothercommonrailinjectorcontrolsignaltodrivethehighpressurecommonrailinjectortowork,drivesignalparameterscanbecarriedoutbytheuseraccordingtotheiractualsituation,andcanbesavedgroupedforeasymaintenancepersonneltohighpressurecommonrailinjectorinworkingconditiontojudgedifferentconditionsandmaintenance.Support test injector resistance

Functions:

1,ChineseandEnglishmenuavailable;

2,Supportsanelectromagneticinjector
(Bosich,Dennso,Deliphi,piezoelectric,Cart);

3,Supportsapiezoelectricinjector;

4,Supportstheinjectorimpedancemeasurement;

5.Theamountofoilcountingfunction;

Display interface:

1.Select the type of injector:

BOSSCHDENSSODELPHHIPIZEODENSSO2

2.Current Injector conditions:

CL,VL,VE,LL,TL,U1,U2

3.the injector count method:

T:according to the number of counts;

4.injector counting time:

T:0-2000 times

5.injection signs: icon display indicates the beginning of the injector fuel injection;

6.pulse width: 100 ~ 3000uS;

7.injection frequency: 1 ~ 30Hz

8.the count flag: Icon display indicates the injector start counting;

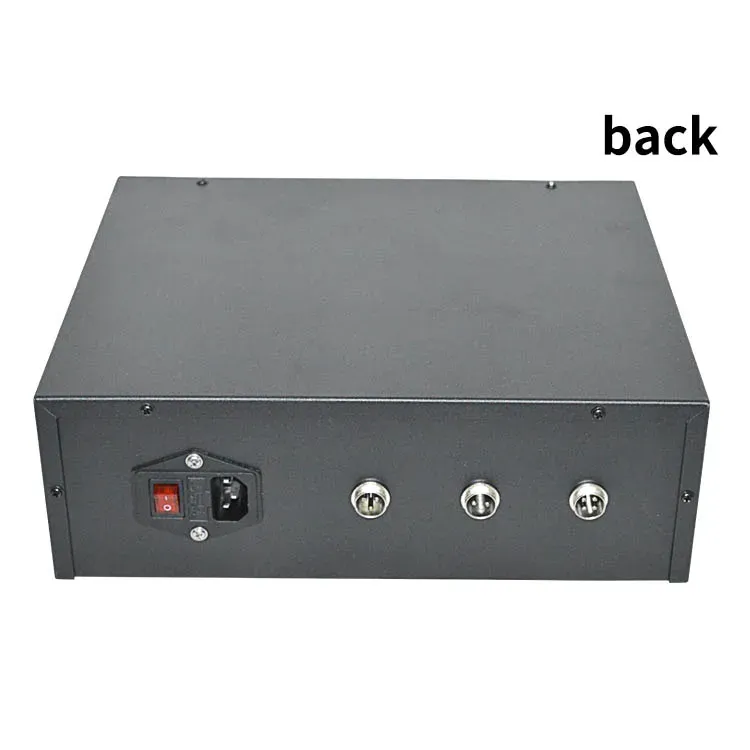

TheBack of the interface

1. Electromagnetic injector : 2PIN interface

2. Piezo injector : 4PINinterface

3. Count switch terminal : 3PINinterfa

Speficications:
