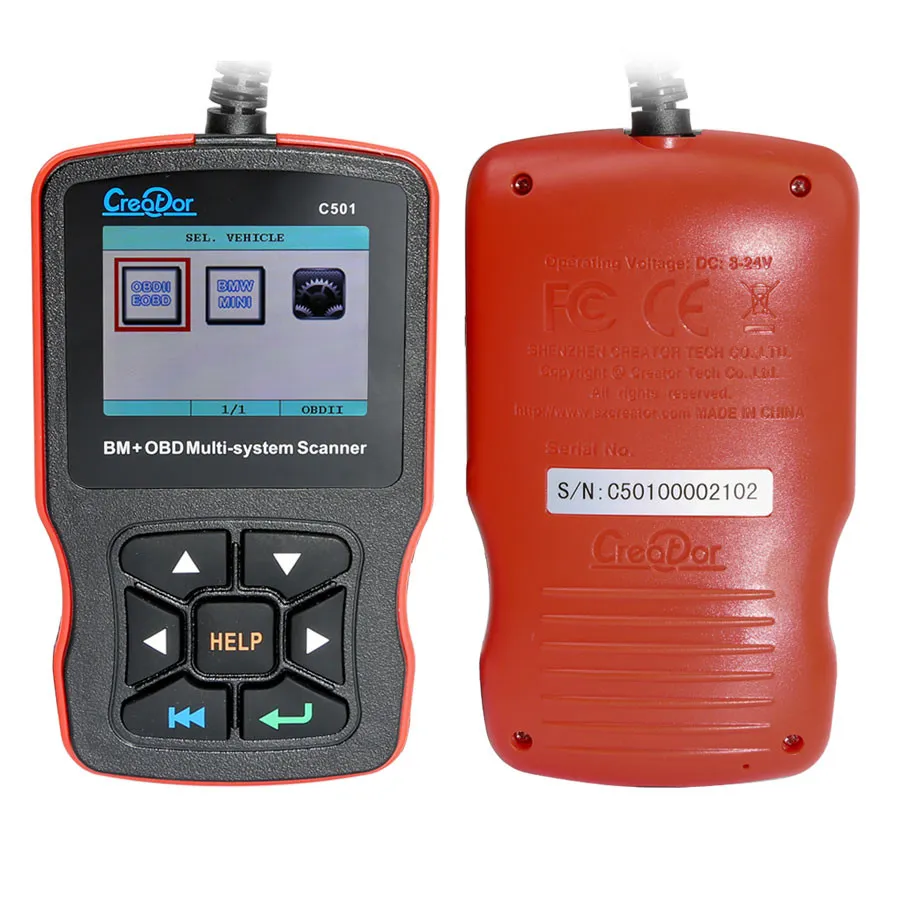

Creator C501 BMW & OBDII/EOBD Multi-System Auto Code Reader For BMW From 2001 To 2019

Creator C501 BMW & OBDII/EOBD Multi-System Auto Code Reader For BMW From 2001 To 2019

CreatorC501 BMW Scanner Functions :

1.Read trouble codes,

2. clear trouble codes, displays live data stream and graph display and vehicle version information.

3.Clear adaptation, Engine oil reset

C501 BMW Software description:

Supports BMW between 2001 to 2016
1 Series: 1’_E81/E81/E87/E88,1’_F20/F21
2 Series: 2’_F22/F23,2’_F45/F46,2’_F87
3 Series: 3’_Z3_E36,3’_E46,3’_E90/E91/E92/E93, 3’_F30/F31/F34/F35,3’_F80
4 Series: 4’_F32/F33/F36,4’_F82/F83
5 Series: 5’_E39,5’_E60/E61,5’_GT(F07), 5’_F10/F11/F18
6 Series: 6’_E63/E64,6’_F06/F12/F13
7 Series: 7’_E38,7’_E65/E66,7’_F01/F02/F03/F04, 7’_G11/G12
X Series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71, X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26
Z Series: 3’/Z3_E36,Z4_E85/E86,Z4_E89
I Series: I’_I01/I02
MINI: MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60, MINI_F55/F56
Include :Drive , Chassis and Body all system

C501 Scan Tool Specifications:
A) Display: Color, 320 x 240 pixel display with contrast adjustment
B) Operation Temperature: – 20 °C — 75 °C
C) Storage Temperature: -40 °C — 120 °C
D) Power: 8V — 24V

Product Troubleshooting
Vehicle Linking Error
A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit).

You need to do the following to check up:
A) Verify that the ignition is ON;
B) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
C) Verify that the vehicle is OBD2 compliant;
D) Turn the ignition off and wait for about 10 seconds. Turn the
E) Ignition back to on and continue the testing.
F) Verify the control module is not defective

Scan tool DOESN’T power up
If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:
A) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
B) Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
C) Check vehicle battery to make sure it is still good with at least 8.0 volts.

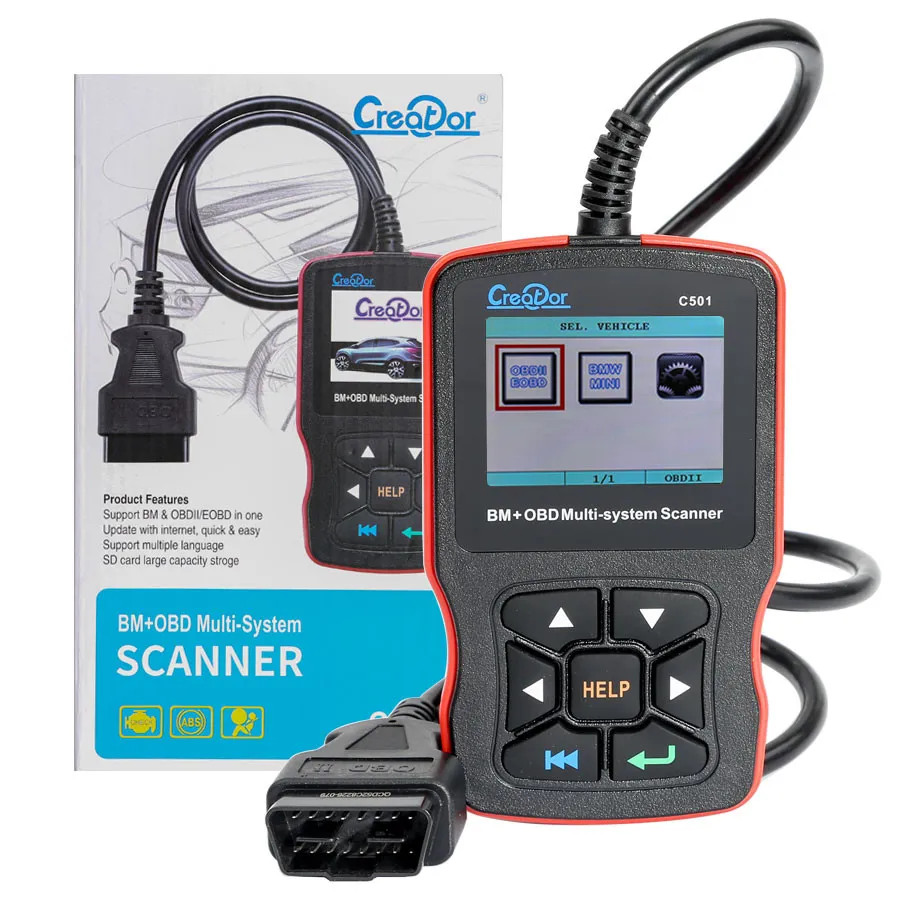

Package includes:

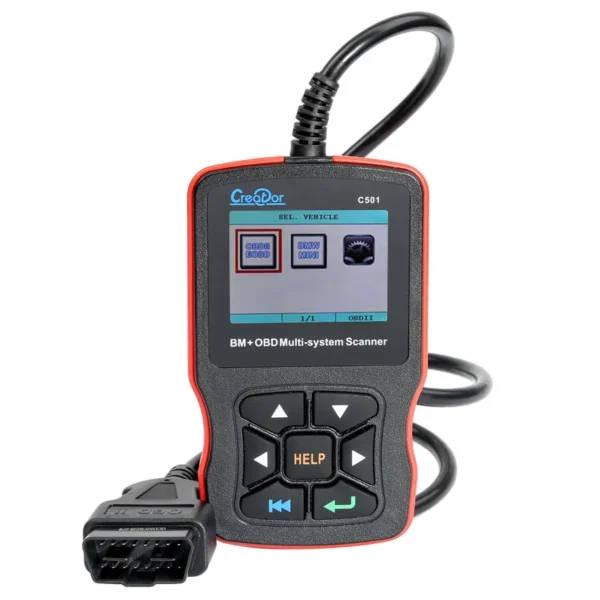

1pc x C501 Machine
1pc x User’s Manual
