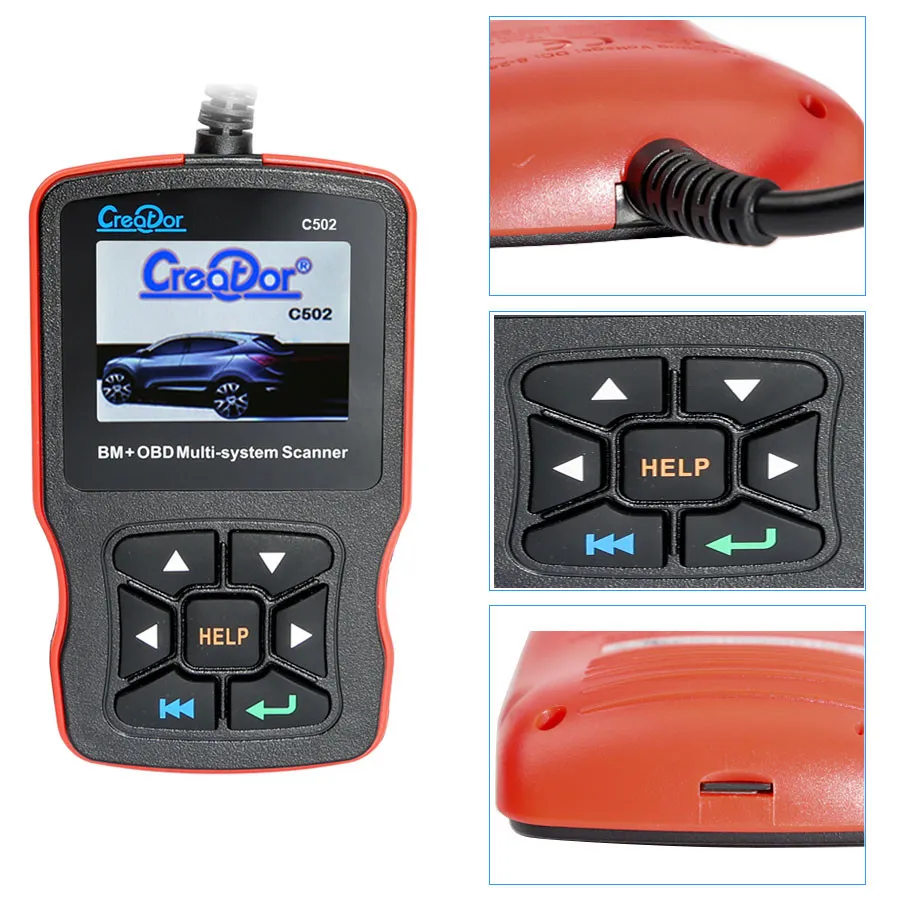

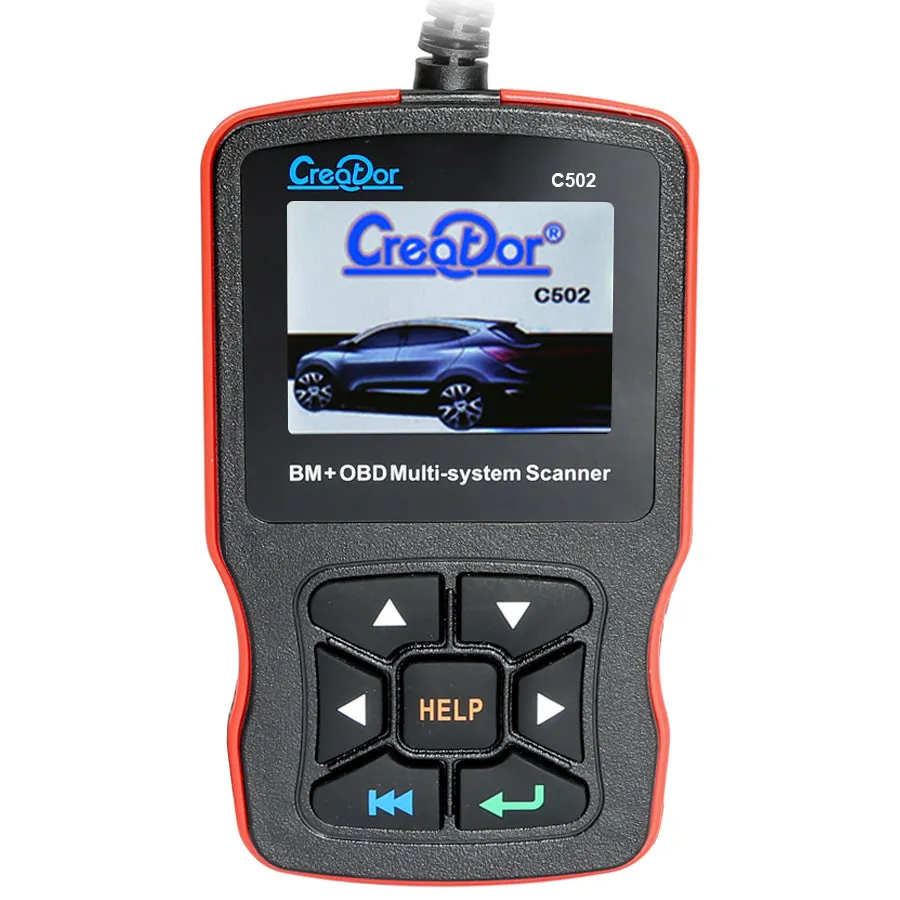

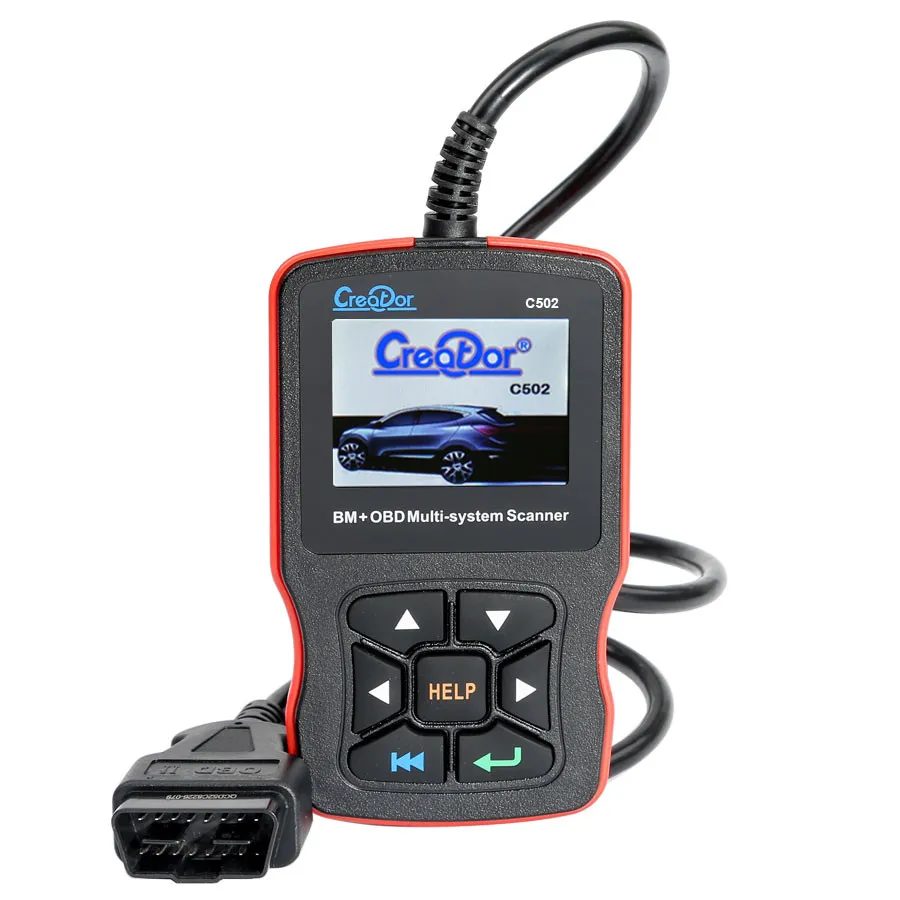

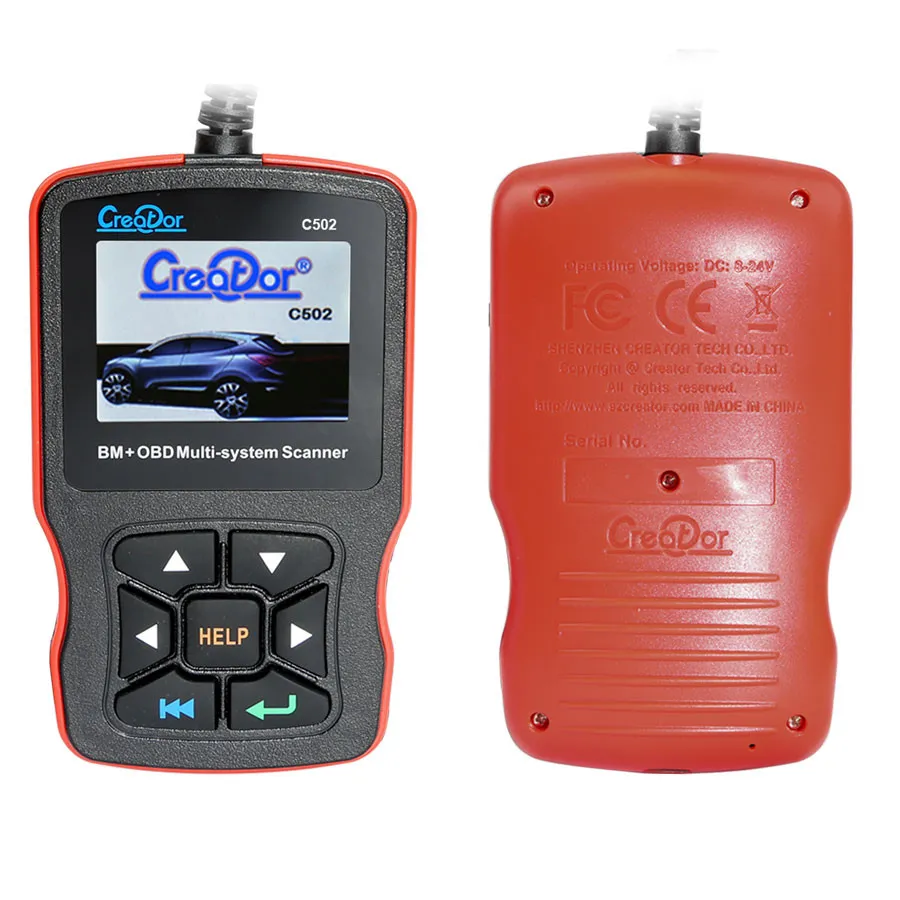

Creator C502 BENZ & OBDII/EOBD Multi-system Scanner

Creator C502 BENZ & OBDII/EOBD Multi-system Scanner
Creator C502 BENZ Software Version:C502 V10.1
Supports all the BNEZ models before 2016

Include Chassis:117, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 197, 199, 202, 203, 204, 205, 207, 208, 209, 210,211, 212, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 240, 245, 246, 251, 253, 292, 461, 463, X 164, X 204

Functions:Read codes, Erase codes, ECU information

Creator C502 OBDII & EOBD Software Description:
Works on all 2001 and later OBDII compliant PETROL European vehicles
Works on all 2004 and later OBDII compliant DIESEL European vehicles
Works on all 1996 and later OBDII compliant US and Asian vehicles
Easily determines the cause of the “Check Engine Light ( MIL)”
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3,and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Identifies pending codes
Reads live PCM datastream
Graph displays live PCM datastream
Read I/M Readiness Status
Displays live O2 sensor test data
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current OBD-II protocols
A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit).

You need to do the following to check up:
A) Verify that the ignition is ON;
B) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
C) Verify that the vehicle is OBD2 compliant;
D) Turn the ignition off and wait for about 10 seconds. Turn the
E) Ignition back to on and continue the testing.
F) Verify the control module is not defective
Scan tool DOESN’T power up

If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:
A) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
B) Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
C) Check vehicle battery to make sure it is still good with at least 8.0 volts.

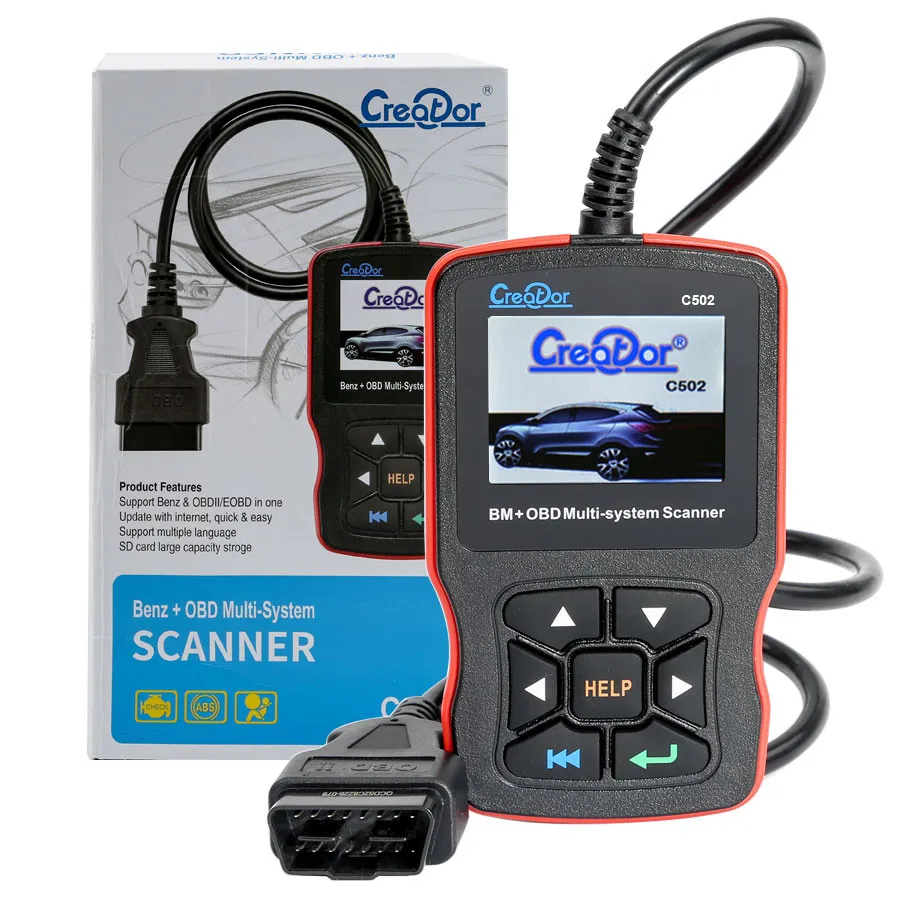

Package List:
1pc x C502 Machine
1pc x User’s Manual
