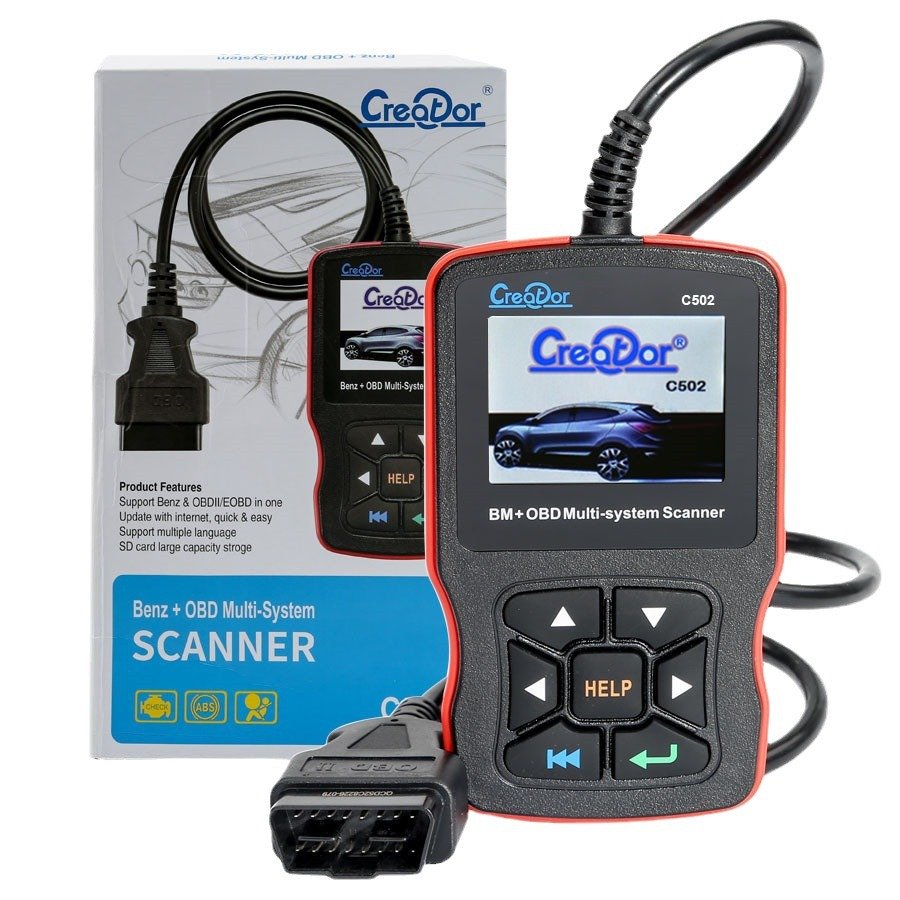

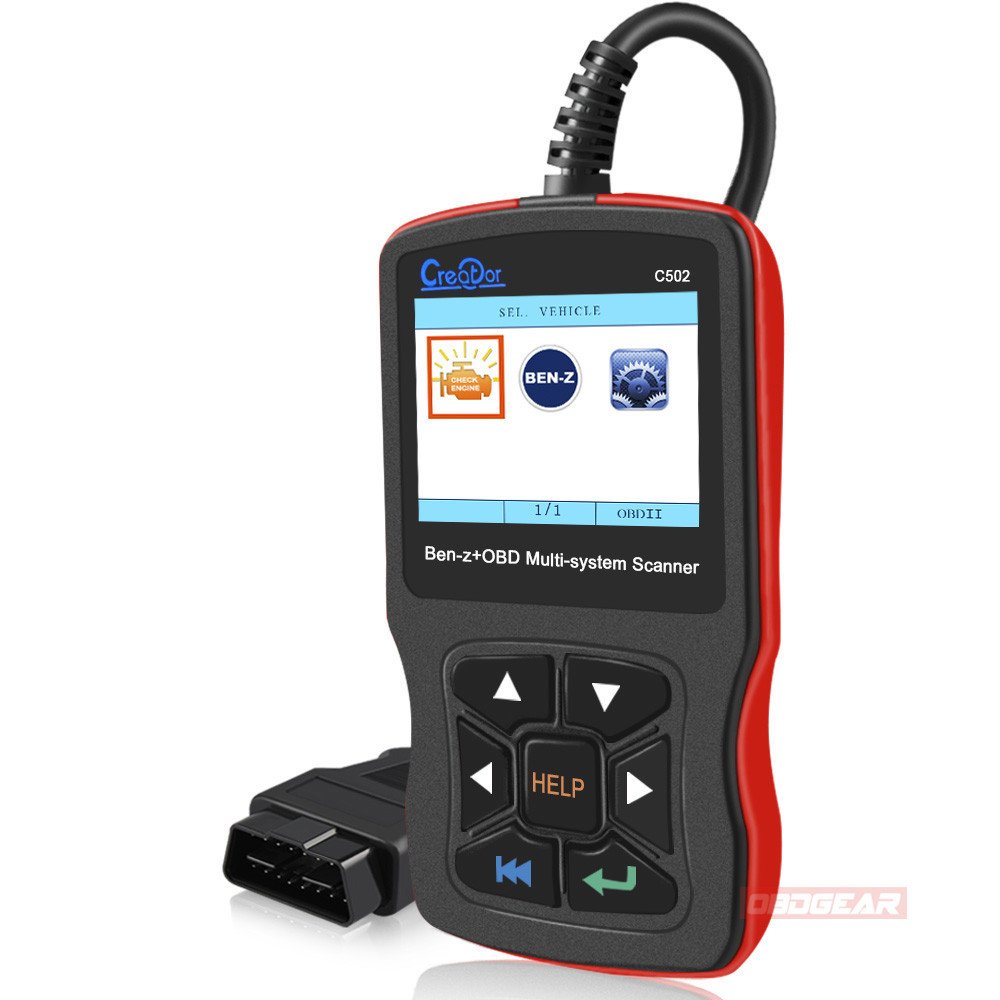

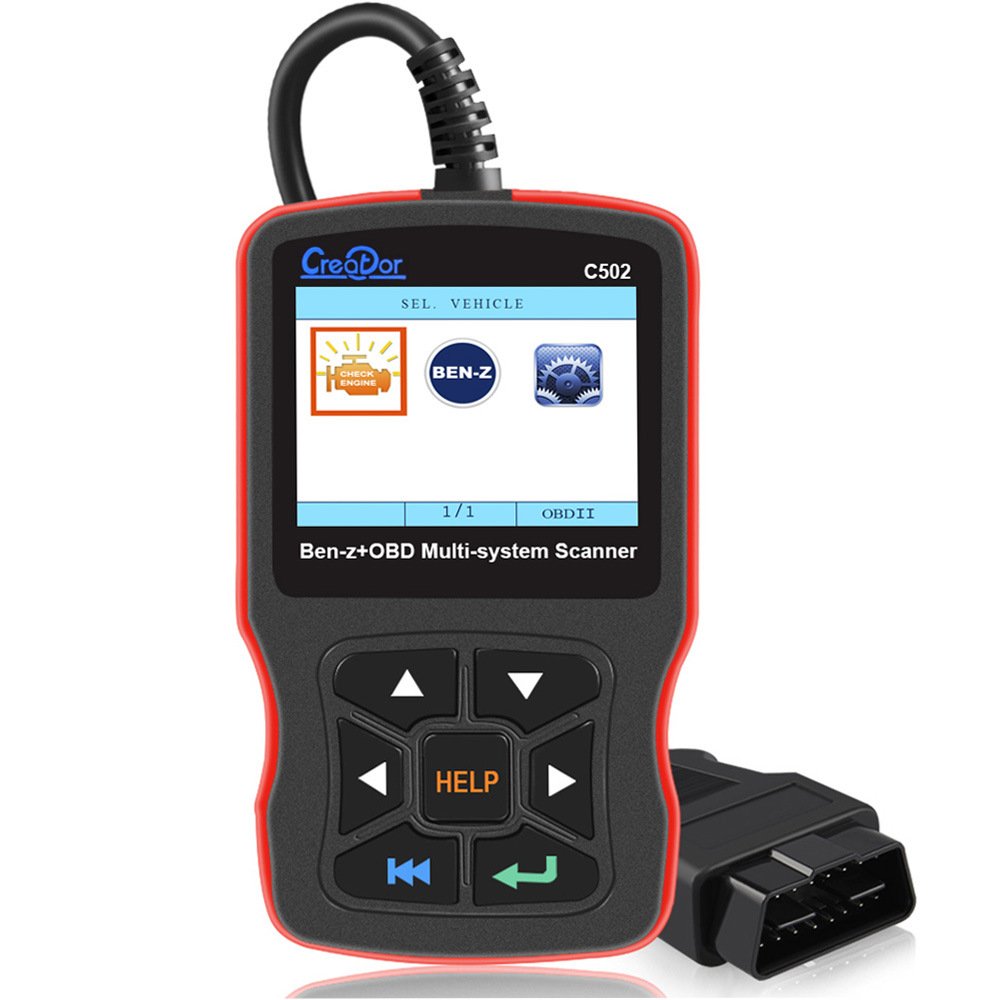

Creator C502 for Mercedes Benz & OBDII/EOBD Multi-system Scanner Car Fault Diagnosis Tool

Creator C502 BENZ Software Version: C502 V10.1

Supports BENZ before 2018 all models:

A (177), A (176), A (169), A (168), B (242, 246), B (245), C (205), C (204), C (203), E (238), E (213), E (212), E (211), E (210), E (207), S (222), S (221), S (220), S (217), CLA (117), CLK (209), CLK (208) , X 290 AMG, CLS (257)

, CLS (218), CLS (219), CL (216), CL (215), SLK/SLC (172), SLK (171), SLK (170), SL (231), SL (230), AMG GT (190), SLS (197), GLS (167), GLE (167), GLE (292), M/GLE (166), M (164), M (163), G (463), G (461), GL/GLS (166), GL (164), GLC (253), GLK (204), GLA (156), R (251), SLR (199), Maybach 240

Works on all 2001 and later OBDII compliant PETROL European vehicles
Works on all 2004 and later OBDII compliant DIESEL European vehicles
Works on all 1996 and later OBDII compliant US and Asian vehicles

Creator C502 Functions: Read codes, Erase codes, ECU information
Supports multiple code requests: Generic, manufacturer specific and pending codes.

Clears codes, turns off Check Engine Light (MIL) and resets monitors.

DTC definition can be automatically displayed after reading DTC.

Reads freeze frame data which shows engine conditions such as fuel trim, engine coolant temp etc., at the time the Malfunction Indicator Lamp (MIL) was set.

Displays monitor and I/M readiness status (emissions)

Read and record live PCM data stream, display in text mode and graphical mode.

Reads live O2 sensor Data

Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.

Retrieve EVAP Leak Test results

Retrieves vehicle information (VIN, CIN and CVN)

Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time

Easy update the scanner to support future vehicles and fix potential bugs if available.

Print out diagnostic data (trouble codes, freeze frame, live senor data) via PC

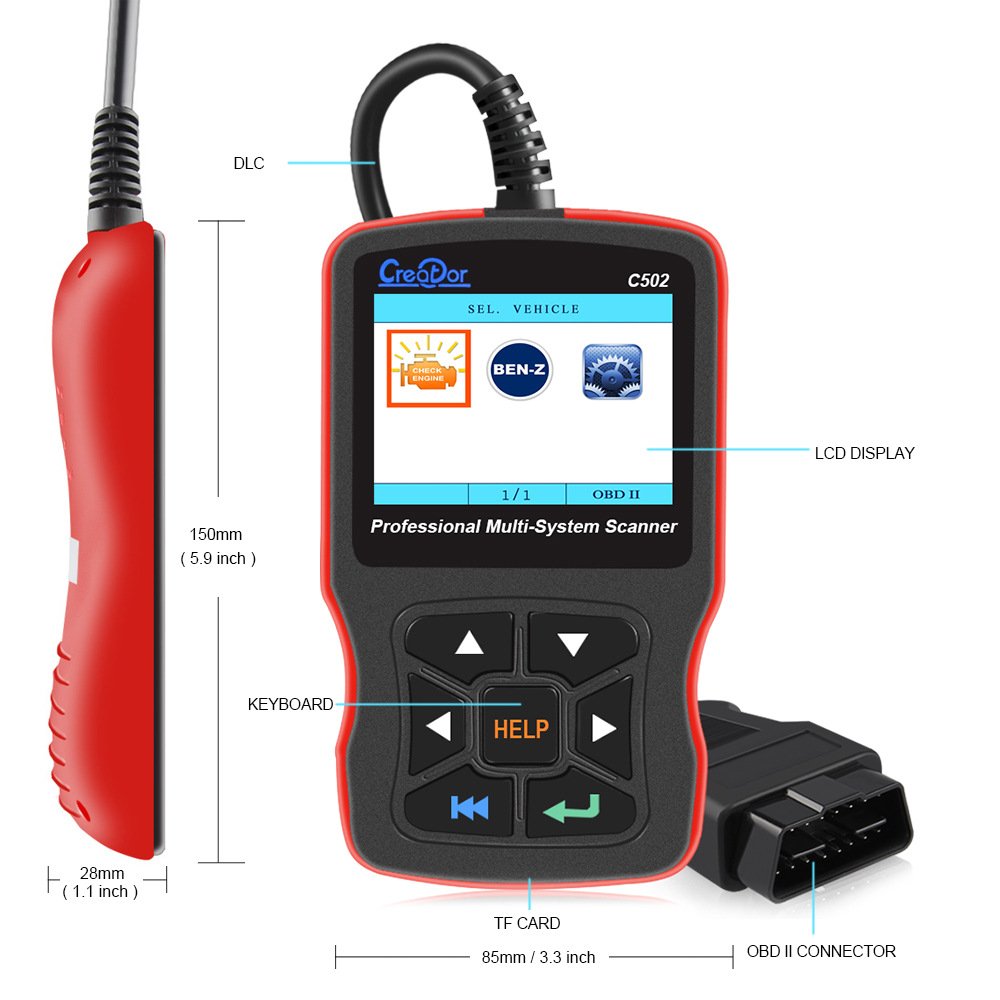

Creator C502 Specifications:

A) Display: Color, 320 x 240 pixel display with contrast adjustment
B) Operation Temperature: – 20 ℃ — 75 ℃
C) Storage Temperature: -40 ℃ — 120 ℃
D) Power: 8V — 24V

Multilingual diagnostic interface: CR502 Supports up to 5 different languages user interface,
English, Chinese,German, Spain, French.

A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit).

You need to do the following to check up:

A) Verify that the ignition is ON;
B) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
C) Verify that the vehicle is OBD2 compliant;
D) Turn the ignition off and wait for about 10 seconds. Turn the
E) Ignition back to on and continue the testing.
F) Verify the control module is not defective

Scan tool doesn’t power up

If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:

A) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;

B) Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.

C) Check vehicle battery to make sure it is still good with at least 8.0 volts.

Software update

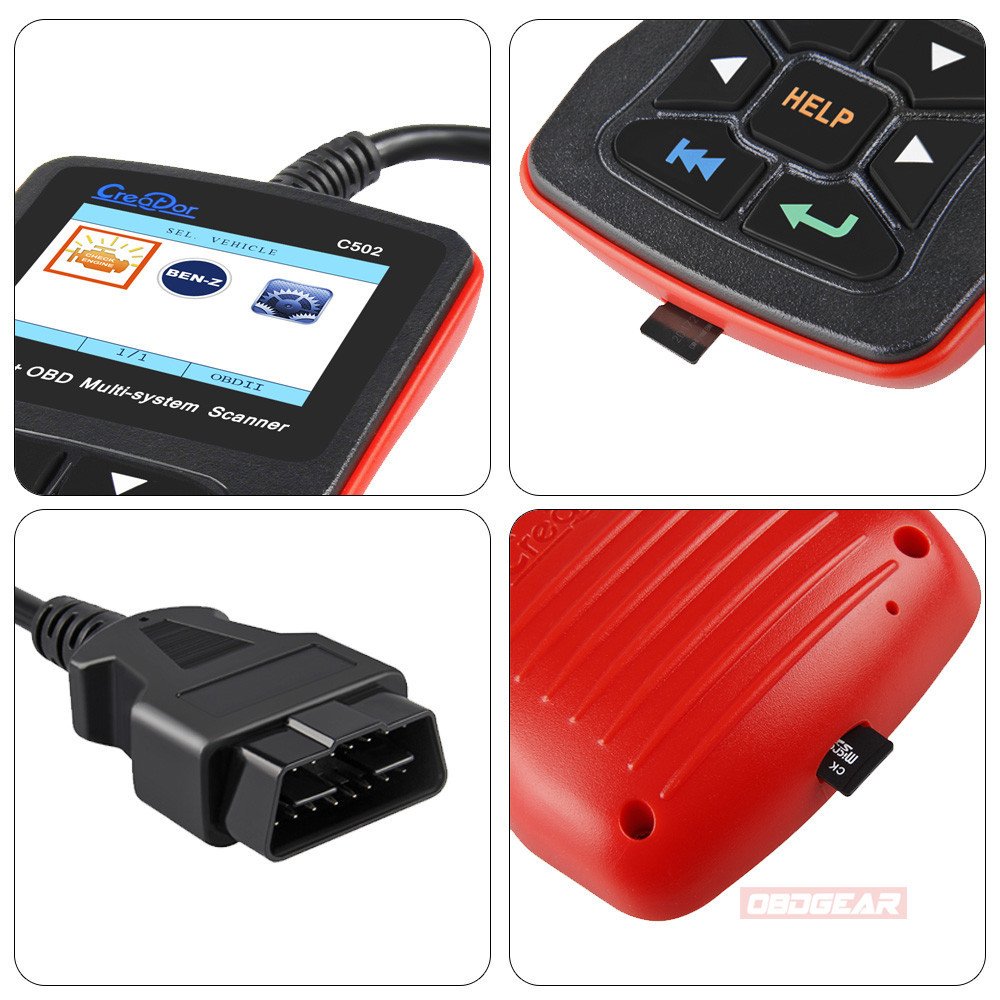

There are TF card,you just need insert into your pc ,you can update it directly ,or please visit the website: www.szcreator.com and Read the newe upgrade description about C50X.

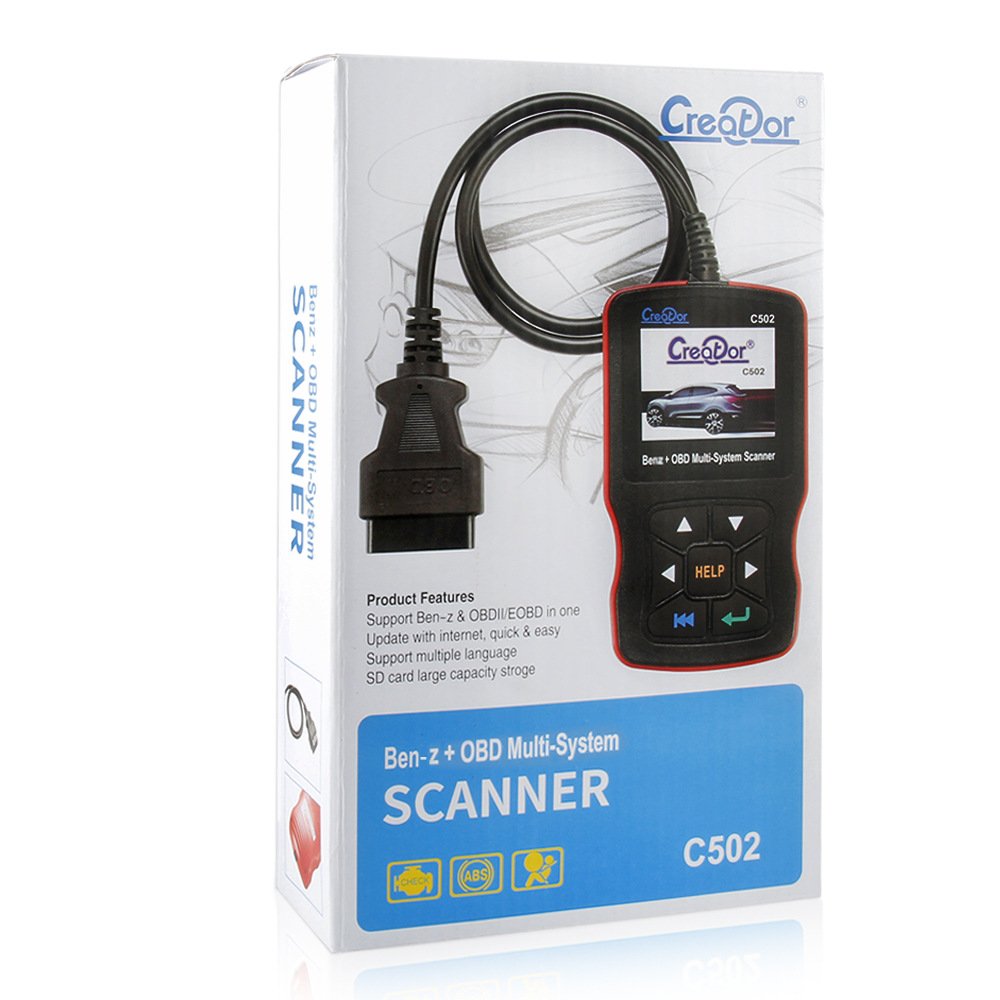

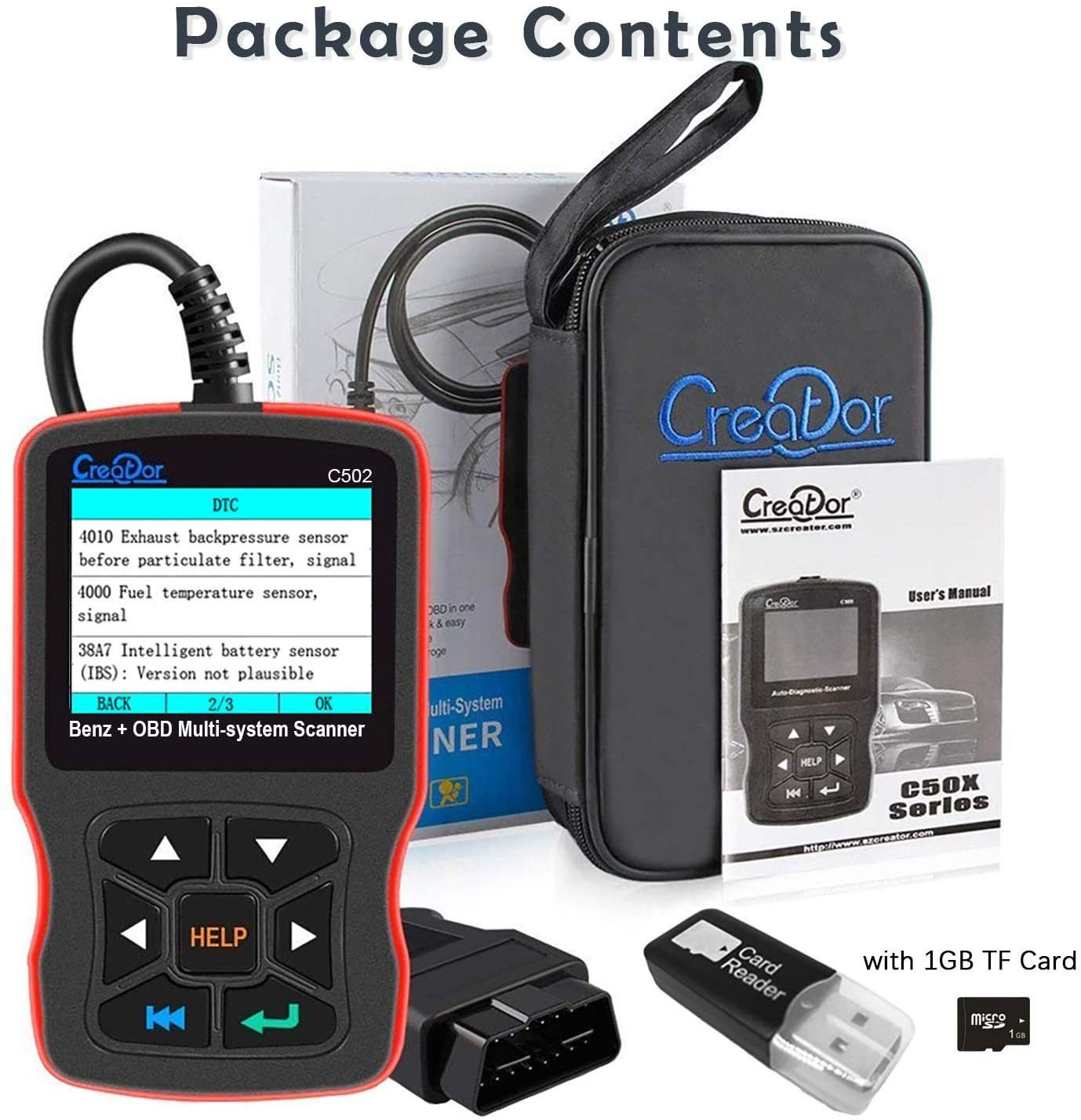

Package List:

1pc x C502 Machine
1pc x User’s Manual
