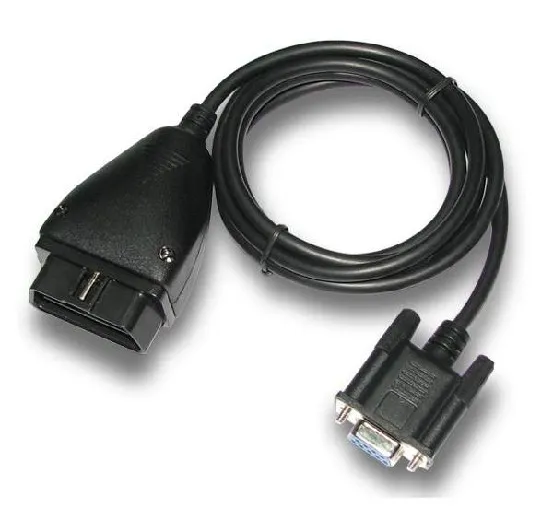

DB9 to OBDII 16 Pin
Cable definition:
OBDII 16 PIN(Male) DB9PIN Female
• (J2850 BUS+) 2—————-1+2
• (Chassis Ground) 4————-2
• (Signal Ground) 5————–1
• (CAN High J-2284) 6————3
• (ISO 9141-2 K Line) 7———-4
• (J2850 BUS- ) 10—————6
• (CAN Low J-2284) 14————5
• (ISO 9141-2 L Line) 15———8
• (Battery Power) 16————-9
Length: 1500 MM
Diameter: 5MM
| Weight | 0.15 kg |
|---|
