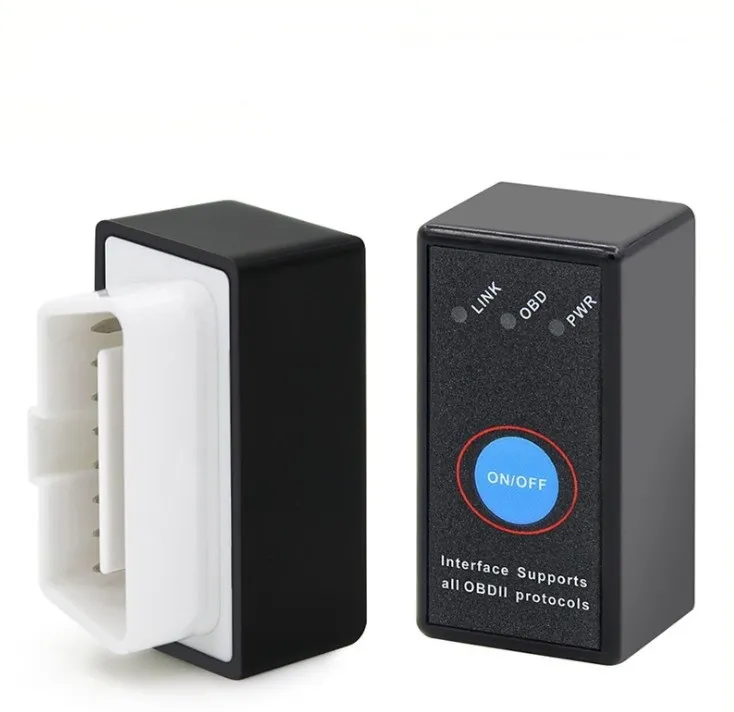

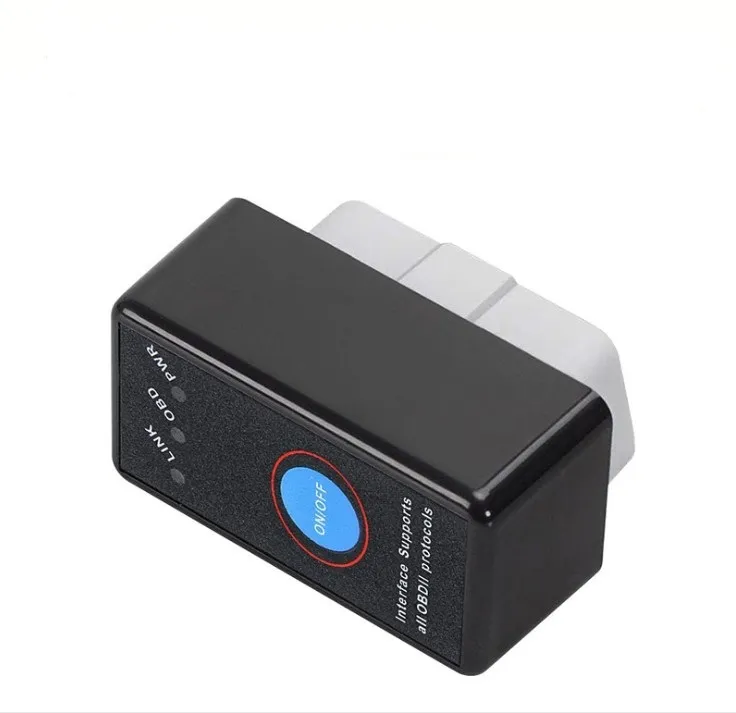

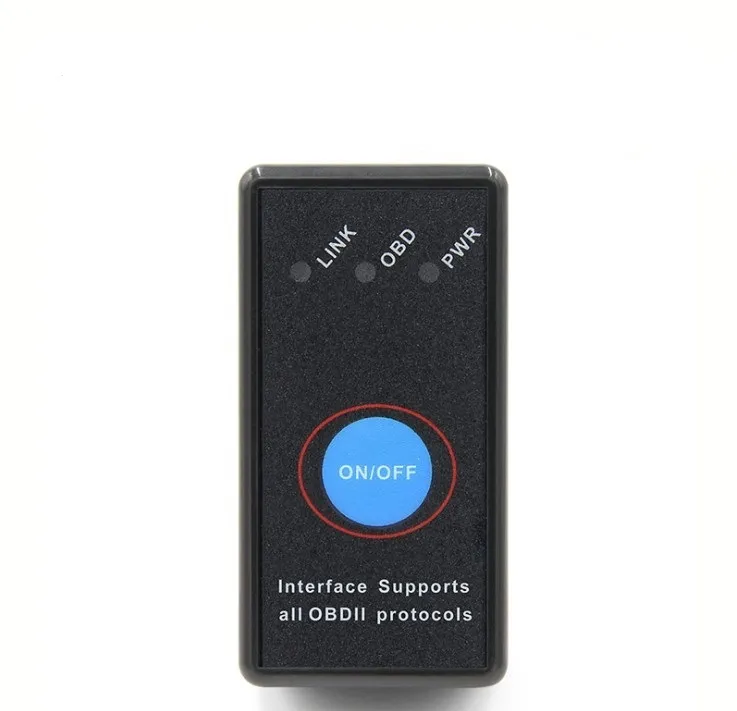

ELM327 Bluetooth OBD2 CAN-BUS Scanner Tool With Switch Work With Android

ELM327 Bluetooth OBD2 CAN-BUS Scanner Tool V2.1 with Switch Work with Android

ELM327 Bluetooth OBD2 CAN-BUS Scanner ToolFeatures:
OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols
0. Automatic
1. SAE J1850 PWM(41. 6Kbaud)
2. SAE J1850 VPW(10. 4Kbaud)
3. ISO9141-2(5 baud init,10. 4Kbaud)
4. ISO14230-4 KWP(5 baud init,10. 4 Kbaud)
5. ISO14230-4 KWP(fast init,10. 4 Kbaud)
6. ISO15765-4 CAN(11bit ID,500 Kbaud)
7. ISO15765-4 CAN(29bit ID,500 Kbaud)
8. ISO15765-4 CAN(11bit ID,250 Kbaud)
9. ISO15765-4 CAN(29bit ID,250 Kbaud)
A. SAE J1939 CAN(29bit ID,250*Kbaud)
B. USER1 CAN(11*bit ID,125*Kbaud)
C. USER2 CAN(11*bit ID,50*kbaud)
Default settings(user adjustable)
1. Works with all OBD-II compliant vehicles
2. Wireless (Bluetooth) 5~10 meter
3. Software included for Palm, PDA,Mobile
4. Software included for Windows PC
5. Software included for Windows Smartphone

Functions:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL (“Check Engine” light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
19. Many others. . .
Output Protocol: RS232 to bluetooth
Frequancy: 38400
Voltage: 12V
Current: 45mA
Bluetooth: 10m
Switch: YES
Supported platform: Android, Symbian, Windows Mobile, palm, pc, pocket pc

Software:
1. For Android: Torque+1.5.58+
2. For Symbian: OBDScope V1.21
For WindowMobile-palm-pc-pocket pc:
3. ScanMaster–ELM v2.1-pc
4. PCMSCAN-pc
5. OBD2Spy
6. ELM327-V1.2-pc
7. EasyOBDII
8. wOBDCRAZY
Software CD is included.
Size: 33*48*25
Net Weight: 44.6g
Screenshot (Android System):

ELM327 Bluetooth OBD2 CAN-BUS Scanner ToolVehicles supported
Our device works on all 1996 to 2010 cars and light trucks sold in the United States, including:
Acura
Alfa Romeo
Ariel Atom
Aston Martin
Audi
Bentley
BMW
Buick
Cadillac
Chevrolet
Chrysler
Citroen
Daewoo
Daihatsu
Daimler
Dodge
Ferrari
Fiat
Ford
Geo
GMC
Holden
Honda
Hummer
Hyundai
Infiniti
Isuzu
Jaguar
Jeep
Kia
Lamborghini
Lancia
Land Rover
Lexus
Lincoln
Lotus
Maserati
Mazda
McLaren
Mercedes
Mercury
MG
Mini
Mitsubishi
Nissan
Oldsmobile
Opel
Pagani
Panoz
Peugeot
Plymouth
Pontiac
Porsche
Regal
Renault
Rolls-Royce
Roush
Rover
Saab
Saleen
Saturn
Seat
Scion
Shelby
Skoda
Smart
Subaru
Suzuki
Tesla
Toyota
Triumph
TVR
Vauxhall
Volkswagen
Volvo
Yugo
…..
Some 1994 and 1995 models are also supported. To see if your vehicle is compliant, pop the hood and look for this sticker:

Compatible Software and Features:
What features you can have depended on what software you install on iPhone /iPod touch /iPad/ PC. There are a lot of commercial or free software. The features of the software differ from one another. User should choose his own software by his preference. For more details about the software, please consult the software vendors.
Where can I get the software?
You can log on to the apple application store to get your commercial/free software.
There is a freeware in the CD-ROM comes along with the device. You can use this piece of software to config and test the WI-FI OBD AUTO CHECKER.
Package including:
1pc x MINI ELM327 with switch
1pc x CD drive
