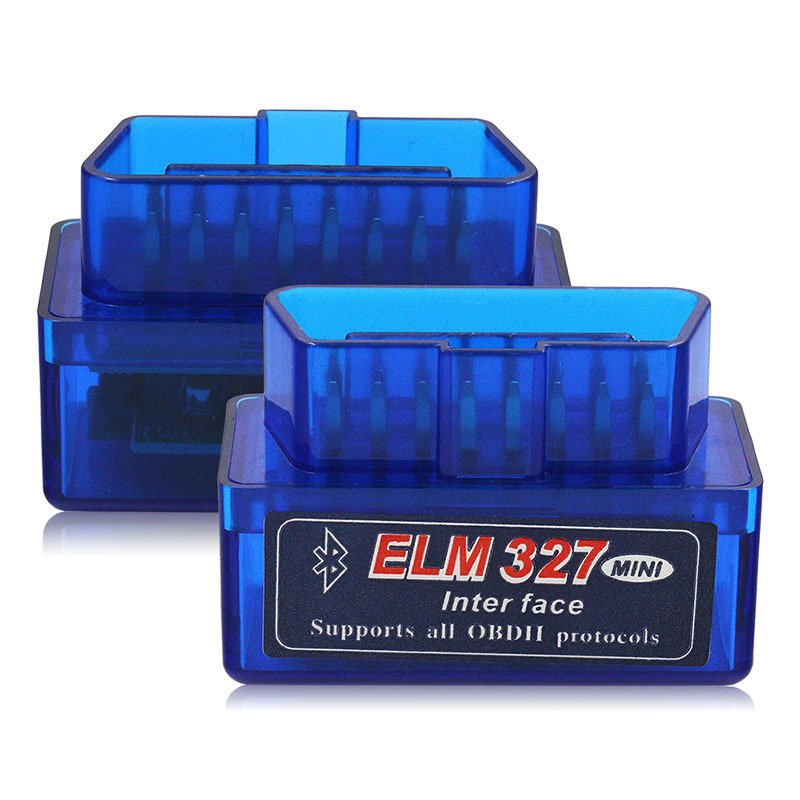

ELM327 Mini Interface Bluetooth V1.5 PIC18F25K80 Chip OBD2 Supports All OBDII Protocols

1.Type1-Type4 ELM327 BluetoothChip PIC18F25K80 (Supprts ATAL/ATTP/ATNL)

Type5-Type7 ELM327 wifiChip PIC18F25K80 (Supprts ATAL/ATTP/ATNL)

2. ELM327 will work with 12V gasoline and diesel vehicles that require OBD II protocols.

3. Support system:Bluetooth version——support android phone/PC—–connect via bluetooth

4. Multi-Language:

Russian, Czech, Danish, German, English, Spanish, French, Croatian, Hungarian, Italian, Polish, Serbian, Turkish, etc. (Language changes with OS)

5. Function:

Reads diagnostic trouble codes, both generic and manufacturer-specific, and displays their meaning (over 3000 generic code definitions in the database).

Support OBD 2 protocols car:

1. USA cars after 1998 r, fit for Chrysler, fit for Ford, fit for GM, fit for Jeep……

2. EU cars after 2000 r, such as Alfa Romeo, fit for SAAB, fit for Acura………

3. Japan and Korea cars after 2002 r. fit for , fit for Isuzu, fit for Honda, fit for Mitsubishi, ……….

4. China cars after 2005 r.

5. Russian car after 2011 years.

Standard OBD2 protocols:

1. SAE J1850 PWM (41.6 Kbaud)

2. SAE J1850 VPW (10.4 Kbaud)

3. ISO9141-2 (5 baud, 10.4 Kbaud)

4. ISO14230-4 KWP (5 baud, 10.4 Kbaud)

5. ISO14230-4 KWP (fast input, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID 500 Kbaud)

7. ISO15765-4 CAN (29bit ID 500 Kbaud)

8. ISO15765-4 CAN (11bit ID 250 Kbaud)

9. ISO15765-4 CAN (29bit ID 250 Kbaud)

A SAE J1939 CAN (29bit ID 250*Kbaud)

B. USER1 CAN (11bit ID, 125*Kbaud)

C. USER2 CAN (11bit ID, 50*kbaud) * Default setting (user adjustable)

Display current sensor data including:

1. Engine RPM

2. Estimated load value

3. Coolant temperature

4. Fuel system status

5. Vehicle speed

6. Short term fuel trim

7. Long term fuel trim

8. Intake manifold pressure

9. Timing advance

10. Intake air temperature

11. Air flow

12. Absolute throttle position

13. Oxygen sensor voltages/associated short term fuel trims

14. Fuel system status 15. Fuel pressure

Main Features:

Wireless Scan Tool, Supports All OBD2 Protocols Compatible with Most OBD II Compliant Vehicles 3000 Code Definition Database Read Diagnostic Trouble Codes 16-pin Socket Adapter for Bluetooth Interface Built-in Indicator Lights Packaging: 1 x ELM327 OBD2 Diagnostic Interface Bluetooth/-ROM (If the disk is damaged during the long time shipping please contact seller. No dispute, thanks)

How to connect the phone and use the ELM327?

A: On android phone:

1. Open the “Settings” of your android, and search for Bluetooth of ELM327: OBDll, then enter the password 1234.

2. Open the Torque–etting—OBD2 Adapter Setting—Connection Type—Bluetooth—Back–Choose Bluetooth Device. OBDII [AA:BB:CC:11:22:33]
