ELM327 V07HU OBD2 Usb Car Diagnostic tool with 25K80 FT232
it Supports All OBD2 Protocol works on Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).
Top 3 Reasons To Get MINI OBDII USB V1.1 Scanner :
1. Hardware Version: V1.1
2. Works with all OBD-II compliant vehicles
3. USB Cable
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
MINI OBDII USB Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL (“Check Engine” light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
MINI OBDII USB Scanner Specifications:
Communication: USB Interface
Master Chip: PICI8F25K80
Driver IC: FT232
Support System: Windows
Working Voltage: 9v ~ 16v
Working Current: 15mA
Standby Current: 0mA
Operating temperature: -40 °C ~ 85 °C
Working Humidity: less than 60%
Size: 45mm * 25mm * 75mm(Cable Length 1.5M)
Compatible systems:
Software support platform: Windows XP, Windows 7/8/10, MAC OS
Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
MAC OS: OBD Auto Doctor(MAC Ver.)

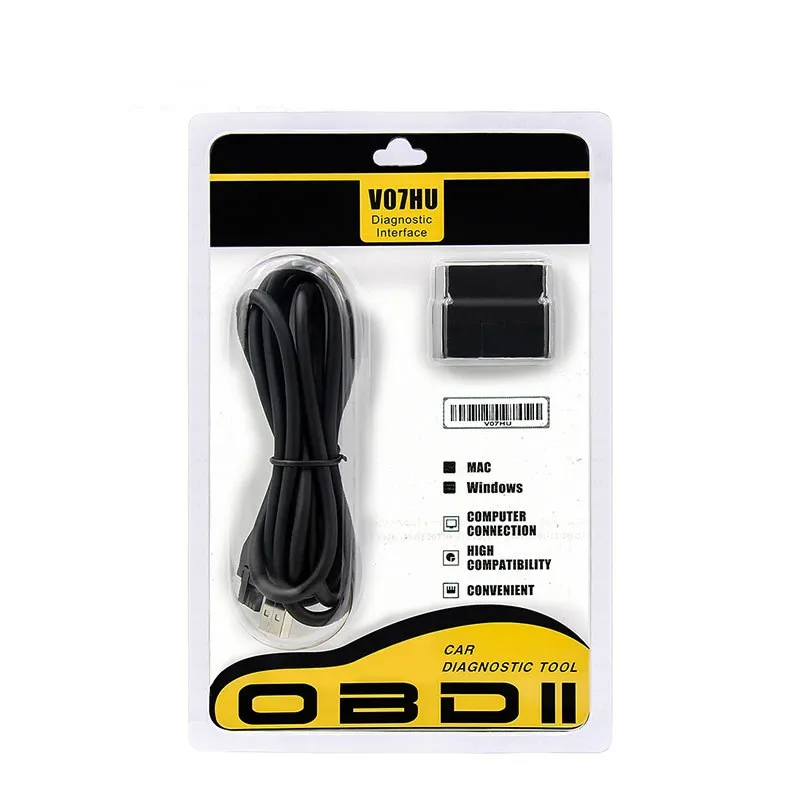

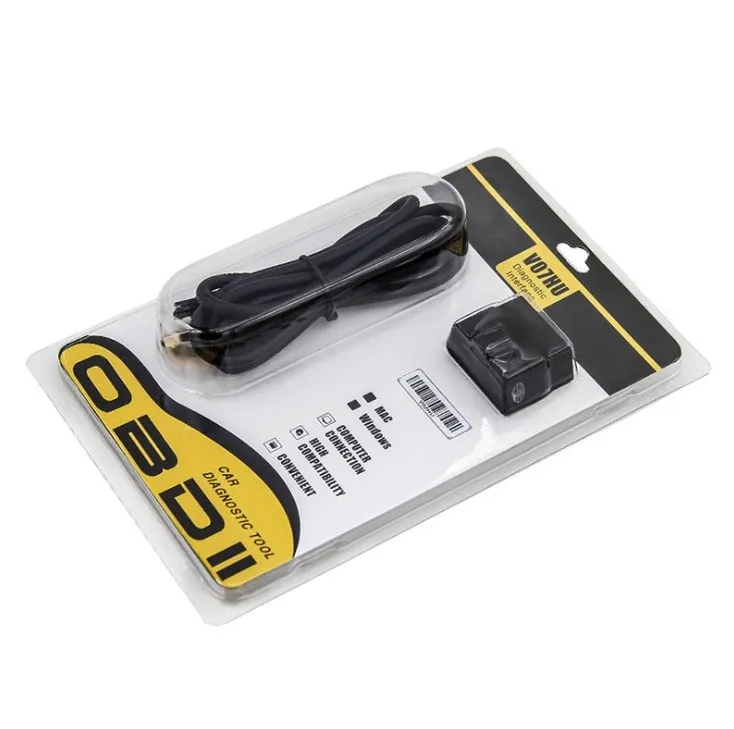

Package List:

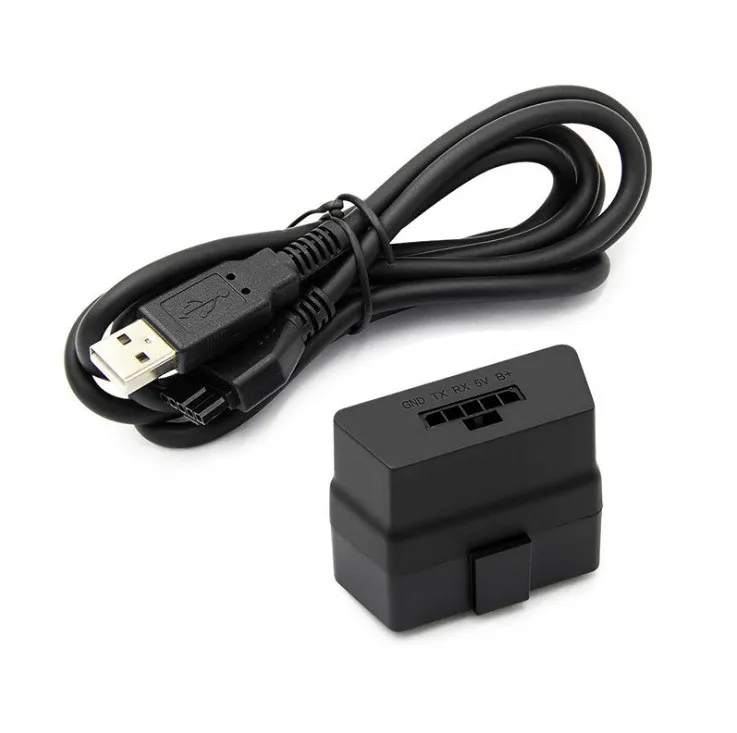

1pc x Mini OBD2 USB Diagnostic Cable
