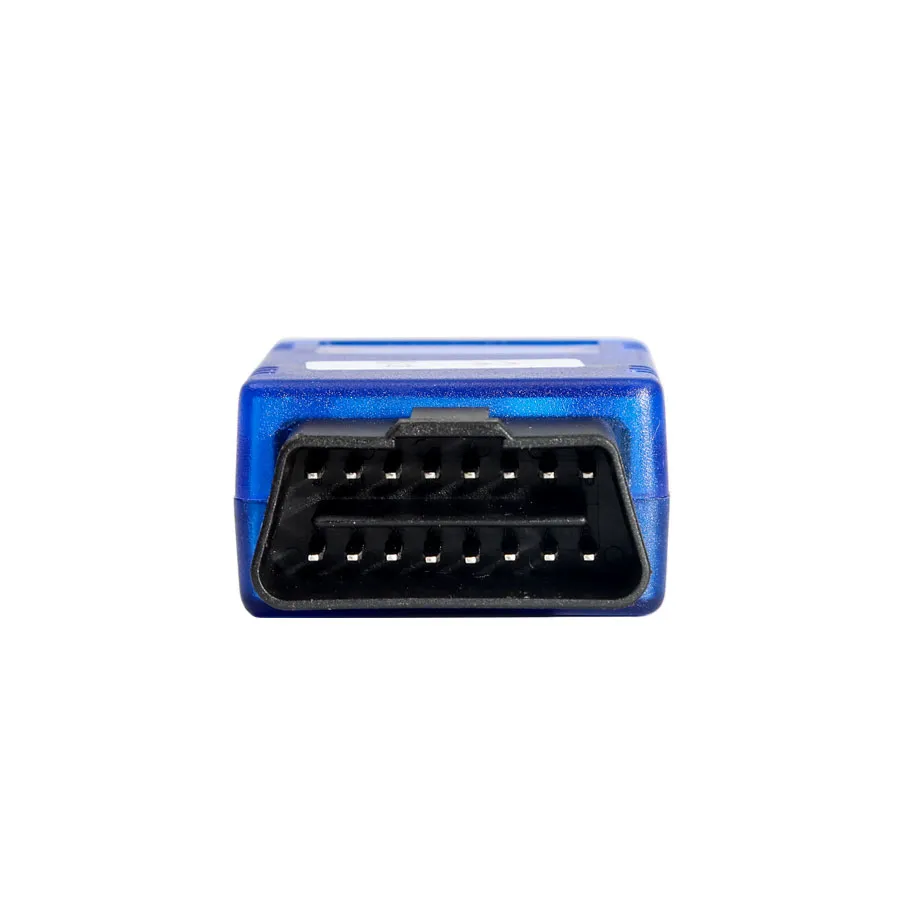

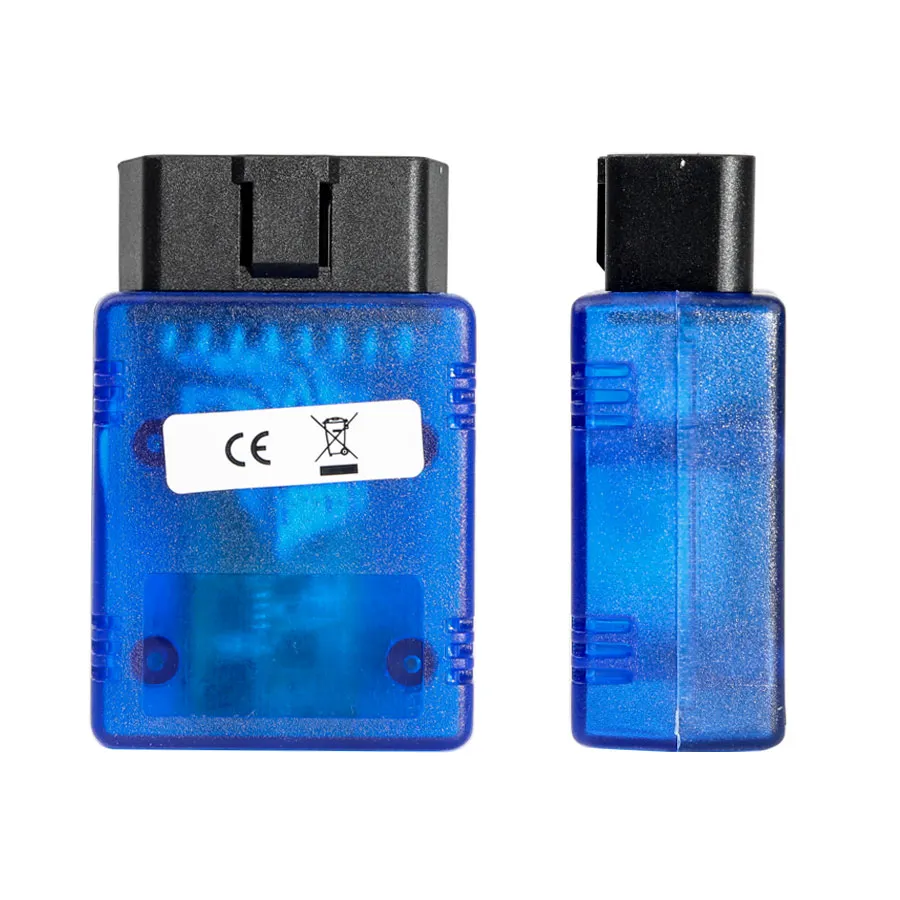

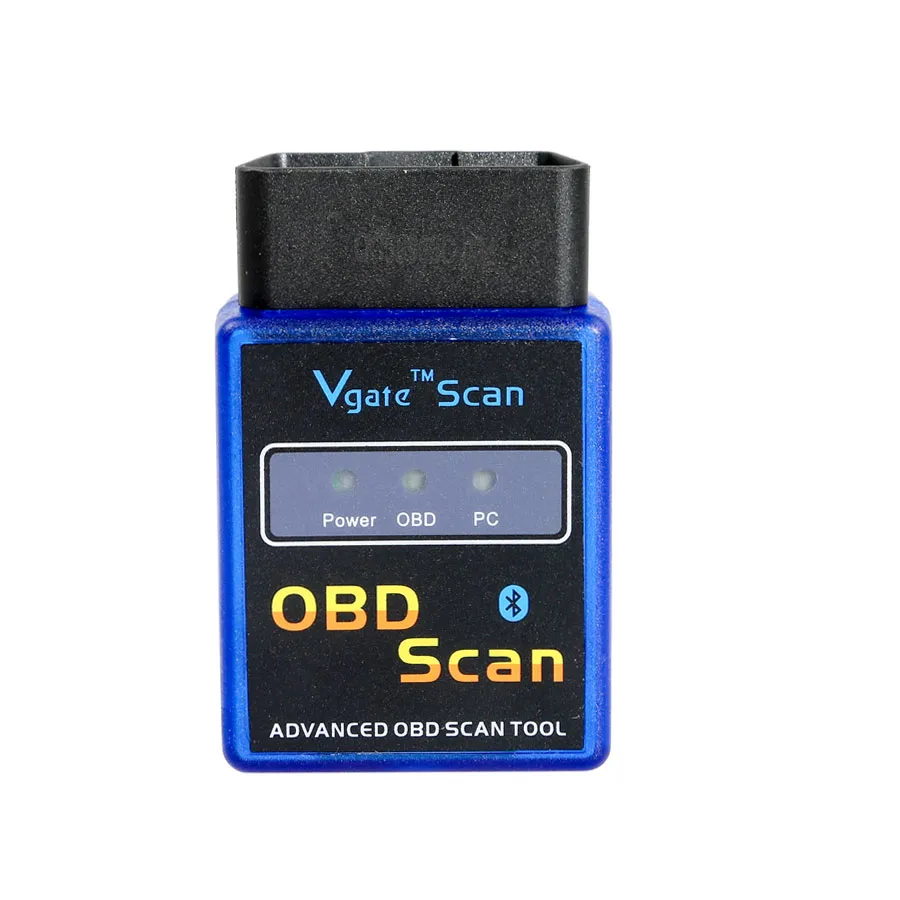

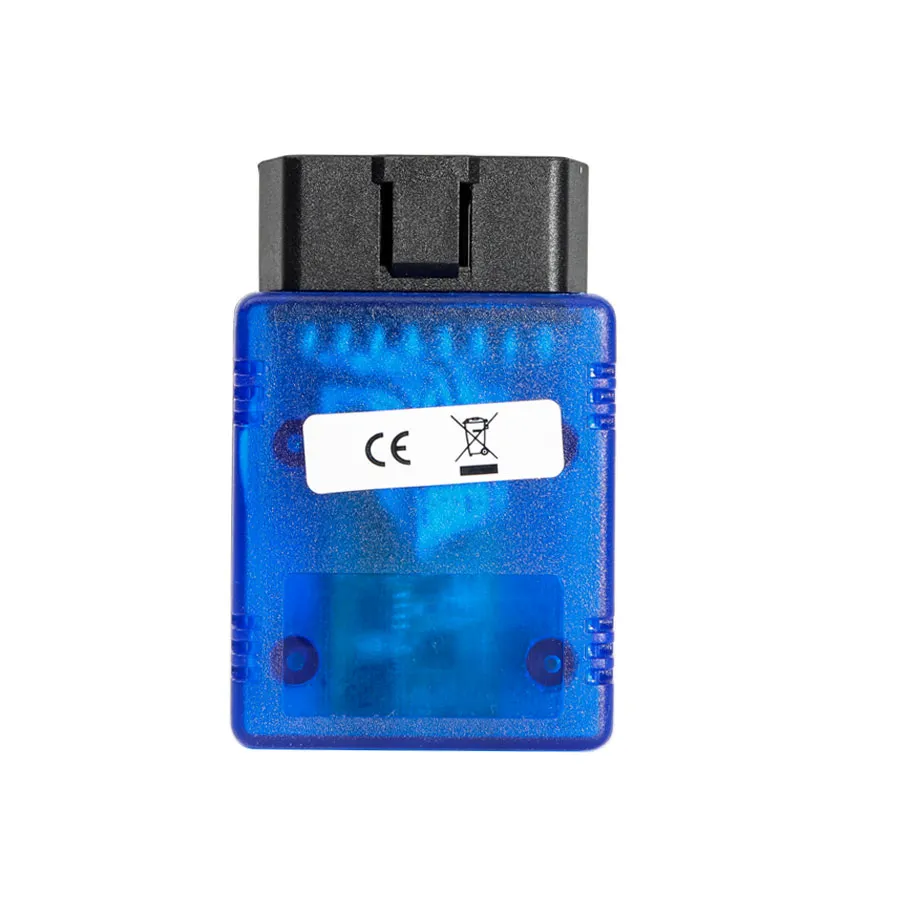

ELM327 Vgate Scan Advanced OBD2 Bluetooth Scan Tool(Support Android And Symbian)

Functions:
* Read diagnostic trouble codes, both generic and manufacturer-specific, and display their
meaning (over 3000 generic code definitions in the database).
* Clear trouble codes and turn off the MIL (“Check Engine” light)
* Display current sensor data, including:
* Engine RPM
* Calculated Load Value
* Coolant Temperature
* Fuel System Status
* Vehicle Speed
* Short Term Fuel Trim
* Long Term Fuel Trim
* Intake Manifold Pressure
* Timing Advance
* Intake Air Temperature
* Air Flow Rate
* Absolute Throttle Position
* Oxygen sensor voltages/associated short term fuel trims
* Fuel System status
* Fuel Pressure
* Many others.

Features
OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols
* Automatic
* SAE J1850 PWM(41.6Kbaud)
* SAE J1850 VPW(10.4Kbaud)
* ISO9141-2(5 baud init,10.4Kbaud)
* ISO14230-4 KWP(5 baud init,10.4 Kbaud)
* ISO14230-4 KWP(fast init,10.4 Kbaud)
* ISO15765-4 CAN(11bit ID,500 Kbaud)
* ISO15765-4 CAN(29bit ID,500 Kbaud)
* ISO15765-4 CAN(11bit ID,250 Kbaud)
* ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
Output Protocol: RS232 to bluetooth
Frequancy: 38400
Voltage: 12V
Current: 45mA
Bluetooth: 10M
Supported platform: Andriod, Symbian, Windows Mobile, palm, pc, pocket pc.

Software:
1. For Andyiod: Torque+1.5.58+
2. For Symbian: OBDScopev1.21
For WindowMobile-palm-pc-pocket pc:
3. ScanMaster–ELM v2.1-pc
4. PCMSCAN-pc
5. OBD2Spy
6. ELM327-V1.2-pc
7. EasyOBDII
8. wOBDCRAZY
software CD is included.
Size: 70*45*25
Net Weight: 55.6g

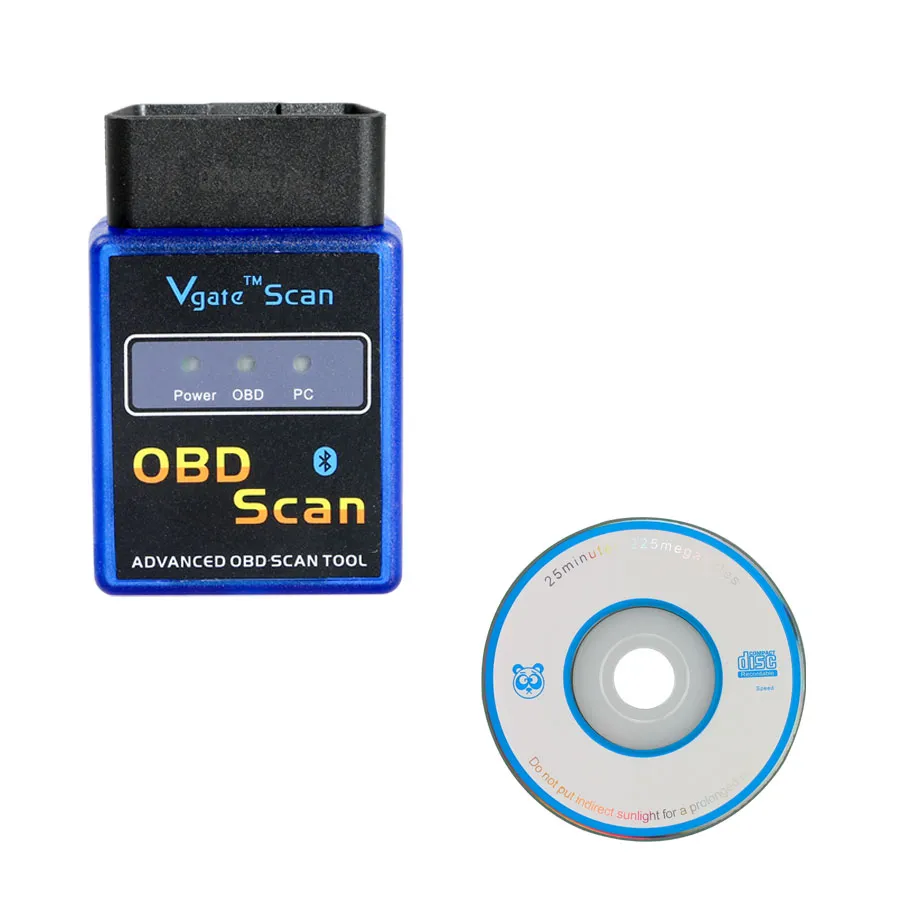

Packing List:
1 * EOBD / OBD2 Main Unit
1 * CD-ROM

Our device works on all 1996 to 2010 cars and light trucks sold in the United States, including:

Acura

Alfa Romeo

Ariel Atom

Aston Martin

Audi

Bentley

BMW

Buick

Cadillac

Chevrolet

Chrysler

Citroen

Daewoo

Daihatsu

Daimler

Dodge

Ferrari

Fiat

Ford

Geo

GMC

Holden

Honda

Hummer

Hyundai

Infiniti

Isuzu

Jaguar

Jeep

Kia

Lamborghini

Lancia

Land Rover

Lexus

Lincoln

Lotus

Maserati

Mazda

McLaren

Mercedes

Mercury

MG

Mini

Mitsubishi

Nissan

Oldsmobile

Opel

Pagani

Panoz

Peugeot

Plymouth

Pontiac

Porsche

Regal

Renault

Rolls-Royce

Roush

Rover

Saab

Saleen

Saturn

Seat

Scion

Shelby

Skoda

Smart

Subaru

Suzuki

Tesla

Toyota

Triumph

TVR

Vauxhall

Volkswagen

Volvo

Yugo

…..

Some 1994 and 1995 models are also supported.
