ELM327 WIFI V1.5 OBD2 Scanner Auto Fault Diagnosis Detector Supports Android /IOS System

$15.98

In stock
Buy it now
Brands:
SKU: GFX17696

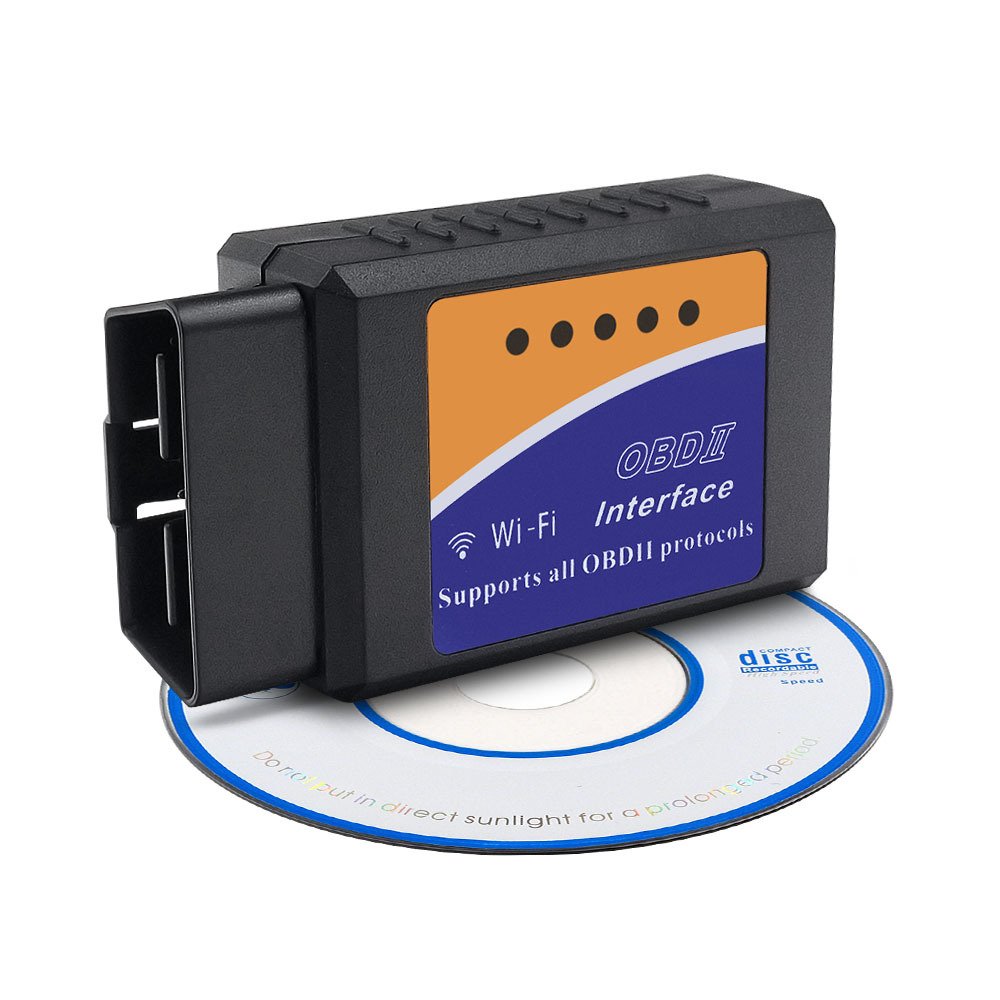

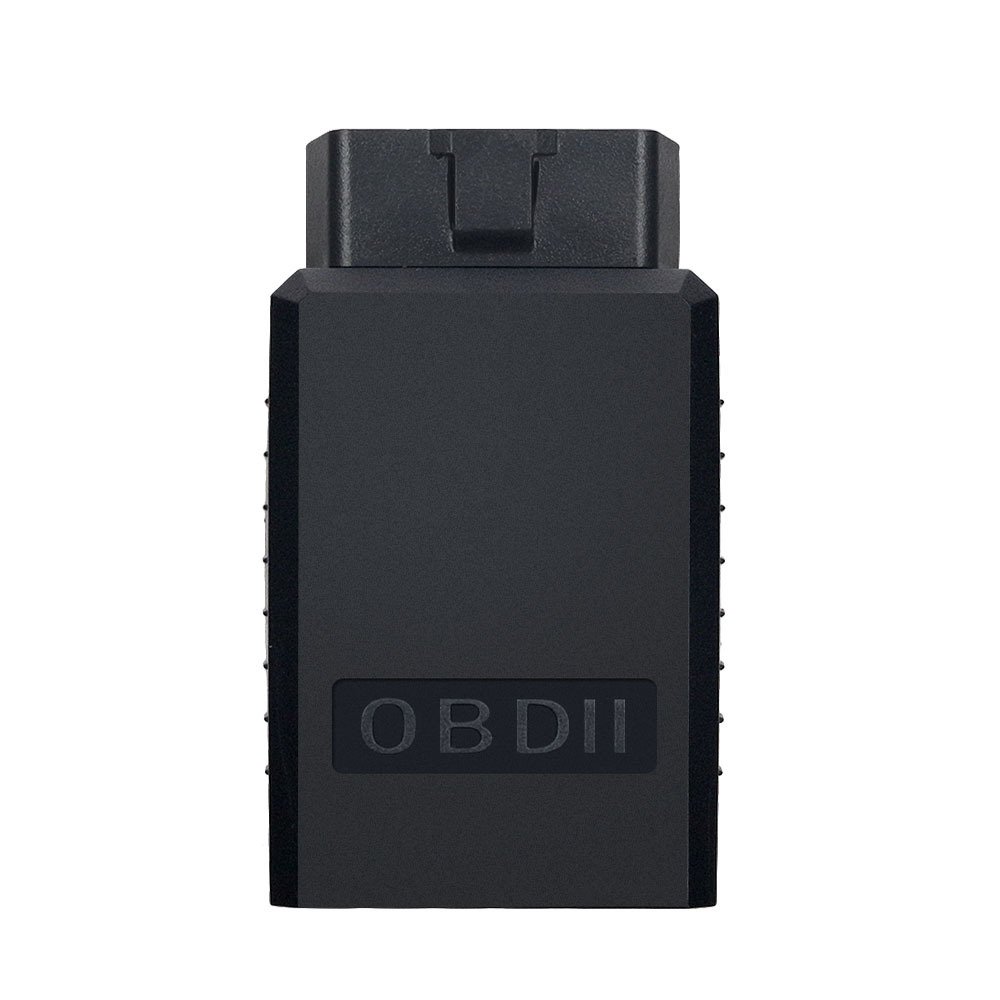

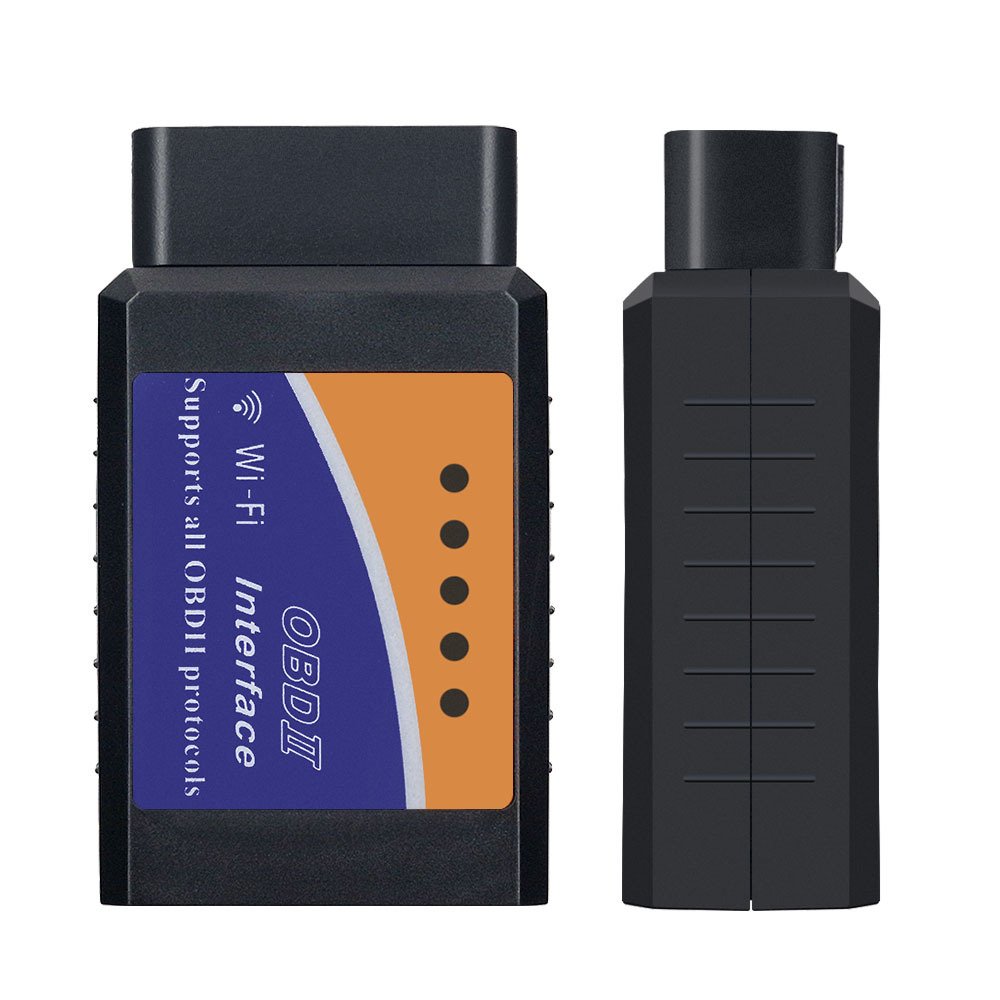

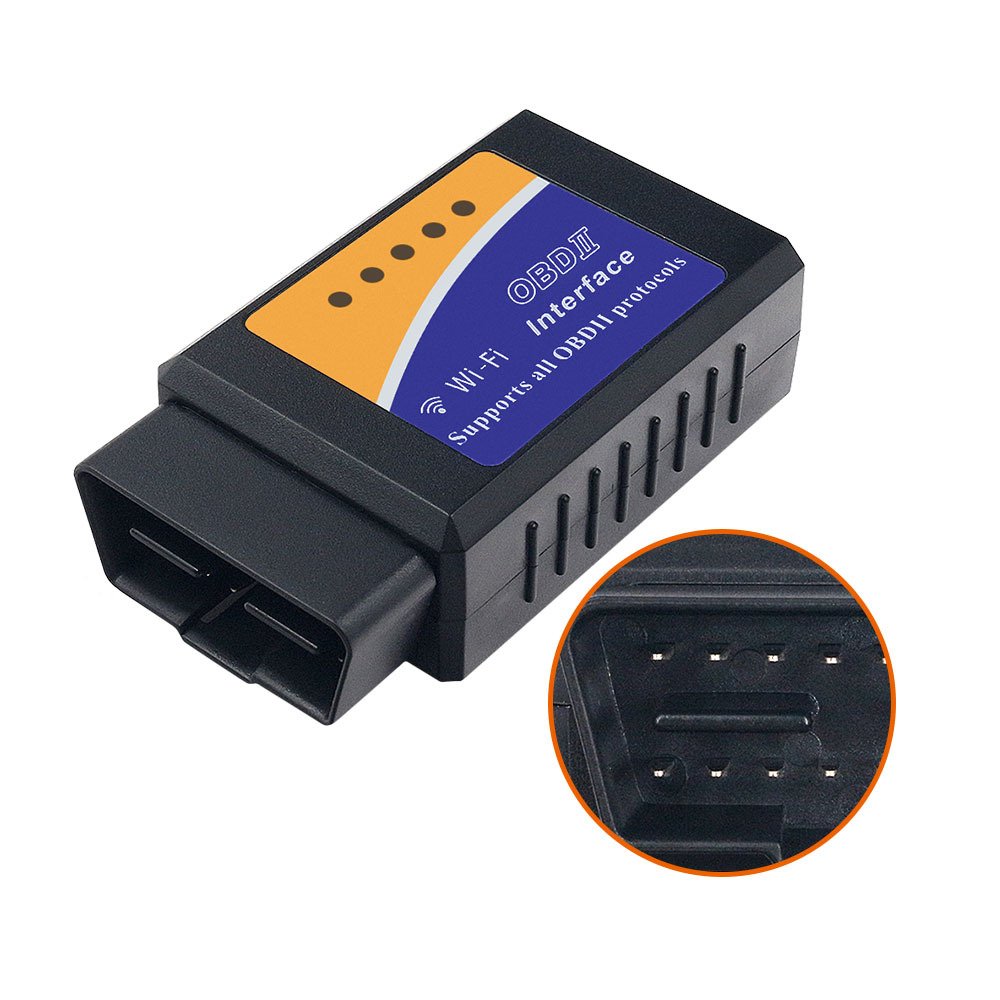

ELM327 WIFI Scanner OBDII OBD2 WIFI ELM 327 Work Android
The ELM327 WIFI OBD2 interface is an engine performance and diagnostics tool for automotive professionals and enthusiasts that allows you to wirelessly connect your car’s on-board computer from your any Wi-Fi enabled device with the compatible application or software. The WiFi connectivity makes it compatible with your iPhone, iPad, iPod Touch,Andriod,Widows PC or Mac for OBDII vehicles
Highlights:
CLEAR engine codes and check engine lights
Pays for itself with one use
i-P-h-o-n-e, i-P-a-d and i-P-o-d Touch compatible
Hassle-free setup: Setup in seconds
View real-time vehicle data while driving
Find and fix problems before they happen
Support for low power sleep mode and high-speed communication
Display real-time sensor data, including:
Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
Note : Your vehicle may not support all engine metrics. The availability of engine metrics varies depending on the vehicle make and model

Compatible Protocols

  • SAE J1850 PWM (41.6 kbaud)
  • SAE J1850 VPW (10.4 kbaud)
  • ISO 9141-2 (5 baud init, 10.4 kbaud)
  • ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
  • ISO 14230-4 KWP (fast init, 10.4 kbaud)
  • ISO 15765-4 CAN (11 bit ID, 500 kbaud)
  • ISO 15765-4 CAN (29 bit ID, 500 kbaud)
  • ISO 15765-4 CAN (11 bit ID, 250 kbaud)
  • ISO 15765-4 CAN (29 bit ID, 250 kbaud)

ElM327 WIFI detects and interprets these protocols automatically. It also provides support for high speed communications and a low power sleep mode. There are plenty of compatible software packages available that offer useful features such as real-time engine parameters and Engine check light reading and clearing. The iPhone iPad or iPod touch connection is made by WIFI in adHoc mode.

Technical Specifications

  • SSID: WiFiOBD
  • IP: 192.168.0.10
  • Subnet: 255.255.255.0
  • Port: 35000
  • Range: 50 FT (Line of sight)
  • Antenna Type: Internal
  • Power Consumption: 0.75 Watts
  • Wi-Fi Standard: 802.11a/b/g
  • Operating Temperature: -15 to 100C
  • Dimensions: 2.75 x 1.25 x 1.2 inches

What’s Included:

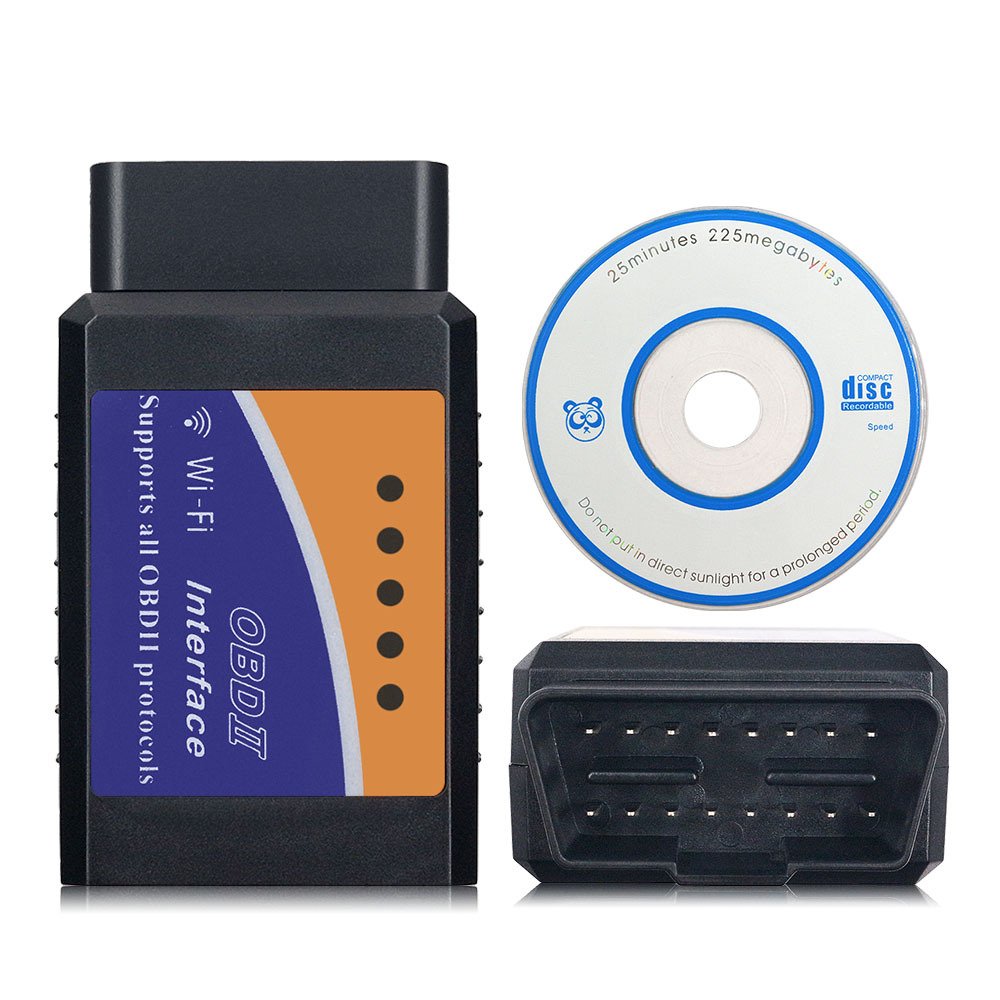

  • ELM327 WIFI OBD2 Scanner
  • Optional Software CD
  • Easy Setup Guide
Weight 0.1 kg
