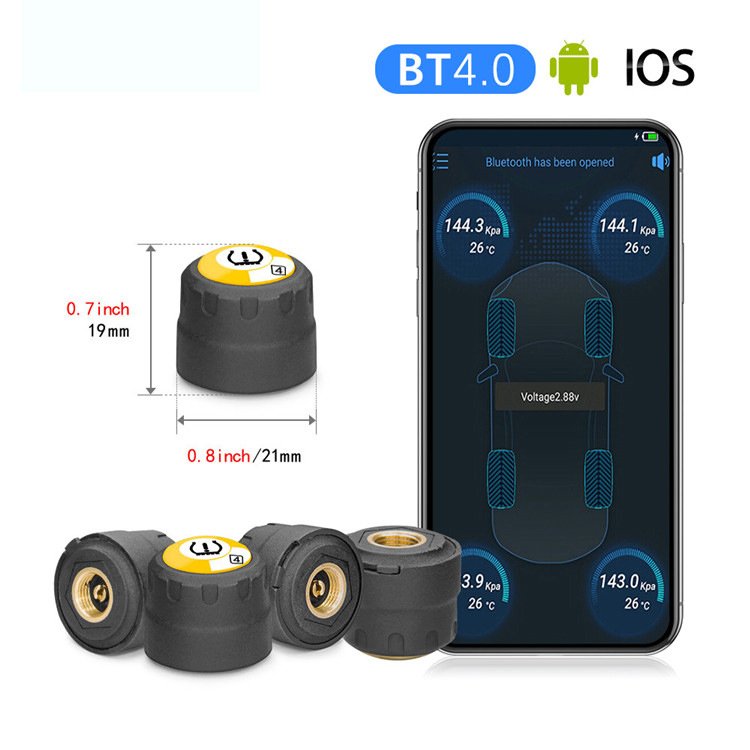

External Car Tire Pressure Monitor V11B Bluetooth 4.0 BLE TPMS Support Android iPhone

Thanks for choosing our BLE TPMS product which is designed for smart cellphones and supports cellphone with Bluetooth 4.0 or above.
Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics’ abnormal. For your safety, please read manual before using, thank you!

WARNING：
1: Support cellphone with Bluetooth 4.0 or above. Do NOT support Cellphone with Bluetooth lower than 4.0.(Due to the different hardware performance of android phone manufacturers, data transmission may be delayed, which is a normal phenomenon)
2: Product displays by cellphone. During driving, please be careful when viewing tire pressure and temperature in cellphone.
3: If tire pressure accelerates down or up continuously,please stop car and check if there’s any problem with the tire.
4: This product can read tire pressure and temperature, but it cannot avoid sudden accident caused by tire. It’s important to use tire with high quality.
5: Slightly tire leakage makes tire pressure decreases over time is normal. It has nothing to do with this product installation.

Outer Sensor Installation

Each sensor has a unique ID code. Please make sure sensor installed on corresponding tire valve.

Installation Diagram:

Corresponding sensor silkscreen indication:

Note: When spin the sensor to tight, please open the APP in cellphone (Choose Auto Pair) and Press “Search” button at the same time to finish sensor bind shortly.

Attention:
1) Please follow the mark and install sensor on corresponding tire;

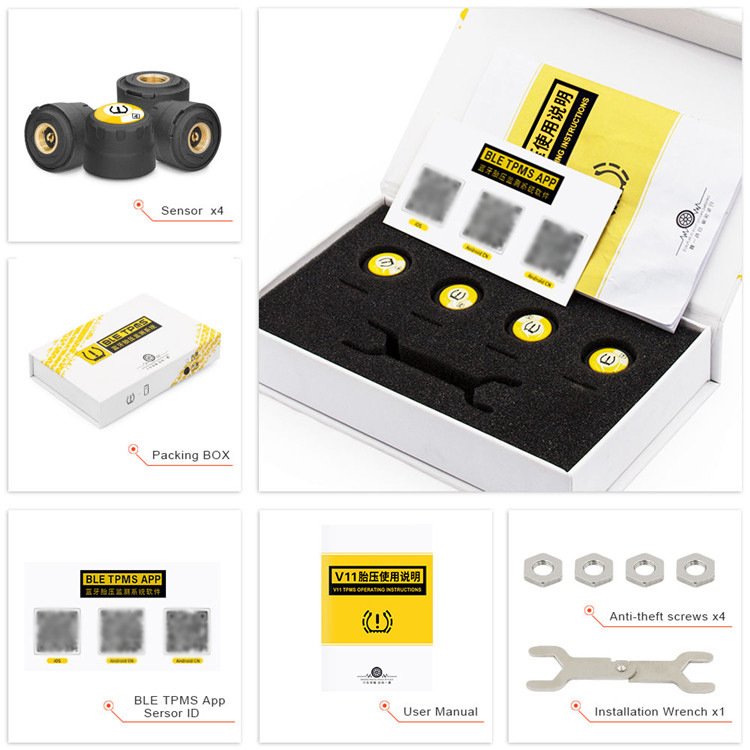

2) Please save the installation tools (screws and wench) in car, for installing or un-stalling sensor
3) After sensor installation, please check if there’s tire leakage.

Sensor Specifications:
Processor: ARM M0
Working Voltage: 3V
Working Current: 100μA
Standby Current: ≤ 2.2μA
Bluetooth Working Frequency: 2.4GHz
Bluetooth Transmitting Power: 0dBm MAX
Wait Time: ≤ 5s
Display: Phone APP
Waterproof Standard: IP67
Working Humidity: 95% MAX
Tire Pressure Detection Range: 100-1300kPa
Tire Pressure Detection Accuracy: ± 10kPa
Tire Temperature Detection Accuracy: ± 3℃
Working Temperature: -30℃ ~ +80℃ (Outer Sensor)
Storage Temperature: -30℃ ~ +85℃ (Outer Sensor)
Battery Capacity: 140mAh (Outer Sensor)
Battery Life: 3~5 Years (Outer Sensor)
Sensor Weight: 8g±1g(Outer Sensor)

APP Description:
Compatible Operating System TPMS supports both Android and iOS, requires Bluetooth 4.0 or above.

APP Installation
Option 1: Scan QR code on card, then download and install;
Option 2: Search “BLE TPMS” in APP Store or Google play Store, then download and install.

Pairing instructions Recommended Pair: Scan Code
Open downloaded APP, scan code to pair with corresponding sensor ID to complete pair process. Then install sensor, wait for it to read data.

Note: If unable to read data after installation, the car needs to be driven above 20KM/H for 2-3KM, then data can be approachable.
