Ford UCDS Pro+ Ford UCDSYS Full Function Type With UCDS V1.2.7.001 Software Replace Ford VCM II Diagnostic Tool

Ford UCDS Pro+ Ford UCDSYS Full Function Type With UCDS V1.2.7.001 Software Replace Ford VCM II Diagnostic Tool

UCDS-FordNew Features:

The dashboard can be displayed from English to Chinese; the new Mondeo power can be upgraded from low to high; the navigation OPS of Escape can be flashed; the SCTprogram can be input; the SCT device (token limited) can be replaced.

Ford UCDS V1.2.7.001 Diagnostic Tool Highlight:

1.UCDS Software: V1.2.7.001
2.Ford UCDS full license adapter: full mode activated, access to existing sections of the software, such as: VBF Loader, Update Wizard and Direct Config.
3.With 35 tokens: token only need for mileage programming & ECU chip tuning function (tokens use up, send back to add token, 35usd for 35 tokens. )

The UCDS consists of drivers of the serial bus USB-serial (recommended drivers FTDI), hardware adapter and the actual UCDS-program.
The software interface of the UCDS interface has main window’s mode. You need to select the type of the vehicle or select the service mode for adapter`s firmware update or other service functions.
UCDS currently works with the following platforms: Focus II 2004-2011; Focus III 2011, 2015 ; Kuga I, Kuga II; C-MAX; S-MAX; MONDEO IV; Mondeo 2015 ; Galaxy ; Tansit; Fiesta 2008, 20015 etc..

Ford UCDS V1.2.7.001 Obd2 Scanner Descriptions:

Ford UCDS is the 2017 New Released Diagnostic Adapter with neweest software V1.2.7.001 can replace Ford VCM II perferctly, just one difference, UCDS Ford cannot key programming, but UCDS (Universal CAN Diagnostic System) for Ford can support Mileage Correction and it is full function type has 35 tokens also support special functions like VBF LOADER, UPDATE WIZARD, DIRECT CONFIG.
VBF Loader – section UCDS design software, allowing yourself to load the modules in the Ford brand vehicles, the various files in the format .VBF
Update Wizard – section UCDS design software that allows to update the software of different brands of Ford cars modules in accordance with the latest IDS software databases, subject to the availability of files on the servers. Attention! Not all modules can be updated via the data section, because update files or not laid out in the server (security policy) or module is an alternative way to update their own software (eg via USB or SD card).
Direct Config – section UCDS design software that allows for the configuration of the various modules of Ford directly. A distinctive feature of car Ford Mondeo 5.
For information – Car Ford Mondeo 5 can only be configured via this section.

What Functions of Ford UCDS need use tokens?

35 Token Credits – mainly serve to clear runs, increase engine power by programming staff at higher power (eg Ford Focus 3 150HP -> 163HP), Russification recorder Sony 2nd Generation (pink lights plastic central volume control), programming Car Ford Focus 2 2008gv continue to function when closing Autofold mirrors arming, as well as various additional operations.

UCDS Ford V1.2.7.001 Supported Vehicles:

1.Focus MK2 (2004-2014) C307
2.New Focus MK3 (2012-2017) C346
3.KUGA/15 KUGA/17 KUGA
4.Mondeo/S-Max/Galaxy
5.New Mondeo 13 (Mondeo5)
6.Explorer
7.Transit
8.Fiesta/B-Max
9.eco sport
10.And other new models

UCDS allows the user to:

– Diagnose the majority of car parts and components that are connected to a central electrical module (GEM, BCMii) through the data bus (CAN);
– Receive data embedded in the car components and modules, including their part number, version, calibration, serial number;
– Make the necessary changes to the central configuration of the car, and change the configuration of the modules and components if necessary;
– Update the calibration (firmware) of the modules and components of the vehicle, including the engine (the so-called chip tuning);
– Perform regular language adaptation of the audio modules manufactured by SONY (Russian language only);
– Other…
The UCDS consists of drivers of the serial bus USB-serial (recommended drivers FTDI), hardware adapter and the actual UCDS-programm.

The software interface of the UCDS interface has main window’s mode. You need to select the type of the vehicle or select the service mode for adapter`s firmware update or other service functions.

UCDS currently works with the following platforms: Focus II 2004-2011; Focus III 2011, 2015 ; Kuga I, Kuga II; C-MAX; S-MAX; MONDEO IV; Mondeo 2015 ; Galaxy ; Tansit; Fiesta 2008, 20015 etc..

NEW v1.26.005 software is Available:

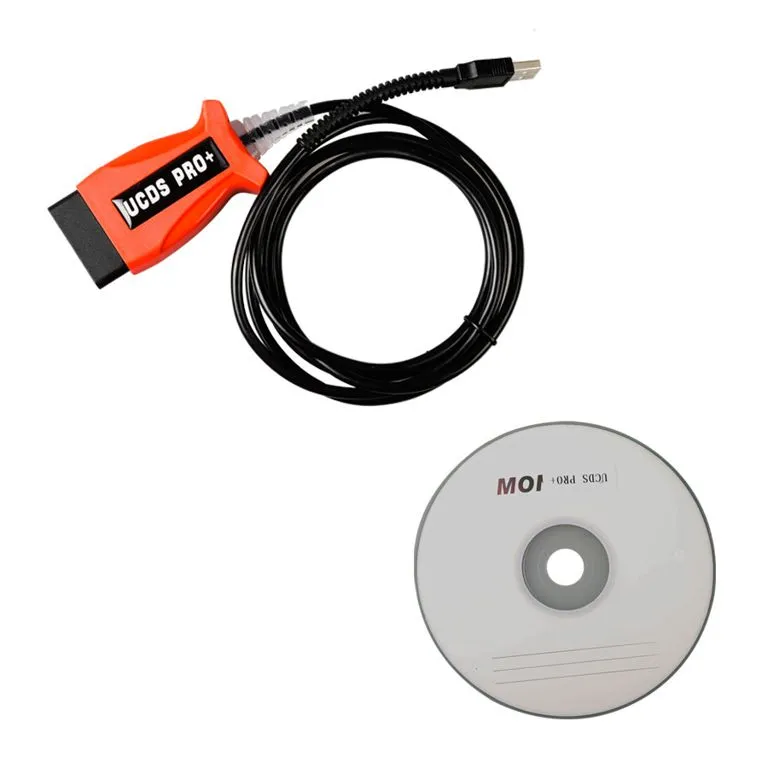

Package List:

1pc x UCDS-Ford
