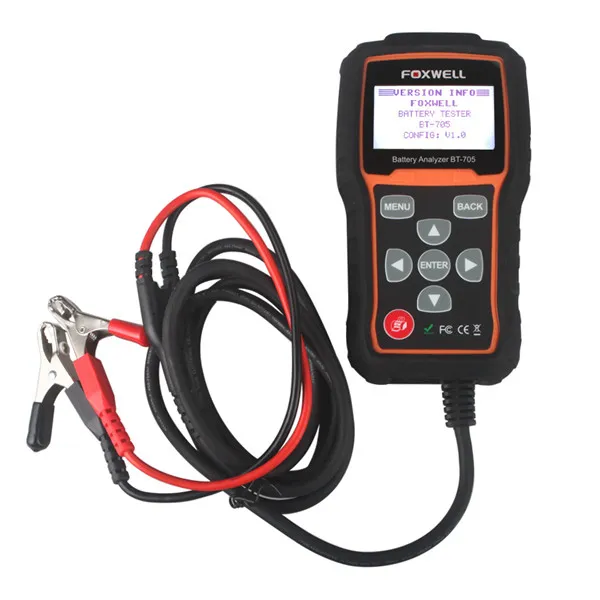

Foxwell BT-705 Battery Analyzer
FOXWELL BT705 is a upgraded version of BT100pro, in addition to analyze the battery healthy, it can also allows you check car cranking system and charging system. BT705 is a professional battery tester for enthusiasts, small garages, independent repairs. The newly developed BT-780 battery analyzer aims to test start-stop AGM and EFB batteries. Advanced conductance test, ripple voltage test and built-in thermal printer provide a quick, easy and solution for technicians.
Foxwell BT705 Features and Benefits:
* Multiple vehicle applications -passenger cars and duty trucks
* Tests batteries from rated from 100 to 2000CCA
* Tests multiple battery types- regular flooded,AGM flat plate ,AGM spiral and gel
* Tests multiple rating systems-CCA,BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB
* Tests the batteries on the car directly- no need to remove the battery
* Detects bad cells
* Quick and accurate test result display in just 3 seconds
* Tests 12&24 volt charging system
* Advanced starter /alternator test
* Quick starter analysis without disabling the ignition
* Does not emit light,heat or spark ,or discharge battery-keeps operation safe for all levels of users
* Automatic temperature compensation
* Ripple voltage test for easy and intuitive check of faults
* Extremely easy to use with large backlight LCD display and menu-driven operation
* Optional Bluetooth printer(You can not use your own printer,you should use the relevantprinter which is provided by the factory)
Multiple Battery Type Test:
FOXWELL BT705 Battery Analyzer is dedicatedly developed to test 12V regular flooded, AGM flat plate, AGM spiral and gel batteries and 12V & 24V starting and charging system. It provides a quick, easy and affordable solution for technicians to check battery health and detect faults of starting and charging system.
Vehicle Battery Analysis:
GOOD BATTERY:Battery is in good condition.
GOOD-RECHARGE:Battery is in good condition but low current.
CHARGE & RETEST:Fully charge the battery and retest. If you still get CHARGE & RETEST after fully charge the battery, replace it.
REPLACE BATTERY:The battery is almost dead or the connection between the battery and battery cable is poor. Replace the battery and retest; or disconnect the battery cables and retest the battery using the out-of-vehicle test.
BAD CELL-REPLACE:The battery may be damaged.
Vehicle Cranking Analysis
CRANKING NORMAL: The starter voltage is normal and the battery is fully charged.
LOW VOLTAGE: The starter voltage is low and the battery is fully charged.
CHARGE BATTERY: The starter voltage is low and the battery is discharged. Fully charge the battery and repeat the starter system test.
REPLACE BATTERY: Battery must be replaced before the starting system can be tested.
NO START: No vehicle start detected.
CRANKING SKIPPED: A start was not detected.
Vehicle Alternator Charging System Analysis:
NO PROBLEMS: System is showing normal output from the alternator.
NO OUTPUT: No alternator output detected. Check connections to and from the alternator, especially the connection to the battery.L
OW OUTPUT: Alternator not providing sufficient to power the system’s electrical loads and charge the battery. H
IGH OUTPUT: Alternator voltage output exceeds the normal limits.E
EXCESSIVE RIPPLE: Excessive AC ripple detected. One or more diodes in the alternator are not working or there is stator damage
Foxwell BT705 Software Display:
Foxwell BT705 FAQs:
Q1:If i had a battery that was in good condition, but simply needed a charge, what would the unit tell me? Would it say good or bad?
A1:Yes, it will tell you if the battery just needs a re-charge , or it needs to be replaced. This unit is very simple to operate. It tests also the charging system of the car.
Q2:Can you test 12 volt deep cycle batteries?
A2:I use it on everything up to 8D AGM.
Q3:Does the bt705 test 6 volt batteries? the instruction manual online says “developed to test 6v & 12v batteries”, description here says it does not?
A3:Sorry,FOXWELL BT705 can not test 6V batteries
Q4:Dose it support a spiralcell agm battery?
A4:BT705 battery tester will test a spiral cell agm battery.
Q5:What is the minimum amount of voltage to make tester work?
A5:I don’t know exactly but it should be much lower than 9 voltages because the ignition for a car needs at least 12 voltages, so… If you battery is dead… This tester is gonna tell you that your battery needs to be replaced, recharge or good battery…
Foxwell BT705 Specifications
Display: Backlit, 128*64 pixels,graphic
Dimensions: 190*90*36mm (L*W*H)
Operating temperature: 0 to 60°C (32 to 140℉)
Storage Temperature: -20 to 70°C (-4 to 158℉)
Foxwell BT705 Package including:
1pc×Battery Analyzer BT-705 Main Unit
1pc×User’s Guide
1pc× Carry Pouch
