FOXWELL NT710 Car Diagnostic Tools Full System Auto Detector 30+ Reset ODB OBD2 Automotive Scanner

Foxwell NT710 Professional Diagnostic Scanner

1.Diagnostics for all systems. The Foxwell NT710 lets you scan all the available systems for problems. From the engine and transmission to the ABS, SRS, EPS, wheels and every other on-board system.

2.Full OBD2 Check,the Foxwell NT710 Elite will display and clear generic codes in all the available systems. Just as important, it allows you to view freeze frame data so that you know when a code was registered. And you can also pull live sensor data to check the health and performance of various components.

3.Many reset functions. First of all, you can use the Foxwell NT710 to reset (turn off) the Check Engine Light. The same goes for all other warning lights. In addition to that, it supports oil reset, EPB reset, SAS reset, battery reset, DPF reset, TPS reset, ABS bleeding etc.

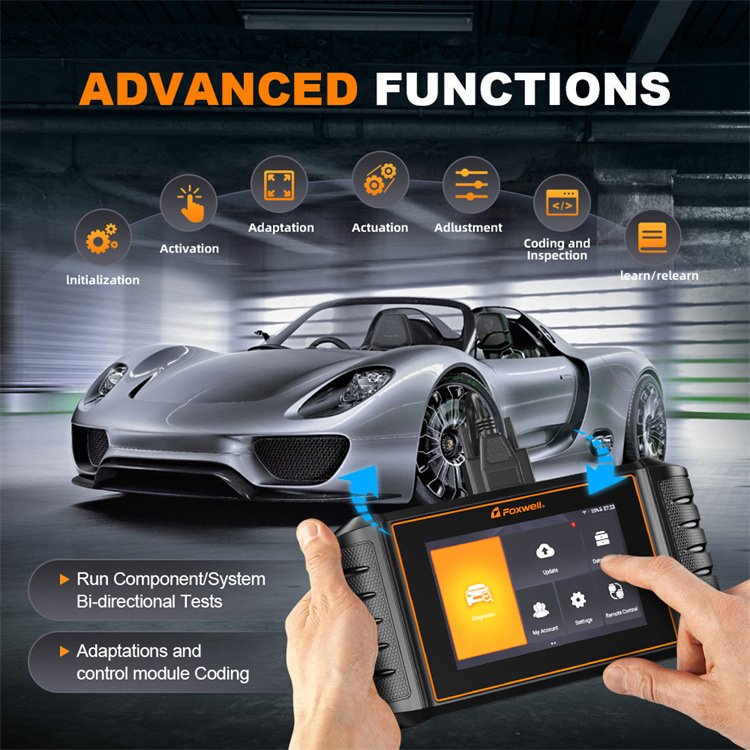

4.Bi-directional controls. You can initiate bidirectional control tests with the Foxwell NT710 . It will command the component to perform as if the command was from the PCM. For example, you can fold mirrors, roll windows, open/close doors, activate/deactivate brakes using this scanner.

5.Active tests and adaptations. While you won’t actually be able to do coding and programming, you can perform active tests and relearn new components. That means you can use the tool to replace components like battery and sensors and to relearn steering angle position, throttle position etc.

6.Multilingual: support 13 kinds of language, Korea, Spanish, Portuguese, French,Swedish, English, Dutch, Japanese, Italian, German,Russian, Hungarian, Greek

7.Lifetime Free update: Online free upgrade to obtain the latest bug fixes, new vehicles, newly added parameters and functionality at your fingertips, and two-year warranty is offered. if you have any problem, you can contact me, i will help you solve.

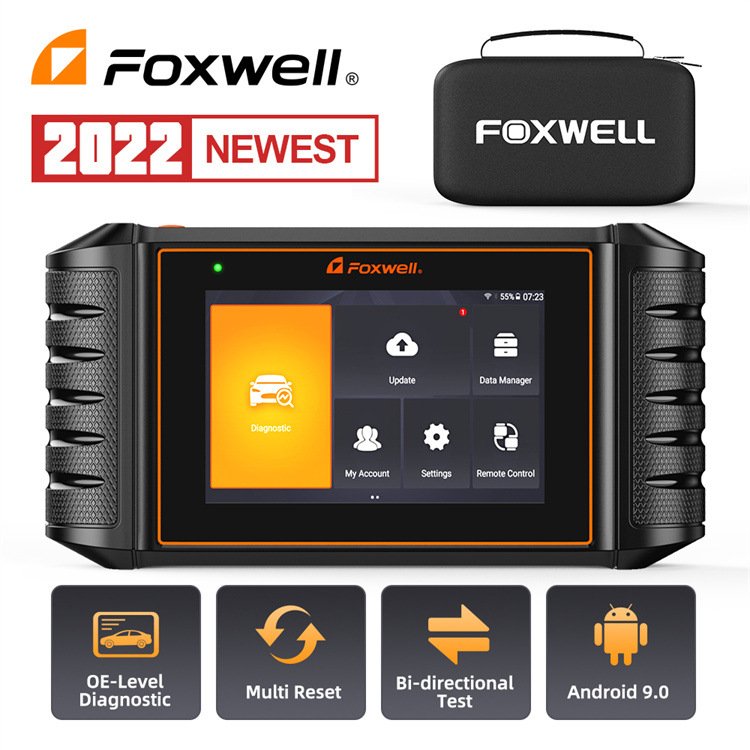

8. NT710 is 5.5inch Anroid tablet, it makes diagnostic more convenience. and upgrade via WiFi, get rid of the USB cable and card reader, no troubles.

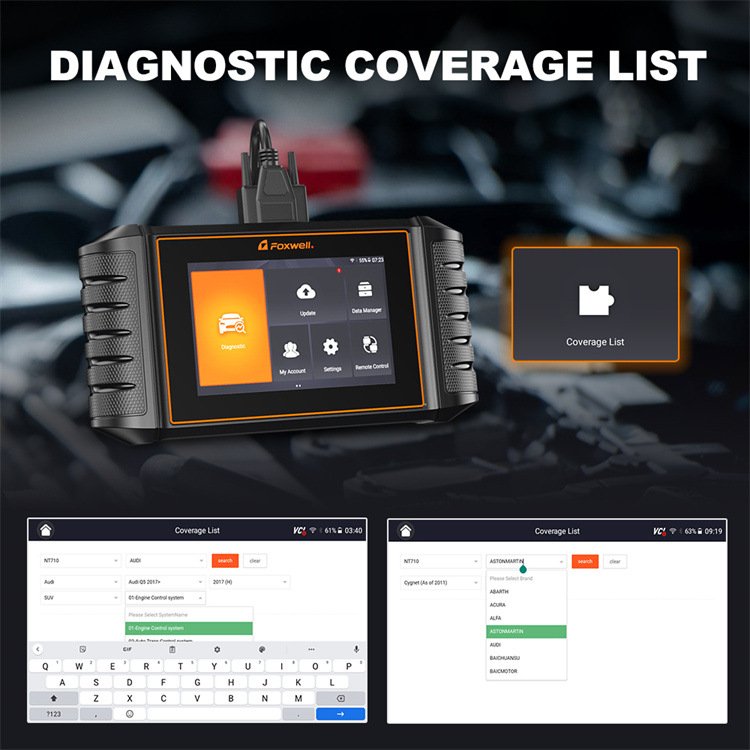

9. Support Check Diagnostic Coverage List online

NOTE: Foxwell NT710 come with one free software(not one vin), if you need other software, please contact me. or buy one foxwell official website

What Upgrade We Did on NT710 Compare with NT510 Elite?

1. NT710 is 5.5inch Anroid tablet, it makes diagnostic more convenience. and upgrade via WiFi, get rid of the USB cable and card reader, no troubles.

2. Support Check Diagnostic Coverage List online

30+ Reset Service Functions (ALL FREE, NEEDN’T EXTRA FEE):

1. Oil Light Reset – Allows you to reset the service lamps for a new calculation of engine oil life system once changed the oil. The service indicator system is designed to alert the driver when the vehicle is due for a service.

2. ABS Bleeding – Air will get inside the brake system after replace components such as calipers, wheel cylinders. The air has to be removed by bleeding the brakes to keep a firm brake pedal. Note: This function only support the vehicles that can do AUTO bleeding.

3. Battery Matching – Lets you to have new battery validated after replacement, clear faults from the dashboard and display current battery details of the vehicle.

4. D-P-F Regeneration – Only for diesel 12V vehicle. lets you perform the forced regen cleaning to clear the blockage through continuous burning of the particulates captured in the D-P-F filter. When a regeneration cycle is completed, the D-P-F light automatically goes off.

5. SAS Match – Perform calibration of the Steering Angle Sensor to keep the car running straight. On successful calibration of the sensor, its fault memory is automatically cleared.

6. Injector Coding – Write the new injector code into the car system for correct cylinder injection quantity. -For gasoline or diesel 12V vehicle.

7. EPB Reset – Help replace and reset the brake pad. This function is required for maintenance of electronic braking system’s safety and efficiency.

8. TPS – When the motion range is not known, the ECU simply has no idea where to set the throttle. The ECU must know the full range of motion of the throttle in order for it to properly control the engine. Using the throttle position sensors in the throttle body, the ECU learns the full open and full closed positions through various states (idle, part throttle, WOT) known as a Throttle Body Alignment (TBA).

9. Replace Airbag ECU Module- Note: It will not support the airbag crash data cleaning. Helps to match the new airbag information with the ECU and let it know the fault has been repaired.

10. A/F Reset – This is utility allows for the learnt Air Fuel Ration (AFR) to be re-initialized.The Air/Fuel ratio (A/F) is the mixture ratio or percentage of air and furl dilivered to the engine by the fuel system, A/F adaptation to meet the ideal air-fuel ratio of different fuel ensure engine best performance.

Else: Seat Match/ Language Change/ TPMS Reset/ E-G-R Adaption/ Headlamp Reset/ Cluster/ Clutch Adaptation/ CVT/ EVAP Test/ Gear Learn/ ODS & OPDS/ Oxygen Sensor Test/ Prime Fuel Pump/ TCM Oil/ Transmission Adaptation/ T-U-R-B-O/ Windows-door etc.

Full System Bi-directional Scan Tool/ Active Test

Allows you to use the scan tool temporarily activate or control a vehicle system or component and to check of the electronic components such as switches, sensors, relays, and actuators.

●Auto Bleed Test/ Automated Bleed
●ABS Pump Motor Test
●Fuel Injector Pump/ Fuel Trim Reset
●Window/Mirror/ Door Lock/ Horn
●Cycle A/C Clutch On/Off
●Air Conditioning Test
●Wiper Test
●Interior & exterior lights Test
●Sound horn Test
●Brake Bleed Preparation Test + ABS Manual Control Tests + Fuel ●Composition Reset + EVAP Test + Idle Relearn + Injector Buzz Test + Pump and Value Tests + VGT Turbo Calibration……

POWERFUL ALL-SYSTEM FEATURES

NT710 auto diagnostic tool supports Body, Chassis, Powertrain check as follows:

●Version Information – read information of system mode, VIN, software and ECU.
●Read Fault Code – display detailed DTC information to find out the trouble components.
●Clear Fault Memory – erase the codes from the vehicle and turn off indicator light.
●Graphical Data Stream – retrieve and display live data and parameters from the vehicle’s ECU

Body Main Parts: Air Conditioning/ Supplemental Inflatable Restraint System(SRS/ Airbag)/ Seats / Doors / Gateway/ Windows control module/ Navigation System/ Audio Systems/ Central Locking……

Power-train: Engine system/ Exhaust system/ Fuel supply system/ Transmission system/ Four-Wheel Drive(4WD)……

Chassis: Airmatic Suspension/ Anti-lock Brake System (ABS)/ Steering Angle Sensor (SAS)/ Electronic Parking Brake (EPB)/ Steering Angle systems/ Electric Power Steering(EPS)……

Electronics Includes: Audio device/ Ignition system/ Lighting/ Sensors/ Electrical switches …….

Full OBD2 Functions for All OBDII Cars

The diagnostic scanner featuring the complete 10 functions of OBDII test with Live PCM Data Stream in graphics formats, Read/Clear DTCs and do smog tests, I/M readiness and O2 sensor tests, read freeze frame data, EVAP system test, retrieves vehicle info, Malfunction Indicator Light (MIL), Real time battery voltage and more.

Convenient OBD2 Scanners

✔ Auto VIN Scan ( Smart Diagnosis ):
Adopts Auto-VIN technology that will automatically recognize vehicle information which you get the vehicle’s make,model and year information more easily

✔ Maintain Information ( powerful & useful Function ) :
This function has a how-to for some special functions, which is about examples of operating special functions for real vehicles to help you learn the operation of the special functions; It also has Online Coding Help that will show you the steps for this function； And has Channel Information, it will show you how to do basic settings to make the channel return to its original normal value. All of this maintenance information can assist you to better resolving the vehicle’s issue

✔ DTC Library :
Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.

✔ Display Real-Time Battery Voltage
If the charging system is not working properly, the battery will not get the proper charging voltage and it could go flat. This OBDII scanner can display the instantaneous voltage across the battery terminals in a graphical way. This helps you to get early warnings for possible battery and the charging system problems

✔ Screenshot & Screen Recorder, Print Diagnostic Report

✔One Touch Update Via WiFi : Diagnostic Function is with Lifetime Free Update
It is easy to you save the diagnostic data that you want , also the diagnostic report !
It also support print Diagnostic report , Scan the QR to Share first , then print .

✔Lifetime Free Technical Support.

✔Live Data in Text and Graph Formats

Supports Multi-language

Korea, Spanish, Portuguese, French,Swedish, English, Dutch, Japanese, Italian, German,Russian, Hungarian, Greek
Note: English&Spanish is default language, if you need other language, please contact seller.

Best Choice for Car Owner, You Can Choose 1 Free Brand for Lifetime Free Use

33 Brands for Choice, Lower Cost Get Full Functions. when you click “diagnostic” menu, you can to choose your brand to download first

1. for BMW ( for BMW, for MINI, for Roll-royce)
2. for Chrysler ( for Chrysler, for Jeep, for Dodge)
3. for Ford
4. for GM
5. for Honda ( for Honda, for Acura)
6. for Mazda
7. for Nissan
8. for Toyota ( for Toyota, for Lexus, for Scion)
9. For VW （ for VW, for VW_CV, for Audi, for Bently, for Bugatti, for Lanborghini, for Seat, for Skoda)
10. for Volvo
11. for Tesla
12. for Aston Martin
13. for Benz ( for Benz, for Maybach, for Smart, for Sprinter)
14. for Ferrari
15. for Fiat ( for Abrth, for Alfa, for Romeo, for Fiat, for Lancia)
16. for Hyundai ( for Hyundai, for Kia)
17. Land Rover (for Land Rover, for Jaguar)
18. for Maserati
19. for Mitsubishi
20. for Opel
21. for Porsche
22. for Renault (for Renault , for Dacia, for Samsung)
23. for PAS (for Peugeot, for Citroen)
24. for Isuzu
25. for Suzuki
26. for Subaru
27. for Darwoo
28. for Daihatsu
29. for Proton (for Proton, for Perdua)
30. for Ssangyong
31. for TATA
32. for Fuso
33. for Saab

NOTE:

1.If you want to know whether your car includingI vehicles support list or not, please leave us message in this format, “for Audi A4 2002, 2.0T diesel, VIN:xxx , need airbag reset function”, we will reply you within 24 hours.

2.you can choose one brand to installed, or left a message, we can install software for you!

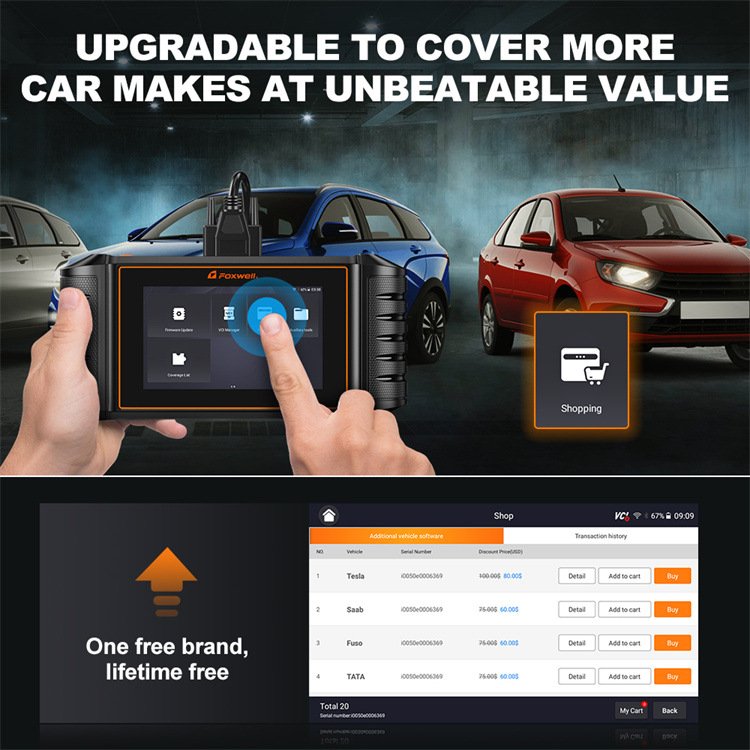

Can I add More Brands? Of Course, You Can Do That!

Upgradable to cover more car makes at unbeatable value! lifetime free!

Parameter:

• Screen Size: 5.5 inch Touch Screen
• Resolution: 1280*720 pixels
• CPU: 4-core 1.3GHz processor
• RAM: 1GB
• ROM: 32GB
• WiFi: 802.11b/g/n 2.4GHz
• USB: TYPE-C
• OBD II Input voltage range: 9~18V
• Power up via: DC 5V data cable or Diagnostic cable through connection to vehicle’s DLC
• Working Temperature: -10℃ to 70℃
• Storage Temperature: -20℃ to 80℃
• Battery: 4000mAh

Foxwell NT710 Package list

1*NT710 main unit
1* Diagnostic Cable
1*USB TYPE C Cable
1*Quick Start Guide
1*User’s Manual
