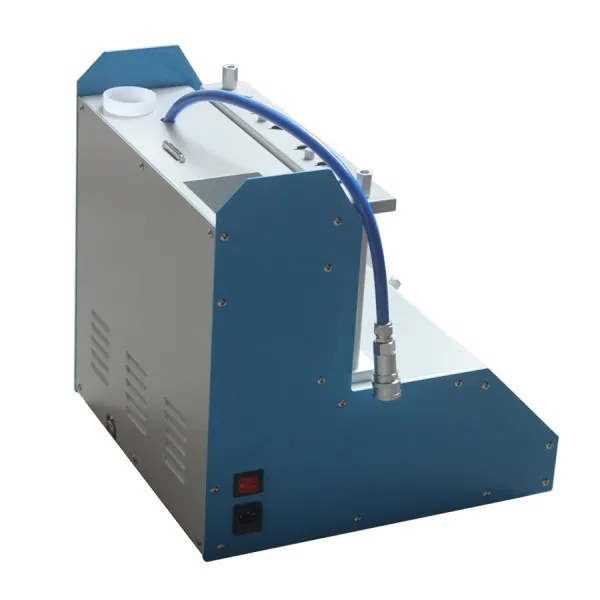

Fuel Injector Tester & Cleaner MST-A360

Feartures:
1. LED display;

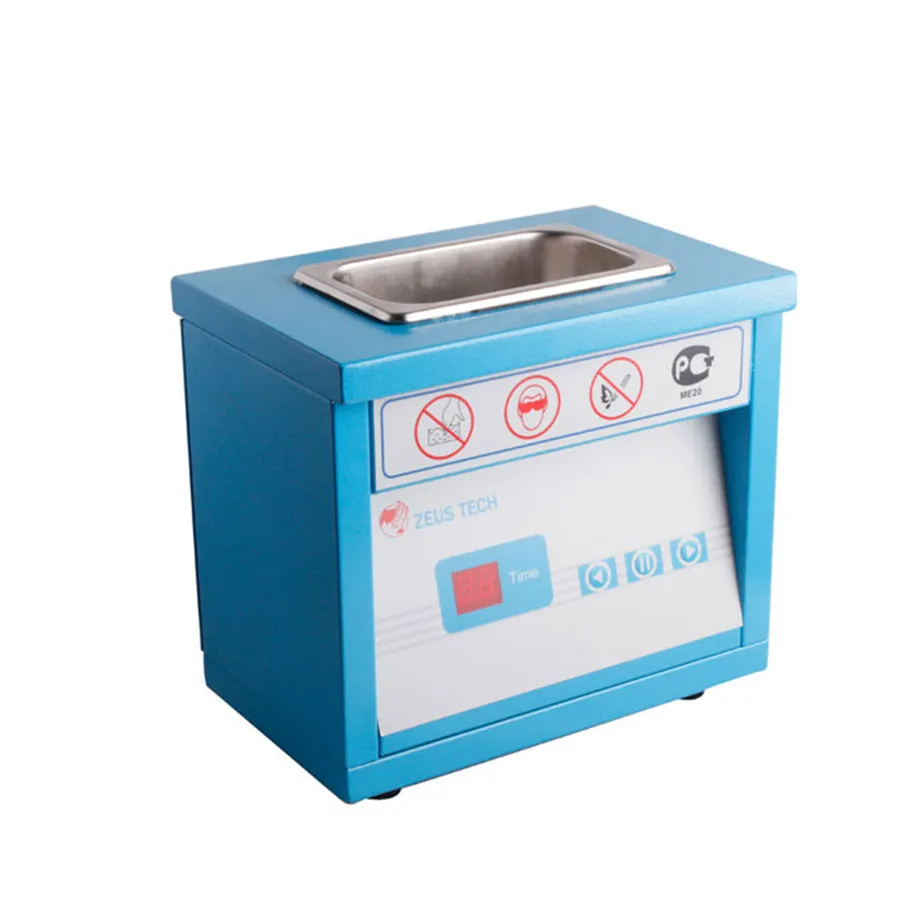

2. Ultrasonic cleaning trough built-in;
3. Tool trolley make it more conveniently to operate;
4.Equip with high quality SIEMENS pump, make it endurable;
5.It can test and clean at the same time.
Functions:
1.Ultrasonic cleaning , dismantle the carbide of the injector;
2.injector test. stimulate engine runing condition, test injector in different speed range, Check and test injectors’s injection situation:atomization/sprayingangle/spraying mount/spraying uniformity;
3.leakage and block test;
4.Uniquely designed various compound bonder for all kinds of side-inlet injectors;
5.With reverse flush function, to clean inside out, to improve clean efficiency;

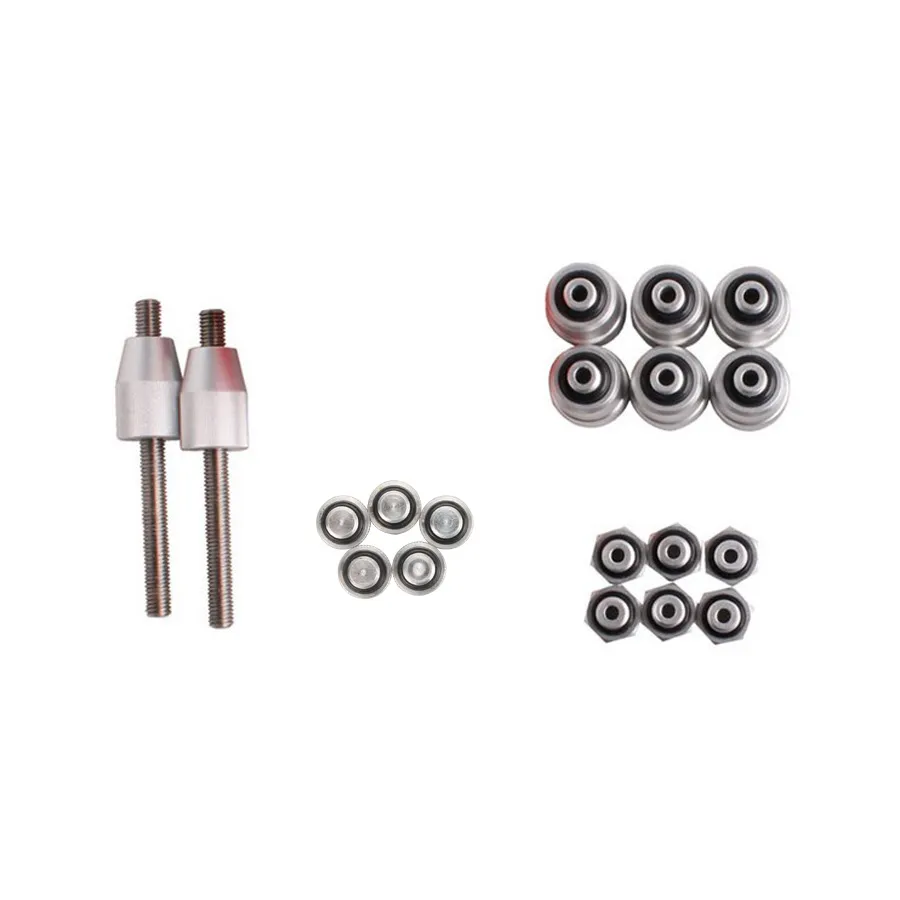

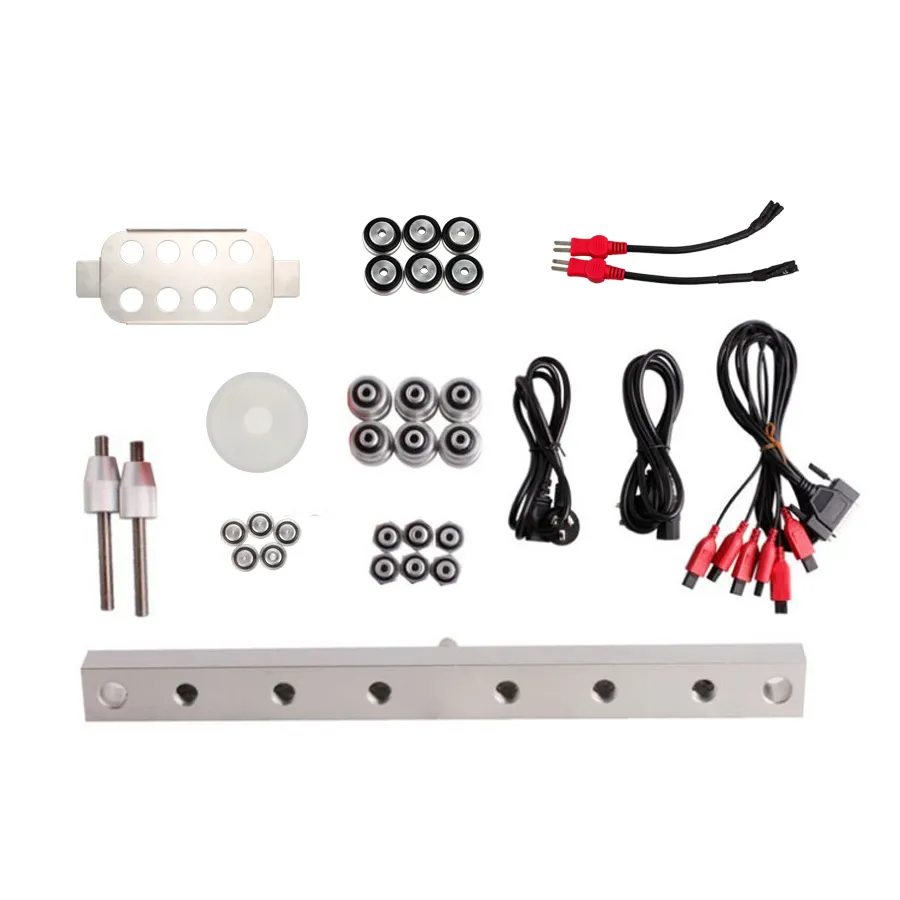

6.With a set of adaptors to clean injectors without dismantling it from the engine;
Specifications::
Turning speed range 0~7500r/min
Timing pulse iength 0~9900times/step length 100
Pulse iength 0-20ms step length 0.1ms
Timing 0~10min
System pressure 0~0.6Mpa
Ultrasonic cleaning power 70W
Power supply AC220+-10% 50/60Hz
Working temperature 10°C~40°C
Stimulant signals 0+-5V
Output scope of the pulsed signals +5V,+12V
