G-Scan Tab GVCI PC Based Diagnostics Bluetooth Solution GSCAN Device In Place of G SCAN 2 and G SCAN3

G-Scan Tab GVCI PC Based Diagnostics Bluetooth Solution GSCAN Device In Place of G SCAN 2 and G SCAN3

Video about Mazda CX3 FSC calibration GScan TAB

G-Scan Tab SMALL BUT POWERFU

No more diagnostic cables between your scan tool and a vehicle.

G-scan Tab is an affordable Tablet PC based diagnostic solution with Bluetooth technology.

G-scan Tab shares the same database with legendary G-scan and G-scan2.

With already massive, yet constantly growing coverage, you can enjoy G-scan’s brilliant software with choice of your own Windows based device..

The G-scan Tab is an affordable PC based automotive diagnostic solution using Bluetooth technology.

The G-scan Tab offers exceptionally strong and reliable bluetooth connectivity and can connect to a windows 10 or later based tablet, laptop or computer. The fast and intuitive G scan limited diagnostic software gives in-depth capabilities on a huge range ofvehicle makes and models, which is updated and expanded 3 times per year. Includes one year free software updates, and 12 months warranty.

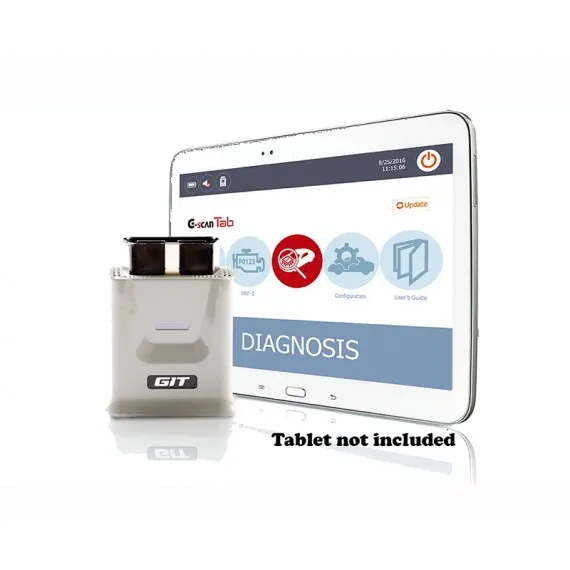

Note:PC or tablet is not included with purchase. Own PC, tablet or desktop pc with Windows 10 (or later) operating system and bluetooth connection capability is required for operation.
12v system coverage only, 24v vehicles not supported by G scan Tab. (refer G scan 2 or G scan 3)
OBDII connected vehicles covered only. OBDI generation vehicles not supported by G scan Tab. (refer G scan 2 or G scan 3)
J2534 pass thru not supported by G Scan Tab. (refer G scan 2 or G scan 3)

Features:

Wireless via Bluetooth

Wireless and reliable connection between the GVCI and the PC is made simple and easy viaBluetooth

Factory Tool base H-yundai and K-ia S/W

Provides complete coverage for H-yundai K-ia cars based on H-yundai and K-ia GDS factory tools

Cost Efficient

No ned to pay for standalone scan tools complete hardware. save the cost by selecting and affordable Windows based tablet from the shop or by utilizing the laptop that you already own.

Versatility
Runs on a windows based Tablet,or any standard Windows device including laptop and desktop PCs. Minimum system requirement should be observed.

No Pre OBD-II vehicles coverage
G-SCAN Tab shares the same database (including OBD I Generation vehicles) with G-SCAN and G-SCAN2.

No 24V Commercial vehicles Support
G-SCAN Tab is not copable of accepting power and signal of 24V commercial vehicles.

No J2534 Pass-thru function
G-SCAN Tab does not support J2534 function. G-SCAN2 is the only option as a Pass-Thru device for programming ECUs on both Hyundai and Kia vehicles.

General Specification

System Requirements

Smart Update

When the Windows tablet or PC is connected to the internet, G-scan Tab connects to the GIT server through the internet, checks and downloads available updates and patches, and keeps the diagnostic database up to date.

System and DTC Auto Search

“System Search” option automatically checks all vehicle systems and reports fault codes, and provides access to advanced diagnostic functions available for each detected system.

Live data

As one of the basic diagnostic functions, G-scan Tab provides live data enabling users to monitor the system control unit’s input and output side.

Actuation Test

Actuation test is another basic diagnostic functions that G-scan Tab provides. Users can check the control unit’s operation by activating or deactivating the operation of an active component under control unit’s command.

Special Function

In addition to the basic functions of DTC read/erase, Live Data, Actuation Test and ECU info, G-scan Tab provides various coding, learning and Initializing functions.

Diagnostic Trouble Code

DTC read and erase are the basic of the basic functions for diagnosis. G-scan Tab provide 2-line DTC description that shows the long-text DTC descriptions in full, no more acronyms or erasing to fit in the limited space.

Data Graphing with Auto Scale

Alpha-numerical value of live data can be switched to fast and responsive graph mode by a simple click. It instantly self-adjusts max and min scale helping users more accurately observe and compare the parameters.

Data log and direct feedback

In case of error or failure, users can log bi-directional data transmission between G-scan Tab and the vehicle. Log data can be sent to the engineers directly from G-scan Tab, which is responded within 24 hours on working days.
