GODIAG Test Platform For BMW CAS4 / CAS4+ Programming

GODIAG BMW CAS4 & CAS4+ Test Platform

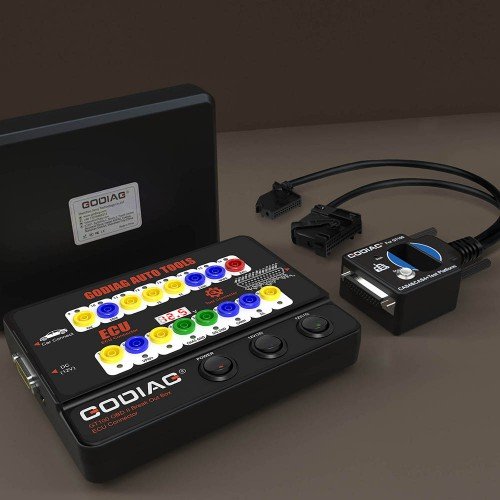

GODIAG BMW CAS4 / CAS4+ Test Platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS4 CAS4+ programming engineers.

Highlights:
1. By working together with Godiag GT100, Xhorse VVDI2, VVDI BIM Tool Pro, Lonsdor k518 and Autel im608etc, Godiag CAS4 / CAS4+ test platformcan program new key when all keys lost, can add new key and replace CAS4 / CAS4+ ECU module.

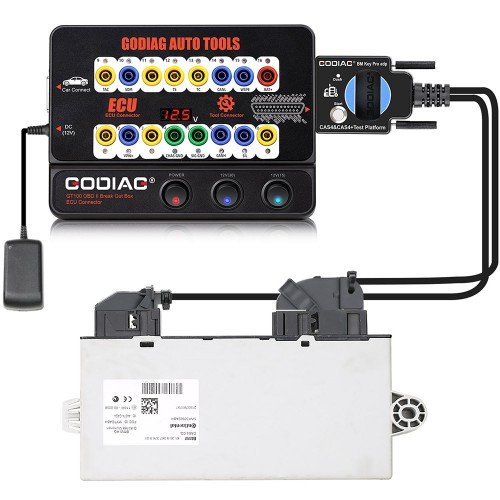

2. Before installing back the CAS4 /CAS4+ module to the car, you are allowed to connect this test platform to the CAS module to test whether it can communicate or there is any malfunction.
3. Used to read out & backup the data after preprocessing, used to replace CAS4 / CAS4+ immobilizer module (for example: replace 2-port CAS4 with 3-port immobilize system with comfort access).
4. Before installing the CAS4 / CAS4+ module back to the car, it can be used to test whether the programmed key synchronizes with cas4 cas4+.
5. Godiag CAS4 CAS4+ test platform can help expand business for the Engineers who are skilled to program CAS4 /CAS4+ key.
When a car owner lost the key, he / she can remove the CAS4 module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and CAS4 / CAS4+.
6. Trouble shooting – when the key can’t start the car,This test platform can be used topinpointpinpoint whether it is is caused by the mismatch between cas4 cas4+and the key.
7. This test platform adopts the dedicated OEM cas4 cas4+ fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of CAS4 CAS4+ module.

GODIAG for BMW CAS4 /CAS4+ Programming Test Platform Display:
①DB25 female connector(used to connect the male port of GODIAG GT100/GODIAG OBD2).
② Ignition simulated start switch.
③ Immobilizer dashboard simulated indicator.
④ Key sensing area.
⑤ Screw bolt.
⑥ Godiag OEM dedicated CAS4 CAS4+ power adapter or CAN Communication adapter.
⑦ Godiag OEM dedicated CAS4 CAS4+ start control adapter.

Dimension:
Support Car Models
Car Model
CAS4 CAS4+
9S12XD512(1L15Y)
9S12XEF100(5M48H)
For BMW 5 Series
2010-2014
F07/F10/F11/F18
For BMW 6 Series
2011-2013(F12 F13)
For BMW 7 Series
2009-2013(F01 F02)

Package List:
1pc x GODIAG CAS4 & CAS4+ Test Platform
