GODIAG GT100+ GT100 Pro OBDII Breakout Box ECU Bench Connector with Electronic Current Display

Support more protocols like CANBUS, K-Line, PWM, VPW+, KWP2000.
Support All Key Lost for Porsche, VW, Mitsubishi etc.

GODIAG GT100+ GT100 Pro OBDII Breakout Box ECU Bench Connector with Electronic Current Display

GODIAG GT100+ Highlights:

1. New generation of GT100, Adds Electronic Current Display. You can intuitively see the current display of the ECU by connecting the ECU module with the Banana interface or the DB25 cable, which can make your work much easier.
2. ECU connection + OBDII Protocol Detector + Electronic Current Display.
3. The cable can be extended, with an Optional Dedicated Adapter.
4. Work together with Xhorse VVDI2, Autel devices, Launch, Foxwell etc.
5. Convert OBD1 diagnostic interface to the standard OBD2 diagnostic interface.
6. One Year Warranty.

Godiag FEM / BDC programming test platform 5 major features:

1. Provide locksmiths with the easy and convenient connection for FEM/BDC immobilizer system.
2. Perform the synchronization test for the programmed FEM/BDC and the key
3. Provide a test environment for the engineers who professionally recycle FEM/BDC.
4. Help automobile maintenance engineers check whether the FEM/BDC and the key are synchronized correctly.
5. Provide professional engineers with connecting FEM BDC modules and instrument.

GODIAG GT100+ Details:

1. GT100+ adds Electronic Current Display.

On bench connect the ECU module by using the banana connector or db25 dedicated ECU adapter, Godiag GT100+ will display the electronic current.

The advantage to display electronic current value:

The user can intuitively see the current status of the ECU. There is no current display or the actual displayed current is inconsistent with the engineer’s expected current, then you can immediately check whether the wiring is wrong, if the wiring is correct, he can judge that the ECU may be broken, so there is no need to perform diagnostic communication and can directly repair the ECU.

If it shows too much current, then you can also determine if the cable is incorrectly connected or the ECU is broken.

2. GT100+ Adds CANBUS Protocol Communication

GT100+ Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100 can only display K-Line Pwm Vpw+ KWP 2000 protocol. GT100+ will display CANBUS K-Line Pwm Vpw+ KWP 2000 protocol communication.

3. Reset instrument/immobilizer when all keys lost

When you want to program key for VW, Porsche, Mitsubishi and nother cars with all keys lost, or to program Toyota ECU, you need to activate the dashboard (reset instrument) or wake up the immobilizer module first. Then you can operate directly by using GT100 GT100+.

a. To replace the engine ECU of Toyota or to use some key programmer to program Toyota when all keys lost, it requires to short-circuit PIN13-PIN4

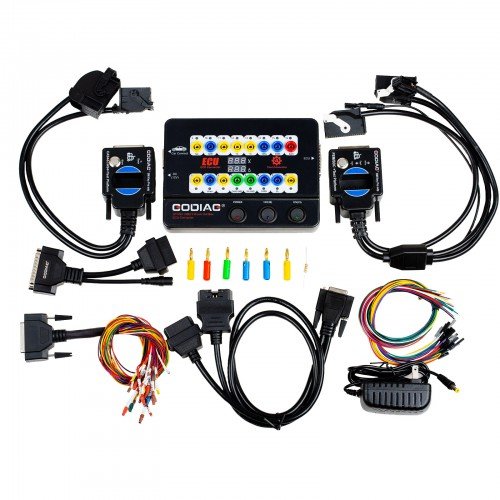

Package includes:

1pc x Host
1pc x OBD 2-in-1 extension cable
1pc x Colored jumper cable
1pc x Power supply 12V
1pc x Resistance 120 ohm
6pcs x Banana plug
24pcs xWire accessories, Dupont 2.54mm connector female pin
1pc x BMW CAS4 & CAS4+ Programming Test Platform
1pc x BMW FEM BDC Programming Test Platform
2pc x GODIAG OBD2 to OBD25
