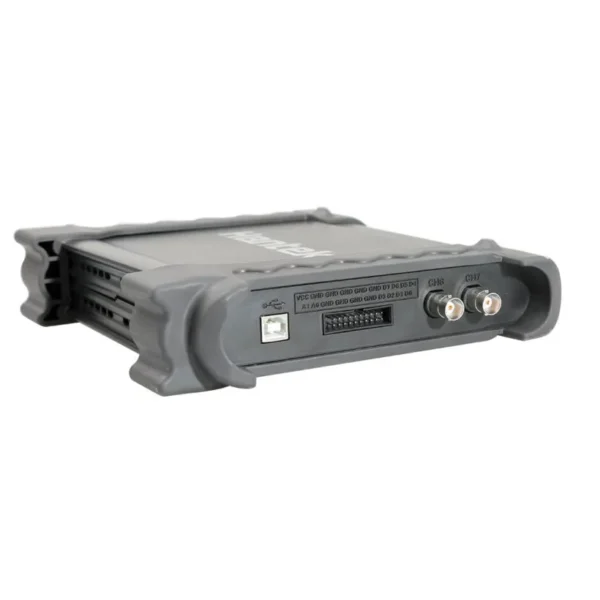

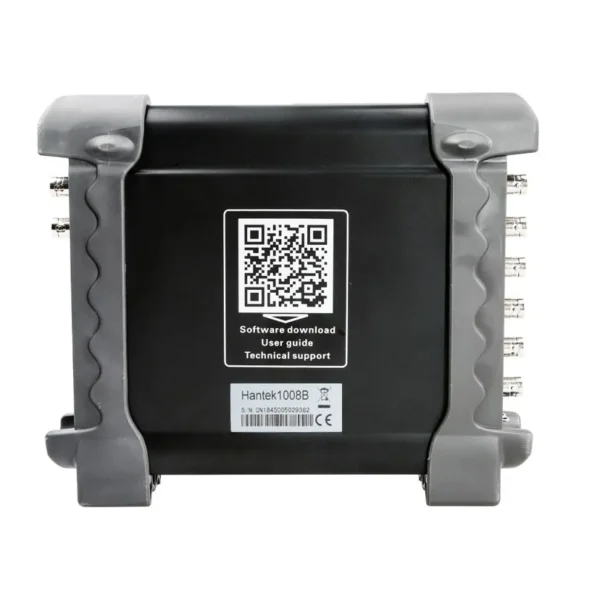

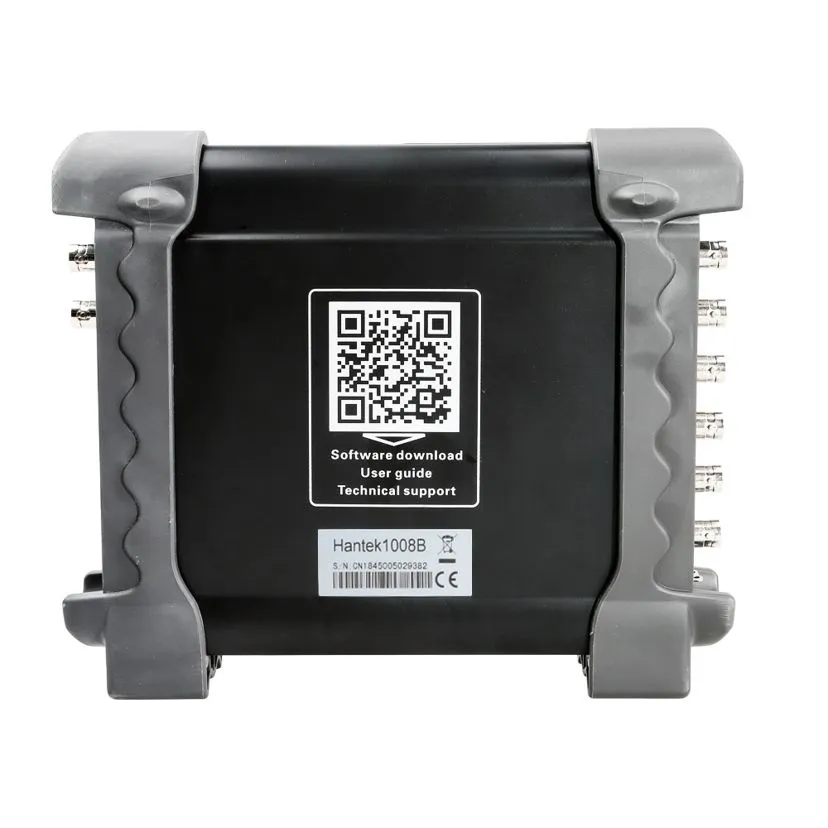

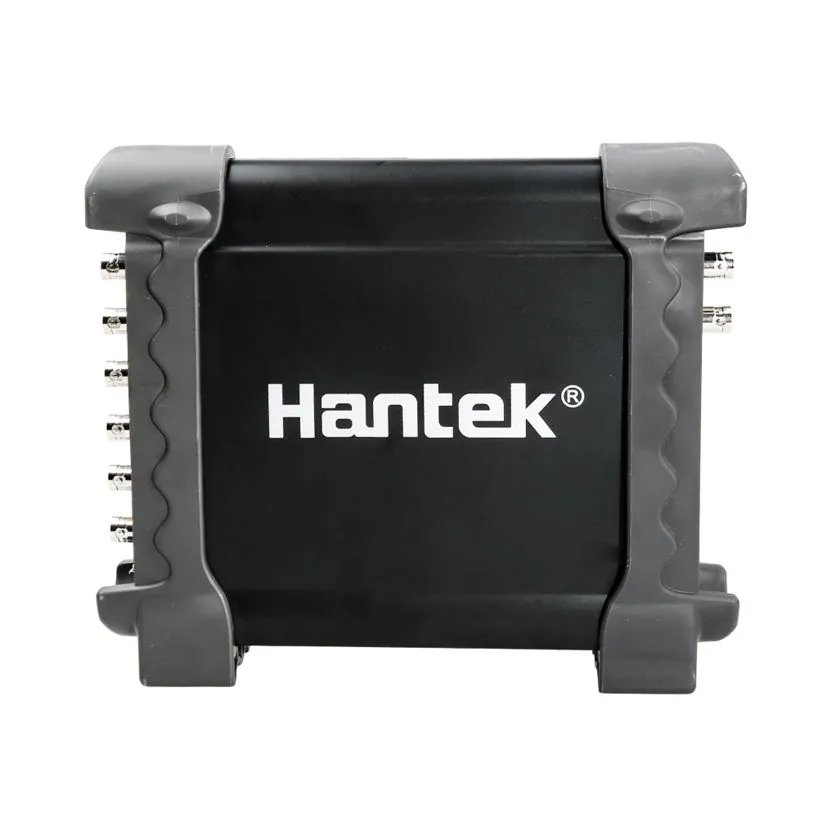

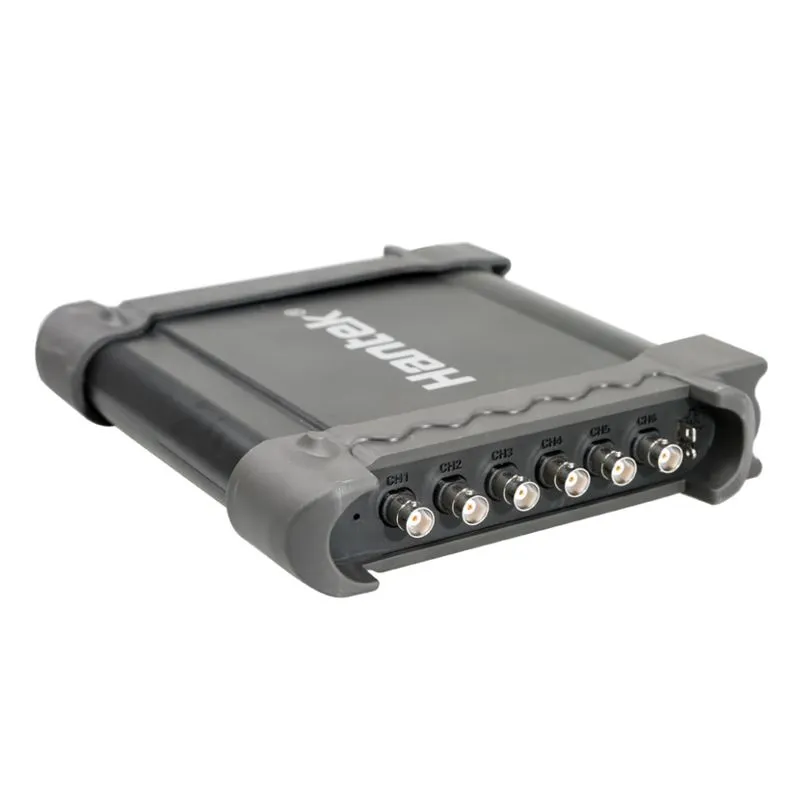

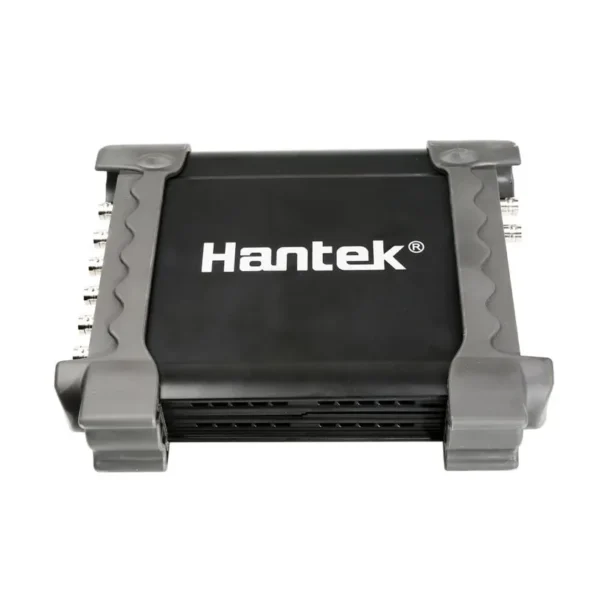

Hantek 1008B 8CH PC Oscilloscope/DAQ/8CH Generator
Top 3 Reasons to Get1008B 8CH PC Oscilloscope/DAQ/8CH Generator:
1. Highly efficient and cost-effective; 8 channels oscilloscope for vehicle testing
2. 2.4MSa/s real time sampling rate, 12bit vertical resolution; DAQ card function
3. 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.
1) Oscilloscope
8 channels oscilloscope, 2.4MSa/s real time sampling rate
12 bits vertical resolution, spectrum analysis function
2) Programmable Generator
8 channels programmable generator
Can analog signals of crankshaft, camshaft etc.
3) Others
USB 2.0 interface plug and play, and no need extra power supply;
More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Windows 8.
Hantek 1008B Oscilloscope Functions List:
Set Oscilloscope
Set Vertical System
Set Horizontal System
Set Trigger System
Save/Load
Utility Function
Measure Signal
Display System
Waveform Generator
Zoom In/Out Waveforms
Acquisition
Print
Generate Square Waveform
Hantek 1008B Oscilloscope Software Display:
Hantek 1008A Oscilloscope Reviews:
Review 1:Software can be a bit flakey, but support is excellent as responding to problems. The sample rate is quite low, but it is well within the specs of the device. I just wish it were higher. Not a bad entry level basic scope.
Review 2:This devices is just what the doctor ordered! I know it’s ‘meant’ for auto type diagnostic work but for me using just two channels for audio stuff the 12 bit resolution at the frequencies I care about is just right from my needs.
Review 3:I really couldn’t tell because the item was purchased for someone else, but I’m sure it meets all expectations
Hantek 1008B 8CH PC Oscilloscope/DAQ/8CH Generator Parameters:
| Model | Hantek 1008B |
| OscilloscopeMode | |
| VerticalSystem | |
| AnalogChannel | 8 |
| InputImpedance | Resistance:1MΩ |
| InputSensitivity | 10mV/divto5V/div |
| InputCoupling | DC |
| Resolution | 12bits |
| HorizontalSystem | |
| MemoryDepth | 4K |
| Max.Input | 400V(DC+ACPeak) |
| Real-TimeSamplingRate | 2.4MSa/s |
| TimeBaseRange | 1ns/divto20000s/div(1-2-5sequences) |
| TimeBasePrecision | ±50ppm |
| Trigger System | |
| Time Base Range | 1ns/div to 20000s/div(1-2-5sequences) |
| Time Base Precision | ±50ppm |
| Trigger Source | CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8 |
| Trigger Mode | Edge |
| X-Y Mode | |
| X-Axis Input | CH1 |
| Y-Axis Input | CH2 |
| Cursors and Measurement | |
| Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot |
| Time Measurement | Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursors Measurement | Horizontal ,Vertical, Track, Auto Measure Modes |
| Waveform Signal Process | +,- , x,÷, FFT, Invert |
| Voltage Range | 10mV to 5V/div @ x 1 probe 100mV to 50V/div @ x 10 probe 10V to 5000V/div @ x 1000 probe 100V to 50000V/div @ x 10000 probe 200mV to 100V/div @ 20:1 |
| Current Range | 100mA to50.0A/div @ CC65(20A) 1000mA to500.0A/div @ CC65(65A) 1A to100.0A/div @ CC650(60A) 1A to200.0A/div @CC1100(100A) 10A to2000.0A/div @CC1100(1100A) |
| FFT | Rectangular, Hanning, Hamming, Blackman Window |
| Math | Addition, subtraction, multiplication, division |
| Programmable Generator | |
| Channel | 8 |
| Output Level | LVTTL |
| Frequency Range | 0-250kHz |
| Interface | USB 2.0(Full Speed) |
| Power | No need extra power supply |
| Size & Weight | 185 x 150 x 27 (mm); 0.35kg |

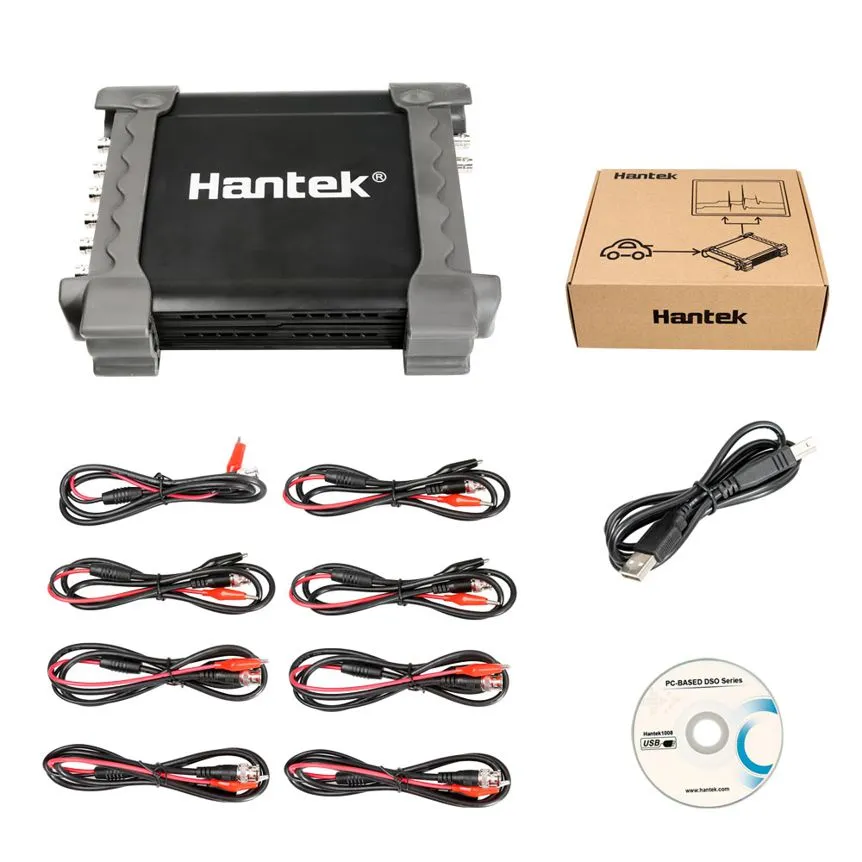

Hantek 1008B Package including:
1pc x 8CH USB Auto Scope/DAQ/8CH Generator

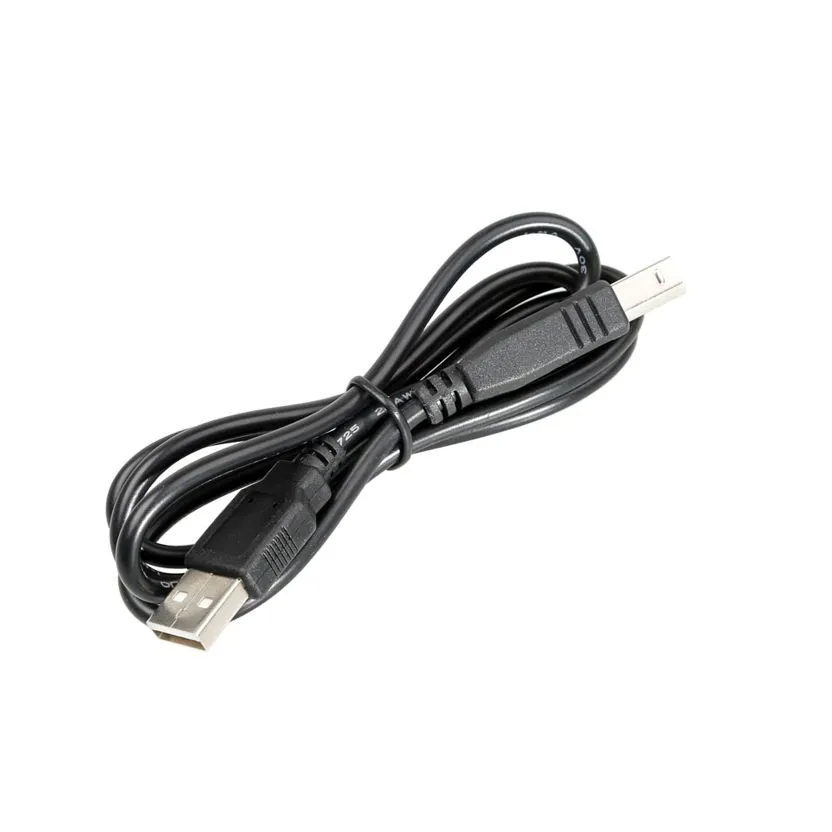

1pc x USB Cable

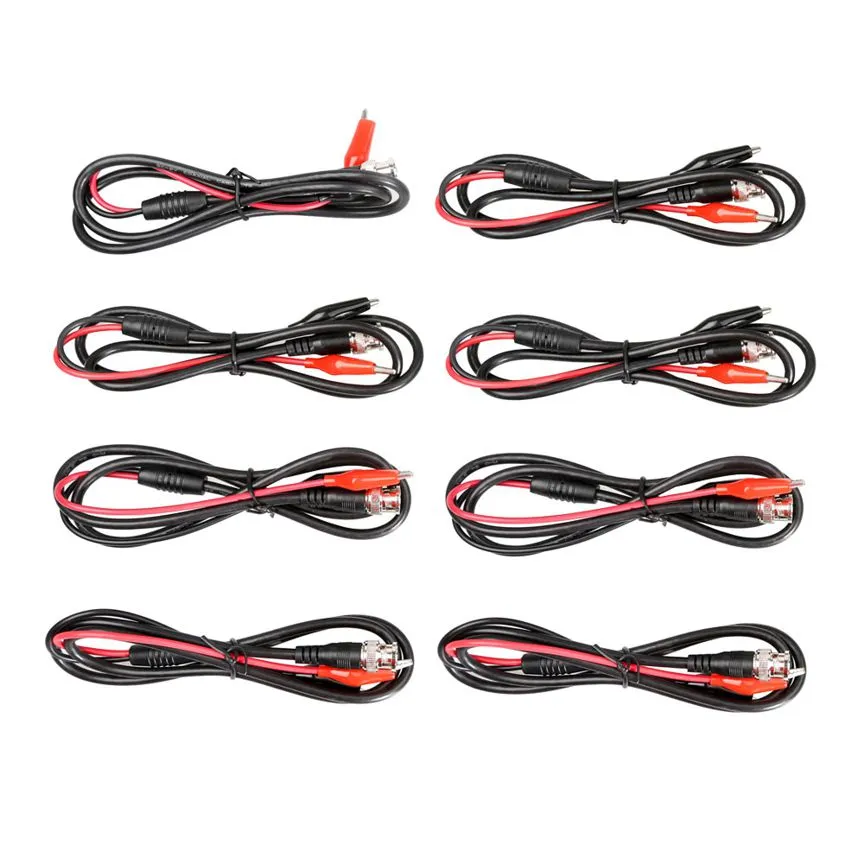

4pc x Connect cable

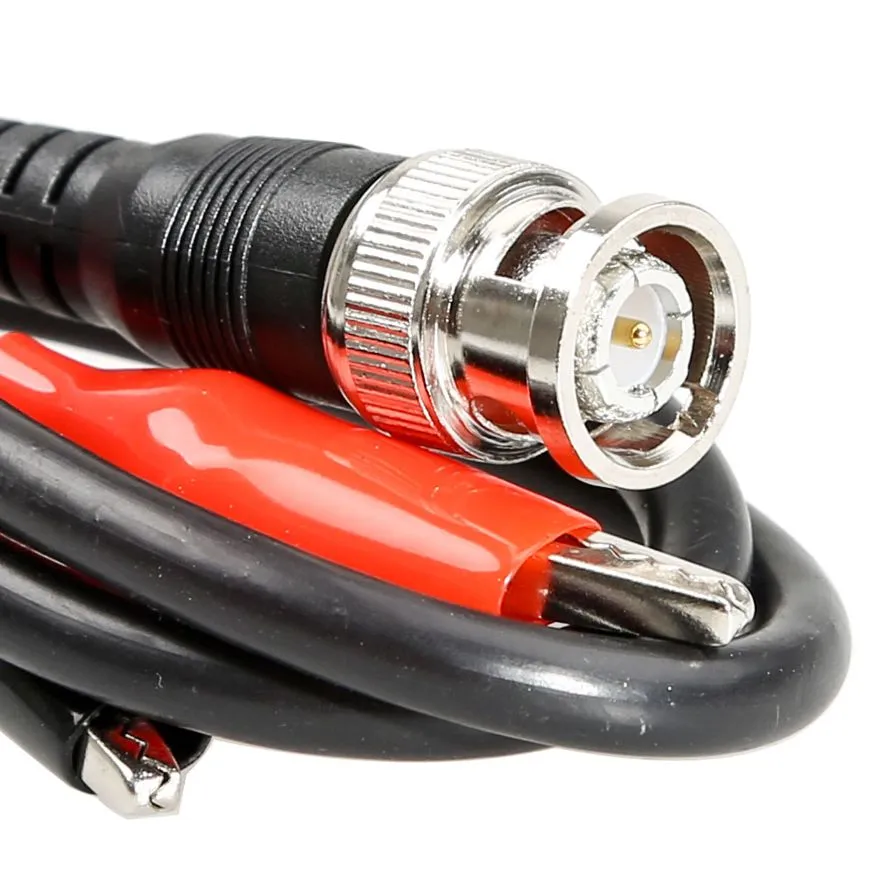

4pc x BNC Connector
1pc x CD for English software
